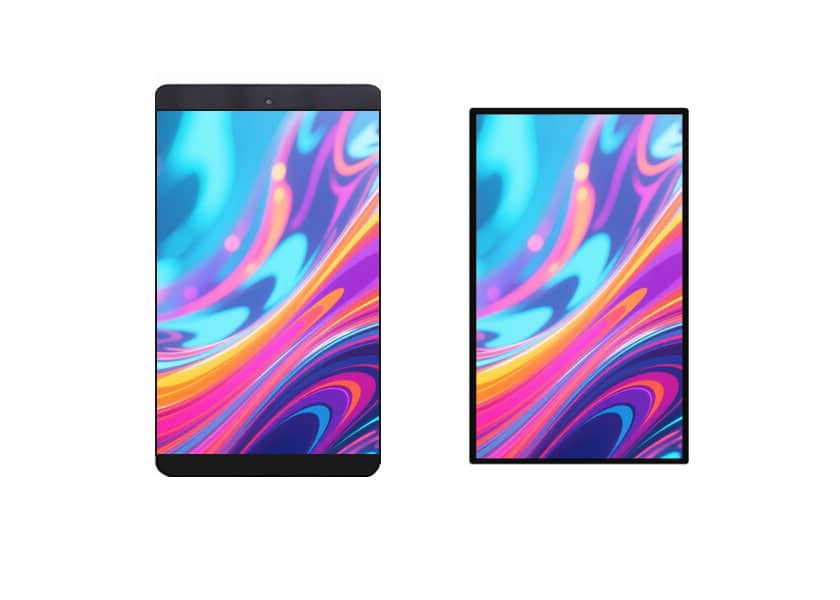

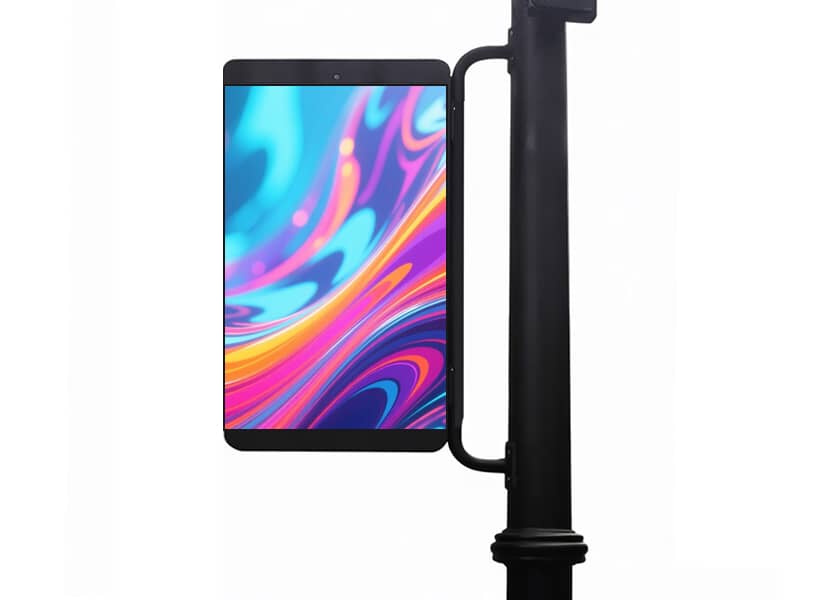

AL-B Series smart city LED pole screen side view double-sided display option

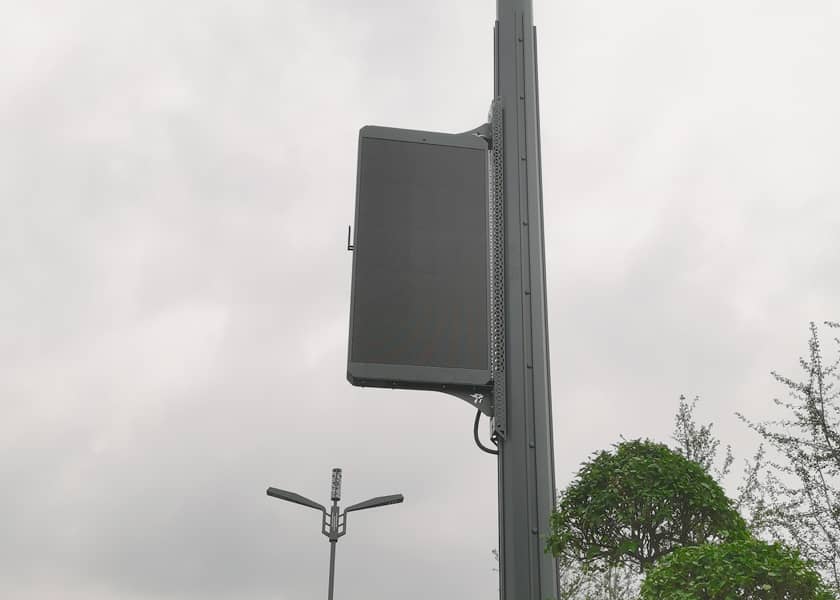

AL-B Series smart lamp post display installation detail 5G IoT ready

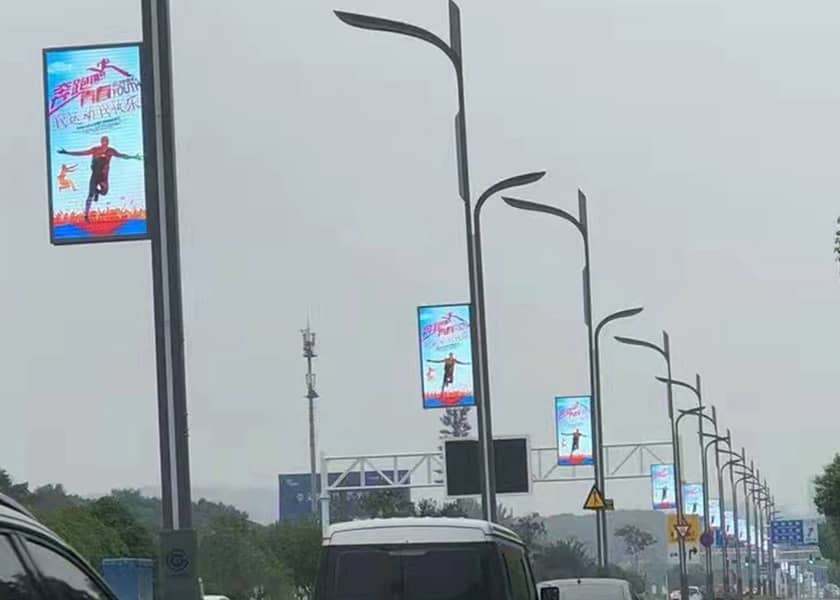

AL-B Series urban digital signage close-up high brightness 4500 nits

AL-B Series Smart Lamp Post LED Display | Smart City Street Light Screen

Integrated Smart City Street Light Screen with IP65 Waterproof

IP65 Waterproof - All-Weather Outdoor Use
High Brightness up to 4500 Nits
Modern, Minimalist Aesthetic Design
High Flatness & Seamless Integration
Supports Double-Sided Display Option
Multi-functional Integration with 5G/IoT
Quick Installation on Street Light Poles
Low Power Consumption - Energy Saving

✉ Email Us

Our team will respond within 12 hours

Why Choose the AL-B Series Smart Lamp Post LED Display?

The AL-B Series smart lamp post LED display is an integrated smart city street light screen designed for urban digital signage, city center advertising, and smart infrastructure projects. With IP65 waterproof rating and up to 4500 nits high brightness, it delivers clear, vibrant content even in direct sunlight and harsh weather conditions.

The modern, minimalist aesthetic design ensures seamless integration with existing street lamps. Supports double-sided display option for maximum advertising impact in high-traffic urban areas. 5G/IoT ready for smart city integration, enabling higher-level multifunctional performance and seamless operation.

Available in pixel pitches from P2 to P3 with 3840Hz refresh rate and 140° wide viewing angle. Appearance customization available to match the height and form of existing street lamps. Low power consumption for 24/7 urban operation.

Product Features

Waterproof

High Brightness

Double-Sided LED Display - Smart City Lamp Post Screen

Supports Double-sided Display

Quick Installation

High Protection

Wide Viewing Angle

Multiple Control Methods

Low Power Consumption

Supports Appearance Customization

Designed to harmonize with the unique characteristics of each roadway, our lamp post screens are configured to match the height and form of existing street lamps. The result is a visually cohesive streetscape that accentuates urban landmarks and elevates promotional messaging.

Smart Lamp Post LED Display - Customizable Appearance Design

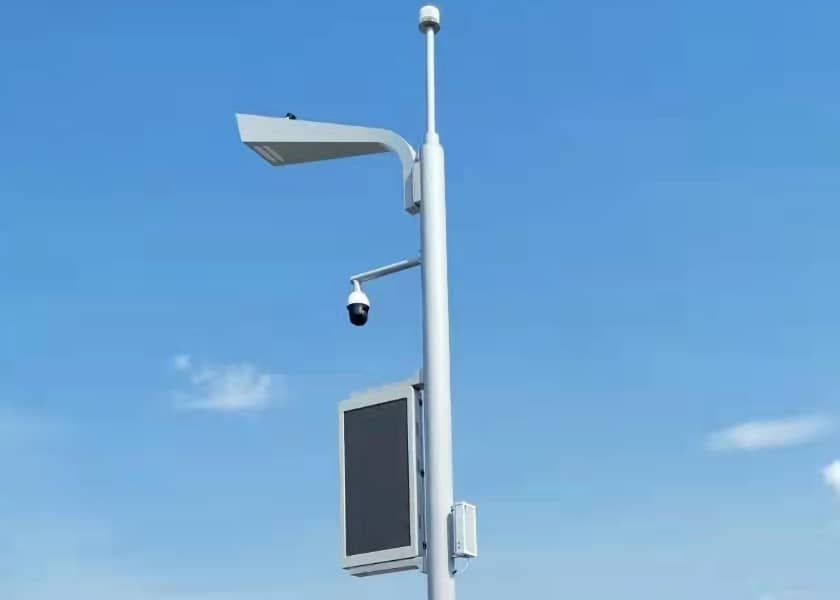

Multi-functional Integration

Our smart city LED pole screen goes beyond a single promotional function. By utilizing next-generation wireless networks and integrating advanced gateways, it achieves higher-level multifunctional performance and seamless operation, contributing to the development of a smarter city.

Installation Methods

Mobile bracket / Wall-mounted installation

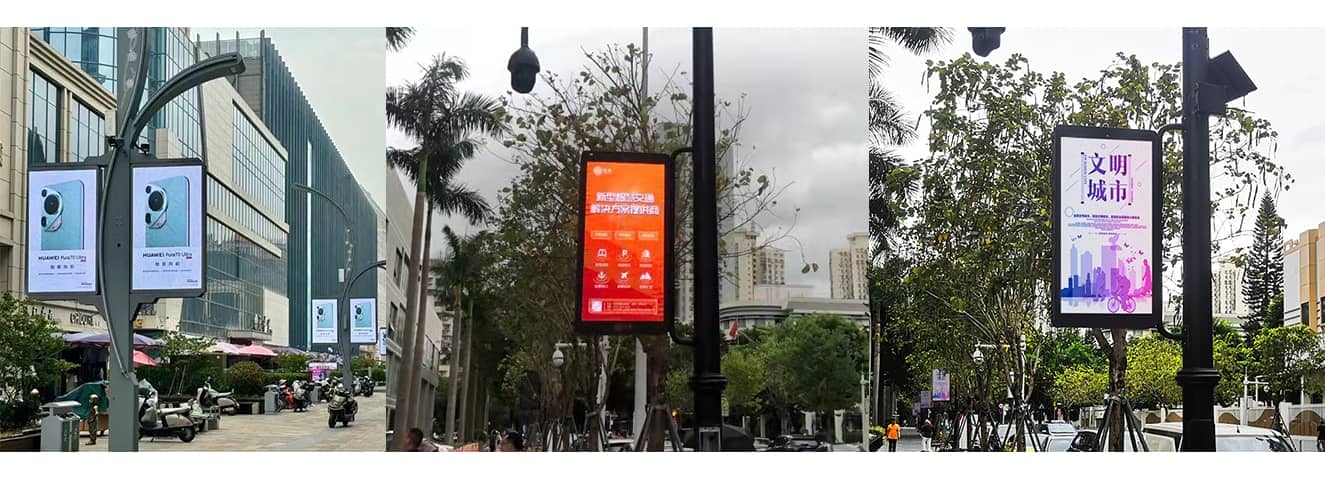

Street Light Pole Installation - Smart Lamp Post LED Display Mounting

Application Scenarios for LED Display

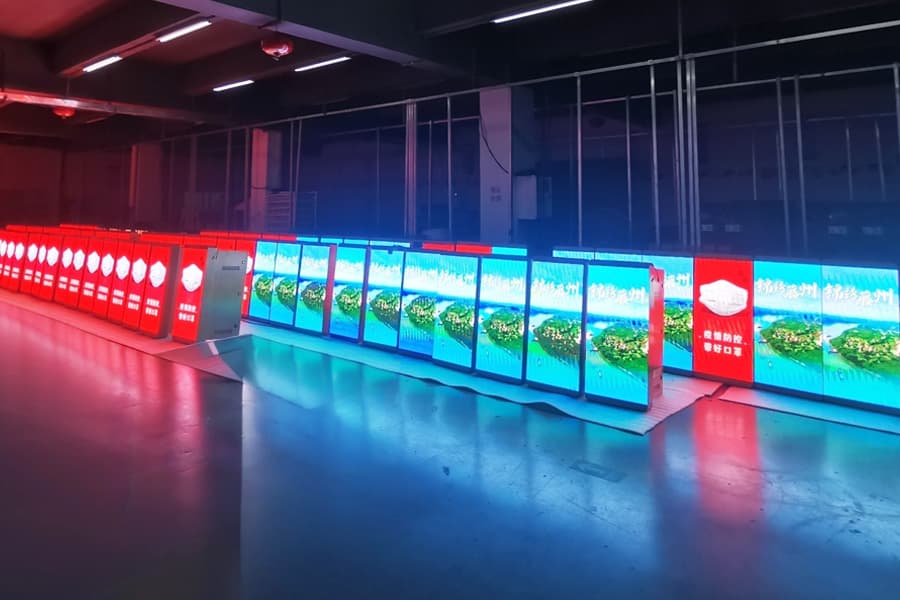

Smart Lamp Post LED Display - Urban Street Advertising Application

Urban Street Digital Signage

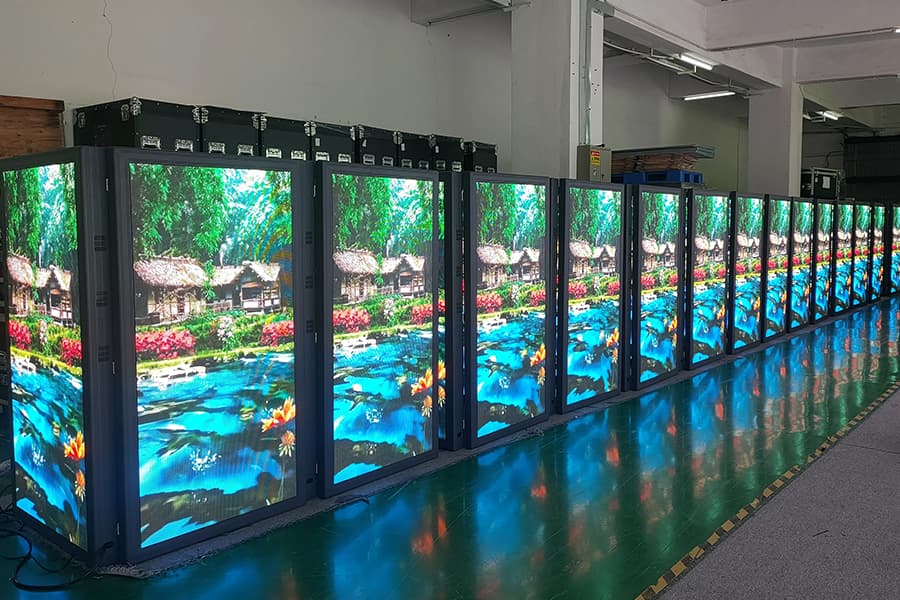

Smart City LED Pole Screen - City Center Installation

City Center Smart Display

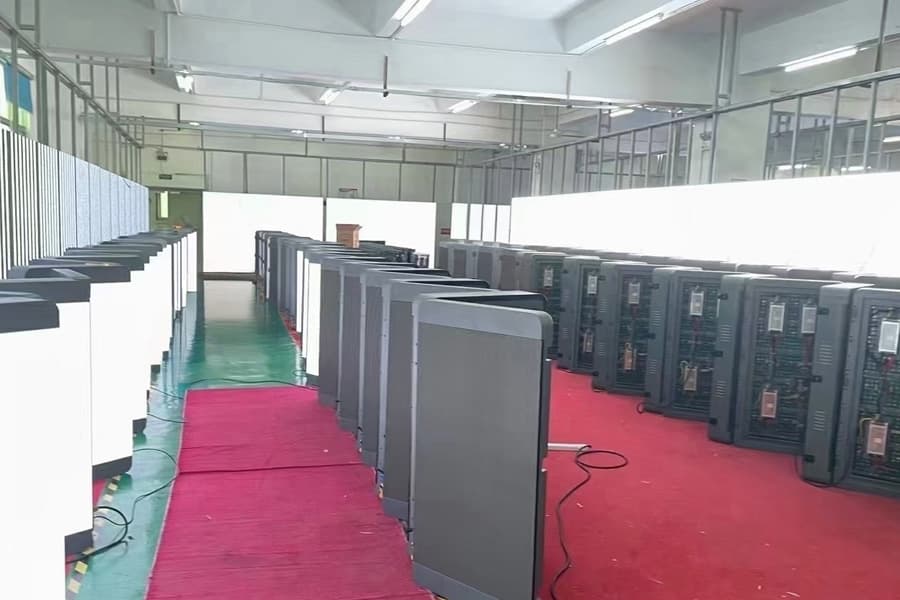

Street Light LED Screen - Smart City Application

Smart Street Light Display

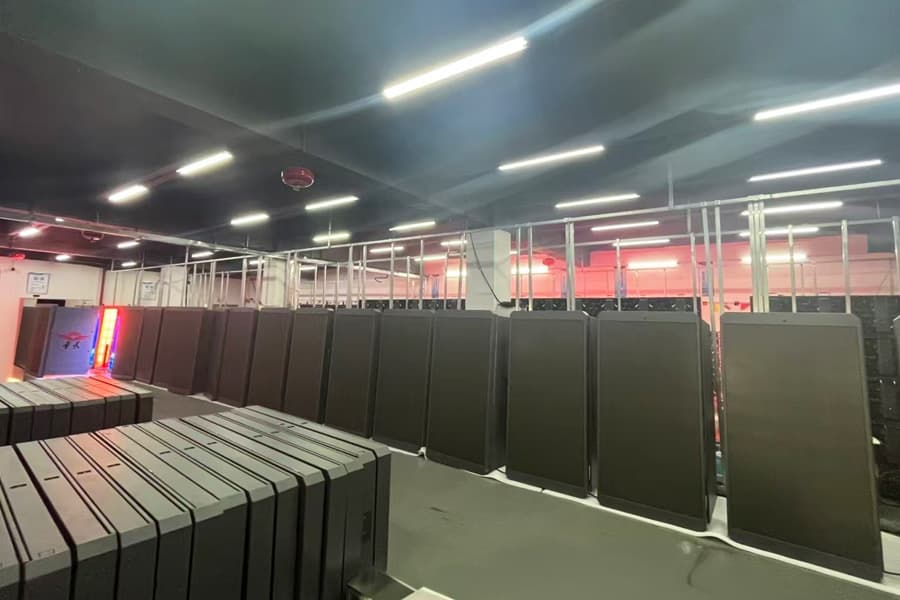

Double-Sided Lamp Post Display - Urban Advertising

Double-Sided Advertising

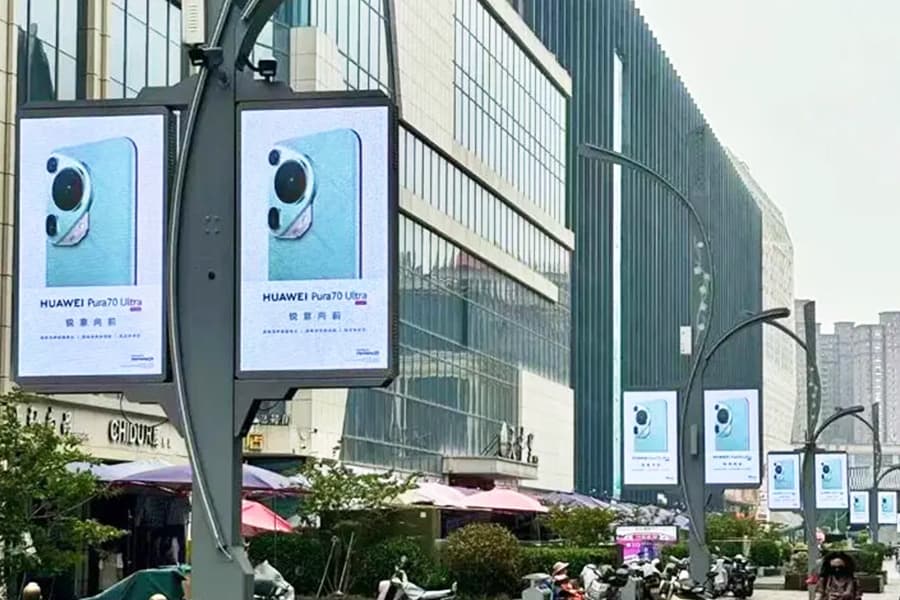

Smart City Infrastructure

AL-B Series Smart Lamp Post LED Display Specifications

Pixel Pitch	P2	P2.5	P3
LED type(SMD)	1G1R1B	1G1R1B	1G1R1B
Physical Density(dots/㎡)	250000	160000	111111
Drive mode	1/16s	1/16s	1/16s
Module size(mm)	320×160	320×160	192×192
Module resolution(dots)	160x80	128×64	64×64
Best viewing distance	≥2	≥2.5	≥3
Brightness(Nits)	4000-4500	4000-4500	4000-4500
Waterproof grade	IP65
Environment	Outdoor
Refresh rate(Hz)	1920-3840
Viewing angle(H/V)	140°/140°
Maintenance mode	Front & Rear
Gray scale	10-14bit
Max consumption(W/㎡)	800-1000
Avg. consumption(W/㎡)	300-350
Working Voltage	AC100-240V,50/60Hz
Working temp/Humidity	-20~50℃/10%~95%

Frequently Asked Questions - Smart Lamp Post LED Display

What is a smart lamp post LED display?

A smart lamp post LED display is an integrated street light screen designed for smart city applications. It combines LED display technology with street lighting, enabling urban digital signage, advertising, and smart city services like public information displays and emergency alerts.

Is the AL-B Series weatherproof?

Yes, the AL-B Series features IP65 waterproof rating, providing protection against rain, dust, and harsh weather conditions—perfect for 24/7 outdoor urban operation.

How bright is the display?

The AL-B Series offers up to 4500 nits high brightness, ensuring excellent visibility even in direct sunlight—essential for outdoor urban advertising.

Can the lamp post display be double-sided?

Yes, the AL-B Series supports double-sided display options, allowing content to be shown on both sides of the street light pole—maximizing advertising impact in high-traffic urban areas.

Is the AL-B Series ready for smart city integration?

Yes, the AL-B Series is 5G/IoT ready for smart city integration. By utilizing next-generation wireless networks and advanced gateways, it achieves higher-level multifunctional performance and seamless operation.

What is the warranty on AL-B Series?

We offer a 2-year standard warranty with lifetime technical support. The IP65 waterproof rating and robust construction ensure long-term durability for urban outdoor applications.
