The IN-E Series COB (Chip on Board) fine pitch LED display represents the pinnacle of indoor LED technology. With ultra-small pixel pitches from P0.78 to P1.87, it delivers stunning 4K and 8K ultra-high-definition video walls for the most demanding professional environments.

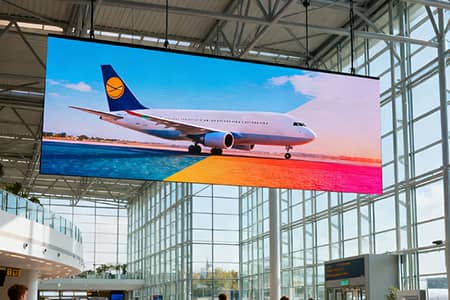

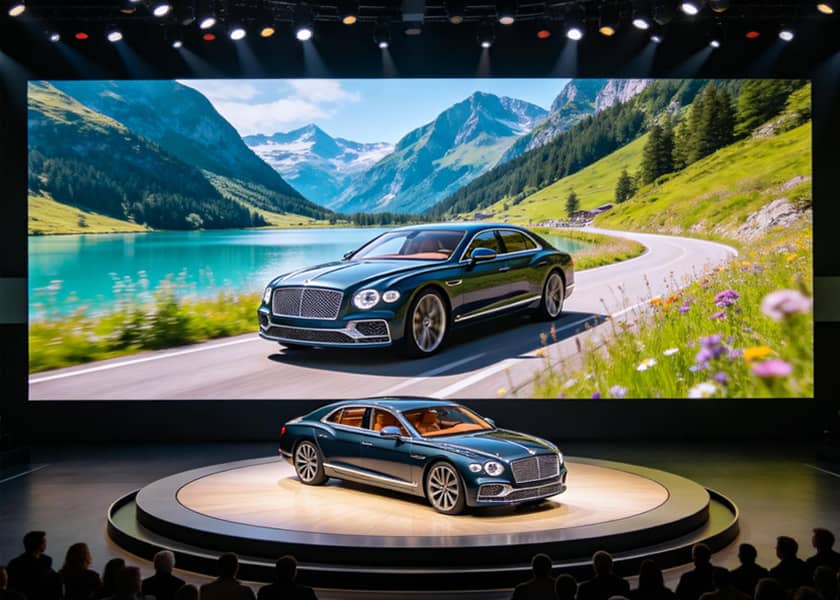

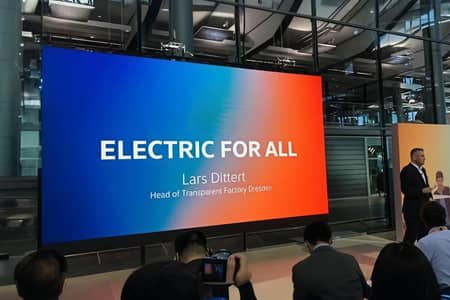

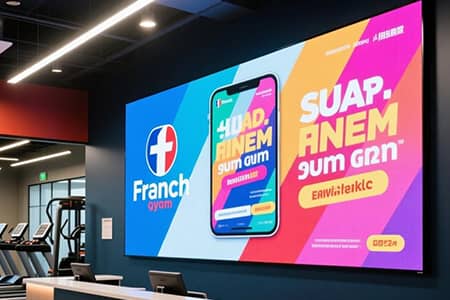

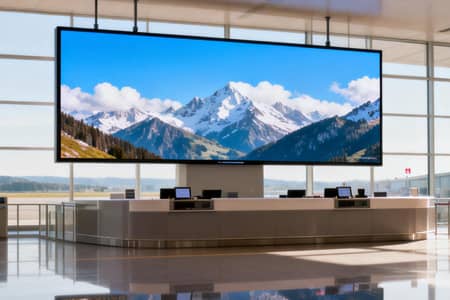

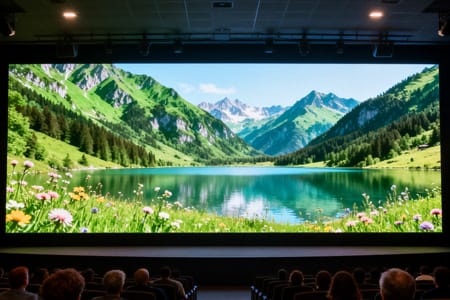

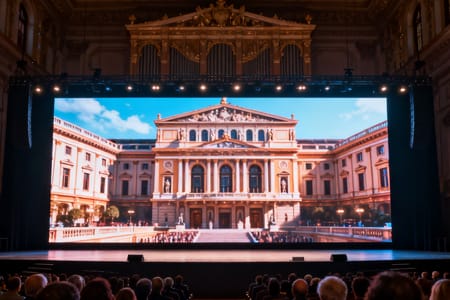

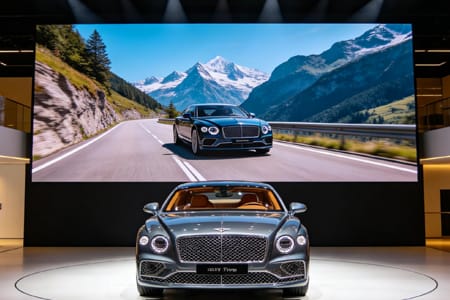

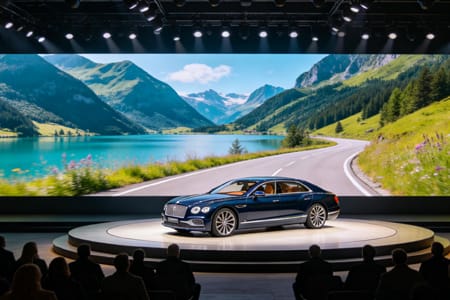

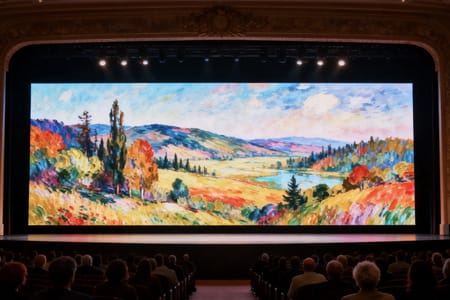

COB technology offers superior protection compared to traditional SMD LEDs. The chip is directly bonded to the board and encapsulated, providing excellent resistance to impact, dust, moisture, and static electricity. This makes the IN-E Series ideal for control rooms, conference rooms, broadcast studios, luxury retail, and command centers where reliability and image quality are critical.

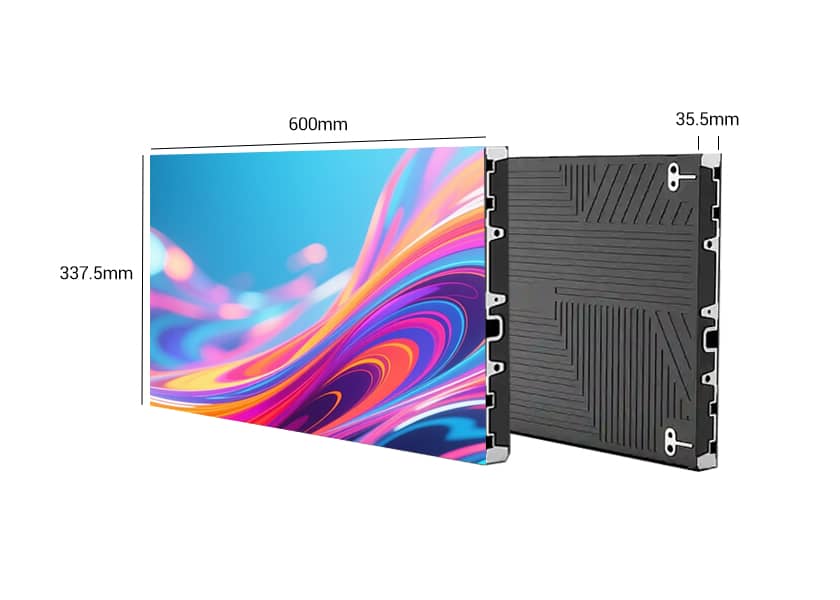

The cabinet is just 35.5mm thin and weighs only 4kg (600x337.5mm size), making installation effortless. With 3840Hz refresh rate, 140° wide viewing angle, 16-bit grayscale, and front maintenance, the IN-E Series delivers flicker-free, true-to-life imagery that professionals demand.

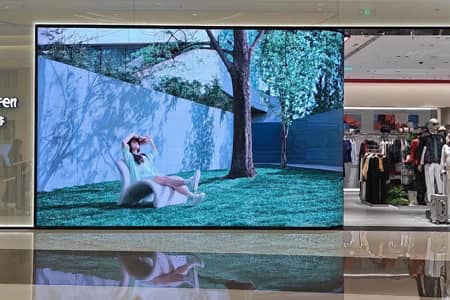

Indoor GOB fine-pitch LED displays deliver exceptional color accuracy and virtually endless scalability. They provide the ultimate visual experience for prestigious conference rooms, professional live streaming studios, and mission-critical control centers.

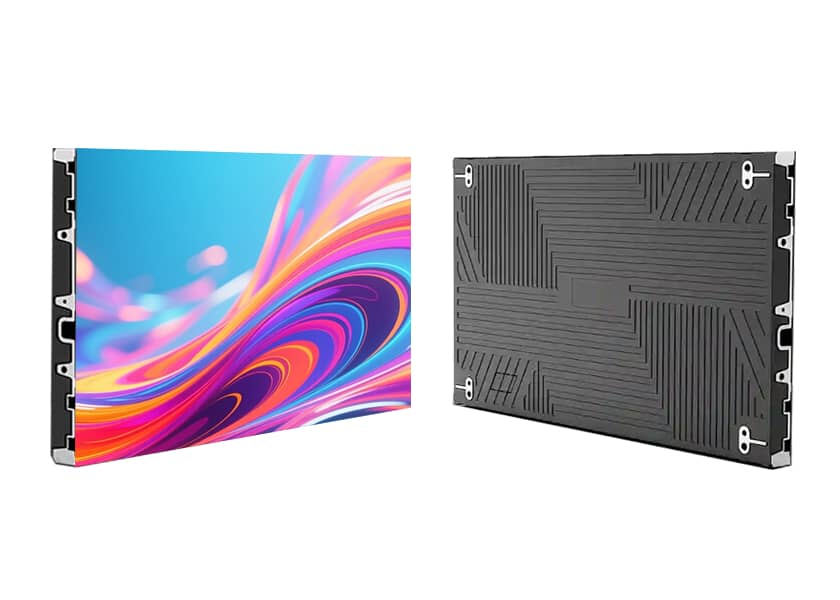

Engineered with precision die-cast aluminum, this ultra-slim cabinet features a mere 35.5mm thickness and weighs just 4KG, enabling seamless integration, easier handling, and faster installation.

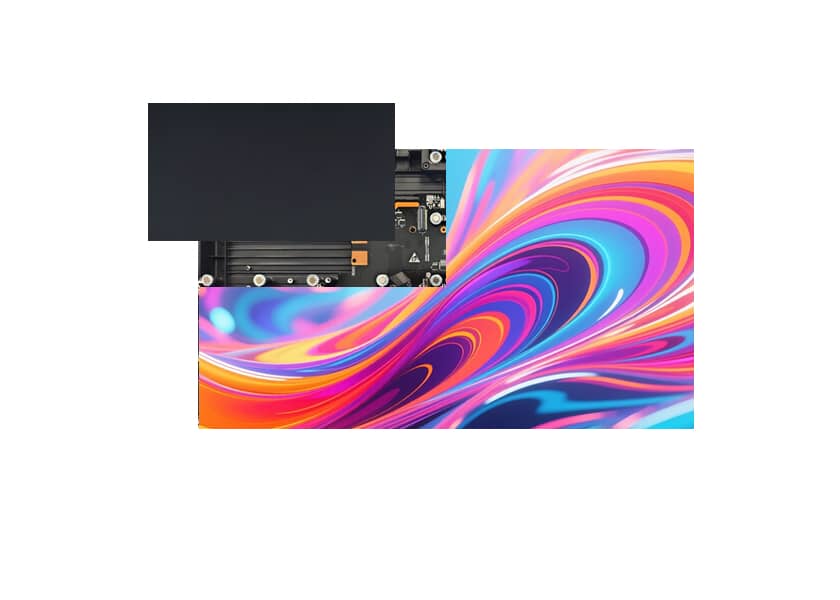

Front-access maintenance design enables direct servicing from the screen's front, eliminating the need for rear disassembly and streamlining maintenance procedures.

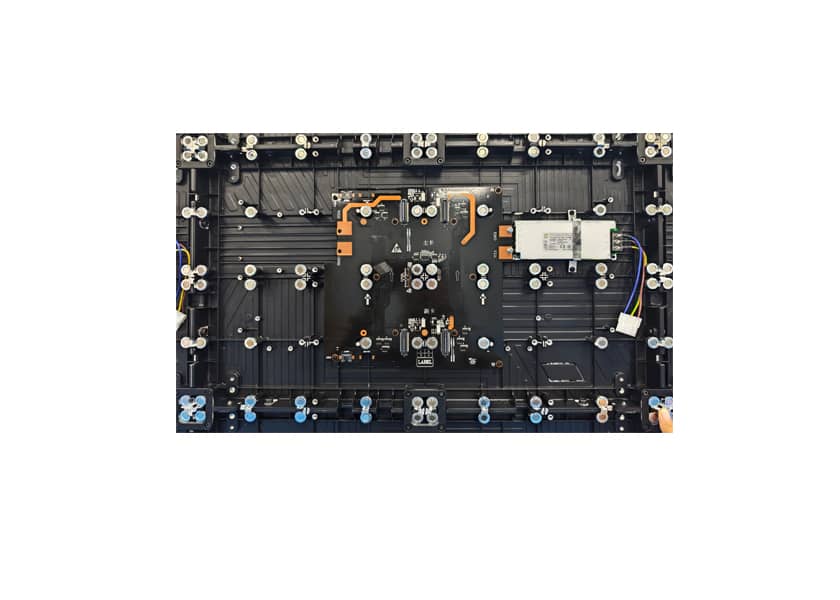

A streamlined internal layout minimizes circuit complexity, facilitating easier installation and more efficient maintenance. Combined with reliable power supply systems, this design ensures extended LED screen lifespan and consistent performance.

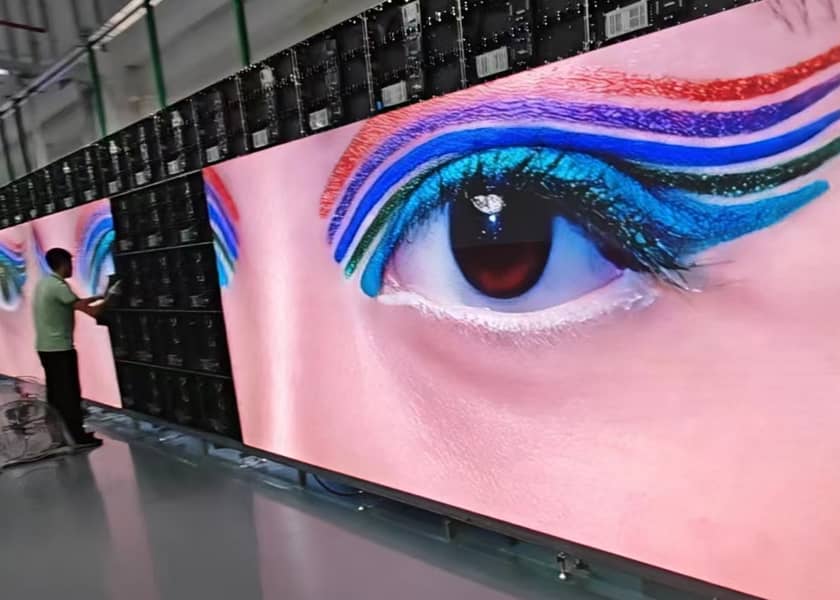

Pre-installation support and maintenance flexibility with no spatial constraints. The integrated ultra-thin aluminum cabinet ensures high dimensional accuracy and flatness, featuring a simplified internal structure that eliminates complex wiring requirements.

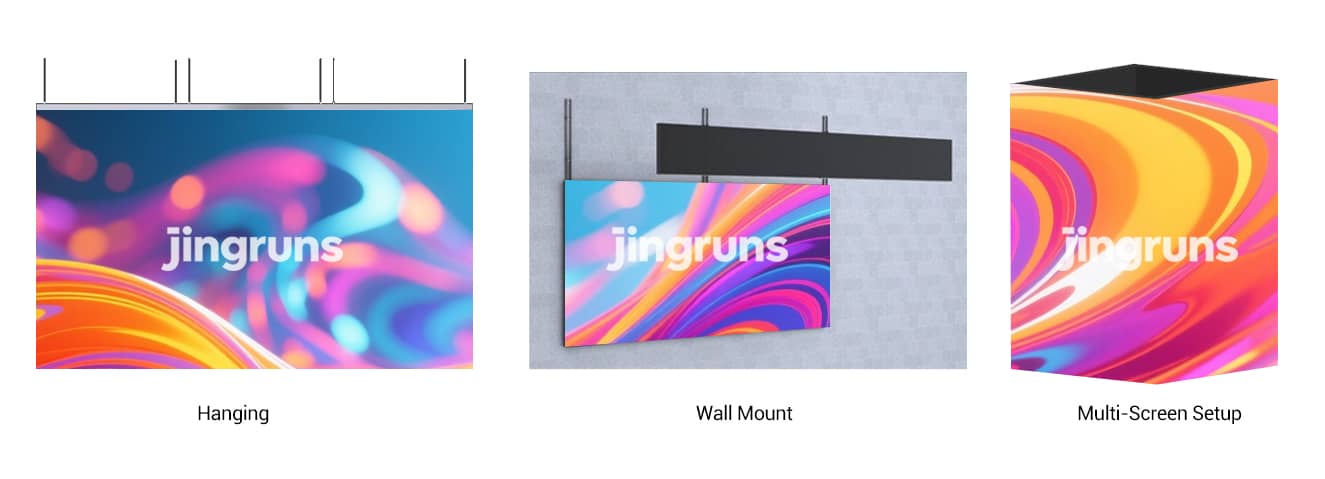

Creative splicing, infinite imagination
| IN-E Series COB Fine Pitch LED Display - 600x337.5mm Cabinet | |||||
| Pixel Pitch | P0.78 | P0.93 | P1.25 | P1.56 | P1.87 |
| LED type | COB | COB | COB | COB | COB |
| Physical Density(dots/㎡) | 1638400 | 1137777 | 640000 | 409600 | 284444 |
| Module size(mm) | 150×168.75 | 300×168.75 | 300×168.75 | 300×168.75 | 300×168.75 |
| Module resolution(dots) | 192×216 | 320×180 | 240×135 | 192×108 | 160×90 |
| Cabinet size(mm) | 600×337.5×35.5 | ||||
| Cabinet Materials | Aluminum | ||||
| Waterproof grade (front/COB) | IP31 | ||||
| Waterproof grade | IP31 (front) | ||||
| Brightness(CD/㎡) | ≥500 | ≥500 | ≥600 | ≥600 | ≥600 |
| Drive mode | 1/54 | 1/54 | 1/120 | 1/108 | 1/90 |
| Refresh rate(Hz) | ≥3840 | ||||
| Viewing angle(H/V) | 140°/140° | ||||
| Maintenance mode | Front | ||||
| Gray scale | 16bit | ||||
| Max consumption(W/㎡) | ≤560 | ||||
| Avg. consumption(W/㎡) | ≤280 | ||||
| Working Voltage | AC100-240V,50/60Hz | ||||
| Working temp/Humidity | -20~50℃/10%~95% | ||||

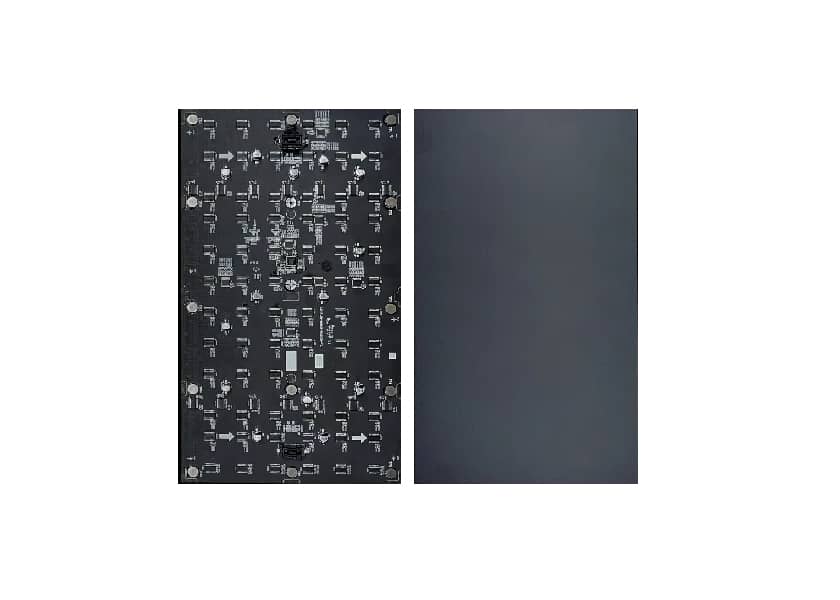

COB (Chip on Board) technology directly bonds multiple LED chips onto a circuit board and encapsulates them with a protective coating. This provides superior protection against impact, dust, moisture, and static electricity compared to traditional SMD LEDs, while also offering better heat dissipation and higher pixel density.
The IN-E Series COB display is available in P0.78, P0.93, P1.25, P1.56, and P1.87 pixel pitches. The smaller the pitch, the higher the resolution and shorter the minimum viewing distance.
For P0.78: 0.78 meters (luxury retail, broadcast studios). For P1.25: 1.25 meters (conference rooms, control centers). For P1.87: 1.87 meters (corporate lobbies, command centers).
Yes, for ultra-fine pitch applications (P1.0 and below), COB offers significant advantages including higher pixel density, better protection, improved heat dissipation, and longer lifespan. The encapsulated design also makes COB displays easier to clean and maintain.
The 600x337.5mm cabinet weighs only 4kg with a thickness of just 35.5mm, making it extremely lightweight and easy to install for wall-mounted video walls.
We offer a 3-year standard warranty with lifetime technical support. COB technology's enhanced durability also contributes to a longer operational lifespan compared to traditional SMD displays.
