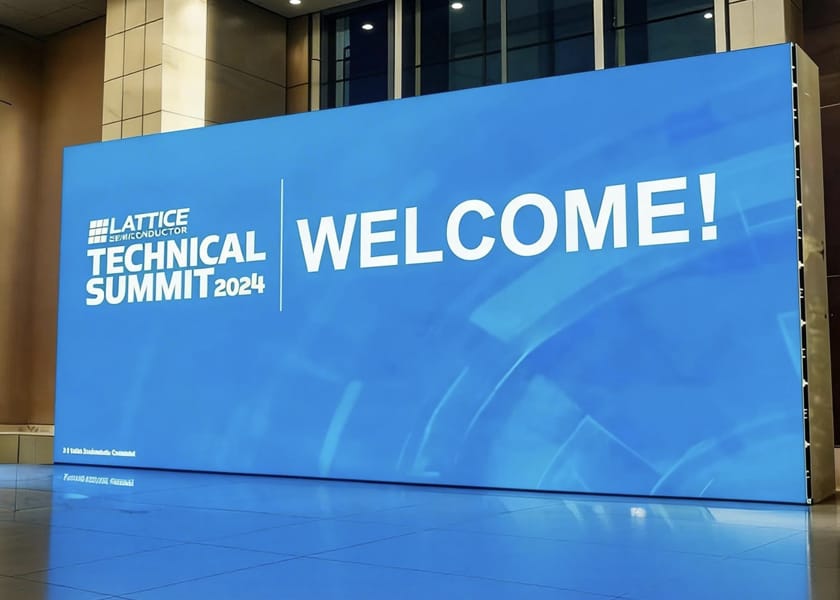

IN-A Series lightweight indoor LED video wall front view ultra-thin 33mm cabinet

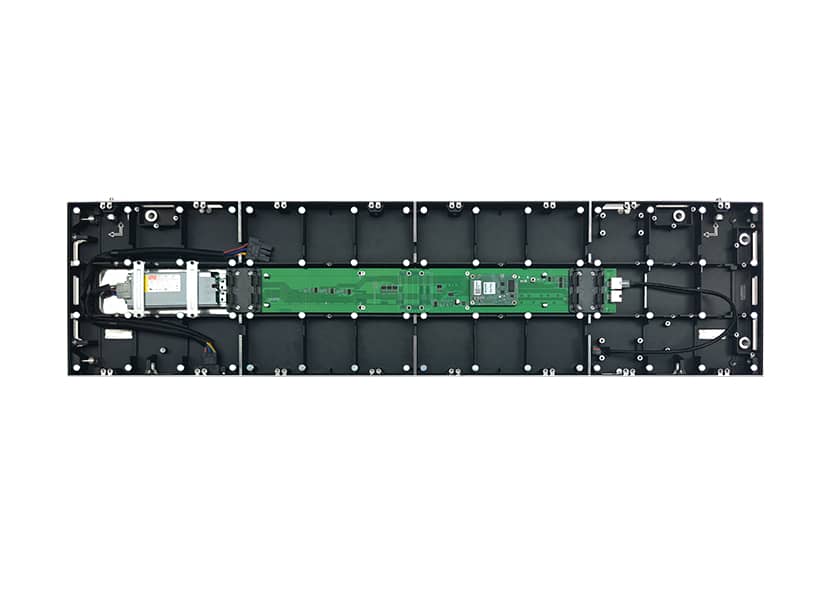

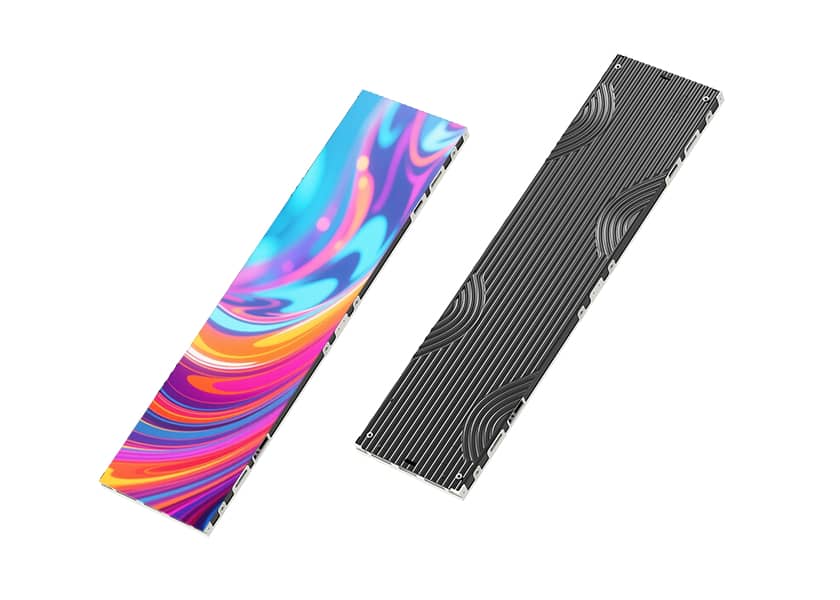

IN-A Series LED video wall front maintenance access installation detail

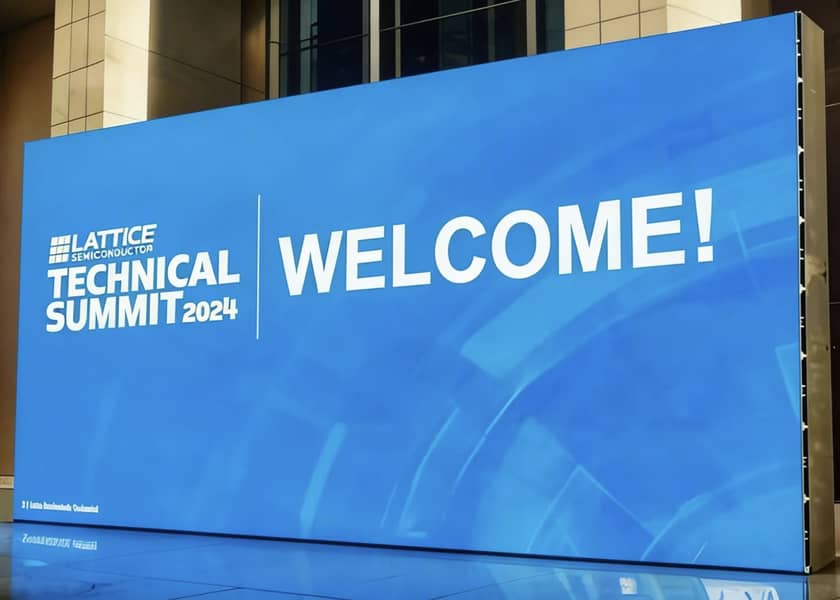

IN-A Series strip cabinet LED display close-up lightweight aluminum design

IN-A Series Lightweight Indoor LED Video Wall | Ultra-Thin Strip Cabinet Display

The Ultra-Thin & Lightweight Indoor LED Video Wall for Any Venue

Ultra-Light Cabinet Design (9.8kg for 1000×500mm)
Super Slim 33mm Thickness
Front/Rear Access for Easy Installation
Modern, Minimalist Aesthetic
Multiple Cabinet Size Options: 1000x500, 1000x250, 750x250, 500x250mm
High Resolution, Brightness & Contrast Ratio
Pixel Pitches: P1.25, P1.56, P1.95, P2.5, P2.6, P2.9, P3.91
SMD/GOB Technology Options

✉ Email Us

Our team will respond within 12 hours

Why Choose the IN-A Series Lightweight Indoor LED Video Wall?

The IN-A Series lightweight indoor LED video wall is engineered to solve the biggest challenges of indoor digital signage: bulky cabinets and difficult maintenance. With an industry-leading 33mm ultra-thin depth, it mounts flush against any wall, creating a sleek, modern look perfect for retail stores, corporate lobbies, museums, and conference rooms.

Worried about maintenance in tight spaces? The full front-service design allows technicians to access all internal components from the front. This eliminates the need for a rear access aisle, saving valuable floor space and reducing installation costs by up to 30%.

Available in pixel pitches from P1.25 to P3.91 (including P1.56, P1.95, P2.5, P2.6, P2.9), you can choose the perfect resolution for any viewing distance. Whether you need a high-impact retail display or a sharp corporate presentation, the IN-A Series delivers stunning visuals with 3840Hz refresh rate and 16-bit grayscale.

Product Features

High Definition

Front Maintenance

Seamless Splicing

Quick Installation

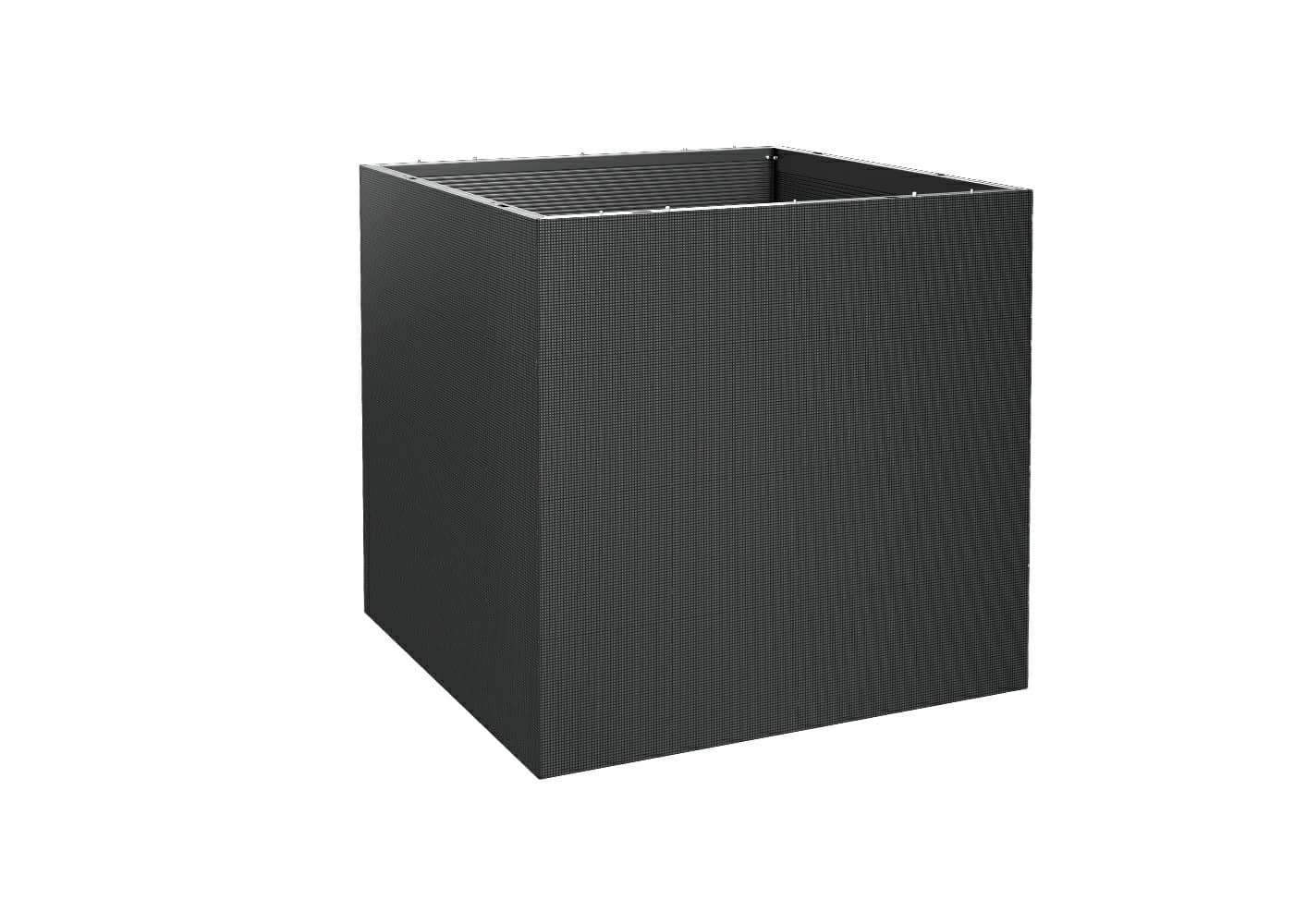

Right Angle Splicing

Wide Viewing Angle

High Refresh Rate

Lightweight And Slim

Advantages of IN-A Series Indoor LED Display

We provide versatile HD LED display solutions tailored to diverse needs. Available in multiple sizes and customizable shapes, our screens excel in retail advertising, indoor events, weddings, and more. Featuring advanced technology for superior brightness, vivid colors, and crisp resolution, they transform any space into a captivating visual experience.

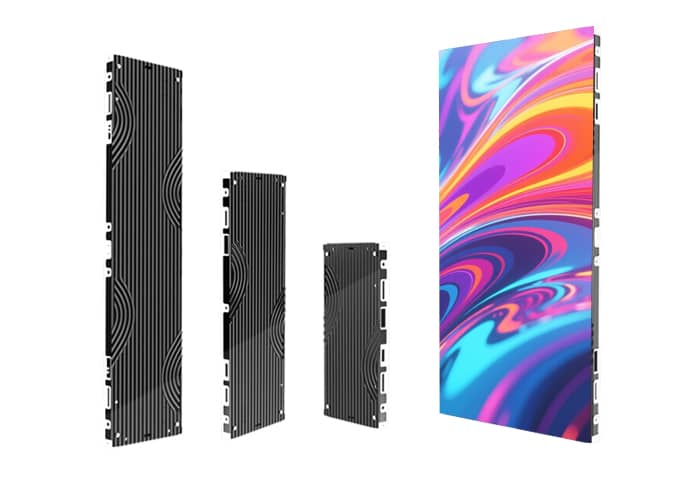

IN-A Series LED Display Advantages - High Definition and Versatile Applications

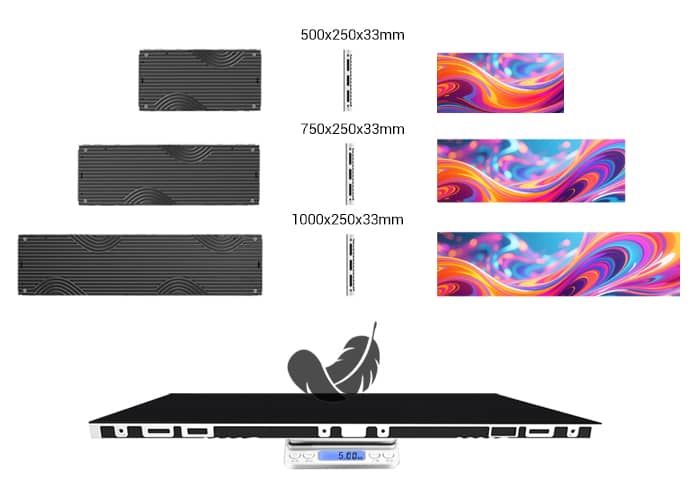

Ultra-Light and Multi-Size HD LED Panels - IN-A Series Cabinet

Ultra-Light, Multi-Size HD LED Panels

This precision die-cast aluminum cabinet features seamless integration and an ultra-slim 33mm profile. Weight varies by model: 9.8kg (1000×500mm), 5.0kg (1000×250mm), 4.0kg (750×250mm), and 3.0kg (500×250mm).

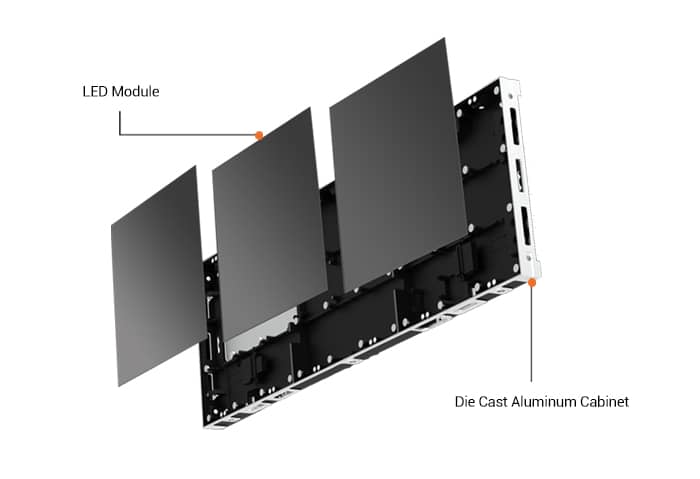

Front Maintenance Design

Front-access maintenance design enables direct servicing from the screen's front, eliminating the need for rear disassembly and streamlining maintenance procedures.

Front Maintenance Access on IN-A Series LED Display

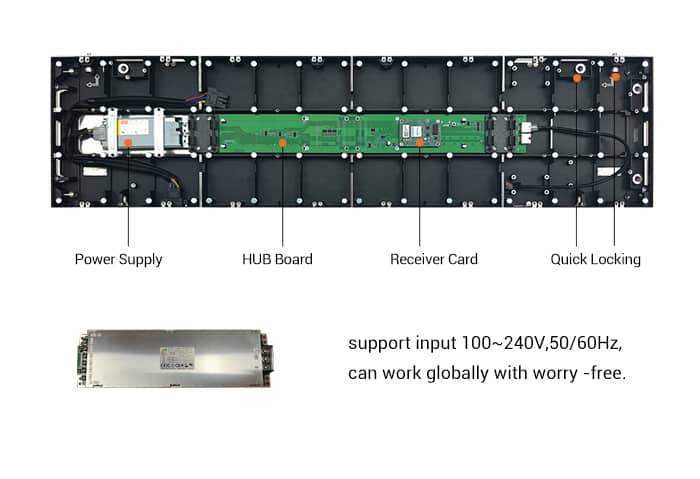

Cabinet Layout Diagram

A streamlined internal layout minimizes circuit complexity, facilitating easier installation and more efficient maintenance. Combined with reliable power supply systems, this design ensures extended LED screen lifespan and consistent performance.

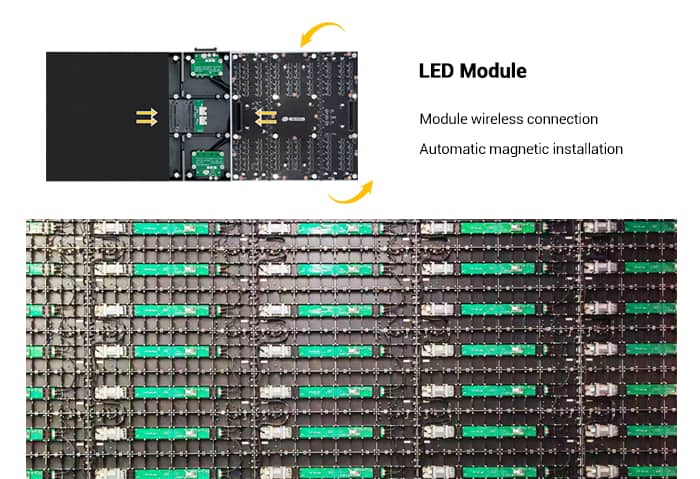

Quick-Install HD LED Screen

Pre-installation support and maintenance flexibility with no spatial constraints. The integrated ultra-thin aluminum cabinet ensures high dimensional accuracy and flatness, featuring a simplified internal structure that eliminates complex wiring requirements.

Quick Installation Feature of IN-A Series LED Display

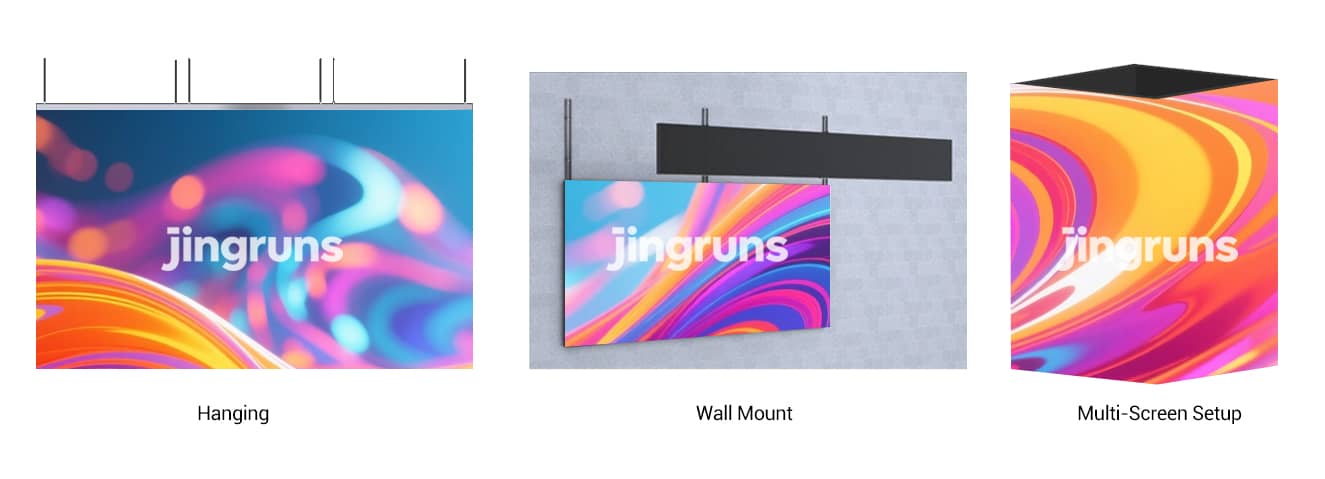

Installation Methods

Creative splicing, infinite imagination

Application Scenarios for IN-A Series Indoor LED Display

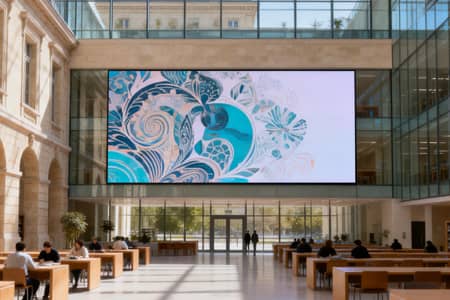

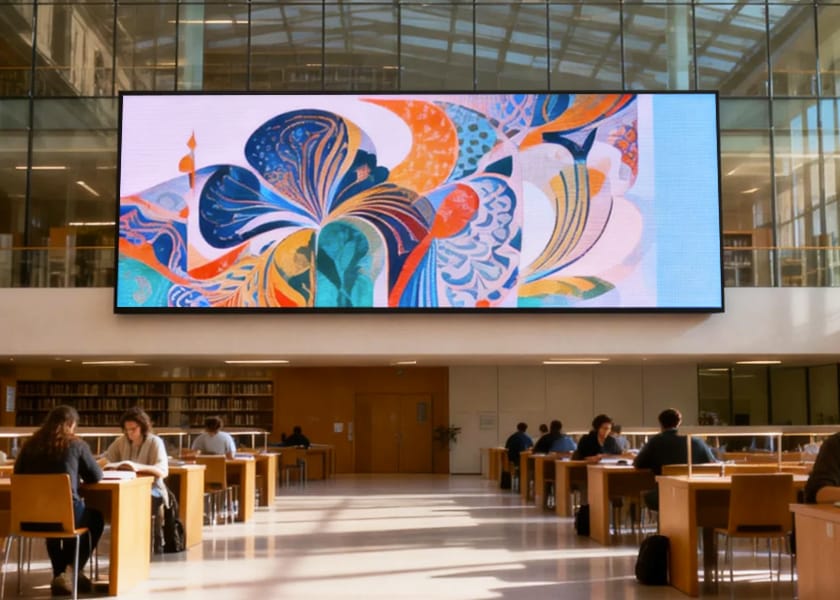

Conference Room LED

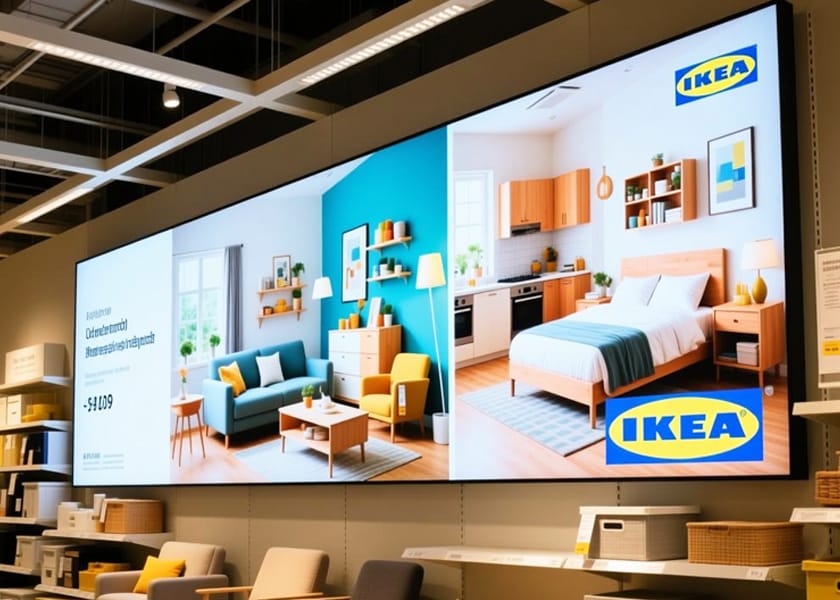

Event Stage LED

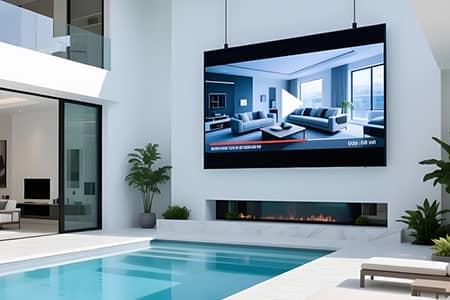

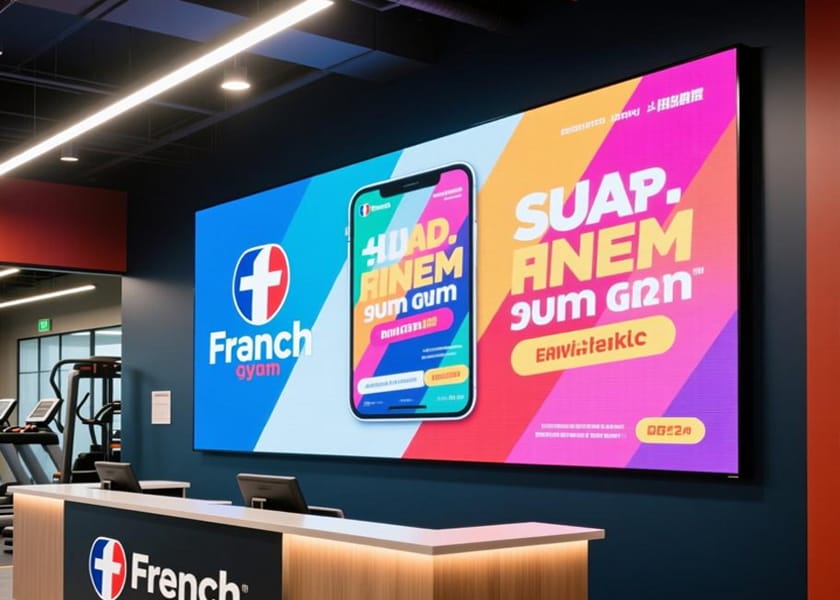

Exhibition LED Screen

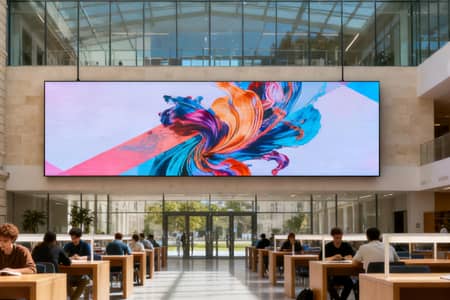

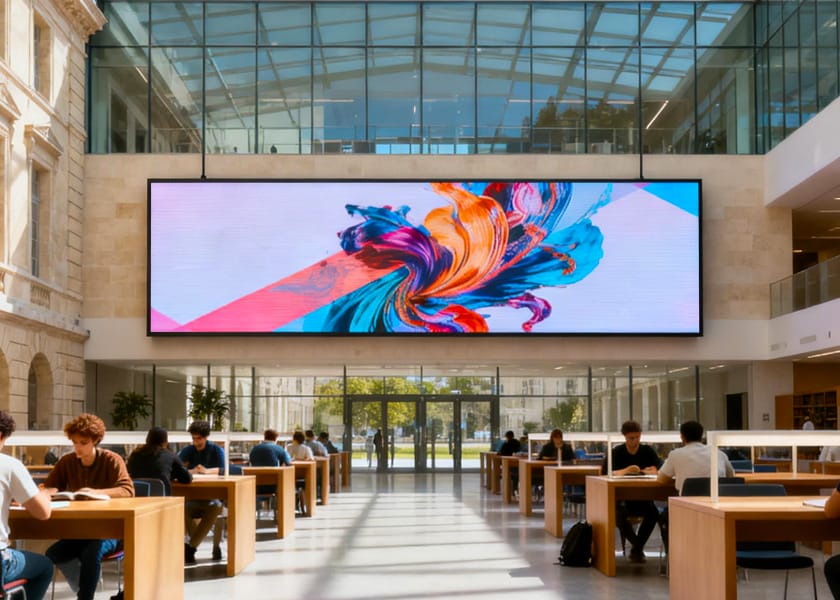

Lobby Digital Signage

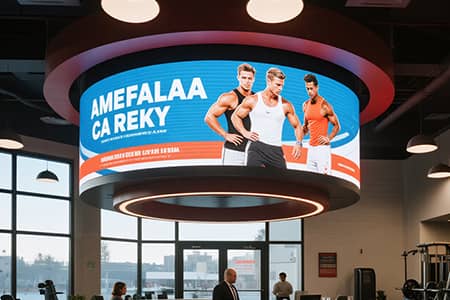

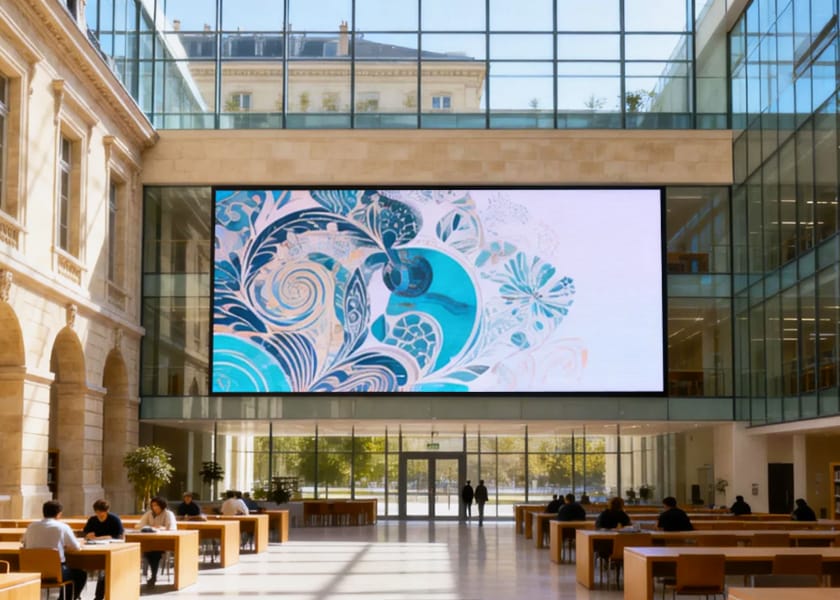

Retail LED Display

IN-A Series Product Parameter

IN-A Series Cabinet Sizes: 1000x500mm, 1000x250mm, 750x250mm, 500x250mm
Pixel Pitch	P1.25	P1.56	P1.95	P2.5	P2.6
LED type	SMD1010	SMD1212	SMD1515	SMD1515	SMD1515
Physical Density(dots/㎡)	640000	409600	262144	160000	147456
Module size(mm)	200×200	160×160	128×128	100×100	96×96
Module resolution(dots)	250×250	250×250	250×250	250×250	250×250
Cabinet size(mm)	1000×500×33 / 1000×250×33 / 750×250×33 / 500×250×33
Cabinet resolution(dots)	800×400	640×320	512×256	400×200	384×192
Materials	Aluminum
Waterproof grade	IP31 (front/GOB)
Brightness(CD/㎡)	≥600	≥600	≥800	≥800	≥800
Drive mode	1/50	1/40	1/32	1/25	1/32
Refresh rate(Hz)	≥3840
Viewing angle(H/V)	140°/140°
Maintenance mode	Front
Gray scale	16bit
Max consumption(W/㎡)	350
Avg. consumption(W/㎡)	100-200
Working Voltage	AC100-240V,50/60Hz
Working temp/Humidity	-20~50℃/10%~95%

Frequently Asked Questions

What is the weight of each cabinet size?

The IN-A Series is designed to be lightweight: 1000x500mm cabinet weighs 9.8kg, 1000x250mm weighs 5.0kg, 750x250mm weighs 4.0kg, and 500x250mm weighs only 3.0kg.

Can I install this LED video wall by myself?

Yes! With the ultra-light cabinet design and quick-lock system, two people can handle the installation. Front maintenance also means no rear access space is needed, making installation much easier.

What is the difference between SMD and GOB technology?

SMD offers standard durability and is cost-effective. GOB (Glue on Board) provides extra protection against water, dust, and impact, making it ideal for high-traffic areas or rental applications.

What is the minimum viewing distance for different pixel pitches?

For P1.25: 1.25 meters (retail displays, control rooms). For P2.5: 2.5 meters (conference rooms, lobbies). For P3.91: 4 meters (events, exhibitions).

Do you offer a warranty?

Yes, we provide a 3-year standard warranty with lifetime technical support. Our team is available 24/7 to assist you.
