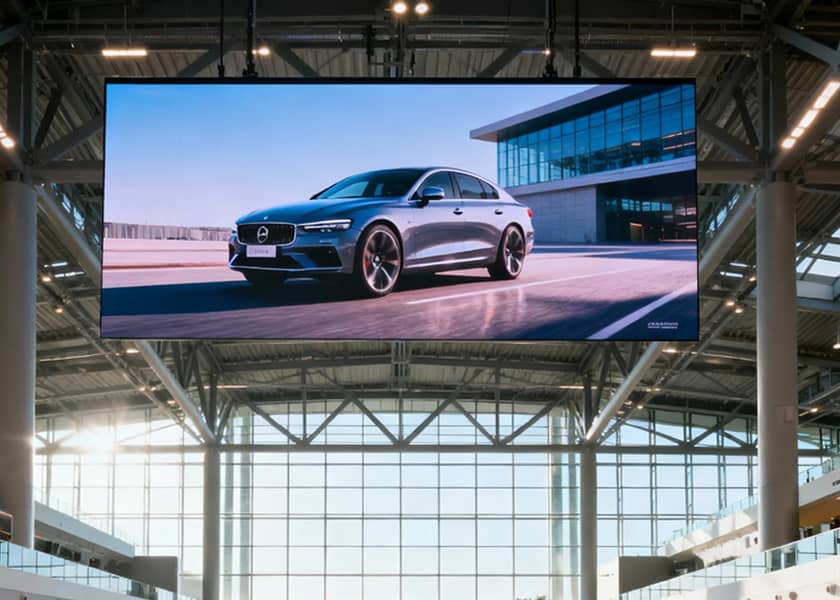

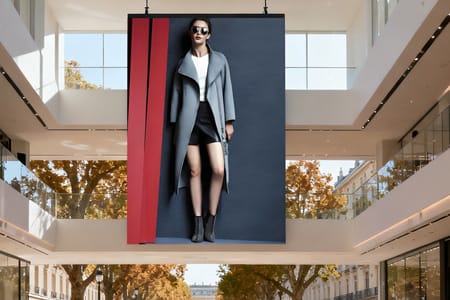

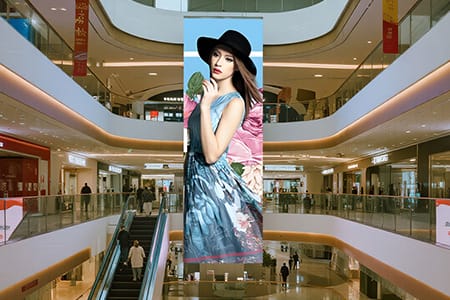

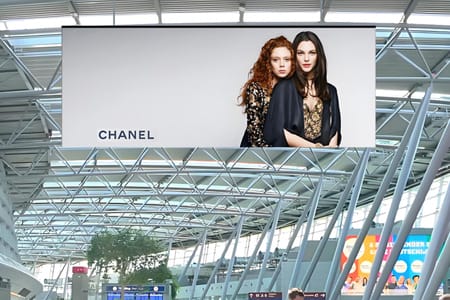

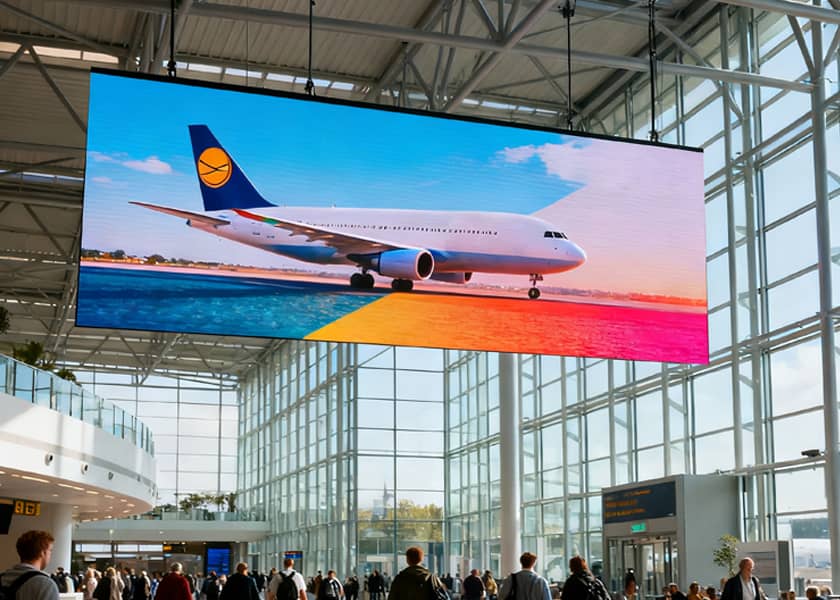

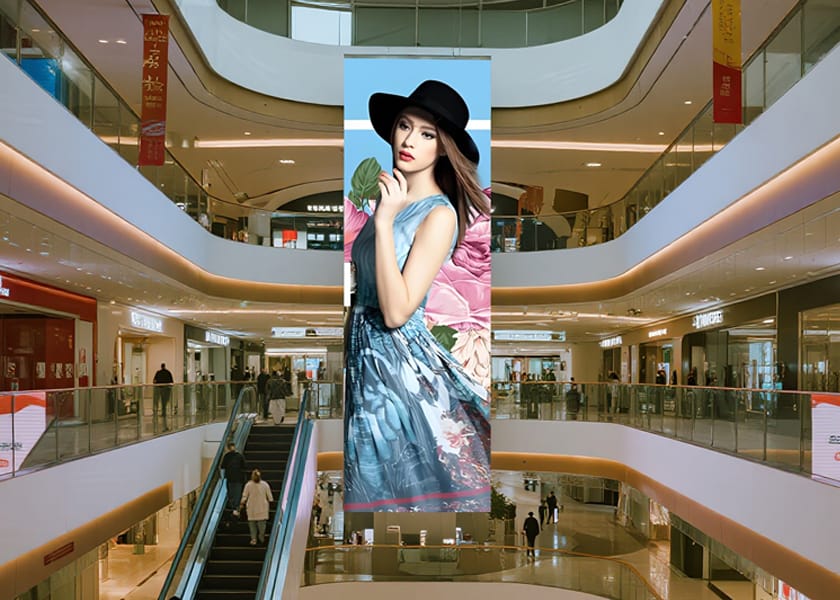

The IN-D Series double-sided indoor LED display is engineered for maximum visibility in high-traffic environments. With dual screens in one ultra-thin 54mm cabinet, it delivers 360° viewing from both sides—perfect for supermarkets, shopping malls, retail stores, transportation hubs, and exhibition centers.

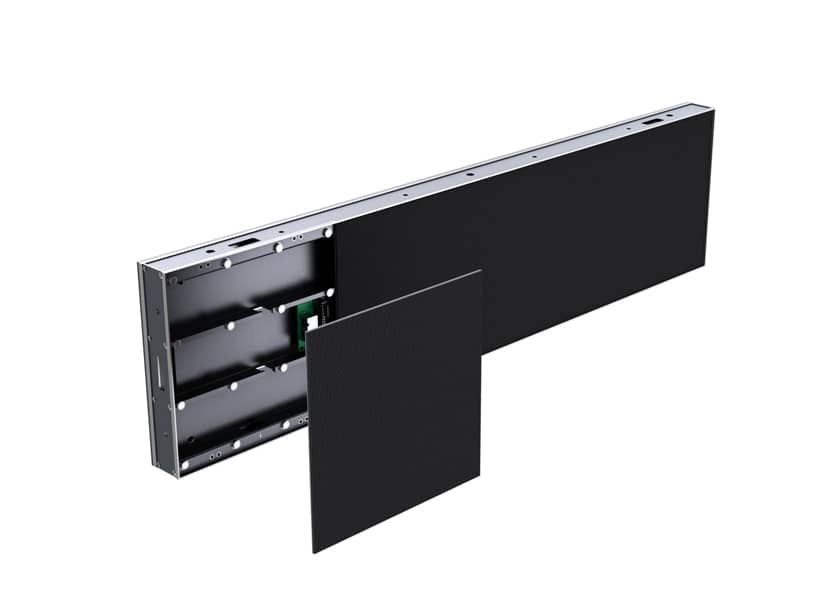

Available in multiple cabinet sizes including 1000x500mm, 1000x250mm, 750x250mm, and 500x250mm, with pixel pitches from P1.25 to P3.91. The die-cast aluminum cabinet weighs just 7kg for easy installation. Front maintenance allows quick access without removing the screen from the wall.
With 3840Hz refresh rate, 140° wide viewing angle, and 16-bit grayscale, the IN-D Series delivers stunning, flicker-free imagery on both sides. Choose from SMD or GOB technology based on your durability requirements. Perfect for hanging in the middle of a store or lobby where visibility from both sides is essential.

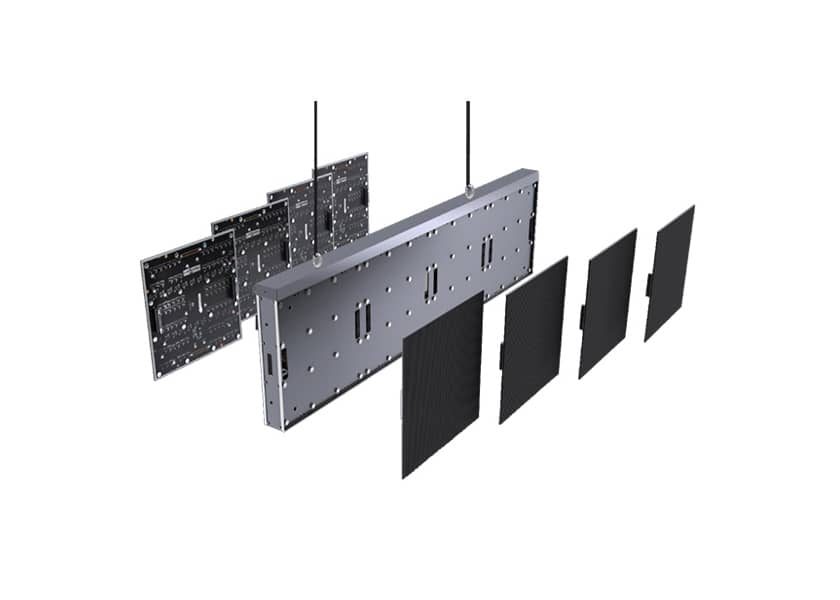

Double-sided screen not only features more creative and seamless splicing, but also delivers exceptional adaptability and excellent scalability. It provides more dynamic perspectives and engaging viewing experiences for supermarkets, shopping malls, and public transportation systems.

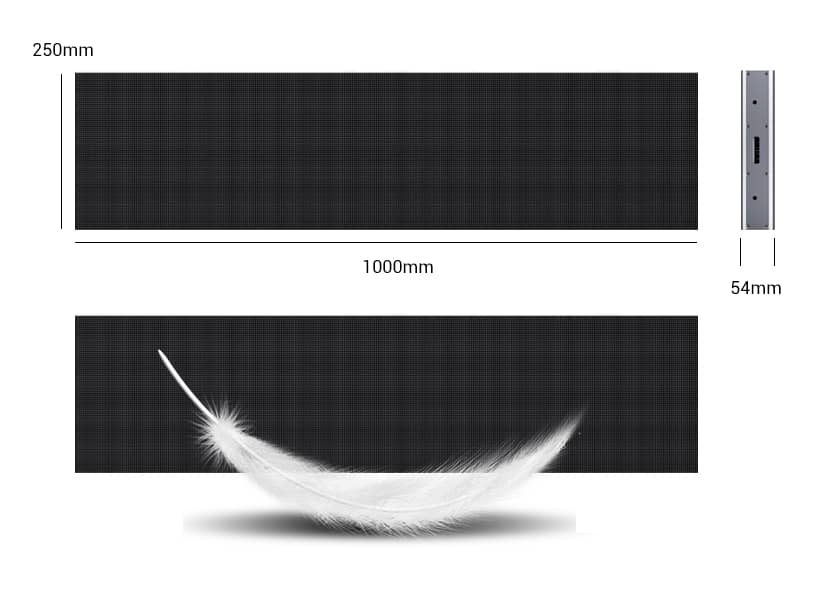

The screen cabinet features an ultra-thin design with a thickness of only 54mm and a lightweight structure weighing just 7KG. Offered in multiple sizes, it flexibly meets the installation needs of different scenarios and site requirements.

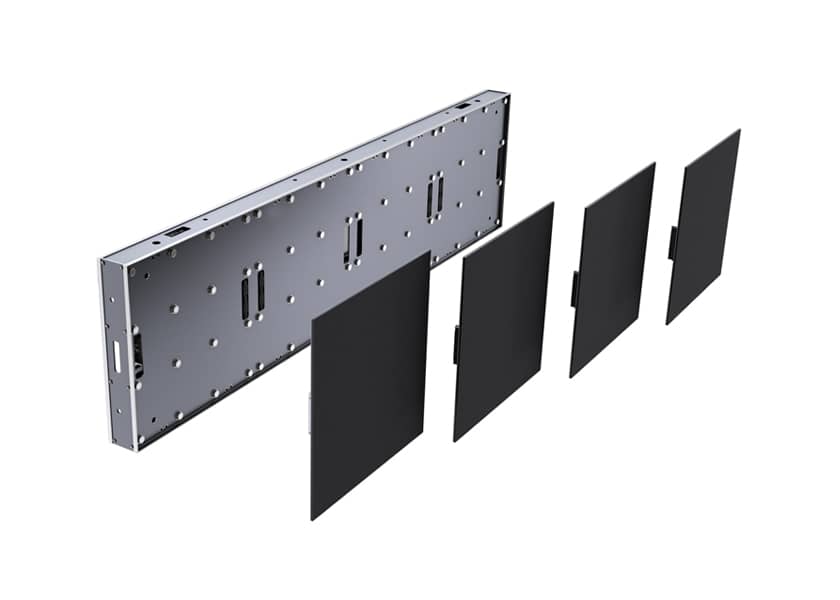

Front-access maintenance design enables direct servicing from the screen's front, eliminating the need for rear disassembly and streamlining maintenance procedures.

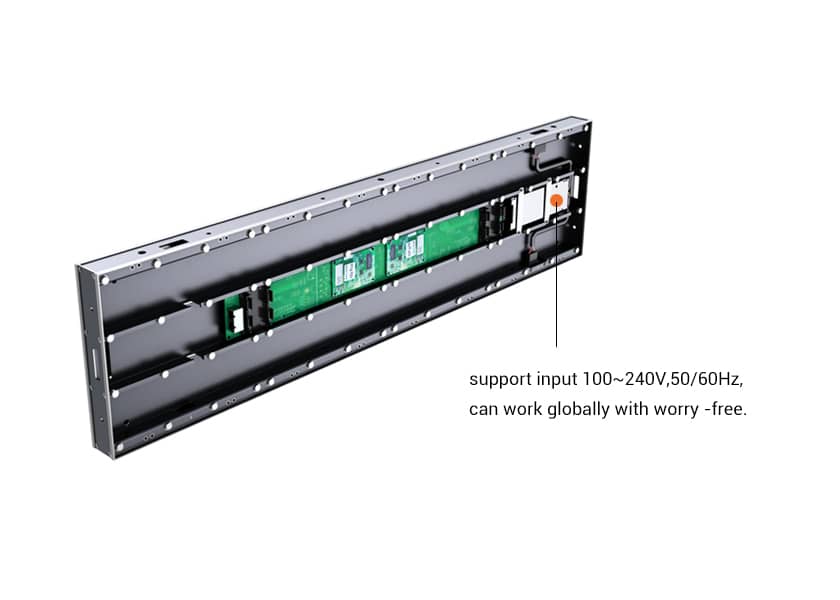

A streamlined internal layout minimizes circuit complexity, facilitating easier installation and more efficient maintenance. Combined with reliable power supply systems, this design ensures extended LED screen lifespan and consistent performance.

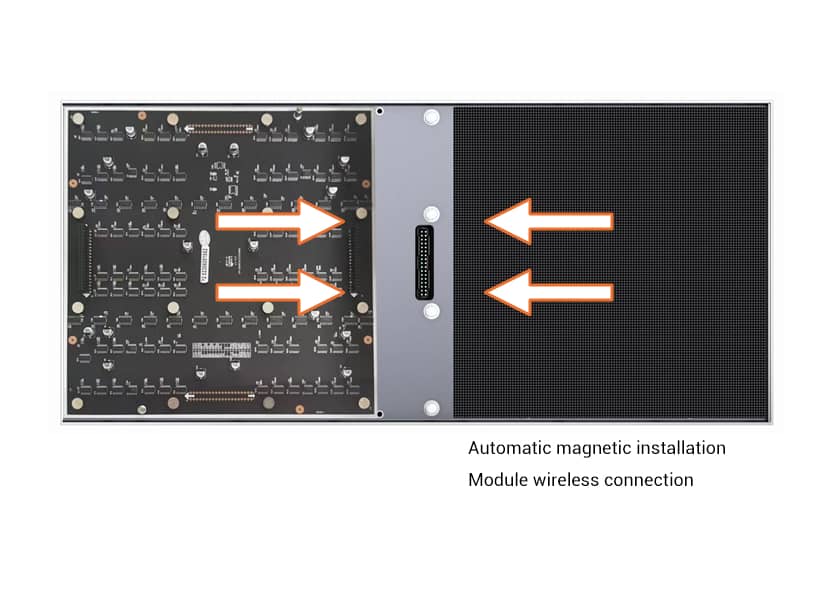

The LED module features a wireless connection design, making installation remarkably simple and efficient. Without the need for complex cabling, it significantly reduces installation time and labor costs, while ensuring a cleaner and more reliable setup.

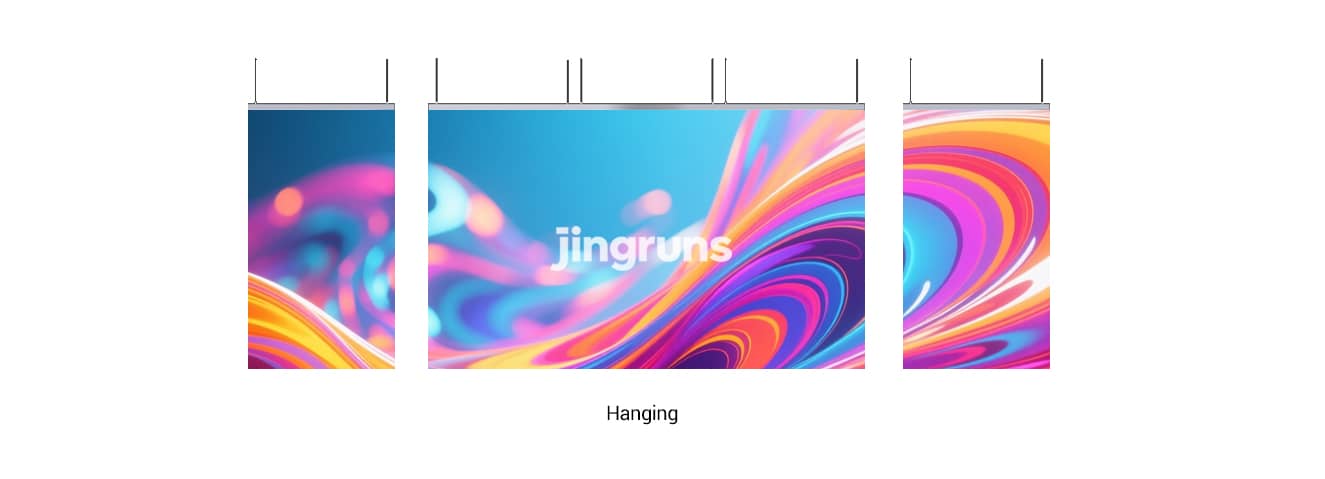

Creative splicing, infinite imagination
| IN-D Series Cabinet Sizes: 1000x500mm, 1000x250mm, 750x250mm, 500x250mm | |||||
| Pixel Pitch | P1.25 | P1.56 | P1.95 | P2.5 | P2.6 |
| LED type | SMD1010 | SMD1212 | SMD1515 | SMD1515 | SMD1515 |
| Physical Density(dots/㎡) | 640000 | 409600 | 262144 | 160000 | 147456 |
| Module size(mm) | 200×200 | 160×160 | 128×128 | 100×100 | 96×96 |
| Module resolution(dots) | 250×250 | 250×250 | 250×250 | 250×250 | 250×250 |
| Cabinet size(mm) | 1000×500×33 / 1000×250×33 / 750×250×33 / 500×250×33 | ||||
| Cabinet resolution(dots) | 800×400 | 640×320 | 512×256 | 400×200 | 384×192 |
| Materials | Aluminum | ||||
| Waterproof grade | IP31 (front/GOB) | ||||
| Brightness(CD/㎡) | ≥600 | ≥600 | ≥800 | ≥800 | ≥800 |
| Drive mode | 1/50 | 1/40 | 1/32 | 1/25 | 1/32 |
| Refresh rate(Hz) | ≥3840 | ||||
| Viewing angle(H/V) | 140°/140° | ||||
| Maintenance mode | Front | ||||
| Gray scale | 16bit | ||||
| Max consumption(W/㎡) | 350 | ||||
| Avg. consumption(W/㎡) | 100-200 | ||||
| Working Voltage | AC100-240V,50/60Hz | ||||
| Working temp/Humidity | -20~50℃/10%~95% | ||||
A double-sided LED display features two screens in one ultra-thin cabinet, allowing content to be shown on both sides simultaneously. This is perfect for hanging displays in the middle of a store, airport, or mall where people walk on both sides.
The IN-D Series features an ultra-thin 54mm cabinet depth, making it one of the thinnest double-sided LED displays on the market. This allows it to blend seamlessly into any environment without taking up excessive space.
Yes! The IN-D Series supports independent content playback on each side. You can show different advertisements, messages, or videos on the front and back screens.
Common applications include supermarket aisle displays, shopping mall hanging signs, airport gate information, exhibition booth displays, retail store window displays, and transportation hub information boards.
The 1000x250mm cabinet weighs approximately 7kg, making it easy to install and hang. The lightweight die-cast aluminum construction ensures durability without adding excess weight.
We offer a 3-year standard warranty with lifetime technical support. The double-sided design includes full warranty coverage for both screens.
