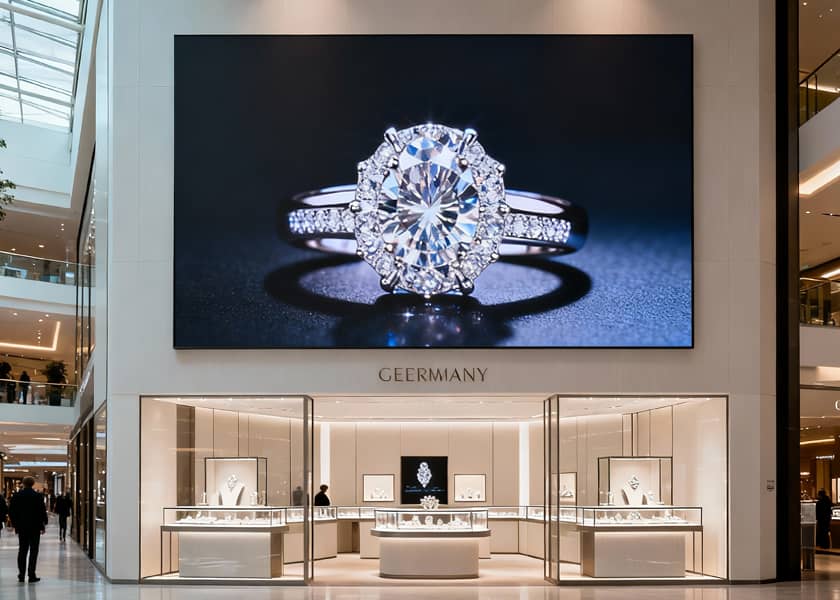

IN-G Series ultra-thin indoor LED display front view 45mm die-cast aluminum cabinet

Jingruns IN-G Series ultra-thin indoor LED screen front view

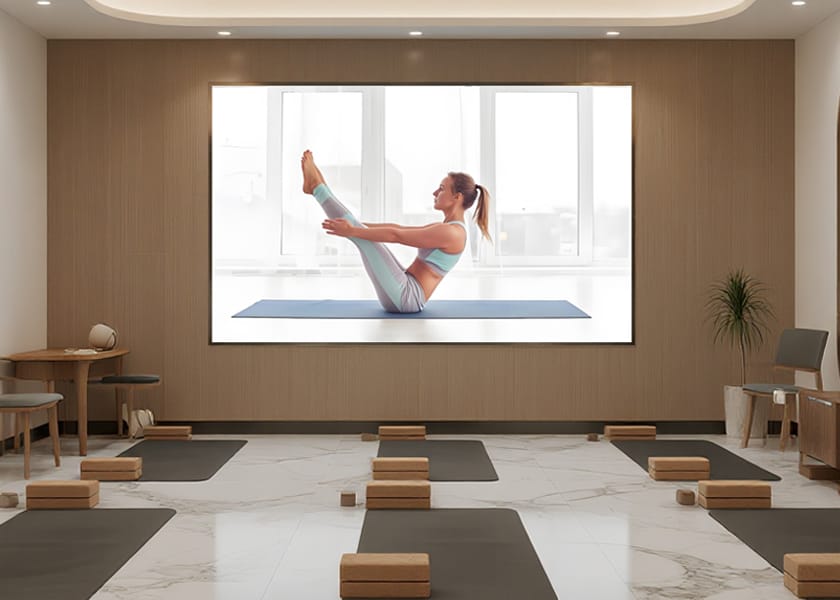

IN-G Series LED video wall installation example shopping mall digital signage

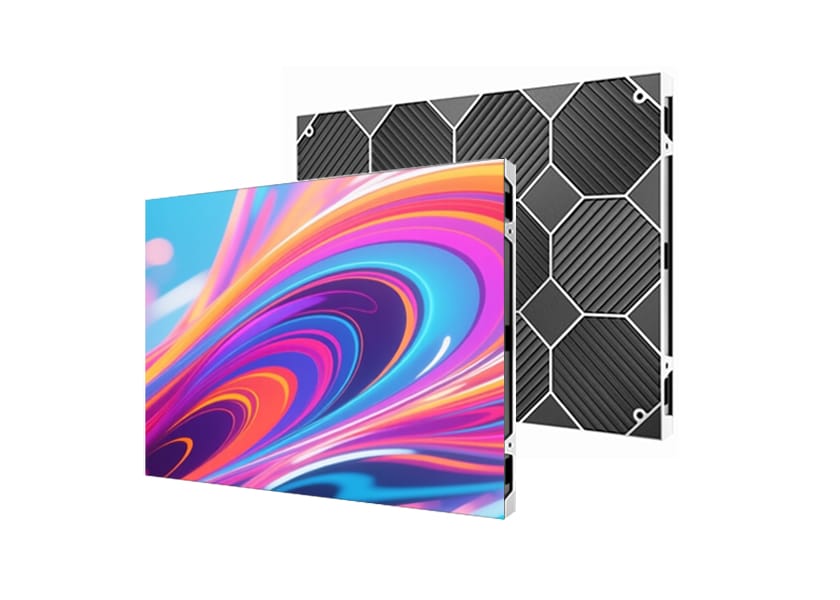

IN-G Series fine pitch P1.25 LED screen close up 4K ready display

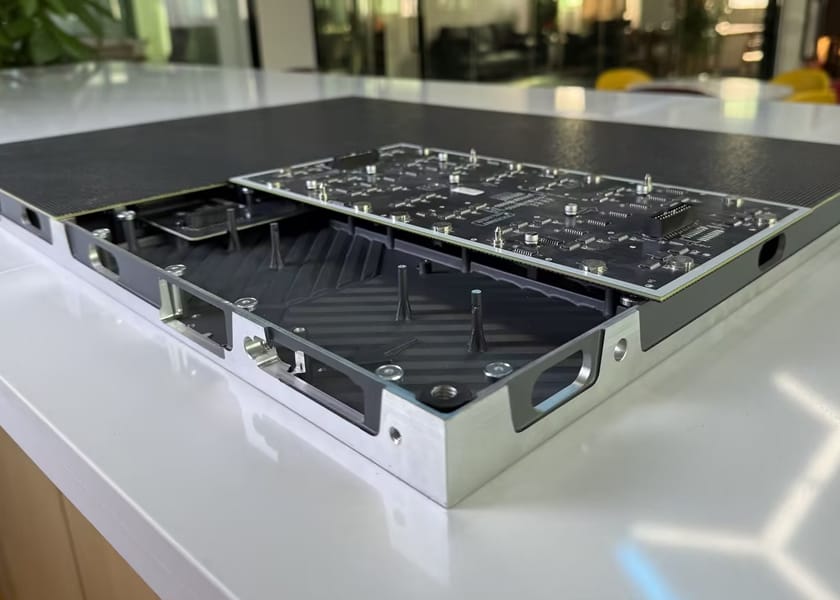

IN-G Series front maintenance LED display rear view easy service access

Single-Person Quick-Install LED Display | IN-G Series

One-Person Mounting Design | Standard-Size Compatibility, Fast Installation

Die-Cast Aluminum Cabinet Design for Superior Heat Dissipation
Ultra-Thin 30mm Profile – Modern, Minimalist Aesthetic
Multiple Cabinet Size Options for Flexible Installation
High Resolution 4K Ready Display with 3840Hz Refresh Rate
Front Maintenance Design for Easy Service Access
COB，GOB and SMD LED Technology Options for Enhanced Durability
CE, RoHS & FCC Compliant
5 Yrs Warranty / Lifetime Maintenance

✉ Get Your Free Factory Direct LED Display Quote

Share your project needs, get your tailored quote in 12 hours!

Why Choose the IN-G Series Ultra-Thin Indoor LED Display?

The IN-G Series ultra-thin indoor LED display combines elegant design with powerful performance. Featuring a die-cast aluminum cabinet that's just 45mm thin, it blends seamlessly into any environment—from shopping malls and supermarkets to corporate lobbies and conference rooms.

With pixel pitches from P1.25 to P2.5, the IN-G Series delivers stunning 4K-ready image quality at a 3840Hz refresh rate—no flicker, no eye strain. The front maintenance design means you can service the screen without removing it from the wall, saving time and money.

Available with both SMD and GOB LED technology, the IN-G Series adapts to your needs. Choose GOB for enhanced protection in high-traffic areas like retail stores, or SMD for cost-effective solutions in controlled environments like corporate lobbies.

Product Features

High Definition

Front Maintenance

Seamless Splicing

Quick Installation

Multiple Control Options

Wide Viewing Angle

High Refresh Rate

Lightweight And Slim

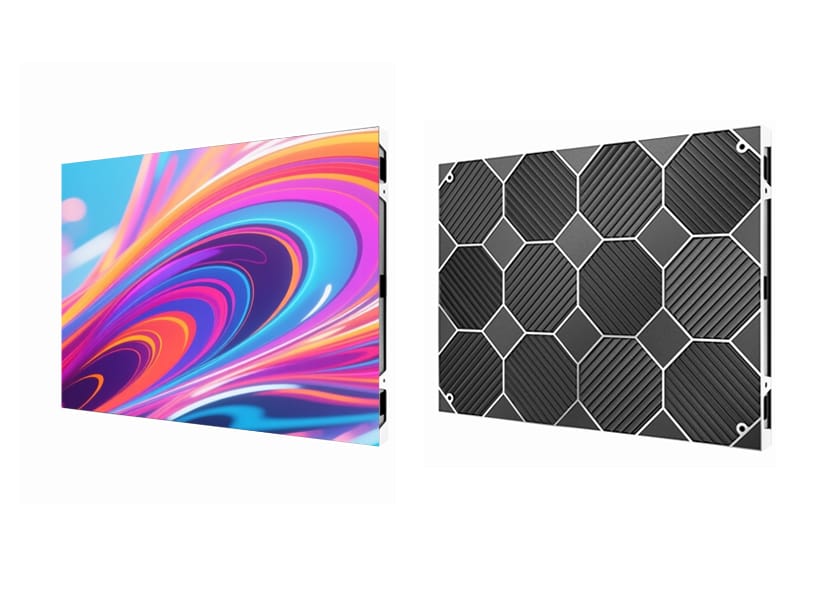

Advantages

The newly designed ultra-thin indoor LED screen cabinet features enhanced creativity and seamless splicing, along with outstanding adaptability and scalability. This fine pitch LED display supports front maintenance and is available in both SMD and GOB LED technology, delivering exceptional image quality for shopping malls, supermarkets, and commercial displays

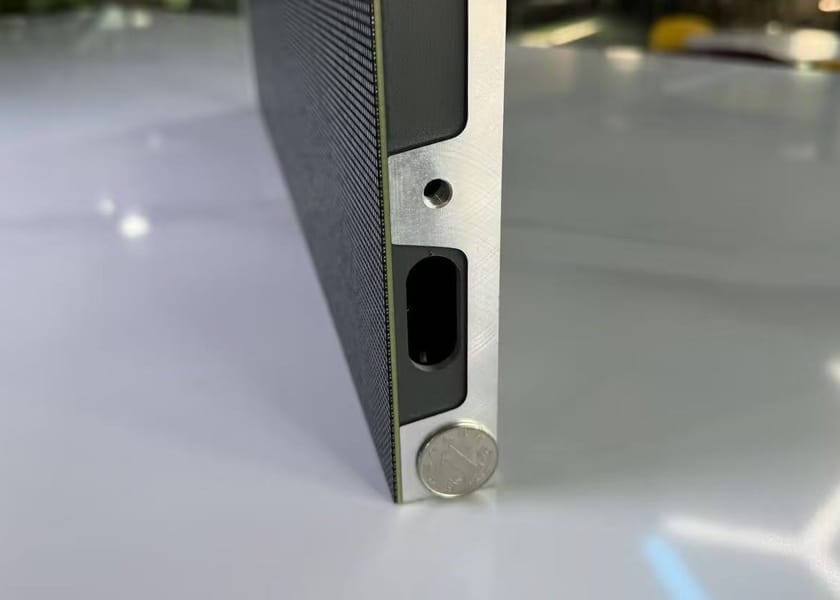

IN-G Series ultra-thin 45mm LED display cabinet side view

Thin and Light Weight

With an ultra-slim cabinet depth of just 45mm—significantly thinner and lighter than comparable models—our fine pitch LED display is exceptionally portable. This sleek design allows for seamless integration into luxury interiors. Moreover, its lightweight profile dramatically reduces shipping costs and simplifies installation, enabling just one or two people to mount it anywhere with ease.

Quick-Install HD LED Screen

Pre-installation support and maintenance flexibility with no spatial constraints. The integrated ultra-thin aluminum cabinet ensures high dimensional accuracy and flatness, featuring a simplified internal structure that eliminates complex wiring requirements.

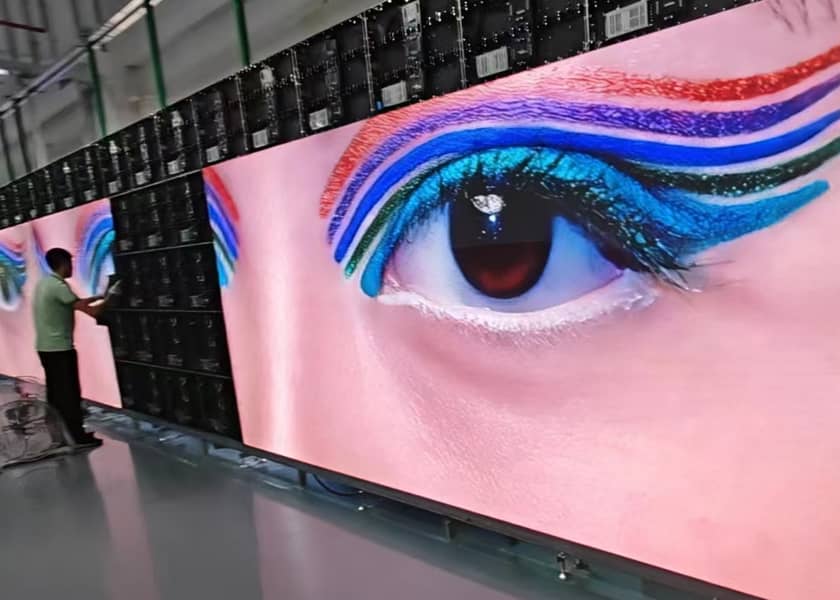

IN-G Series front maintenance LED screen - easy access from front

Installation Methods

Creative splicing, infinite imagination

Application Scenarios for IN-G Series Indoor LED Display

IN-G Series indoor LED screen installed in shopping mall

Shopping Mall LED Display

IN-G Series LED display in supermarket commercial application

Supermarket LED Display

IN-G Series fine pitch LED screen in corporate lobby

Corporate Lobby LED Display

IN-G Series LED video wall in control room

Control Room LED Display

IN-G Series indoor LED screen in exhibition hall

Exhibition Hall LED Display

IN-G Series Product Parameter

IN-G Series Cabinet Sizes: 640x480mm, 640x640mm, 640x320mm
Pixel Pitch	P1.25	P1.538	P1.86	P2	P2.5
LED type(S/G/C)	SMD1010	SMD1212	SMD1515	SMD1515	SMD1515/2020
Physical Density(dots/㎡)	640000	422500	288888	250000	160000
Module size(mm)	320X160	320X160	320X160	320X160	320X160
Module resolution(dots)	256×128	208×104	172×86	160×80	128×64
Materials	Die Cast Aluminum
Viewing angle(H/V)	140°/140°
Refresh rate(Hz)	≥3840
Brightness(CD/㎡)	≥600	≥600	≥800	≥800	≥800
Drive mode	1/64	1/52	1/43	1/40	1/32
Waterproof grade	IP31 (front/GOB)
Maintenance mode	Front
Gray scale	16bit
Max consumption(W/㎡)	560
Avg. consumption(W/㎡)	100-200
Working Voltage	AC100-240V,50/60Hz
Working temp/Humidity	-20~50℃/10%~95%

Frequently Asked Questions - IN-G Series

What is the difference between IN-G and IN-B Series?

The IN-G Series is designed specifically for commercial applications like shopping malls and supermarkets, with a focus on ultra-thin aesthetics (45mm) and single/double-sided options. The IN-B Series is more focused on 4K/8K video walls for control centers and conference rooms.

What cabinet sizes are available for IN-G Series?

The IN-G Series is available in 640x480mm, 640x640mm, and 640x320mm cabinet sizes. All cabinets are just 45mm thin and feature die-cast aluminum construction for superior heat dissipation.

Is the IN-G Series suitable for outdoor use?

The IN-G Series is designed for indoor use (IP31 rating). However, with GOB technology, it offers enhanced protection against dust and moisture, making it suitable for semi-outdoor areas like covered walkways or entrance lobbies.

Can I get a double-sided IN-G Series display?

Yes! The IN-G Series supports both single-sided and double-sided configurations. Double-sided displays are perfect for hanging in the middle of a store or lobby where you need visibility from both sides.

What is the warranty on IN-G Series?

We offer a 3-year standard warranty with lifetime technical support. For GOB models, we provide an extended 3-year warranty on the LED modules.
