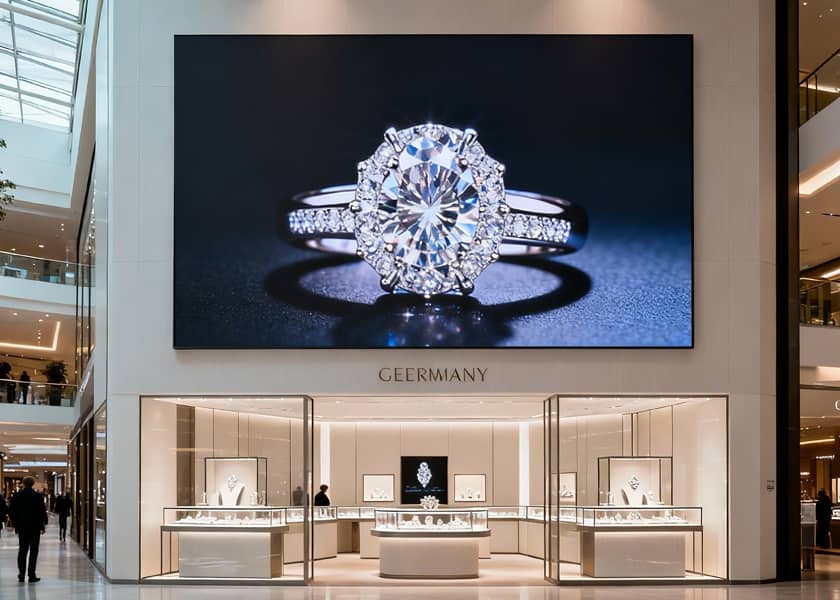

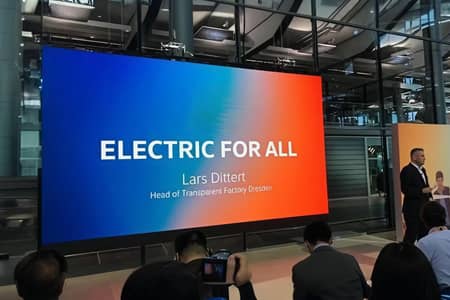

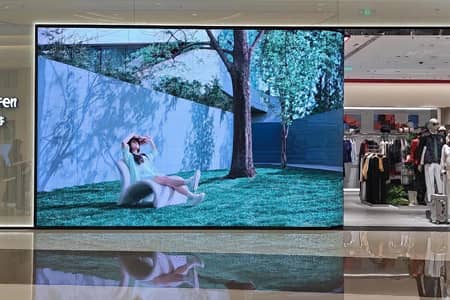

The IN-C Series ultra-thin indoor LED display combines elegant design with powerful performance. Featuring a die-cast aluminum cabinet that's just 45mm thin, it blends seamlessly into any environment—from shopping malls and supermarkets to corporate lobbies and conference rooms.

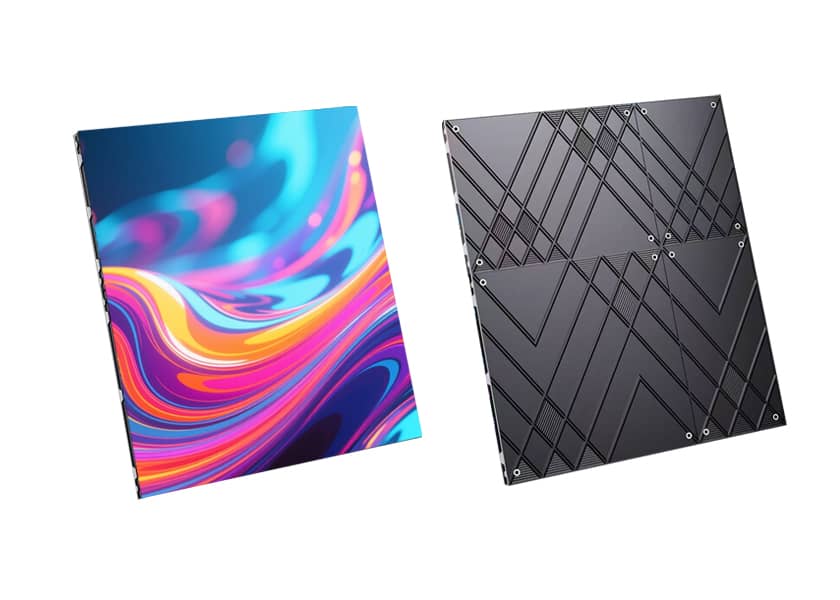

With pixel pitches from P1.25 to P2.5, the IN-C Series delivers stunning 4K-ready image quality at a 3840Hz refresh rate—no flicker, no eye strain. The front maintenance design means you can service the screen without removing it from the wall, saving time and money.
Available with both SMD and GOB LED technology, the IN-C Series adapts to your needs. Choose GOB for enhanced protection in high-traffic areas like retail stores, or SMD for cost-effective solutions in controlled environments like corporate lobbies.
The newly designed ultra-thin indoor LED screen cabinet features enhanced creativity and seamless splicing, along with outstanding adaptability and scalability. This fine pitch LED display supports front maintenance and is available in both SMD and GOB LED technology, delivering exceptional image quality for shopping malls, supermarkets, and commercial displays

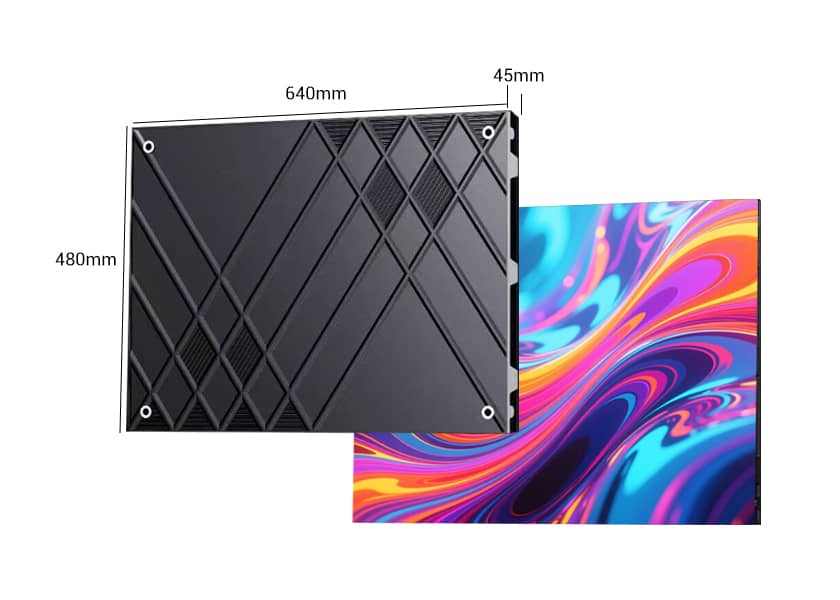

With an ultra-slim cabinet depth of just 45mm—significantly thinner and lighter than comparable models—our fine pitch LED display is exceptionally portable. This sleek design allows for seamless integration into luxury interiors. Moreover, its lightweight profile dramatically reduces shipping costs and simplifies installation, enabling just one or two people to mount it anywhere with ease.

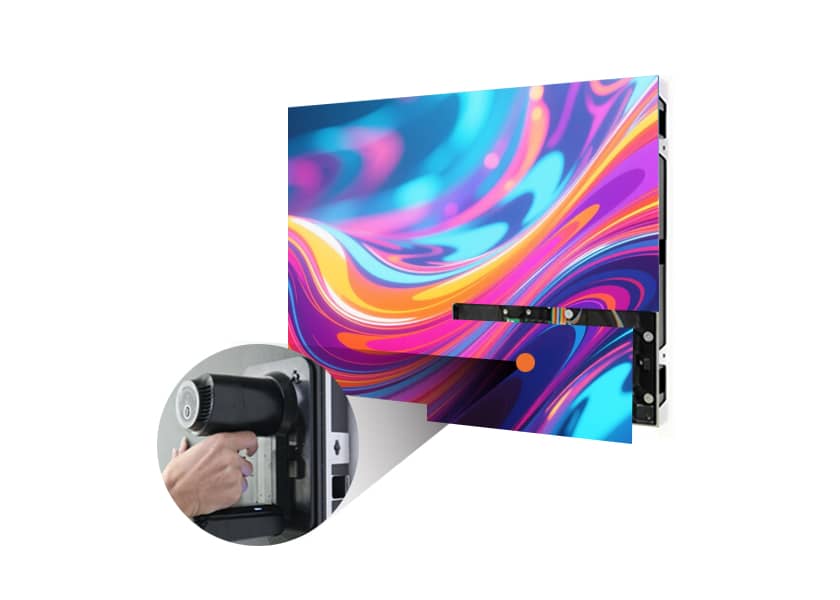

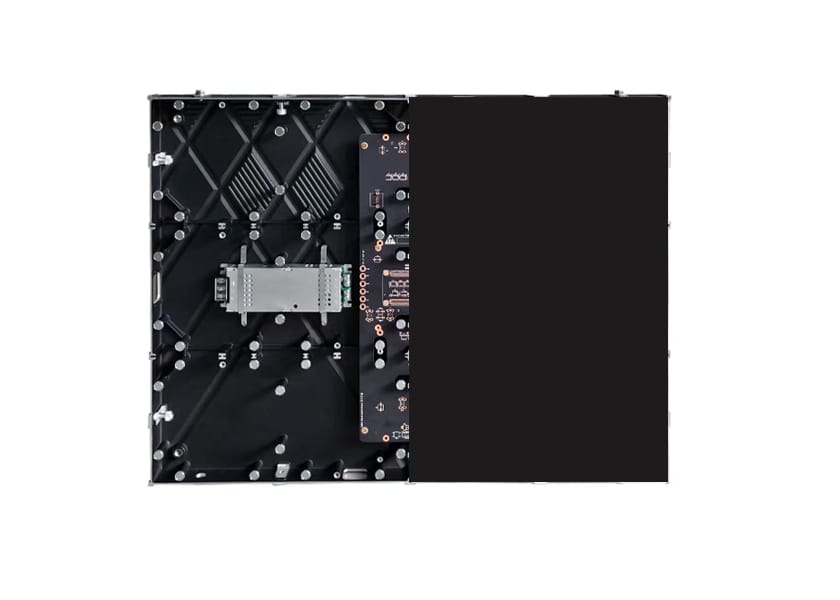

Front-access maintenance design enables direct servicing from the screen's front, eliminating the need for rear disassembly and streamlining maintenance procedures.

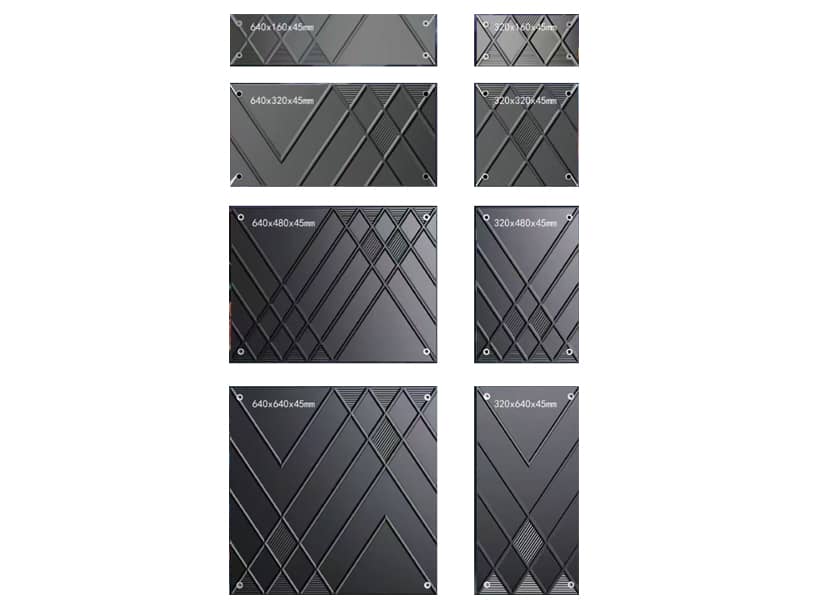

With a comprehensive selection of sizes, our LED display cabinets adapt effortlessly to the dimensional requirements of various installation scenarios.

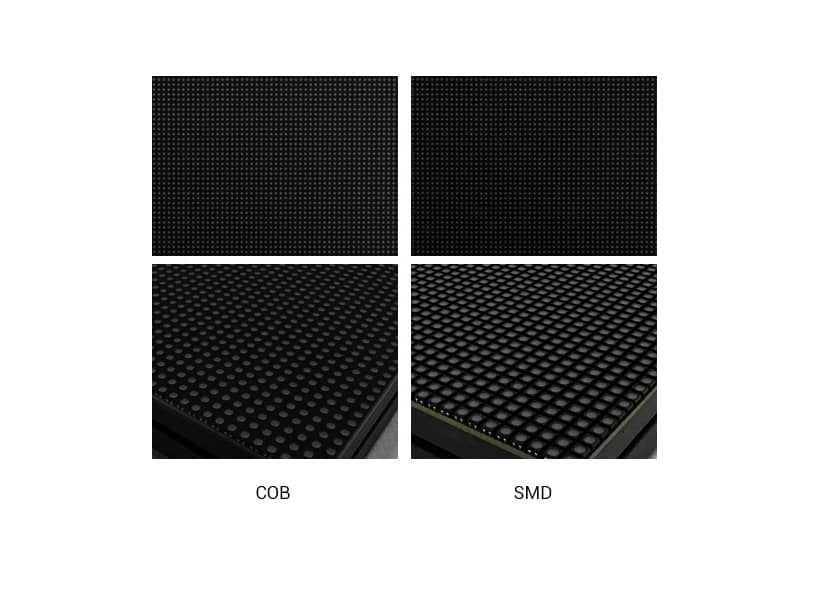

Supporting a full range of LED packaging technologies—including COB, GOB, and SMD—our display system adapts to any project requirement, delivering superior protection, enhanced durability, and exceptional image quality.
Creative splicing, infinite imagination
| IN-C Series Cabinet Sizes: 640x480mm, 640x640mm, 640x320mm | |||||
| Pixel Pitch | P1.25 | P1.538 | P1.86 | P2 | P2.5 |
| LED type(S/G/C) | SMD1010 | SMD1212 | SMD1515 | SMD1515 | SMD1515/2020 |
| Physical Density(dots/㎡) | 640000 | 422500 | 288888 | 250000 | 160000 |
| Module size(mm) | 320X160 | 320X160 | 320X160 | 320X160 | 320X160 |
| Module resolution(dots) | 256×128 | 208×104 | 172×86 | 160×80 | 128×64 |
| Materials | Die Cast Aluminum | ||||
| Viewing angle(H/V) | 140°/140° | ||||
| Refresh rate(Hz) | ≥3840 | ||||
| Brightness(CD/㎡) | ≥600 | ≥600 | ≥800 | ≥800 | ≥800 |
| Drive mode | 1/64 | 1/52 | 1/43 | 1/40 | 1/32 |
| Waterproof grade | IP31 (front/GOB) | ||||
| Maintenance mode | Front | ||||
| Gray scale | 16bit | ||||
| Max consumption(W/㎡) | 560 | ||||
| Avg. consumption(W/㎡) | 100-200 | ||||
| Working Voltage | AC100-240V,50/60Hz | ||||
| Working temp/Humidity | -20~50℃/10%~95% | ||||
The IN-C Series is designed specifically for commercial applications like shopping malls and supermarkets, with a focus on ultra-thin aesthetics (45mm) and single/double-sided options. The IN-B Series is more focused on 4K/8K video walls for control centers and conference rooms.
The IN-C Series is available in 640x480mm, 640x640mm, and 640x320mm cabinet sizes. All cabinets are just 45mm thin and feature die-cast aluminum construction for superior heat dissipation.
The IN-C Series is designed for indoor use (IP31 rating). However, with GOB technology, it offers enhanced protection against dust and moisture, making it suitable for semi-outdoor areas like covered walkways or entrance lobbies.
Yes! The IN-C Series supports both single-sided and double-sided configurations. Double-sided displays are perfect for hanging in the middle of a store or lobby where you need visibility from both sides.
We offer a 3-year standard warranty with lifetime technical support. For GOB models, we provide an extended 3-year warranty on the LED modules.
