CR-C Series Curved LED Display - Flexible Bendable LED Screen

CR-C Series curved LED display flexible bendable LED screen front view

CR-C Series flexible LED panel side view tool-free magnetic installation

CR-C Series flexible LED module close-up 320x160mm bendable panel

CR-C Series Curved LED Display

Flexible Bendable LED Screen with 360° Viewing Angle

Supports 360° Viewing Angle - Perfect for Cylindrical & Wave Shapes
Multi-Curve Support - Bendable Modules for Any Radius
Tool-Free Magnetic Installation - Quick Setupi
High Flexibility - Adapts to Columns, Curved Walls, Creative Installations
Front Maintenance - Easy Service Access
High Refresh Rate ≥3840Hz - Flicker-Free Performance
Wide Viewing Angle 140° - Consistent Colors from Any Angle

✉ Email Us

Our team will respond within 12 hours

Why Choose the CR-C Series Curved LED Display?

The CR-C Series curved LED display features flexible, bendable LED panels that can be configured into virtually any custom shape—from cylindrical columns and wave-like structures to spherical and custom artistic installations. Perfect for retail stores, museums, shopping malls, exhibition centers, and corporate lobbies where creative design is essential.

The tool-free magnetic installation allows modules to simply snap onto the frame—no tools needed. The magnetic hold allows for on-the-spot adjustments on uneven surfaces, and if maintenance is required, modules can be removed and snapped back into place in seconds. Front maintenance ensures easy service access.

Available in 320×160mm and 240×120mm flexible modules with pixel pitches from P1.25 to P2.5. Features 360° viewing angle, 3840Hz refresh rate, and 140° wide viewing angle—consistent colors from any perspective. Supports floor, ceiling, and wall mounting.

Product Features

High Refresh Rate

Wide Viewing Angle

Multiple Control Options

Quick Installation

High Protection

Right Angle Splicing

Arc installation

Low Power Consumption

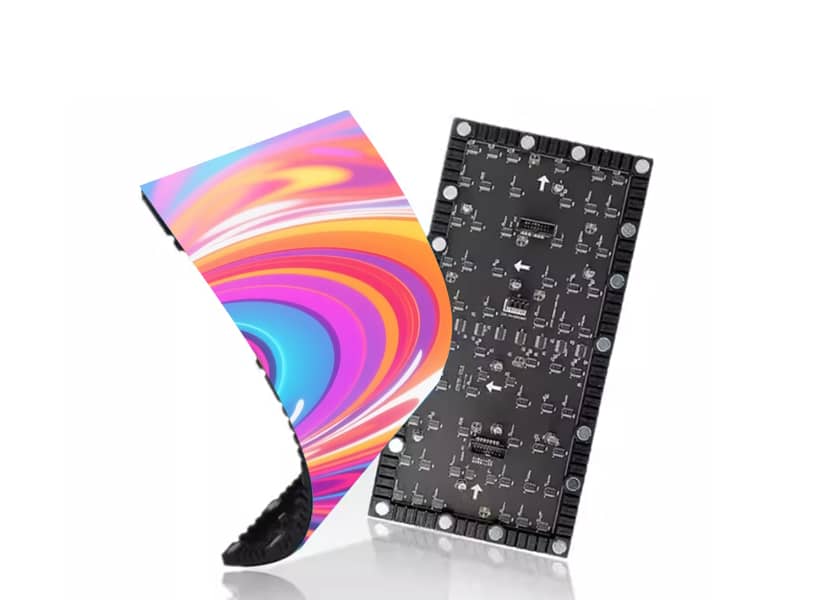

Bend-to-Fit Modules

JINGRUNS flexible LED modules, available in dimensions of 320×160 mm and 240×120 mm, serve as the essential building blocks for creating a wide variety of curved and creatively shaped screens. With their compact and bendable design, these modules seamlessly adapt to cylindrical columns, wave-like structures, and custom artistic installations—offering unparalleled flexibility to bring any creative vision to life.

Bend-to-Fit LED Modules - Flexible Curved LED Display Panels

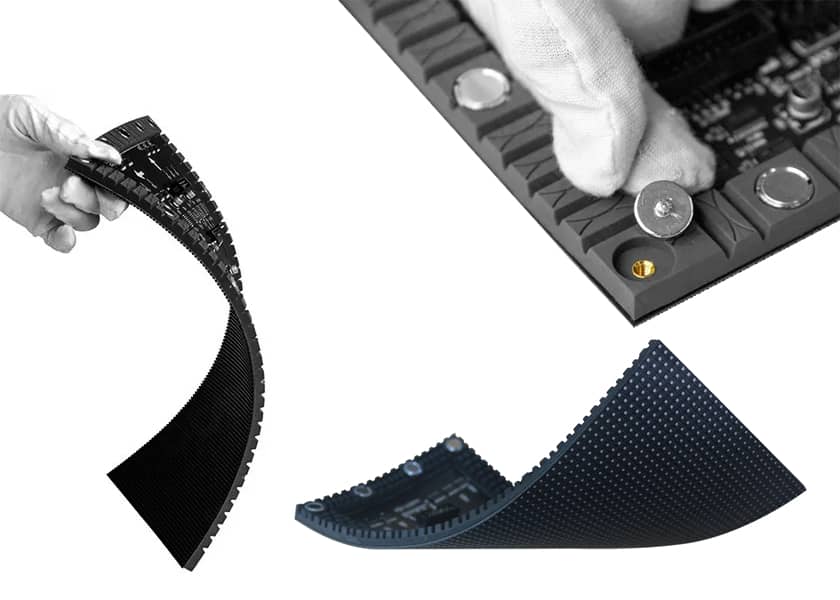

High Flexibility

The module's flexibility enables it to be configured into virtually any custom shape, turning your creative visions into reality.

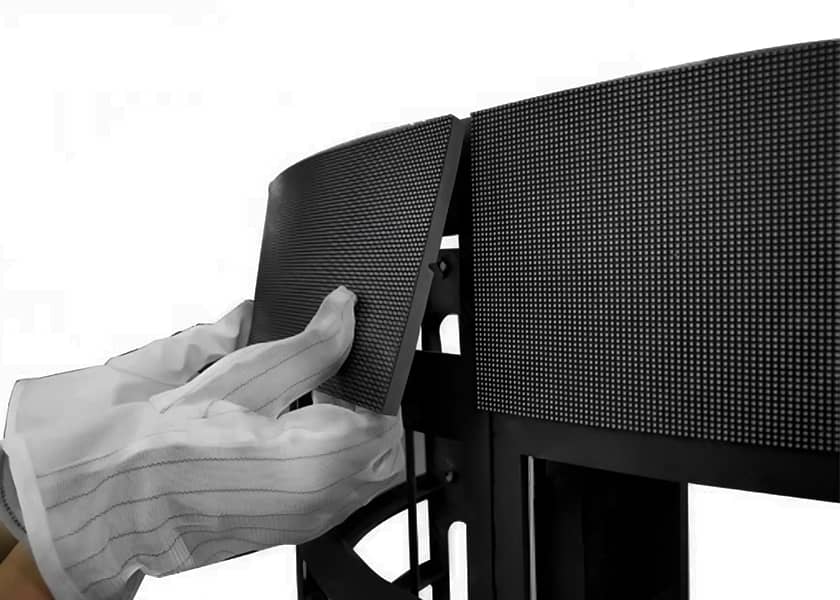

Tool-Free Magnetic Installation

With multiple strong magnets on the back, our modules simply click onto the frame—no tools needed. The magnetic hold allows for on-the-spot adjustments on uneven surfaces, and if maintenance is required, modules can be removed and snapped back into place in seconds.

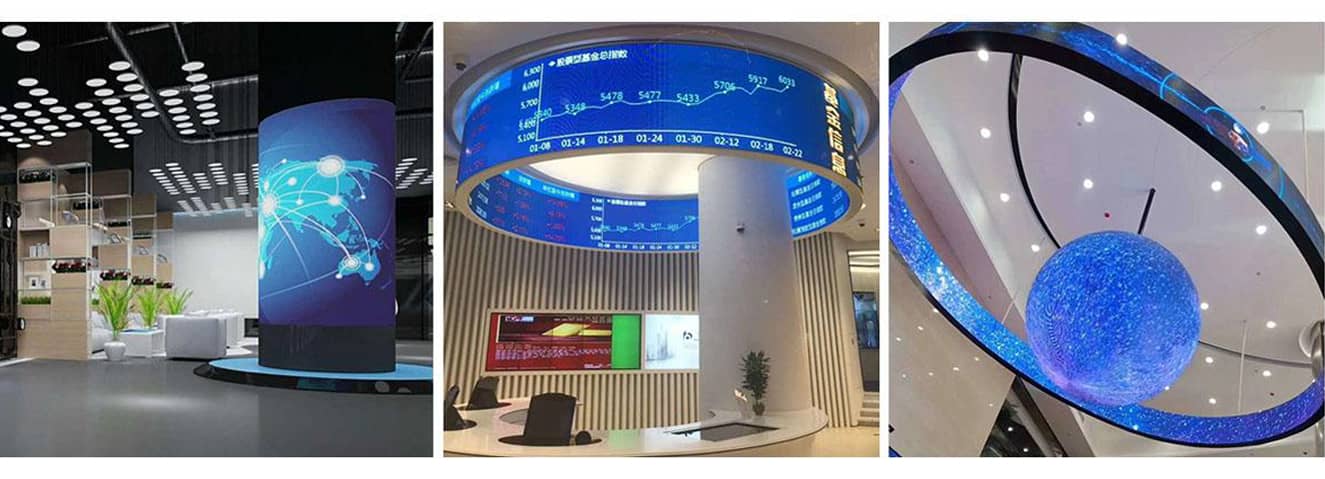

Installation Methods

Flexible mounting options: floor, ceiling, or wall

Application Scenarios for CR-C Series Curved LED Display

Curved LED Display - Retail Store Column Installation

Retail Store Column Display

Exhibition Center Curved Wall

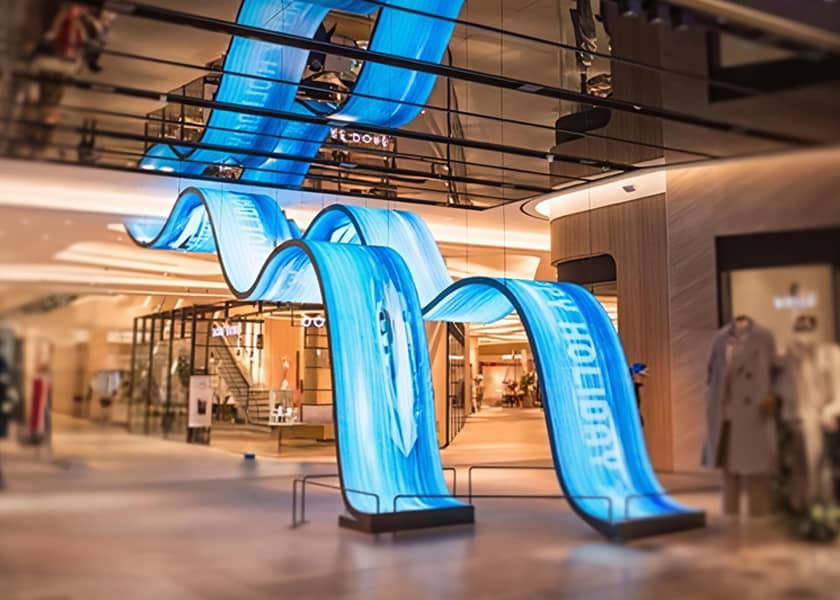

Bendable LED Display - Shopping Mall Wave Installation

Shopping Mall Wave Display

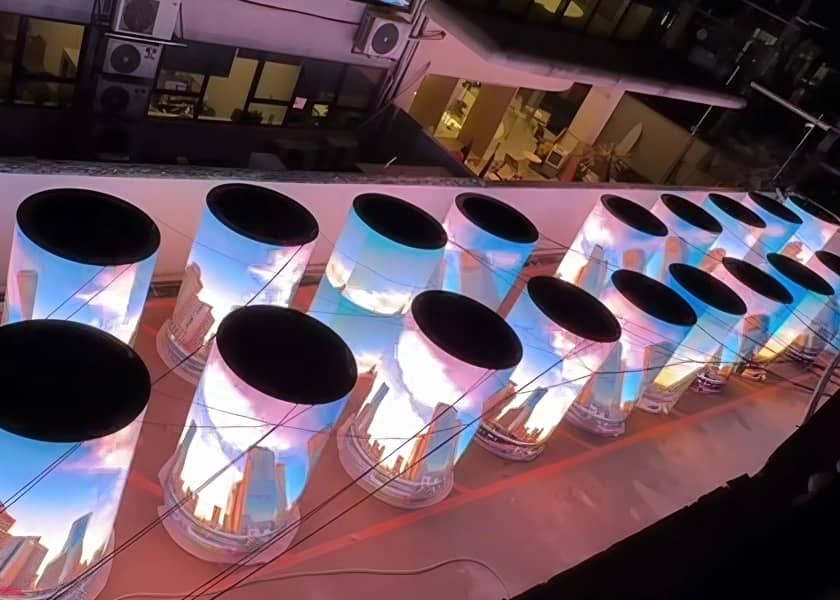

Museum Cylindrical Display

Flexible LED Panel - Corporate Lobby Curved Installation

Corporate Lobby Curved Wall

CR-C Series Curved LED Display - Technical Specifications


Pixel Pitch	P1.25	P1.538	P1.86	P2	P2.5
LED type	SMD1010(S/G/C)	SMD1212(S/G/C)	SMD1515(S/G/C)	SMD1515(S/G/C)	SMD1515/2020(S/G/C)
Physical Density(dots/㎡)	640000	422500	288888	250000	160000
Module size(mm)	320X160	320X160	320X160	320X160	320X160
Module resolution(dots)	256×128	208×104	172×86	160×80	128×64
Drive mode	1/64	1/52	1/43	1/40	1/32
Maintenance mode	Front / Rear
Viewing angle(H/V)	140°/140°
Gray scale	16bit
Refresh rate(Hz)	≥3840
Brightness(CD/㎡)	≥600	≥600	≥800	≥800	≥800
Max consumption(W/㎡)	560
Avg. consumption(W/㎡)	100-200
Working Voltage	AC100-240V,50/60Hz
Working temp/Humidity	-20~50℃/10%~95%

Frequently Asked Questions - Curved LED Display

What is a curved LED display?

A curved LED display uses flexible, bendable LED panels that can be configured into custom shapes including cylindrical columns, wave-like structures, and custom artistic installations. Unlike standard flat displays, curved LED screens can wrap around columns or create immersive wave effects.

What module sizes are available?

The CR-C Series offers flexible modules in 320×160mm and 240×120mm sizes, serving as the essential building blocks for creating a wide variety of curved and creatively shaped screens.

How does the magnetic installation work?

With multiple strong magnets on the back, modules simply snap onto the frame—no tools needed. The magnetic hold allows for on-the-spot adjustments on uneven surfaces, and if maintenance is required, modules can be removed and snapped back into place in seconds.

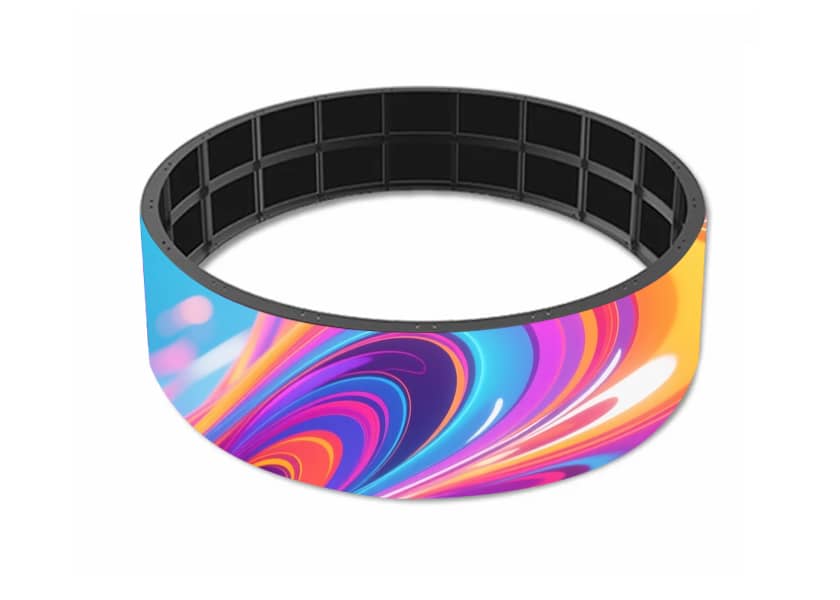

What shapes can the CR-C Series create?

The CR-C Series can create cylindrical columns, wave-like structures, spherical shapes, curved walls, and custom artistic installations. The module's flexibility enables it to be configured into virtually any custom shape.

What is the viewing angle?

The CR-C Series supports 360° viewing angle with consistent colors from any perspective, making it perfect for cylindrical and wave-shaped installations where viewers walk around the display.

What is the warranty on CR-C Series?

We offer a 2-year standard warranty with lifetime technical support. The flexible module design ensures long-term durability for creative installations.
