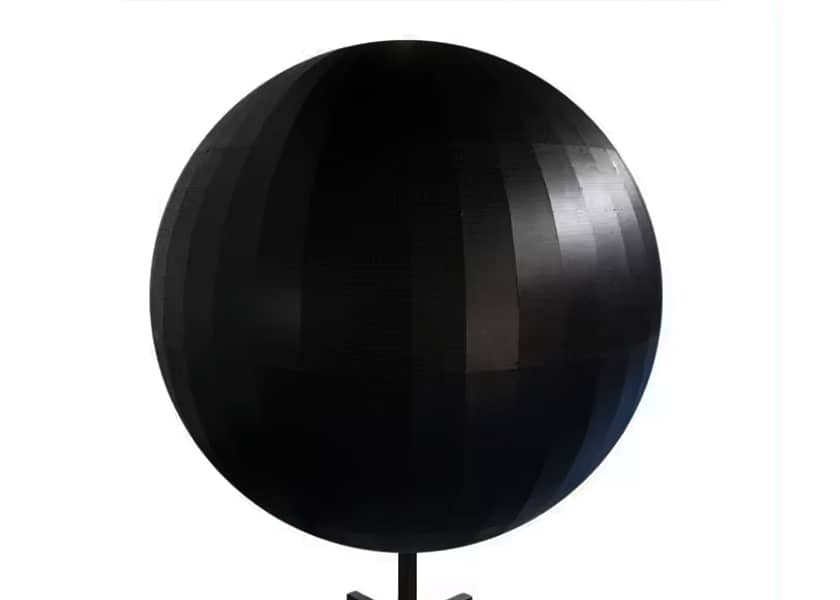

CR-D Series LED sphere side view showing full globe configuration

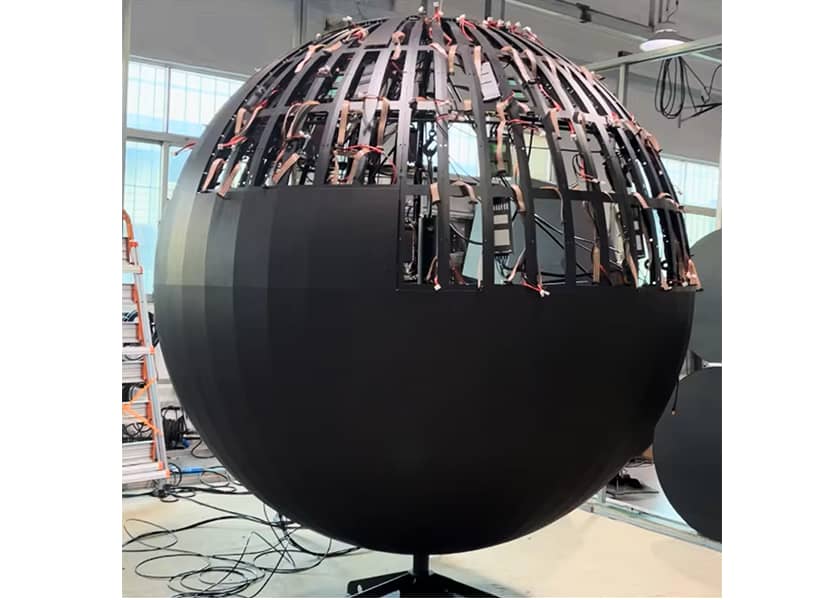

CR-D Series spherical LED display magnetic mounting installation detail

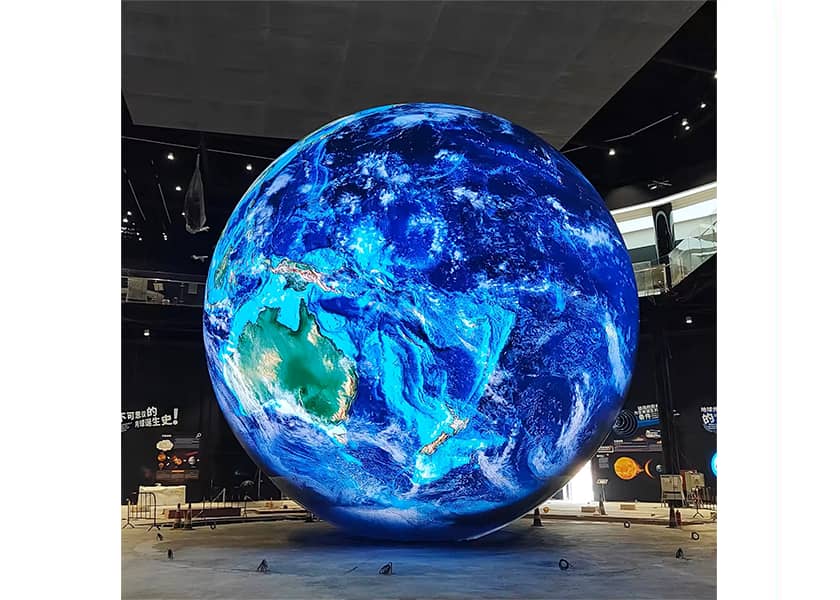

CR-D Series LED globe close-up showing pixel pitch and module design

CR-D Series Spherical LED Display | 360° Globe LED Screen for Immersive Visual Experiences

Customizable LED Sphere - 1m to 2.5m Diameter for Museums, Retail Landmarks & Exhibitions

Supports 360° Viewing Angle - Full Surround Experience
Available in Hemisphere & Full Globe Configurations
Diameters: 1m, 1.2m, 1.5m, 2m, 2.5m Customizable
Magnetic Mounting - Tool-Free Installation
High Resolution up to 3500×1900 Pixels
Brightness 800 CD/㎡ for Indoor Applications
Flexible Installation: Floor, Ceiling, or Wall Mount

✉ Email Us

Our team will respond within 12 hours

Why Choose the CR-D Series Spherical LED Display?

The CR-D Series spherical LED display creates breathtaking 360-degree visual experiences that captivate audiences from every angle. Whether you need a full globe LED screen or a hemisphere display, our custom-designed LED spheres transform ordinary spaces into immersive landmarks.

Available in diameters from 1m to 2.5m (custom sizes up to 10m available), with pixel pitches ranging from P1.25 to P2.5. The magnetic mounting system enables tool-free installation and maintenance—modules simply snap on and off for quick access. Perfect for museums, science centers, retail landmarks, corporate lobbies, and exhibition halls.

With 3840Hz refresh rate, 140° wide viewing angle, and 16-bit grayscale, the CR-D Series delivers stunning, flicker-free imagery. Choose from floor, ceiling, or wall mounting options to suit your venue. Each sphere is custom-engineered to your exact specifications.

Product Features

High Refresh Rate

Wide Viewing Angle

Multiple Control Options

Quick Installation

High Protection

Right Angle Splicing

Arc installation

Low Power Consumption

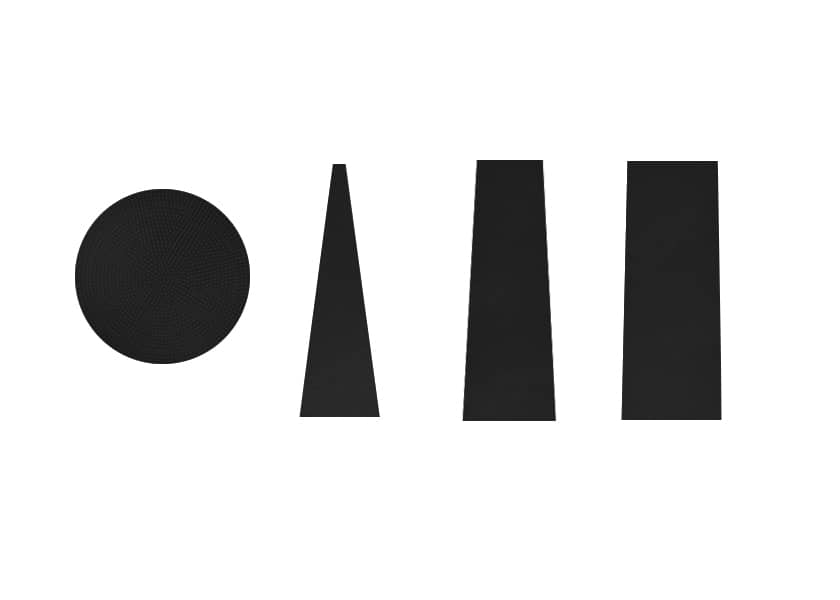

Modules for Different Sphere Sizes

With hundreds of successful custom projects behind us, we've transformed LED modules into virtually every shape imaginable—from curved columns to spherical wonders. This extensive experience gives us the expertise to bring your unique vision to life, no matter how complex.

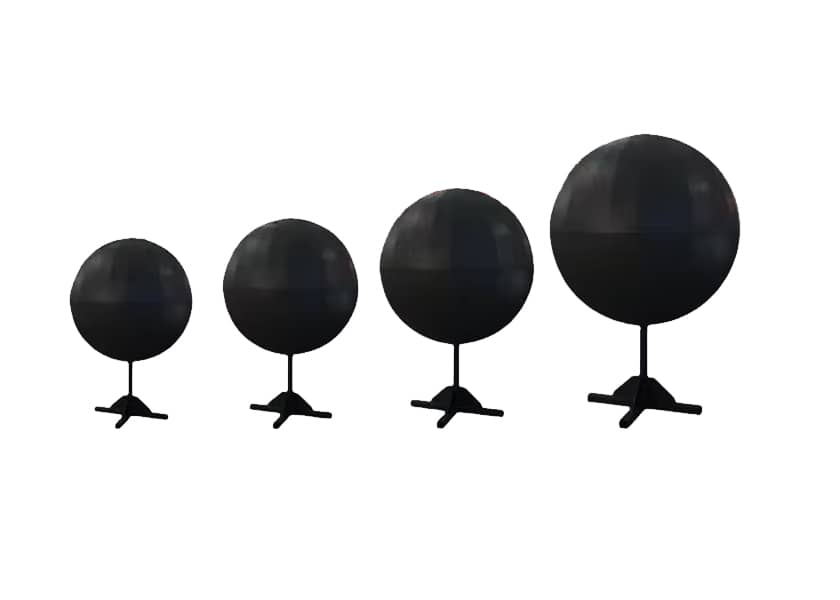

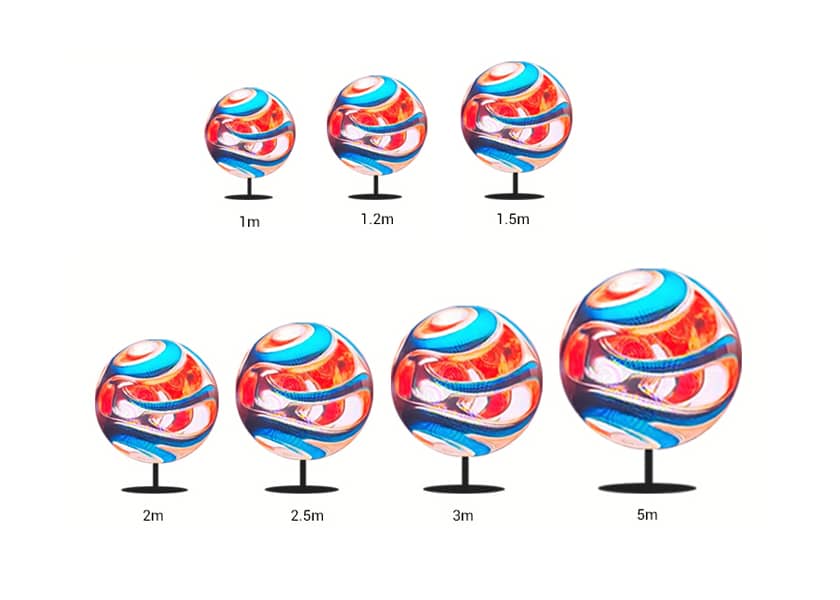

Various Diameters Available

From high-definition indoor displays (P2) to large-scale outdoor spectacles (P37.5), and from 1-meter spheres to monumental structures — we customize every detail to match your vision and market needs.

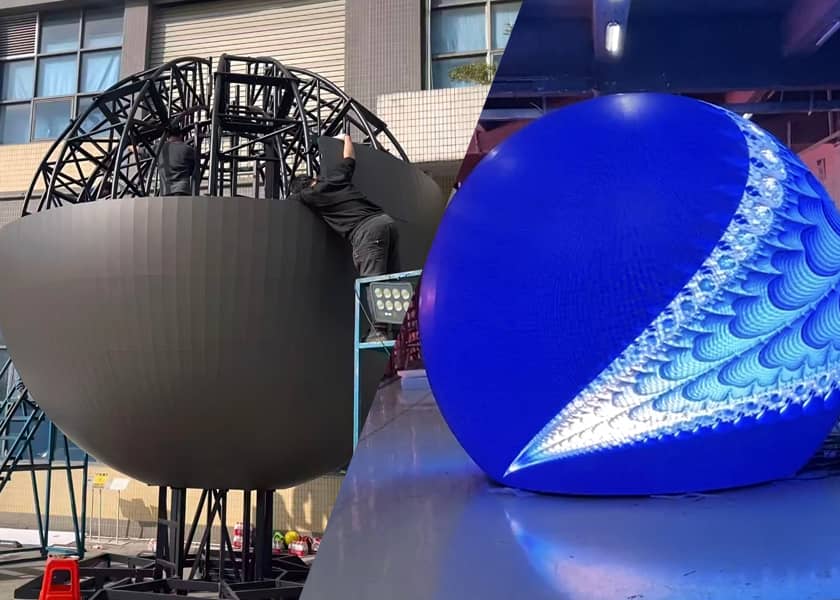

Magnetic Mount Indoor Sphere

With multiple strong magnets on the back, our modules simply click onto the frame—no tools needed. The magnetic hold allows for on-the-spot adjustments on uneven surfaces, and if maintenance is required, modules can be removed and snapped back into place in seconds.

Magnetic Mount Spherical LED Display - Tool-Free Installation

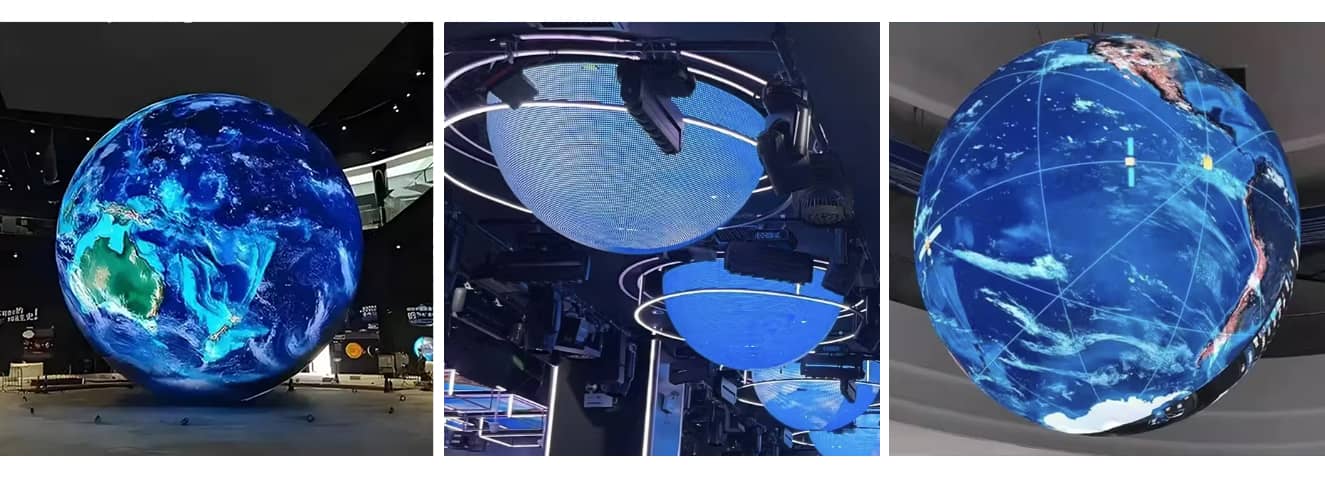

Installation Methods

Flexible mounting options: floor, ceiling, or wall

Application Scenarios for LED Display

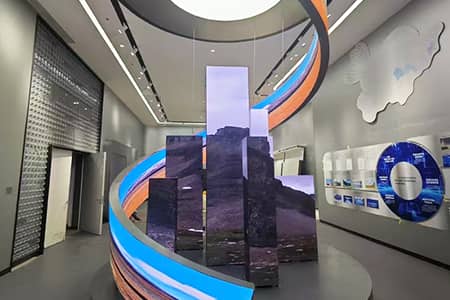

Spherical LED Display - Retail Store Installation

Retail Store Sphere Display

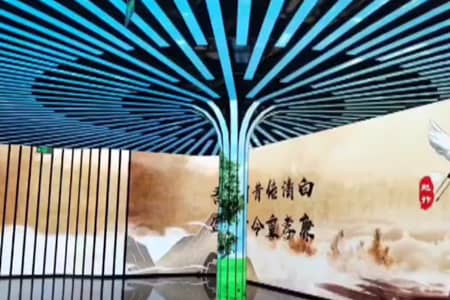

Spherical LED Display - Exhibition Center Installation

Exhibition Center Globe

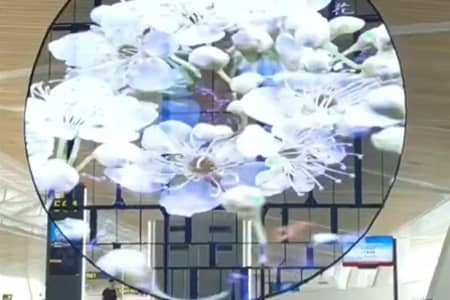

Shopping Mall Landmark

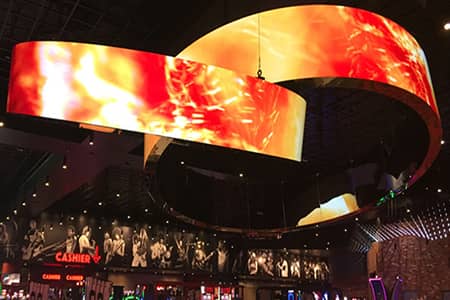

Spherical LED Display - Museum Exhibition

Museum Exhibition Sphere

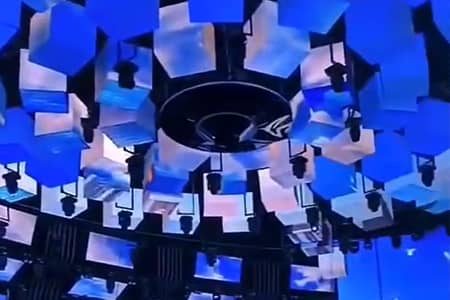

Spherical LED Display - Corporate Lobby Installation

Corporate Lobby Display

CR-D Series Spherical LED Display - Technical Specifications


Pixel Pitch	P1.25	P1.538	P1.86	P2	P2.5
LED type	SMD1010	SMD1212	SMD1515	SMD1515	SMD1515/2020
Physical Density(dots/㎡)	640000	422500	288888	250000	160000
Module size(mm)	320X160	320X160	320X160	320X160	320X160
Module resolution(dots)	256×128	208×104	172×86	160×80	128×64
Drive mode	1/64	1/52	1/43	1/40	1/32
Maintenance mode	Front / Rear
Viewing angle(H/V)	140°/140°
Gray scale	16bit
Refresh rate(Hz)	≥3840
Brightness(CD/㎡)	≥600	≥600	≥800	≥800	≥800
Max consumption(W/㎡)	560
Avg. consumption(W/㎡)	100-200
Working Voltage	AC100-240V,50/60Hz
Working temp/Humidity	-20~50℃/10%~95%

Frequently Asked Questions - Spherical LED Display

What sizes are available for the CR-D Series spherical LED display?

Standard diameters include 1m, 1.2m, 1.5m, 2m, and 2.5m. We also offer custom sizes up to 10m diameter for large-scale installations. Both full globe and hemisphere configurations are available.

How is the spherical LED display installed?

The CR-D Series features a magnetic mounting system for tool-free installation. Modules simply snap onto the frame, and the sphere can be mounted on the floor, suspended from the ceiling, or attached to a wall. Full installation instructions and technical support are provided.

What is the resolution of the LED sphere?

Resolution depends on the sphere diameter and pixel pitch. For example, a 1.5m diameter sphere with P2.5 pitch achieves approximately 1880×1880 pixels. With P1.25 pitch, resolution can reach up to 3500×1900 pixels for stunning 4K quality.

Can the spherical LED display show different content on different sides?

Yes! The CR-D Series supports independent content mapping, allowing you to display different videos or images on different sections of the sphere. This is perfect for multi-brand advertising or segmented messaging.

Is the spherical LED display suitable for outdoor use?

The standard CR-D Series is designed for indoor use (IP31). For outdoor applications, we offer weatherproof versions with higher IP ratings. Please contact us to discuss outdoor sphere requirements.

What is the warranty on CR-D Series?

We offer a 2-year standard warranty on all spherical LED displays, with options to extend to 3-5 years. Lifetime technical support is included with every purchase.
