RE-T Series LED Grille Screen - High-Transparency Waterproof LED Display

RE-T Series high-transparency LED grille screen front view IP65 waterproof

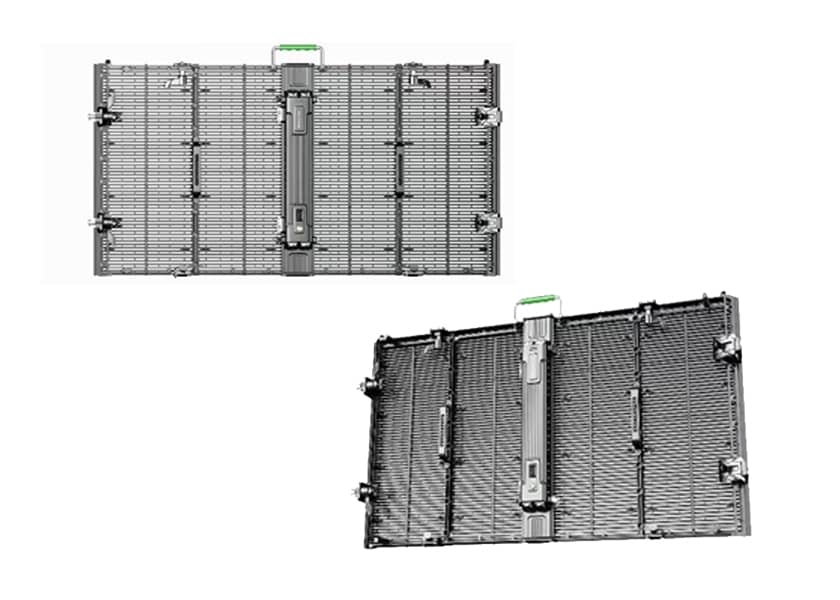

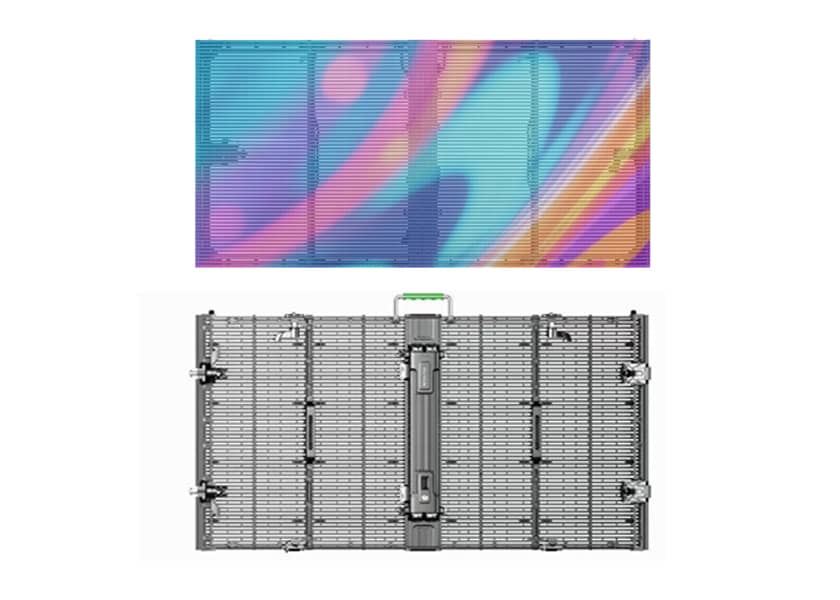

RE-T Series lightweight LED grille screen side view 8kg per square meter

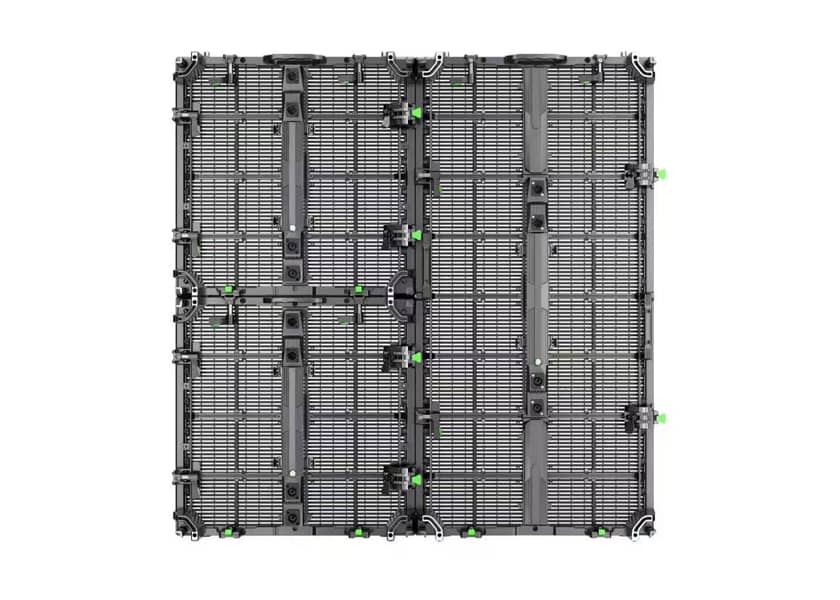

RE-T Series rental LED grille screen quick installation mechanism

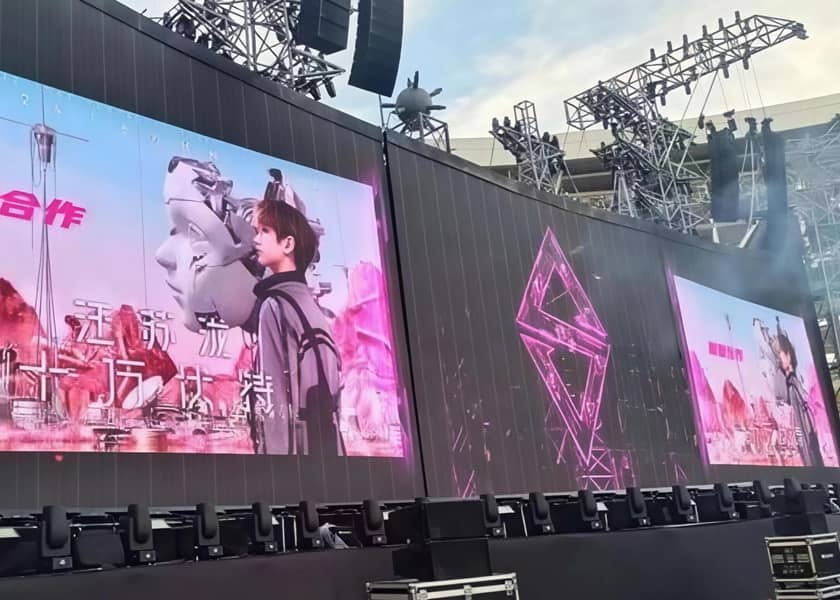

RE-T Series permeable LED display cabinet close-up high brightness

RE-T Series LED Grille Screen | High-Transparency Waterproof Display for Outdoor Events & Building Facades

High-Transparency LED Grille Screen | IP65 Waterproof, ≤8kg/m², Up to 10,000 Nits

High Transparency Design - Preserves Natural Illumination
IP65 Waterproof Rating - Suitable for Outdoor Events
Ultra-Lightweight ≤8KG/m² - Easy Transport & Installation
High Brightness up to 10,000 Nits
Wide Viewing Angle 120°/120°
Quick Installation Mechanism
Flexible Splicing Options

✉ Email Us

Our team will respond within 12 hours

Why Choose the RE-T Series LED Grille Screen?

The RE-T Series LED grille screen is a high-transparency permeable display designed for outdoor events, building facades, shopping malls, and stage rentals. With high transparency design, it allows natural light to pass through while delivering vibrant content—preserving the building's aesthetic and reducing wind load.

At just ≤8kg per square meter, the RE-T Series is extremely lightweight, significantly reducing transport costs and enabling faster setup for rental applications. The IP65 waterproof rating ensures reliable operation in all weather conditions, while brightness up to 10,000 nits guarantees excellent visibility even in direct sunlight.

Available in pixel pitches from P10.42 to P31.25 with 3840Hz refresh rate for flicker-free video capture. The quick installation mechanism and flexible splicing options make it ideal for rental fleets and temporary installations. Wide temperature operation from -20°C to 50°C ensures reliable performance in various climates.

Product Features

High Brightness

Flexible Control Options

Seamless Splicing

Wide temperature operation

Adjustable Angle LED Screen - Curved Rental Display

Adjustable Angles

Wide Viewing Angle

IP65 Waterproof

Lightweight And Slim

Advantages

This product utilizes a unique, high-precision modular cabinet that enables seamless splicing. Its design achieves high transparency, which not only guarantees an excellent display effect but also effectively preserves the building's natural illumination.

RE-T Series LED Grille Screen - High Transparency Display

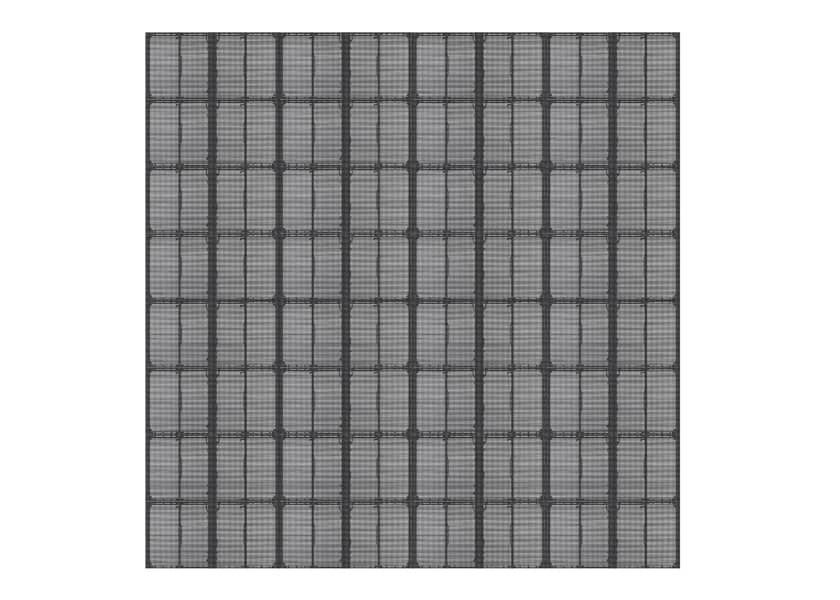

RE-T Series LED Grille Screen - Quick Installation Mechanism

Quick Assembly

Adopting a fast connection mechanism ensures a stable connection and reliable waterproofing. This intelligent design simplifies installation, not only meeting the quick setup demands of the stage but also effectively guaranteeing data transmission.

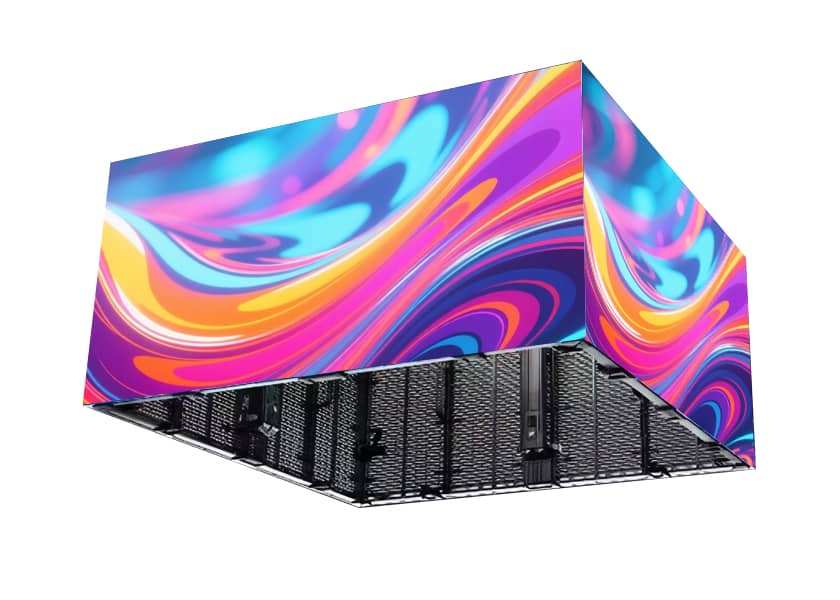

More Configurations

The innovative use of beveled cabinets not only forms a clean right-angle display but also injects a strong sense of creativity into the space, greatly enhancing the visual experience of the stage atmosphere.

Installation Methods

Flexible installation options are supported to meet the diverse requirements of indoor and outdoor applications.

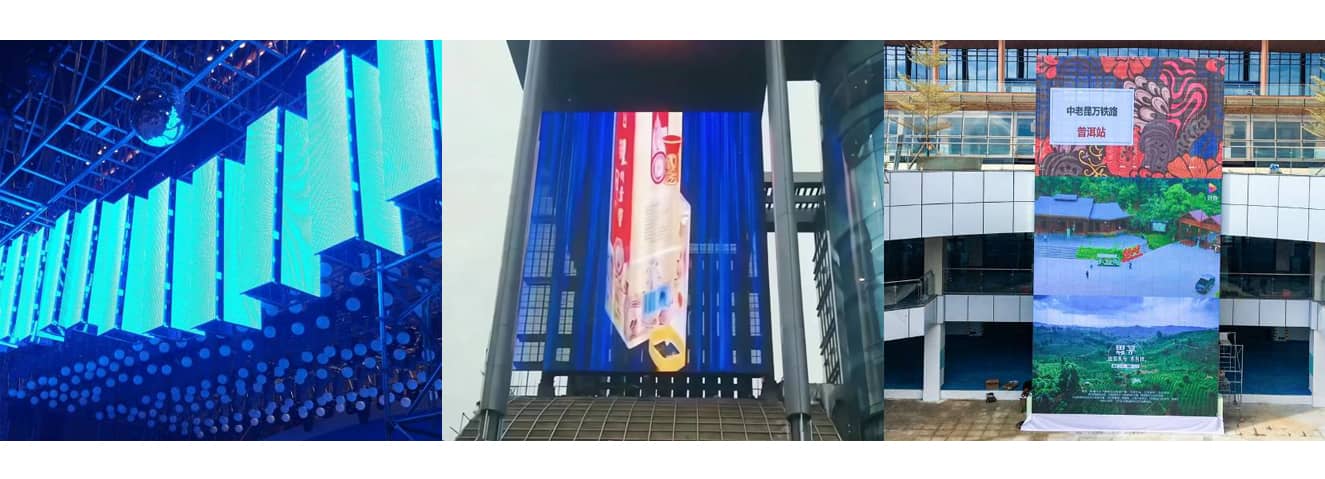

RE-T Series LED Grille Screen - Wall Mounted Installation Method

Application Scenarios for LED Display

RE-T Series LED Grille Screen - Outdoor Event Application

Outdoor Event LED Grille

RE-T Series LED Grille Screen - Building Facade Installation

Building Facade Display

RE-T Series LED Grille Screen - Shopping Mall Installation

Shopping Mall Display

RE-T Series LED Grille Screen - Stage Rental Application

Stage Rental LED Screen

RE-T Series LED Grille Screen - Exhibition Center Display

Exhibition Center LED

RE-T Series LED Grille Screen - Technical Specifications


Pixel Pitch	P10.42	P15.6	P12.5	P15.6	P15.6-31.25	P31.25
LED type	SMD	SMD	DIP	DIP	DIP	DIP
Physical Density(dots/㎡)	9216	4096	6400	4096	2048	1024
Module size(mm)	1000×10	1000×10	1000×10	1000×10	1000×10	1000×10
Module resolution(dots)	96×1	64×1	80×1	64×1	64×1	32×1
Drive mode	1/1s	1/1s	1/1s	1/1s	1/1s	1/1s
Cabinet size(mm)	500×1000×70
Cabinet resolution(dots)	48×96	32×64	40×80	32×64	16×64	16×32
Brightness(Nits)	7000	6000	10000	10000	6000	4000
Panel Weight(kg)	≤8KG/m2
Best viewing distance	≥5
Contrast Ratio	10000 : 1
Refresh rate(Hz)	≥3840
Viewing angle(H/V)	140°/140°
Gray scale	14bit
Max consumption(W/㎡)	≤800
Avg. consumption(W/㎡)	≤400
Working Voltage	AC100-240V,50/60Hz
Working temp/Humidity	-20~50℃/10%~95%

Frequently Asked Questions - LED Grille Screen

What is an LED grille screen?

An LED grille screen (also called transparent LED display or permeable LED display) features an open structure with high transparency, allowing light and air to pass through. It's ideal for building facades and outdoor events where preserving natural light and reducing wind load is important.

How lightweight is the RE-T Series?

The RE-T Series weighs only ≤8kg per square meter, making it extremely lightweight for transport and installation—perfect for rental applications where frequent setup and teardown is required.

What is the brightness of the RE-T Series?

The RE-T Series offers brightness up to 10,000 nits depending on the pixel pitch and LED type (SMD or DIP). This ensures excellent visibility even in direct sunlight for outdoor events.

Is the RE-T Series waterproof?

Yes, the RE-T Series features an IP65 waterproof rating, making it suitable for outdoor events and all-weather operation.

What is the difference between SMD and DIP for grille screens?

SMD offers better color consistency and wider viewing angles, ideal for closer viewing distances. DIP offers higher brightness (up to 10,000 nits) and better durability, making it better for long-distance viewing and outdoor events.

What is the warranty on RE-T Series?

We offer a 3-year standard warranty with lifetime technical support. The IP65 waterproof rating and lightweight design ensure long-term durability for rental applications.
