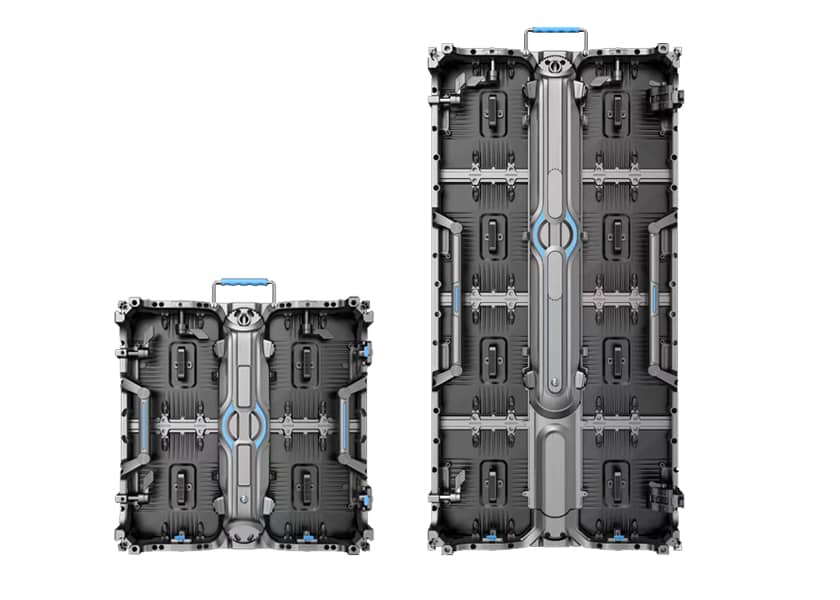

RE-E Series curved rental LED screen side view -5 to +5 degree installation

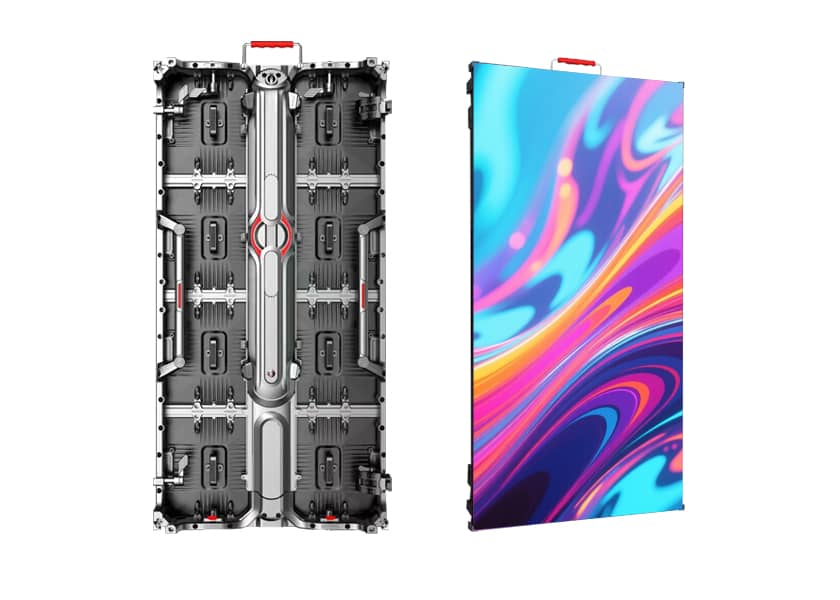

RE-E Series rental LED display front maintenance access quick service

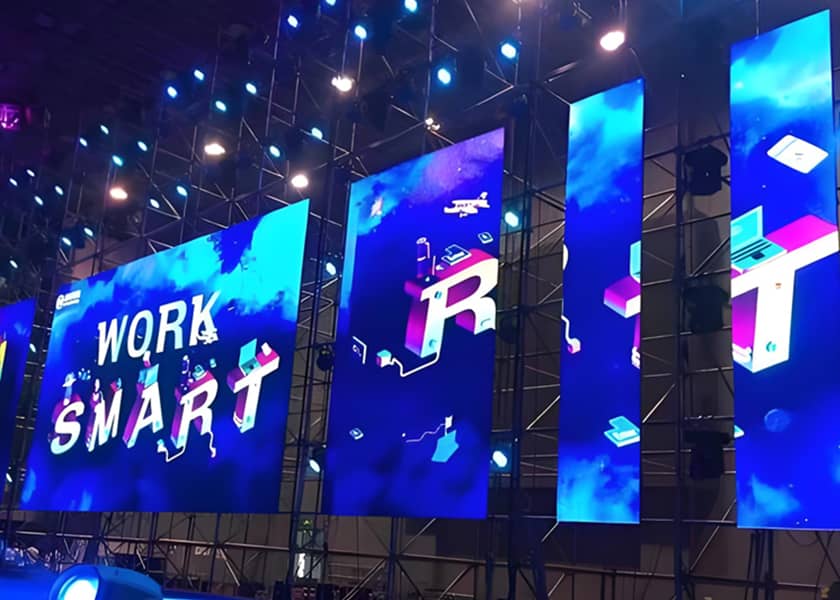

RE-E Series lightweight die-cast aluminum rental LED cabinet close-up

RE-E Series Rental LED Display | Curved Stage Screen -5° to +5°, Flex Cable Connector

Flex Cable Rental LED Display | Curved Installation -5° to +5°, Lightweight 7.6kg Cabinet

Front & Rear Maintenance for Easy Servicing
Independent Power Supply for Reliability
High Refresh Rate (3840Hz) - Flicker-Free Camera Capture
Seamless Splicing with Curved Installation Capability (-5° to +5°)
Quick Assembly & Disassembly for Fast Event Setup
Lightweight Die-Cast Aluminum Cabinet (7.6kg/500×500mm)
Corner Protection for Transport Safety

✉ Email Us

Our team will respond within 12 hours

Why Choose the RE-E Series Rental LED Display?

The RE-E Series rental LED display features flex cable connector technology for reliable signal transmission and curved installation capability (-5° to +5°) for creative stage designs. Perfect for concerts, exhibitions, corporate events, weddings, and outdoor festivals where flexible setup is essential.

The lightweight die-cast aluminum cabinet weighs only 7.6kg for 500x500mm size, enabling fast assembly and reduced transport costs. Each cabinet comes with built-in modules, receiving cards, flat data cables, and power supplies—ready to use out of the box. Front and rear maintenance access ensures quick servicing without dismantling the screen structure.

Available in pixel pitches from P1.95 to P3.91 with 3840Hz refresh rate for flicker-free video capture. IP65 front waterproof rating and brightness up to 4500 nits allow outdoor event use. Corner protection and quick-release locks ensure durability and rapid assembly for tight event schedules.

Product Features

Protected Corners

Front Maintenance

Seamless Splicing

Quick Installation

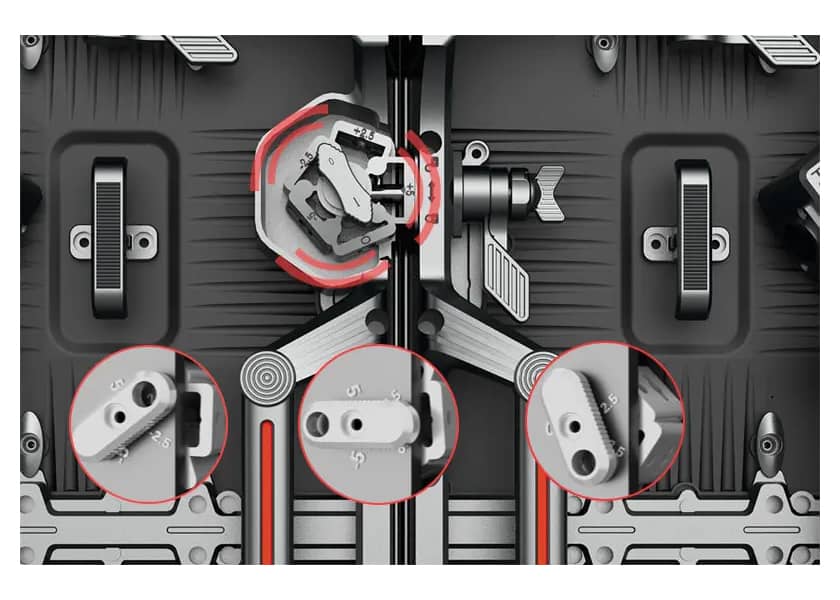

Adjustable Angle LED Screen - Curved Rental Display

Adjustable Angles

Wide Viewing Angle

High Refresh Rate

Lightweight And Slim

Versatile Applications

From intimate weddings to large-scale concerts, our rental LED screens deliver stunning visuals for any indoor or outdoor event. Perfect for stages, church services, performances, and dynamic backdrops.

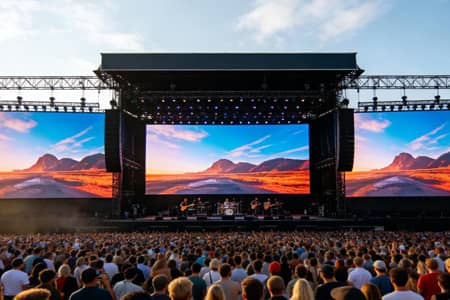

RE-E Series Rental LED Display - Concert Stage Application

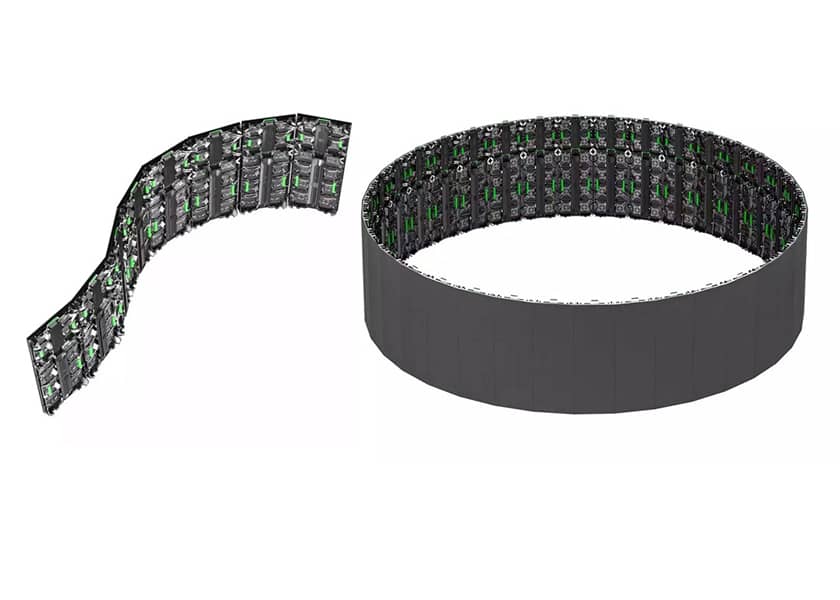

RE-E Series Rental LED Display - 90-Degree Right Angle Splicing

Multiple configuration options

The LED screen cabinet supports seamless 90-degree right-angle splicing, enabling effortless connection of multiple units. This flexible design adapts easily to various spaces, from corners to long walls , helping to create a cohesive and customized display solution for different usage scenarios.

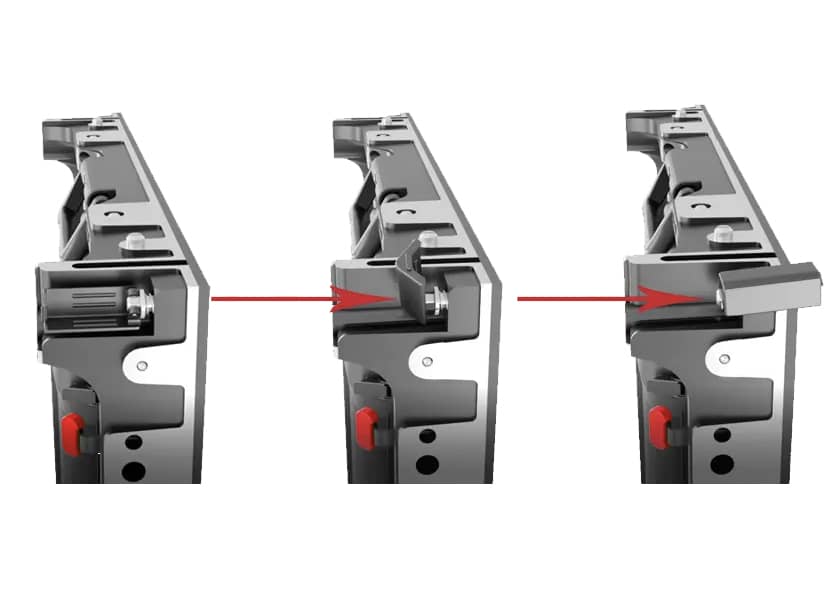

Corner Protection

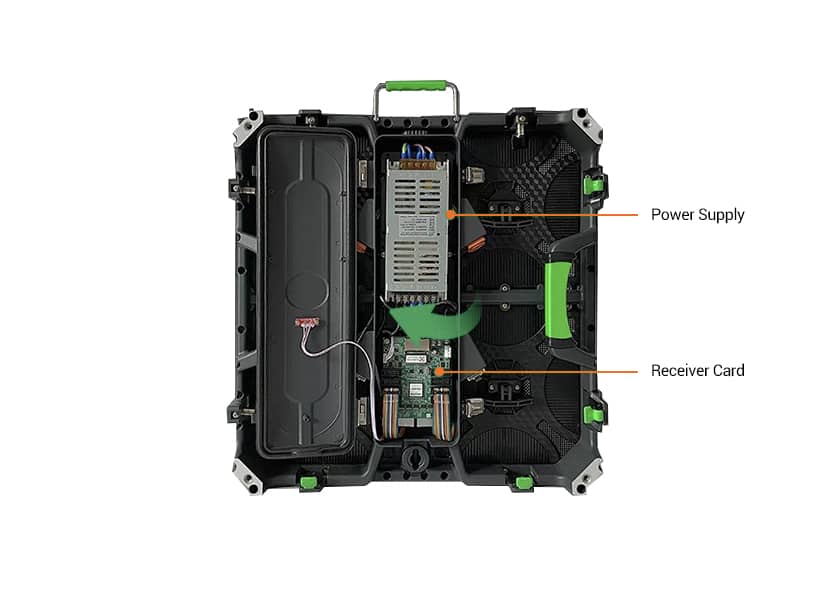

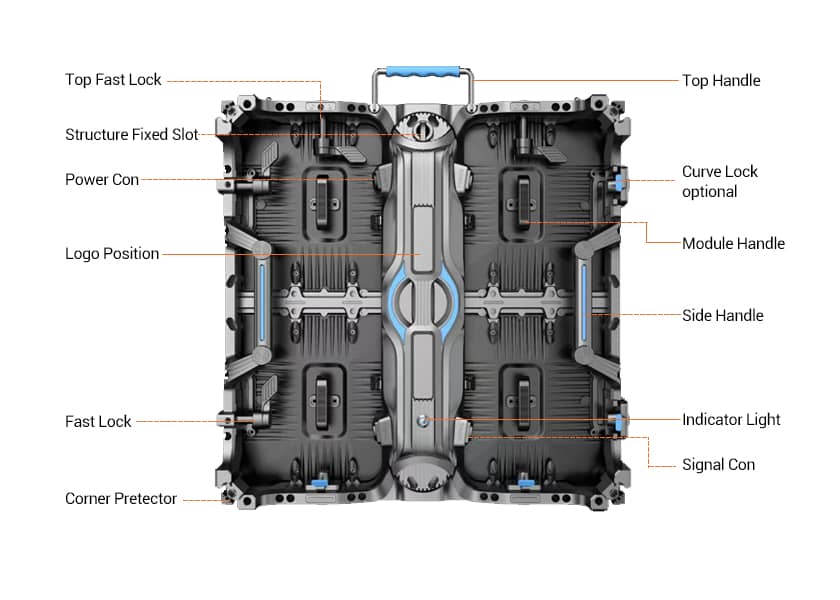

Each screen cabinet comes with built-in modules, receiving cards, flat data cables, and power supplies. Weighing only 7.5 kg, it features four sets of sturdy quick-release locks for fast and easy assembly.

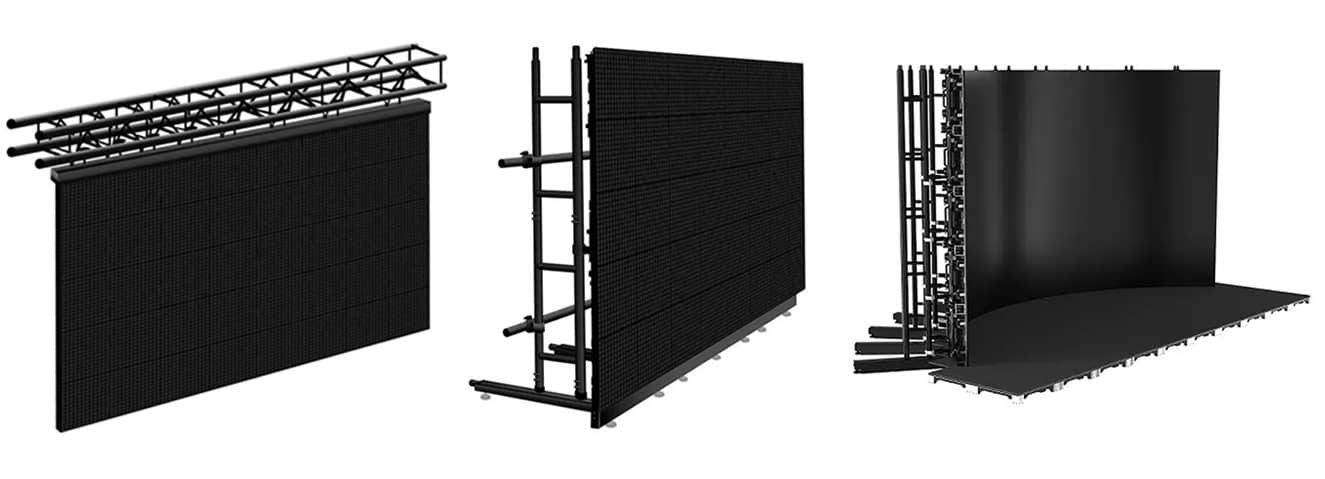

Installation Methods

Flexible installation options are supported to meet the diverse requirements of indoor and outdoor applications.

Application Scenarios for RE-E Series LED Display

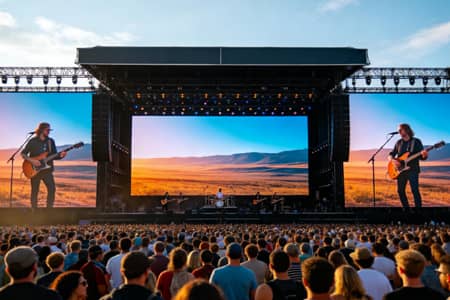

Concert Stage LED Screen

RE-E Series Rental LED Screen - Exhibition Booth Application

Exhibition LED Display

RE-E Series Rental LED Display - Indoor Event Application

Indoor Event LED Screen

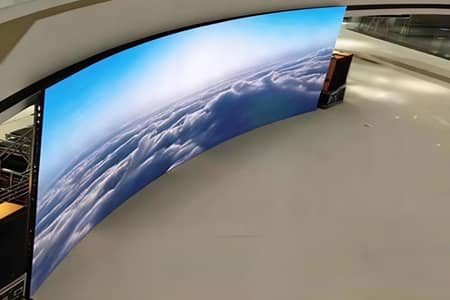

RE-E Series Rental LED Screen - Wedding Event Application

Wedding LED Display

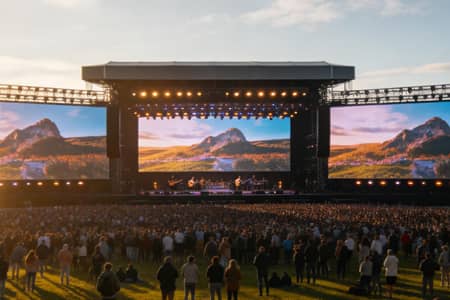

RE-E Series Rental LED Display - Outdoor Festival Application

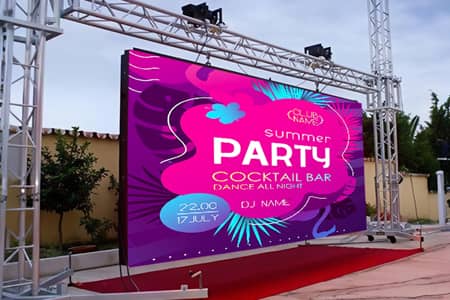

Outdoor Festival LED Screen

RE-E Series Rental LED Display Specifications

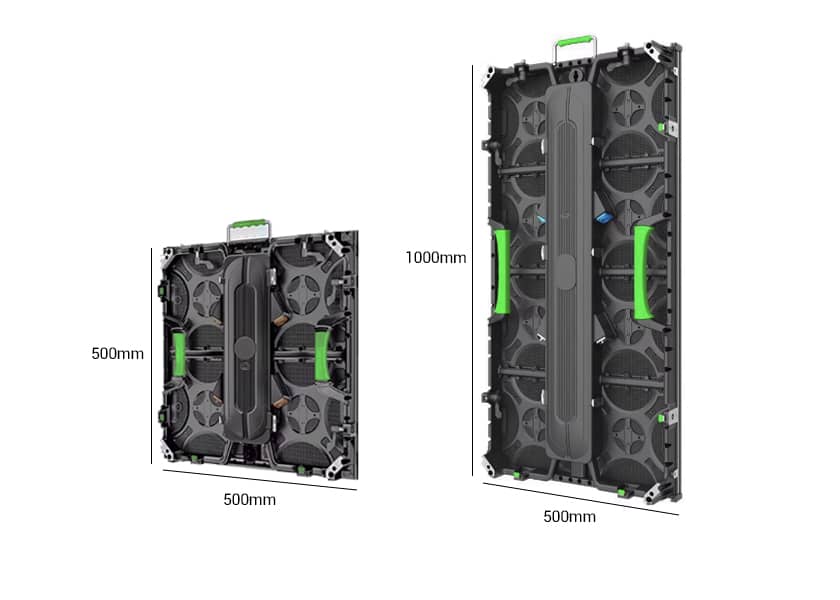

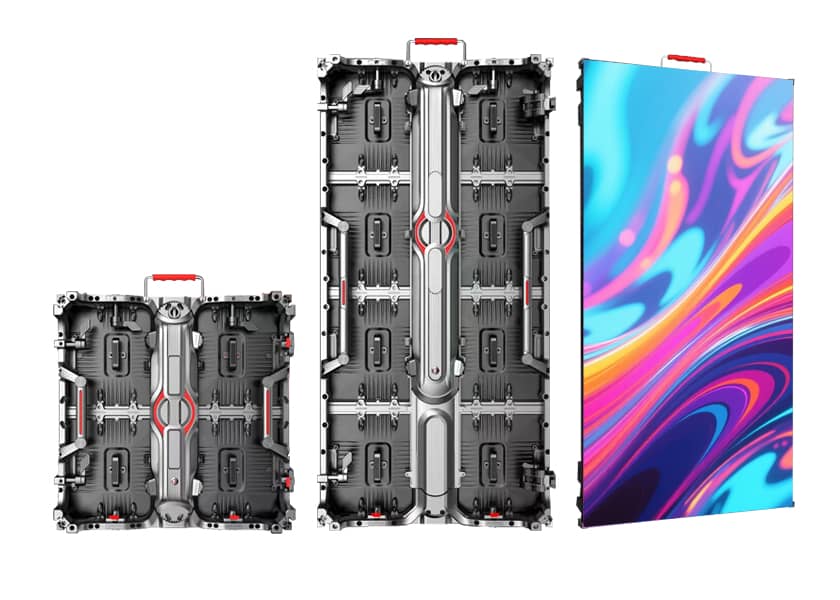

RE-E Series Cabinet Sizes: 500x500mm 500x1000mm
Pixel Pitch	P1.95	P2.604	P2.976	P3.91
LED type	SMD1515	SMD1515/SMD1921	SMD1515/SMD1921	SMD1515/SMD1921
Physical Density(dots/㎡)	262144	147928	123904	123904
Module size(mm)	250×250	250×250	250×250	250×250
Drive mode	1/64s	1/32s	1/28s	1/16s
Cabinet size(mm)	500X500mm
Cabinet resolution(dots)	256x256	192x192	168x168	128x128
Best viewing distance	≥2	≥2.5	≥3	≥4
Materials	Die Casting Aluminum
Application	Indoor & Outdoor
Brightness(CD/㎡)	900 / 4500
Panel Weight(kg)	7.6/14
Refresh rate(Hz)	≥3840
Viewing angle(H/V)	140°/140°
Maintenance mode	Front & Rear
Gray scale	16bit
Max consumption(W/㎡)	800
Avg. consumption(W/㎡)	100-300
Working Voltage	AC100-240V,50/60Hz
Working temp/Humidity	-20~50℃/10%~95%

Frequently Asked Questions - Rental LED Display

What is the advantage of the flex cable connector?

The flex cable connector provides more reliable signal transmission compared to traditional hardwired connections. It reduces the risk of connection failure during transport and setup, making it ideal for rental applications where screens are frequently assembled and disassembled.

What curved configurations does the RE-E Series support?

The RE-E Series supports curved installation from -5° to +5°, allowing for creative concave and convex stage designs. This flexibility makes it ideal for unique stage configurations and immersive experiences.

How lightweight is the RE-E Series cabinet?

The 500x500mm cabinet weighs only 7.6kg, and the 500x1000mm cabinet weighs 14kg. This lightweight design significantly reduces transport costs and enables faster setup.

Can the RE-E Series be used outdoors?

Yes! The RE-E Series features an IP65 front waterproof rating and brightness up to 4500 nits, making it suitable for outdoor festivals and events.

What is the refresh rate of the RE-E Series?

The RE-E Series features a 3840Hz high refresh rate, ensuring flicker-free video capture for broadcast, live streaming, and professional camera work.

What is the warranty on RE-E Series?

We offer a 3-year standard warranty with lifetime technical support. The corner protection and lightweight die-cast aluminum design ensure long-term durability for rental applications.
