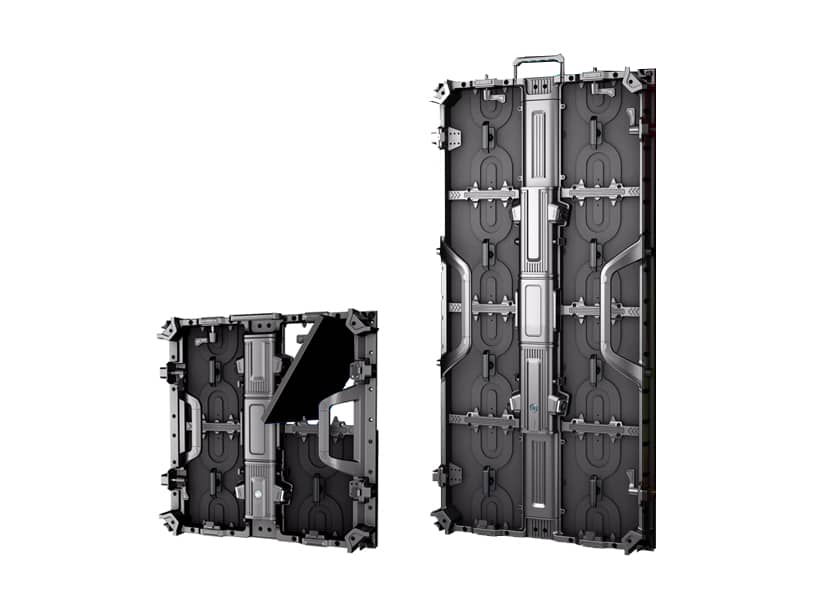

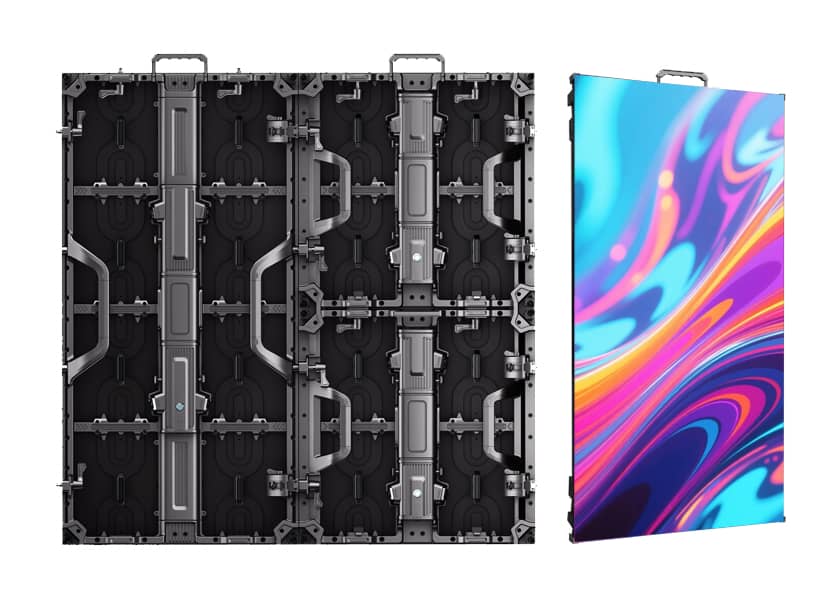

RE-F Series rental LED screen side view lightweight die-cast aluminum cabinet

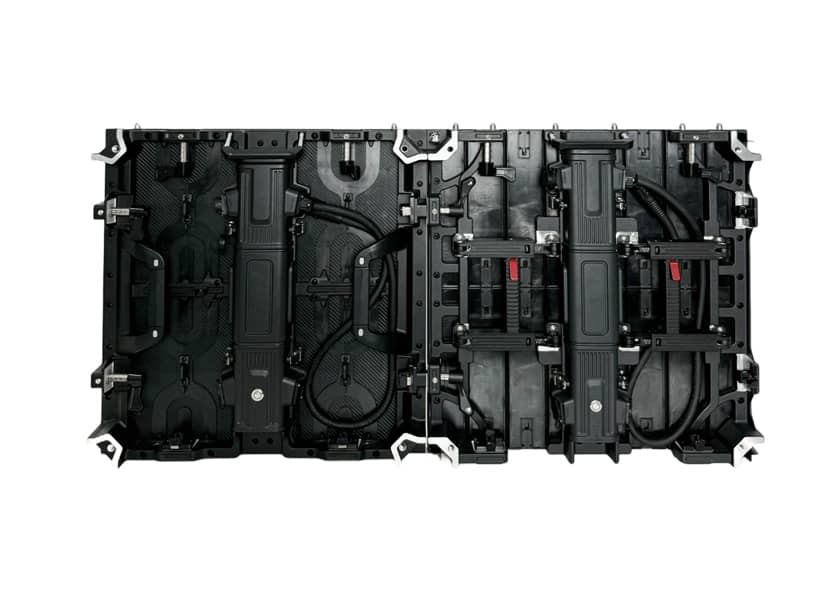

RE-F Series rental LED display front maintenance access easy service

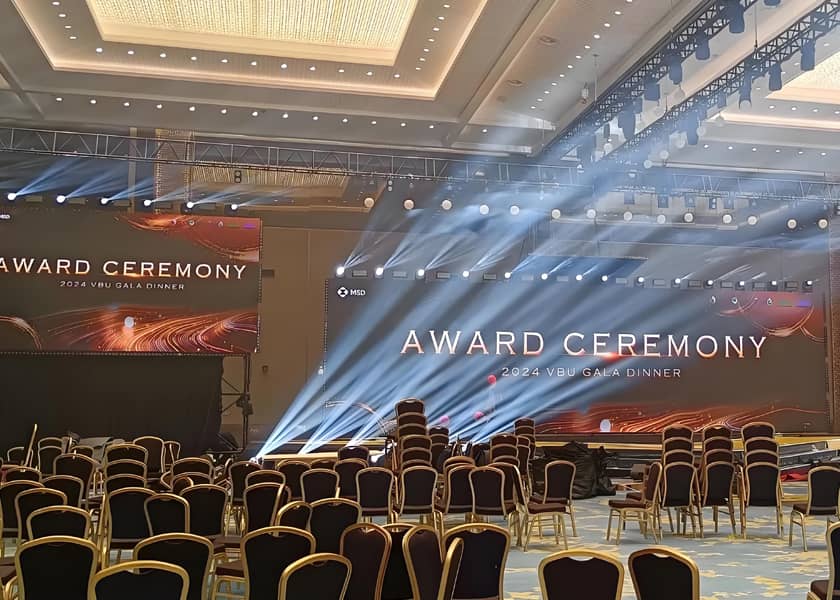

RE-F Series die-cast aluminum rental LED cabinet close-up quick-release locks

RE-F Series Rental LED Display | Modular Stage Screen, High Compatibility with Curved Series

Modular Rental LED Display | Front & Rear Maintenance, Quick Assembly, Curved Series Compatible

Front & Rear Maintenance for Easy Servicing
Independent Power Supply for Reliability
High Refresh Rate (3840Hz) - Flicker-Free Camera Capture
Seamless Splicing for Perfect Visuals
Quick Assembly & Disassembly for Rental Events
Indoor & Outdoor Applications (IP65 Front)
Die-Cast Aluminum Cabinet for Durability

✉ Email Us

Our team will respond within 12 hours

Why Choose the RE-F Series Rental LED Display?

The RE-F Series rental LED display features a fully modular design with front and rear maintenance access, enabling technicians to easily service every component from LED modules to power control systems. Perfect for concerts, exhibitions, corporate events, festivals, and trade shows where reliability and fast setup are essential.

Available in 500x500mm and 500x1000mm die-cast aluminum cabinets with IP65 front waterproof rating for outdoor use. The high compatibility design allows seamless integration with our curved series cabinets, enabling right-angle transitions and fixed-angle transitions for wave-series LED screens.

Pixel pitches from P1.95 to P3.91 with 3840Hz refresh rate for flicker-free video capture. Quick-release locks enable rapid assembly and disassembly for tight event schedules. The lightweight 7.6kg cabinet (500x500mm) reduces transport costs and setup time.

Product Features

Protected Corners

Front Maintenance

Seamless Splicing

Quick Installation

Adjustable Angle LED Screen - Curved Rental Display

Adjustable Angles

Wide Viewing Angle

High Refresh Rate

Lightweight And Slim

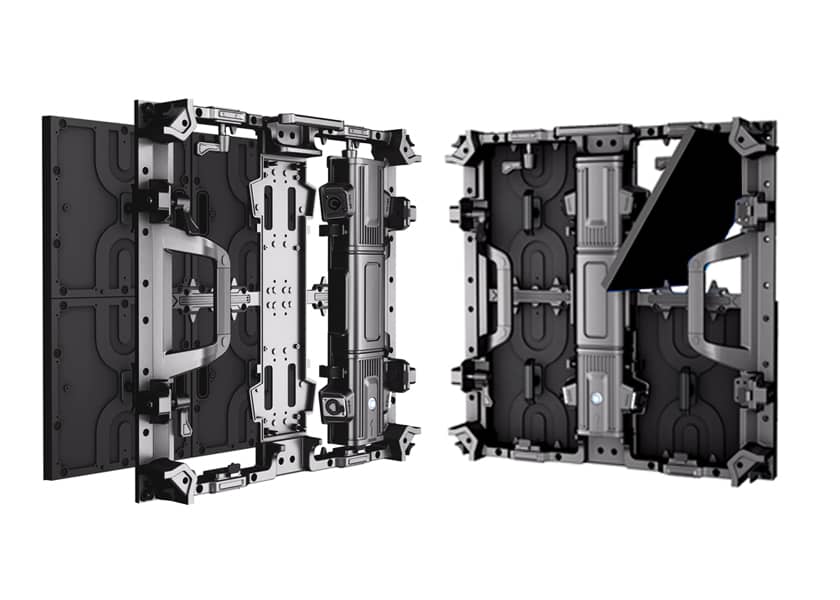

Front and Rear Maintenance

The LED rental screen features a fully modular design, allowing technicians to easily access and maintain every component—from the front LED modules to the rear power control system—directly from the front, minimizing replacement and maintenance time.

Front Maintenance - RE-F Series Rental LED Display

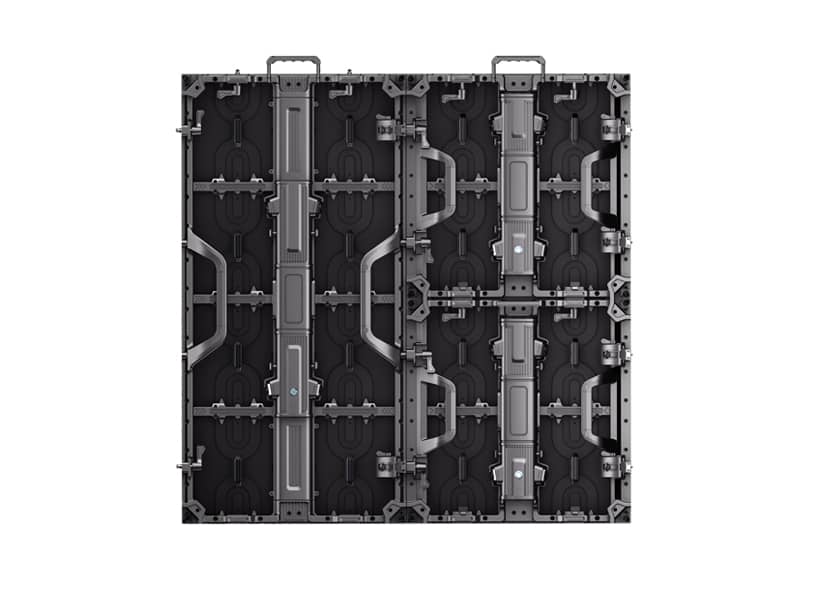

Quick Assembly

The LED screen cabinet supports seamless 90-degree right-angle splicing, enabling effortless connection of multiple units. This flexible design adapts easily to various spaces, from corners to long walls , helping to create a cohesive and customized display solution for different usage scenarios.

High Compatibility

Designed to be compatible with our curved series cabinets, this solution enables seamless right-angle transitions for standard LED screens and fixed-angle transitions for wave-series LED screens.

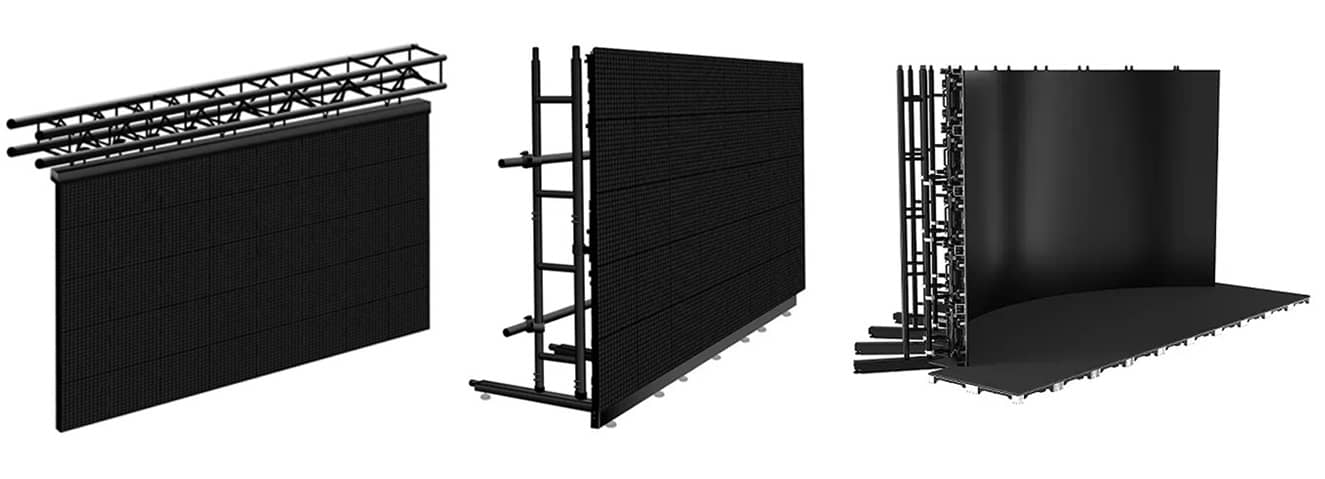

Installation Methods

Flexible installation options are supported to meet the diverse requirements of indoor and outdoor applications.

Application Scenarios for RE-F Series LED Display

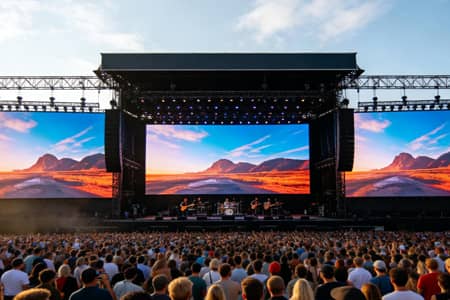

RE-F Series Rental LED Display - Concert Stage Application

Concert Stage Rental LED

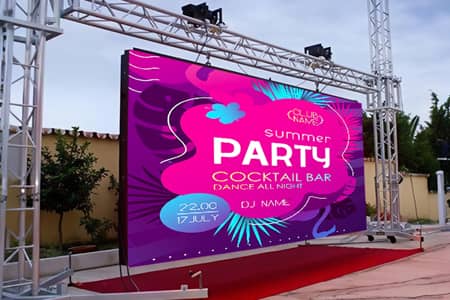

RE-F Series Rental LED Screen - Exhibition Booth Application

Exhibition LED Display

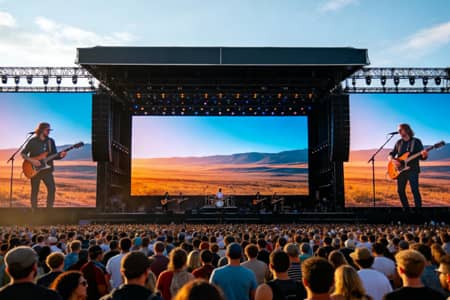

RE-F Series Rental LED Display - Corporate Event Application

Corporate Event LED

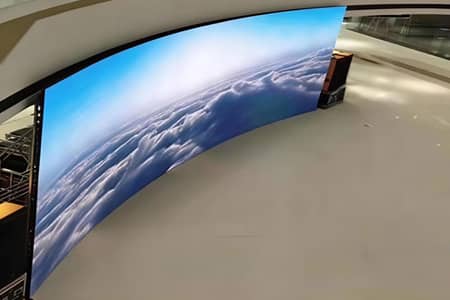

RE-F Series Rental LED Screen - Festival Stage Application

Festival Stage LED

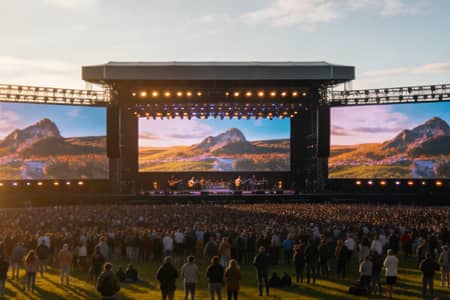

RE-F Series Rental LED Display - Trade Show Application

Trade Show LED

RE-F Series Rental LED Display Specifications

RE-F Series Cabinet Sizes: 500x500mm 500x1000mm
Pixel Pitch	P1.95	P2.604	P2.976	P3.91
LED type	SMD1515	SMD1515/SMD1921	SMD1515/SMD1921	SMD1515/SMD1921
Physical Density(dots/㎡)	262144	147928	123904	123904
Module size(mm)	250×250	250×250	250×250	250×250
Drive mode	1/64s	1/32s	1/28s	1/16s
Cabinet size(mm)	500×500mm / 500×1000mm
Cabinet resolution(dots)	256x256	192x192	168x168	128x128
Best viewing distance	≥2	≥2.5	≥3	≥4
Materials	Die Casting Aluminum
Application	Indoor & Outdoor
Brightness(CD/㎡)	900 / 4500
Panel Weight(kg)	7.6/14
Refresh rate(Hz)	≥3840
Viewing angle(H/V)	140°/140°
Maintenance mode	Front & Rear
Gray scale	16bit
Max consumption(W/㎡)	800
Avg. consumption(W/㎡)	100-300
Working Voltage	AC100-240V,50/60Hz
Working temp/Humidity	-20~50℃/10%~95%

Frequently Asked Questions - Rental LED Display

What makes the RE-F Series different from other rental displays?

The RE-F Series features a fully modular design with front and rear maintenance access, high compatibility with curved series cabinets, and quick-release locks for fast assembly. It's designed for maximum flexibility in rental applications.

What cabinet sizes are available?

The RE-F Series is available in 500x500mm and 500x1000mm die-cast aluminum cabinets. The 500x1000mm size allows for faster assembly of large video walls with fewer seams.

Is the RE-F Series compatible with curved series cabinets?

Yes! The RE-F Series is designed to be compatible with our curved series cabinets, enabling seamless right-angle transitions for standard LED screens and fixed-angle transitions for wave-series LED screens.

Can the RE-F Series be used outdoors?

Yes! The RE-F Series features an IP65 front waterproof rating and brightness up to 4500 nits, making it suitable for outdoor festivals and events.

What is the refresh rate of the RE-F Series?

The RE-F Series features a 3840Hz high refresh rate, ensuring flicker-free video capture for broadcast, live streaming, and professional camera work.

What is the warranty on RE-F Series?

We offer a 3-year standard warranty with lifetime technical support. The modular design and die-cast aluminum construction ensure long-term durability for rental applications.
