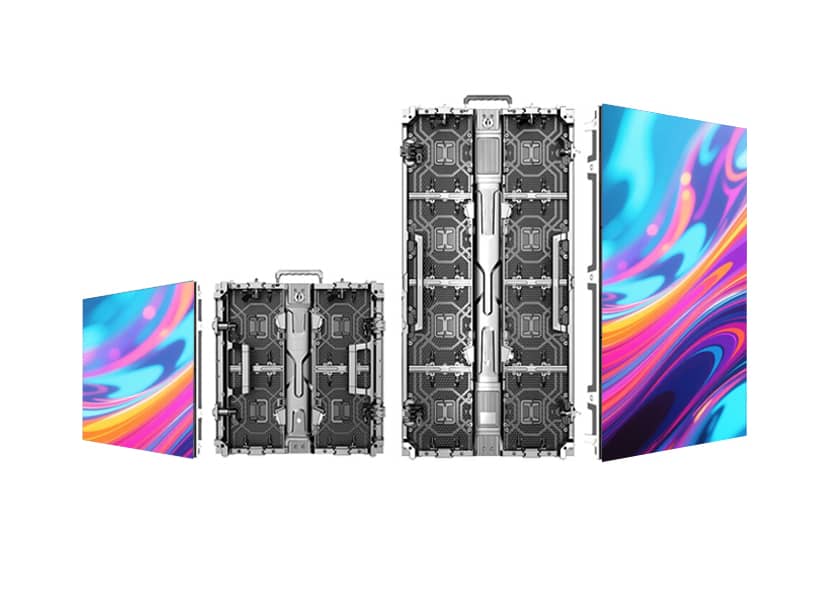

RE-A Series rental LED display front maintenance access easy service

RE-A Series rental LED cabinet close-up anti-collision corner guards

RE-A Series Rental LED Display | Modular Stage Screen with Anti-Collision Corners

Modular Rental LED Display | Quick Assembly, Front Maintenance, Anti-Collision Design

Front & Rear Maintenance for Easy Service
Independent Power Supply for Reliability
High Refresh Rate: 3840Hz for Flicker-Free Video
Seamless Splicing for Large Video Walls
Quick Assembly & Disassembly for Events
Hardwired Circuit Design for Stability
Pixel Pitches: P1.95, P2.604, P2.976, P3.91
Indoor & Outdoor Versatility (IP65 Front)
Anti-Collision Corners for Transport Safety

✉ Email Us

Our team will respond within 12 hours

Why Choose the RE-A Series Rental LED Display?

The RE-A Series rental LED display is engineered for the demanding world of live events. With modular 500x500mm and 500x1000mm cabinets, it enables rapid assembly and disassembly—perfect for concerts, stages, corporate events, trade shows, weddings, and church services.

The die-cast aluminum cabinet with anti-collision corner guards protects LEDs during transport, installation, and operation. Front and rear maintenance access ensures quick servicing without dismantling the screen structure—critical for tight event schedules.

Available in pixel pitches from P1.95 to P3.91 with 3840Hz refresh rate for flicker-free video capture on camera. IP65 front waterproof rating allows outdoor event use. The 1.6mm H4 multi-layer PCB ensures superior stability and reliability for demanding rental applications.

Product Features

Right Angle Splicing

Front Maintenance

Seamless Splicing

Quick Installation

IP65 Waterproof

Wide Viewing Angle

High Refresh Rate

Lightweight And Slim

Versatile Applications

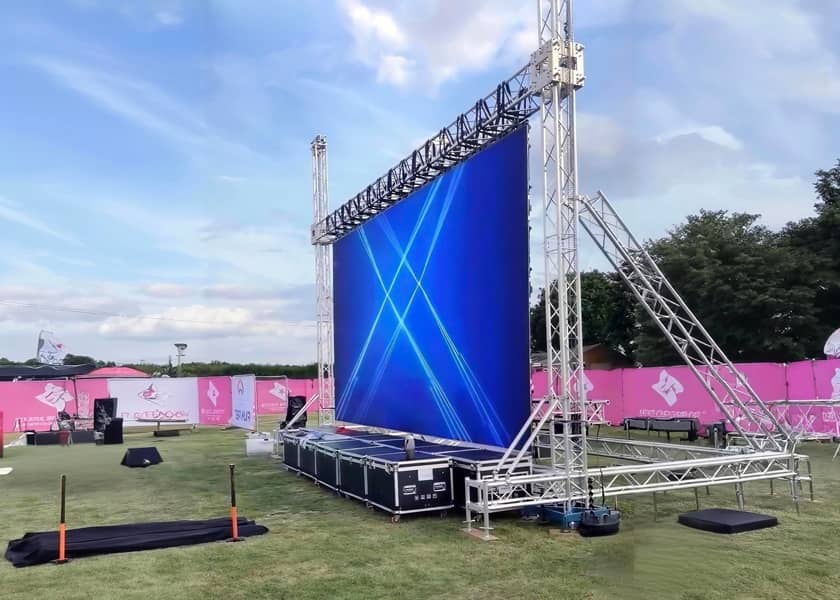

From intimate weddings to large-scale concerts, our rental LED screens deliver stunning visuals for any indoor or outdoor event. Perfect for stages, church services, performances, and dynamic backdrops.

Rental LED Display for Concerts - Stage Event Screen

RE-A Series Rental LED Cabinet - Modular Design

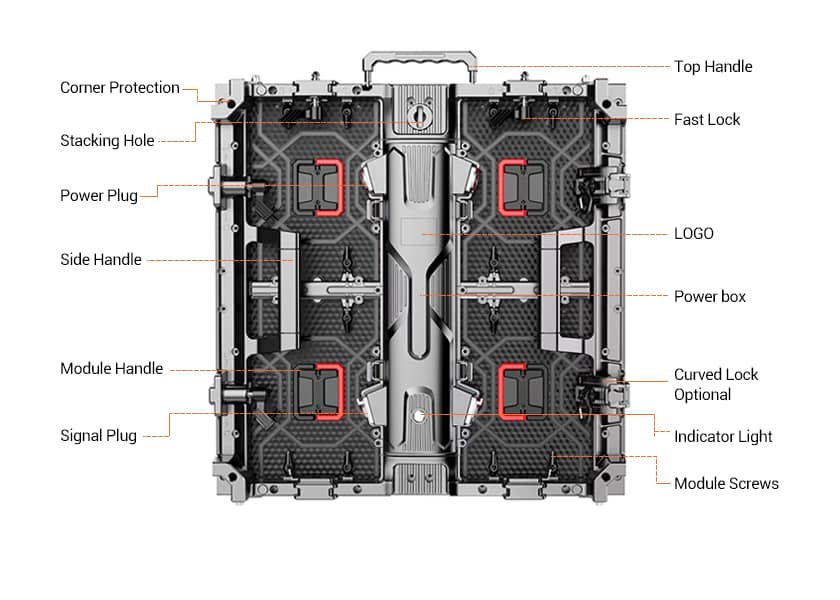

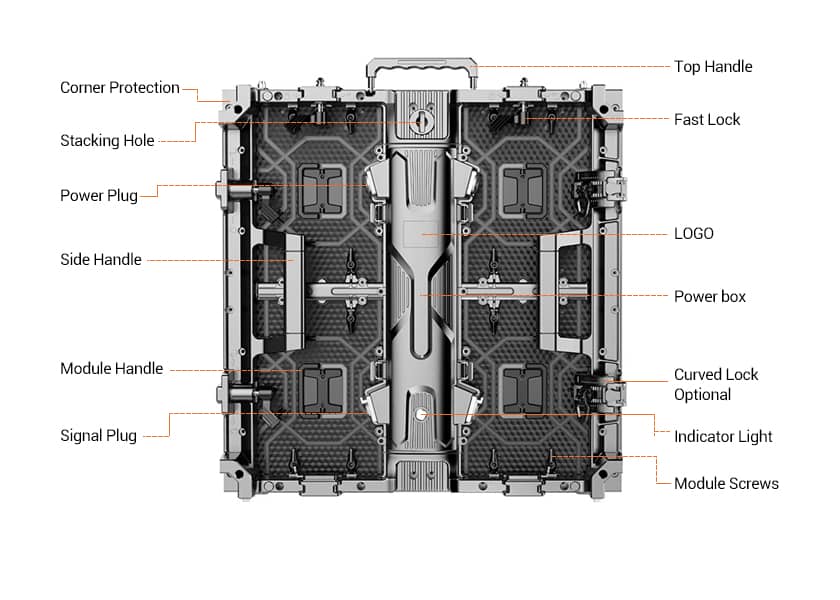

Screen Cabinet Details

The LED screen panel is JINGRUNS' newly designed private model. This upgraded rental LED video panel offers a beautiful appearance, multi-functionality, and enhanced durability for demanding event environments..

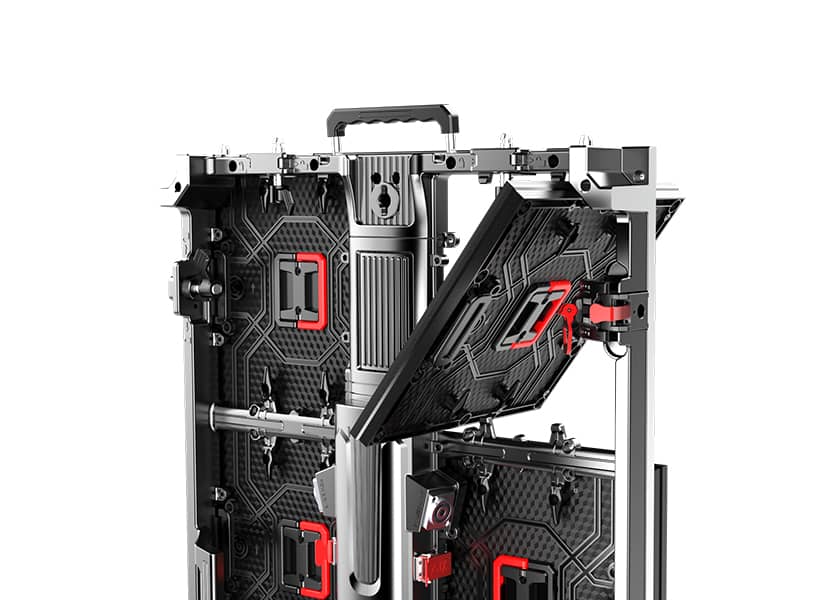

Front and Rear Maintenance

The front maintenance design allows technicians to service the screen directly from the front, eliminating the need to dismantle the rear structure for greater convenience.

Front Maintenance Rental LED Display - Easy Service Access

Anti-Collision Rental LED Display - Corner Protection

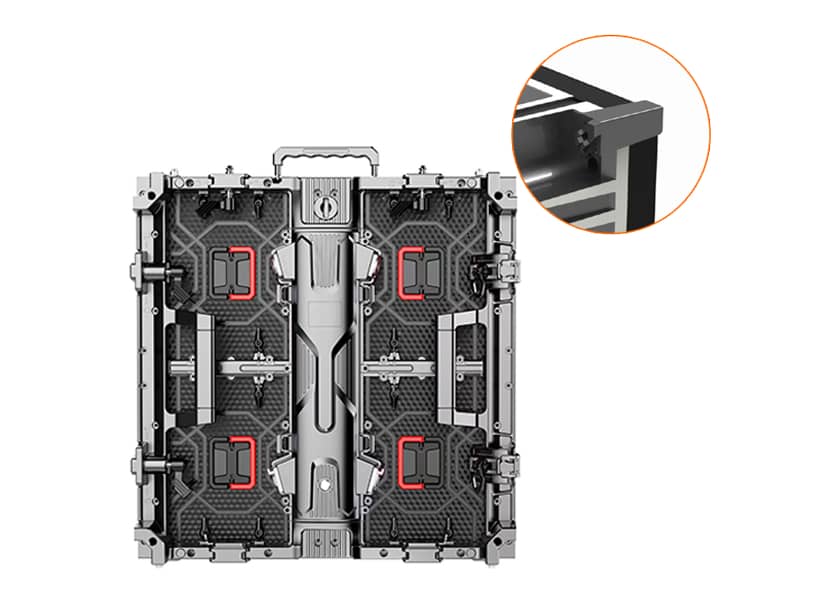

Anti-collision design

The rental LED display is designed with four corner guards to effectively protect the LEDs from damage during transportation, installation, operation, and disassembly.

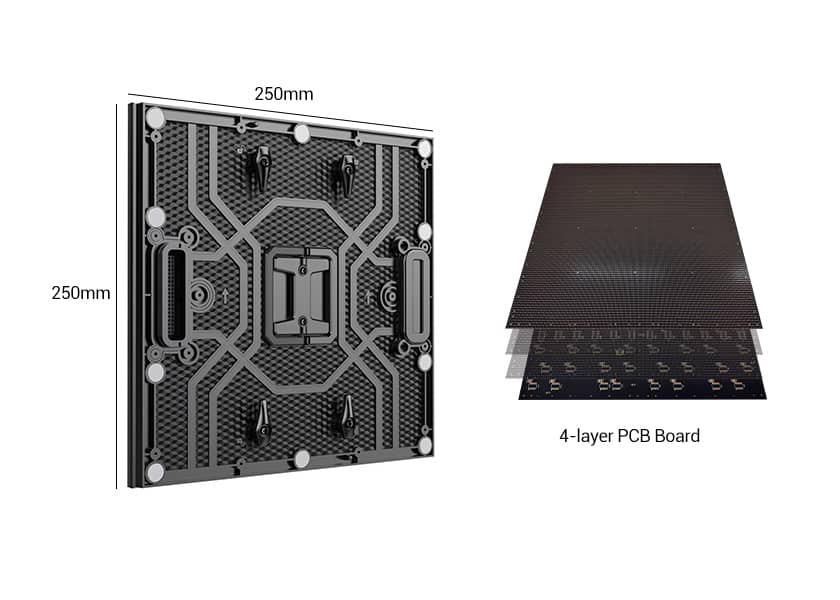

High Quality Module

Featuring a 1.6mm H4 multi-layer PCB, this design delivers superior performance with more standardized wiring, wider trace width, and enhanced stability compared to standard single/double-layer boards.

High Quality LED Module - Multi-Layer PCB for Stability

Installation Methods

Flexible installation options are supported to meet the diverse requirements of indoor and outdoor applications.

Application Scenarios for RE-A Series LED Display

Concert Stage Rental LED Display - Live Event Screen

Concert Stage LED Screen

Wedding Stage LED Display - Event Rental Screen

Wedding Event LED Screen

Corporate Event LED Display - Exhibition Rental Screen

Corporate Event LED Scree

Church Worship LED Display - Indoor Rental Screen

Trade Show LED Screen

Trade Show LED Display - Exhibition Booth Rental

Church Worship LED Screen

RE-A Series Rental LED Display Specifications

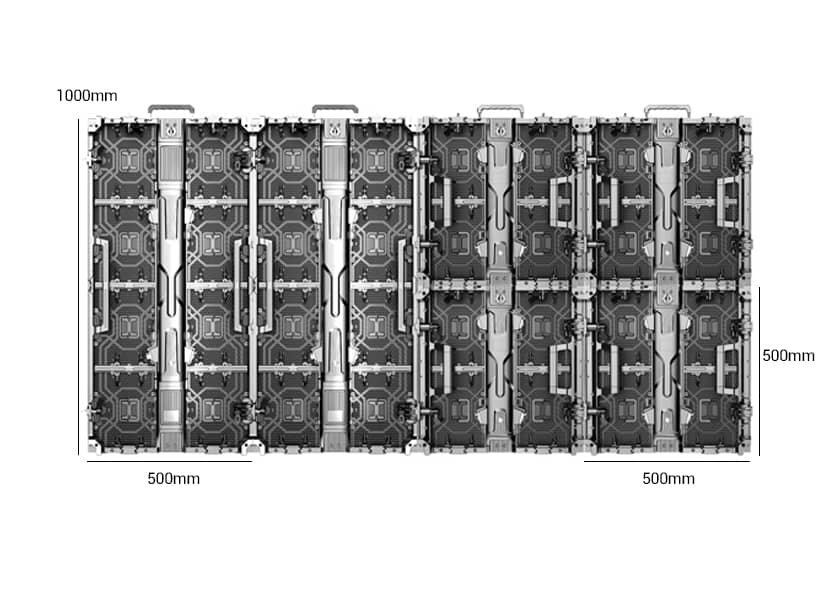

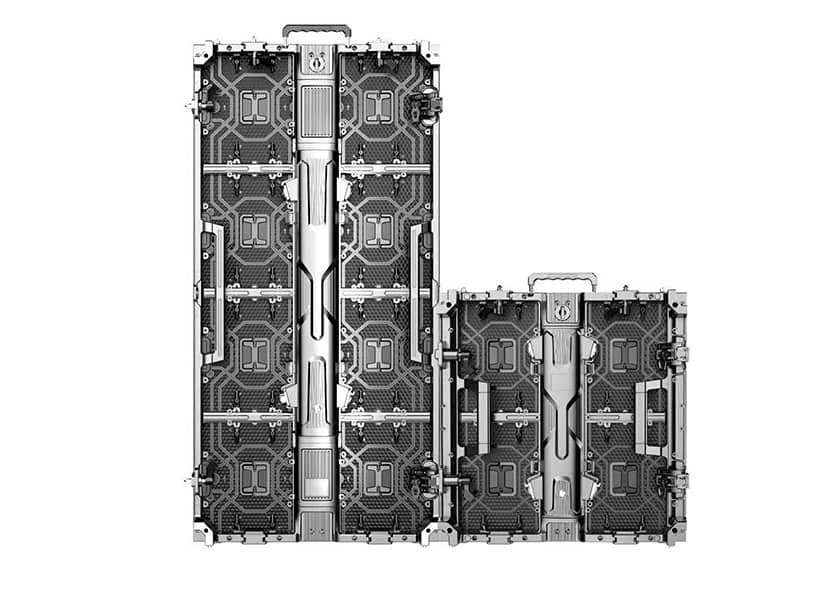

RE-A Series Cabinet Sizes: 500x500mm, 500x1000mm
Pixel Pitch	P1.95	P2.604	P2.976	P3.91
LED type	SMD1515	SMD1515/SMD1921	SMD1515/SMD1921	SMD1515/SMD1921
Physical Density(dots/㎡)	262144	147928	123904	123904
Module size(mm)	250×250	250×250	250×250	250×250
Drive mode	1/64s	1/32s	1/28s	1/16s
Cabinet size(mm)	500X500mm / 500X1000mm
Cabinet resolution(dots)	256x256 / 256x512	192x192 / 192x384	168x168 / 168x336	128x128 / 128x256
Best viewing distance	≥2	≥2.5	≥3	≥4
Materials	Die Casting Aluminum
Application	Indoor & Outdoor
Brightness(CD/㎡)	900 / 4500
Panel Weight(kg)	7.6/14
Refresh rate(Hz)	≥3840
Viewing angle(H/V)	140°/140°
Maintenance mode	Front & Rear
Gray scale	16bit
Max consumption(W/㎡)	800
Avg. consumption(W/㎡)	100-300
Working Voltage	AC100-240V,50/60Hz
Working temp/Humidity	-20~50℃/10%~95%

Frequently Asked Questions - Rental LED Display

What makes the RE-A Series ideal for rental applications?

The RE-A Series features modular 500x500mm and 500x1000mm cabinets for rapid assembly/disassembly, anti-collision corner guards for transport protection, front/rear maintenance for quick servicing, and a rugged die-cast aluminum design for rental durability.

What cabinet sizes are available?

The RE-A Series is available in 500x500mm and 500x1000mm cabinet sizes. The 500x1000mm size allows for faster assembly of large video walls with fewer seams.

Can the RE-A Series be used outdoors?

Yes! The RE-A Series features an IP65 front waterproof rating, making it suitable for outdoor events. With brightness up to 4500 nits, it remains visible even in sunny conditions.

What is the refresh rate of the RE-A Series?

The RE-A Series features a 3840Hz high refresh rate, ensuring flicker-free video capture for broadcast, live streaming, and professional camera work.

Does the RE-A Series have anti-collision protection?

Yes, the RE-A Series is designed with four corner guards to effectively protect the LEDs from damage during transportation, installation, operation, and disassembly—essential for rental fleets.

What is the warranty on RE-A Series?

We offer a 3-year standard warranty with lifetime technical support. The die-cast aluminum construction and anti-collision design ensure long-term durability for rental applications.
