RE-C Series Rental LED Display - Flex Cable Connector Stage Screen

RE-C Series curved rental LED display adjustable angle front view

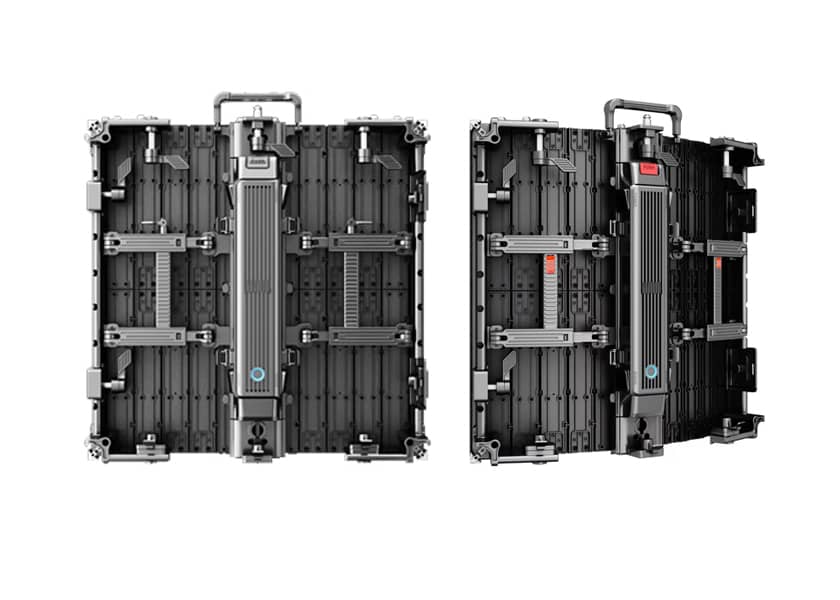

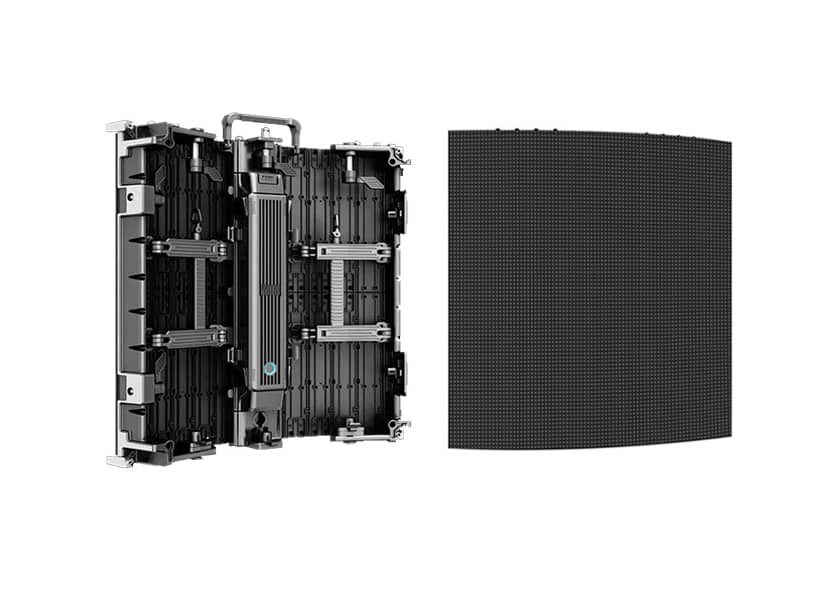

RE-C Series inward outward contouring rental LED screen side view

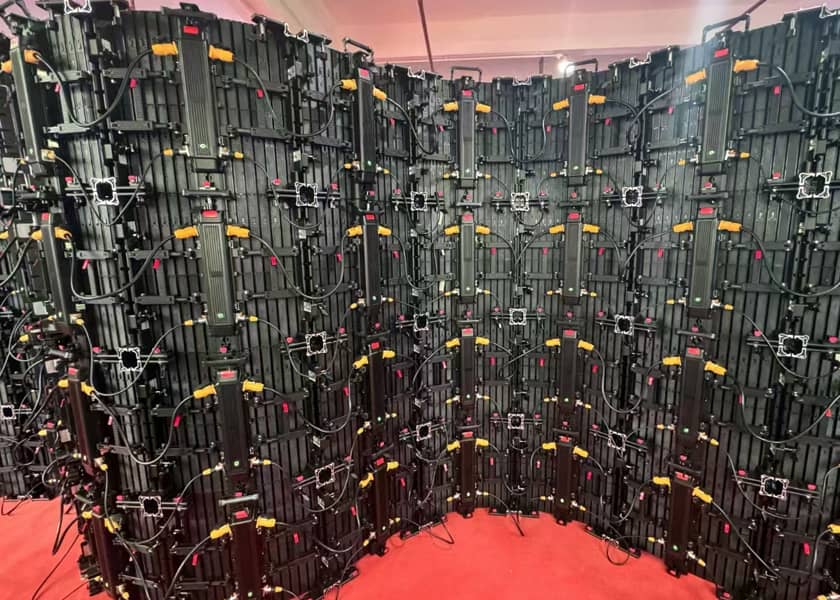

RE-C Series curved rental LED display front maintenance access

RE-C Series die-cast aluminum rental LED cabinet close-up corner protection

RE-C Series Curved Rental LED Display | Adjustable Angle Modular Screen for Concerts & Stages

Adjustable Angle Curved Rental LED Display | Inward & Outward Contouring for Creative Stages

Adjustable Angles for Curved & Creative Stage Designs
Front & Rear Maintenance Options
Independent Power Supply for Reliability
High Refresh Rate: 3840Hz for Flicker-Free Performance
Seamless Splicing for Large Format Displays
Quick Assembly & Disassembly for Rental Events
Indoor & Outdoor Application with IP65 Waterproof Option)
Lightweight Die-Cast Aluminum Cabinet

✉ Email Us

Our team will respond within 12 hours

Why Choose the RE-C Series Curved Rental LED Display?

The RE-C Series curved rental LED display features adjustable angle mechanical design enabling inward and outward contouring for dynamic wave-like visual effects. Perfect for concerts, music festivals, corporate events, exhibition booths, and creative stage productions where unique shapes capture audience attention.

The 500x500mm die-cast aluminum cabinet with corner protection and reinforced base ensures durability during transport and setup. Front and rear maintenance access allows quick servicing without dismantling the screen structure—critical for tight event schedules.

Available in pixel pitches from P1.95 to P3.91 with 3840Hz refresh rate for flicker-free video capture. IP65 front waterproof rating allows outdoor festival use. Mix and match cabinet configurations to create a dynamic visual language for any stage.

Product Features

Protected Corners

Front Maintenance

Seamless Splicing

Quick Installation

Adjustable Angle LED Screen - Curved Rental Display

Adjustable Angles

Wide Viewing Angle

High Refresh Rate

Lightweight And Slim

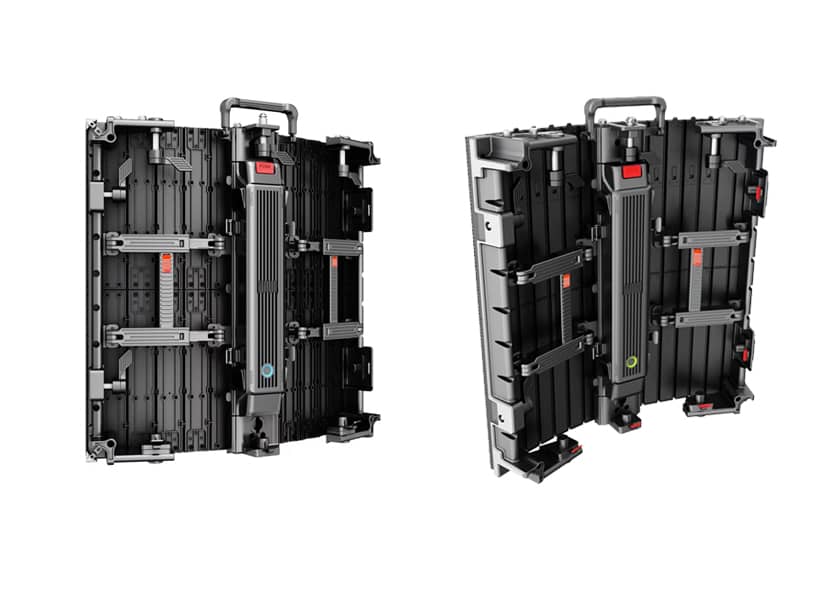

Inward & Outward Contouring

Mechanical angle adjustment enables natural inward/ outward curvature control of the screen surface, achieving dynamic physical wave-like visual effects

The cabinet supports protective corners and a reinforced base to provide comprehensive module protection.

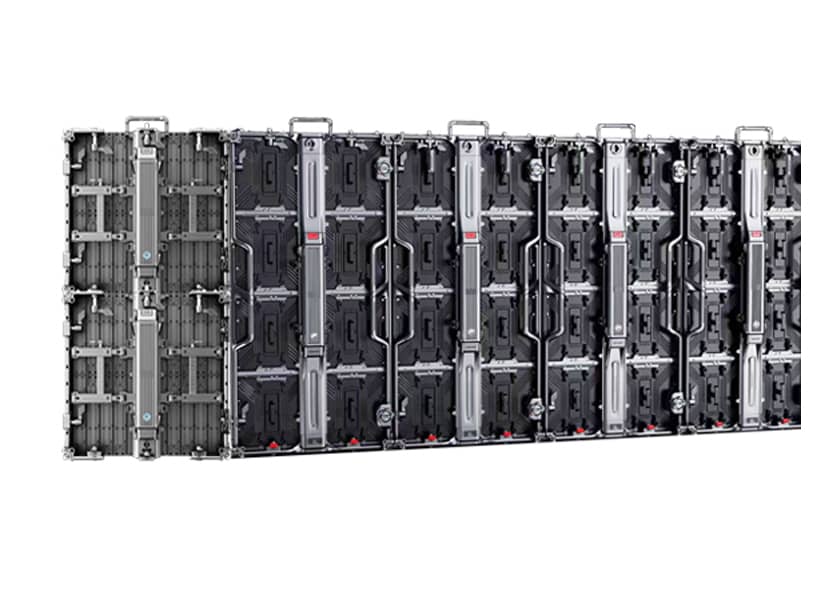

Multiple combinations

Mix and match screen cabinet configurations to create a dynamic visual language for any stage.

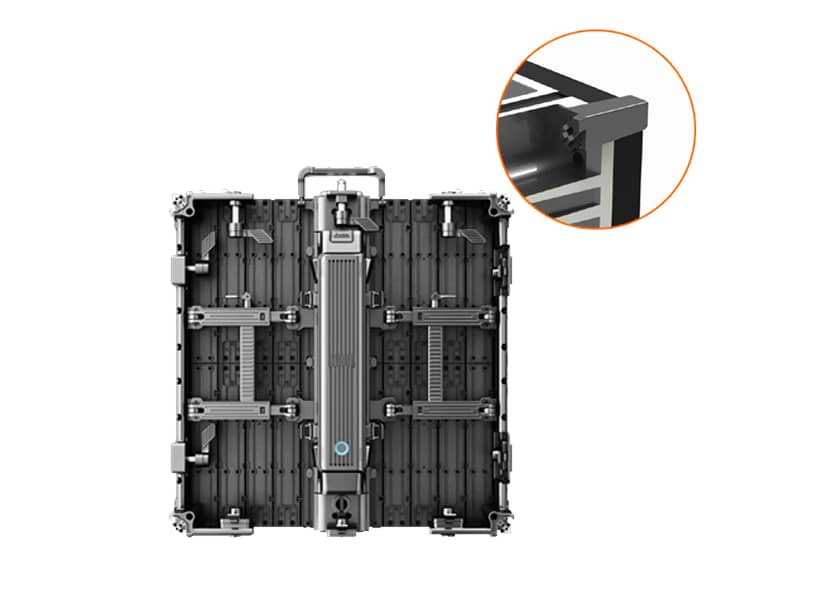

Corner Protection

The cabinet supports protective corners and a reinforced base to provide comprehensive module protection.

Installation Methods

Flexible installation options are supported to meet the diverse requirements of indoor and outdoor applications.

Application Scenarios for RE-C Series LED Display

Rental LED Display - Concert Stage Curved Screen

Concert Stage LED Screen

Rental LED Display - Outdoor Festival Curved Screen

Outdoor Festival LED Screen

Rental LED Display - Exhibition Booth Modular Screen

Exhibition Booth LED Screen

Rental LED Display - Corporate Event Stage Screen

Corporate Event LED Screen

Rental LED Display - Music Festival Curved Video Wall

Music Festival LED Screen

RE-C Series Curved Rental LED Display Specifications

RE-C Series Cabinet Sizes: 500x500mm
Pixel Pitch	P1.95	P2.604	P2.976	P3.91
LED type	SMD1515	SMD1515/SMD1921	SMD1515/SMD1921	SMD1515/SMD1921
Physical Density(dots/㎡)	262144	147928	123904	123904
Module size(mm)	250×250	250×250	250×250	250×250
Drive mode	1/64s	1/32s	1/28s	1/16s
Cabinet size(mm)	500X500mm
Cabinet resolution(dots)	256x256	192x192	168x168	128x128
Best viewing distance	≥2	≥2.5	≥3	≥4
Materials	Die Casting Aluminum
Application	Indoor & Outdoor
Brightness(CD/㎡)	900 / 4500
Panel Weight(kg)	7.6/14
Refresh rate(Hz)	≥3840
Viewing angle(H/V)	140°/140°
Maintenance mode	Front & Rear
Gray scale	16bit
Max consumption(W/㎡)	800
Avg. consumption(W/㎡)	100-300
Working Voltage	AC100-240V,50/60Hz
Working temp/Humidity	-20~50℃/10%~95%

Frequently Asked Questions - Curved Rental LED Display

What makes the RE-C Series different from other rental displays?

The RE-C Series features adjustable angle mechanical design enabling inward and outward contouring for dynamic wave-like visual effects. This allows for creative curved stage designs that standard flat rental displays cannot achieve.

What curved configurations does the RE-C Series support?

The RE-C Series supports inward and outward curvature control of the screen surface, achieving dynamic physical wave-like visual effects. Multiple cabinets can be combined for complex curved stage designs.

What cabinet sizes are available?

The RE-C Series features a 500x500mm die-cast aluminum cabinet design for flexible configuration and easy transport.

Can the RE-C Series be used outdoors?

Yes! The RE-C Series features an IP65 front waterproof rating and brightness up to 4500 nits, making it suitable for outdoor festivals and events.

What is the refresh rate of the RE-C Series?

The RE-C Series features a 3840Hz high refresh rate, ensuring flicker-free video capture for broadcast, live streaming, and professional camera work.

What is the warranty on RE-C Series?

We offer a 3-year standard warranty with lifetime technical support. The corner protection and reinforced base design ensure long-term durability for rental applications.
