RE-B Series Rental LED Display - Flex Cable Connector Stage Screen

RE-B Series rental LED display flex cable connector stage screen front view

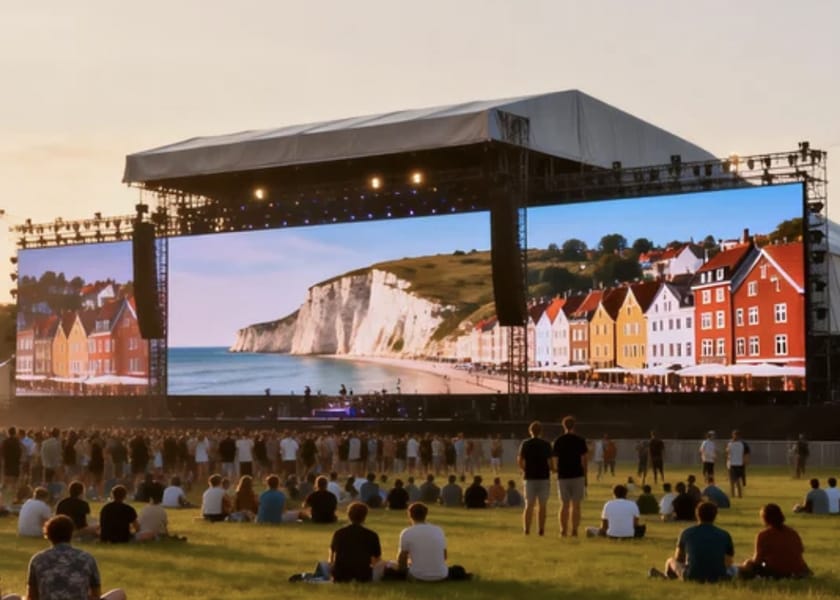

RE-B Series curved rental LED screen side view 500x500mm modular cabinet

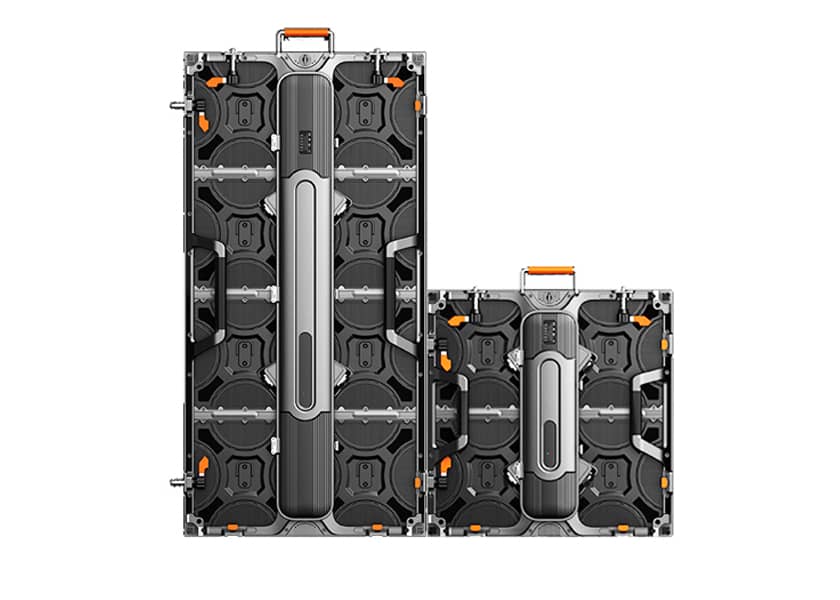

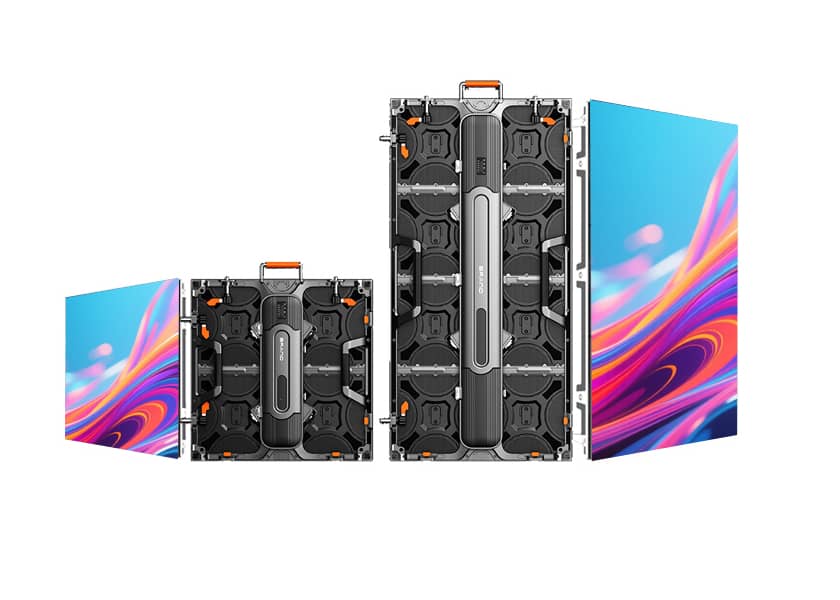

RE-B Series rental LED display front maintenance access easy service

RE-B Series die-cast aluminum rental LED cabinet close-up flex cable connector

RE-B Series Rental LED Display | Flex Cable Connector, Curved Stage Screen ±7.5°

Flex Cable Rental LED Display | Supports Curved Splicing ±7.5°, Indoor & Outdoor IP65

Front & Rear Maintenance for Easy Service
Independent Power Supply for Reliability
High Refresh Rate: 3840Hz for Flicker-Free Video
Seamless Splicing for Large Video Walls
Quick Assembly & Disassembly for Events
Flex Cable Connector for Reliable Signal Transmission
Supports Curved Splicing (Inner/Outer Arc ±7.5°)
Indoor & Outdoor Applications (IP65 Front Waterproof)
Cabinet Sizes: 500x500mm, 500x1000mm

✉ Email Us

Our team will respond within 12 hours

Why Choose the RE-B Series Rental LED Display?

The RE-B Series rental LED display features a flex cable connector design for reliable signal transmission in demanding event environments. With curved splicing support (±7.5° inner/outer arc), it enables creative stage designs including concave, convex, and right-angle configurations—perfect for concerts, stages, corporate events, and exhibitions.

Available in 500x500mm and 500x1000mm die-cast aluminum cabinets with front and rear maintenance access for quick servicing. The IP65 front waterproof rating allows outdoor event use, while the 3840Hz refresh rate ensures flicker-free video capture for broadcast and live streaming.

Pixel pitches from P2.97 to P4.81 with brightness up to 4500 nits for outdoor visibility. The modular design enables rapid assembly and disassembly—critical for tight event schedules and rental fleet operations.

Product Features

Right Angle Splicing

Front Maintenance

Seamless Splicing

Quick Installation

IP65 Waterproof

Wide Viewing Angle

High Refresh Rate

Lightweight And Slim

Versatile Applications

From intimate weddings to large-scale concerts, our rental LED screens deliver stunning visuals for any indoor or outdoor event. Perfect for stages, church services, performances, and dynamic backdrops.

Rental LED Display for Concerts and Events - Stage Screen Application

RE-B Series Rental LED Cabinet - 500x500mm Modular Design

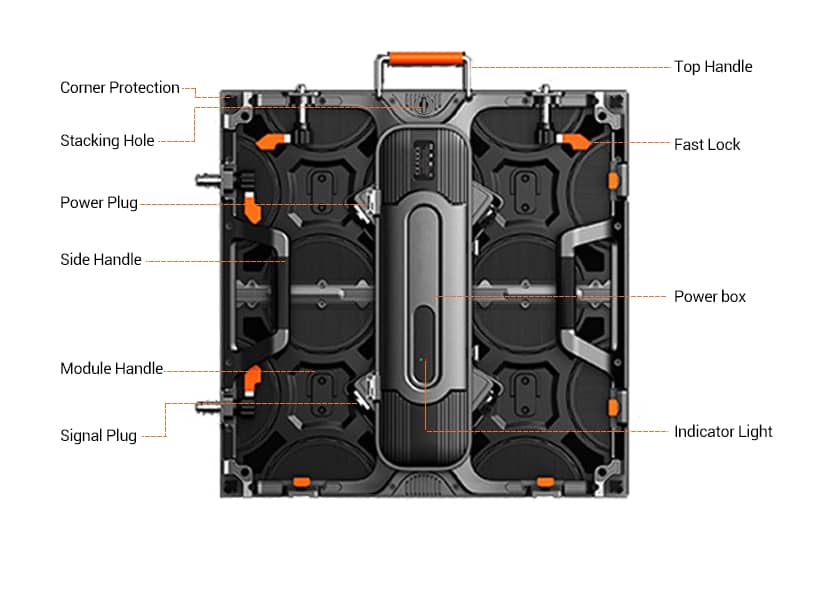

Screen Cabinet Details

The LED screen panel is JINGRUNS' newly designed private model. This upgraded rental LED video panel offers a beautiful appearance, multi-functionality, and enhanced durability for demanding event environments..

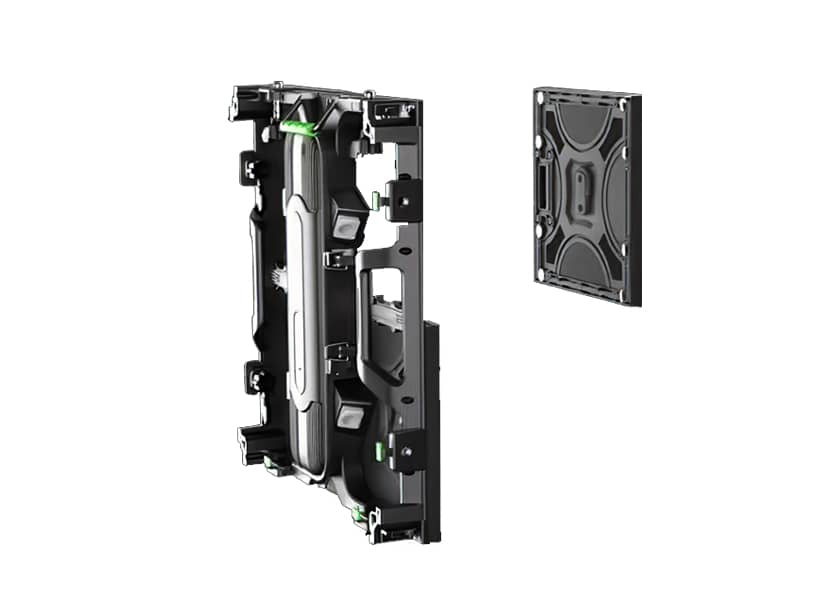

Front and Rear Maintenance

The front maintenance design allows technicians to service the screen directly from the front, eliminating the need to dismantle the rear structure for greater convenience.

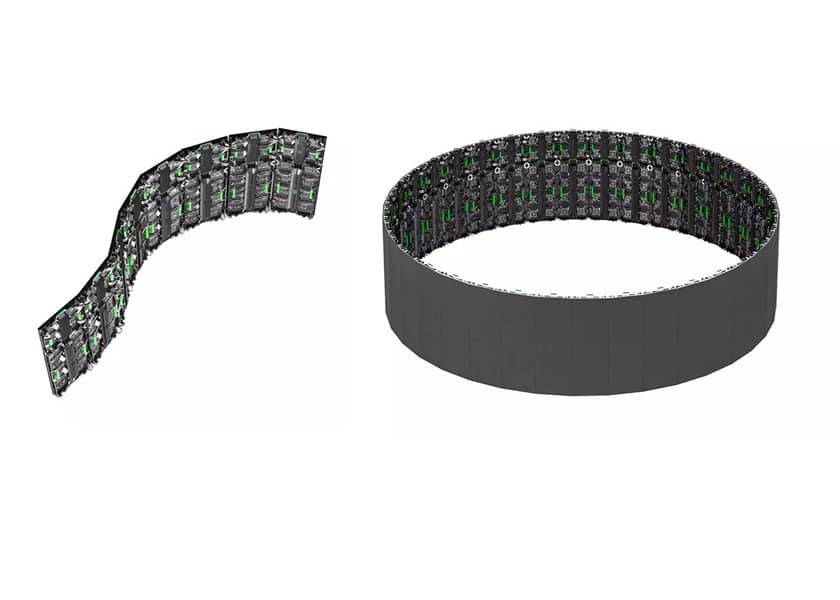

Creative Combination

Supports curved video walls with inner/outer arcs adjustable to 7.5°, 0°, and -7.5°, as well as right-angle and other creative combinations.

Installation Methods

Flexible installation options are supported to meet the diverse requirements of indoor and outdoor applications.

Application Scenarios for RE-B Series LED Display

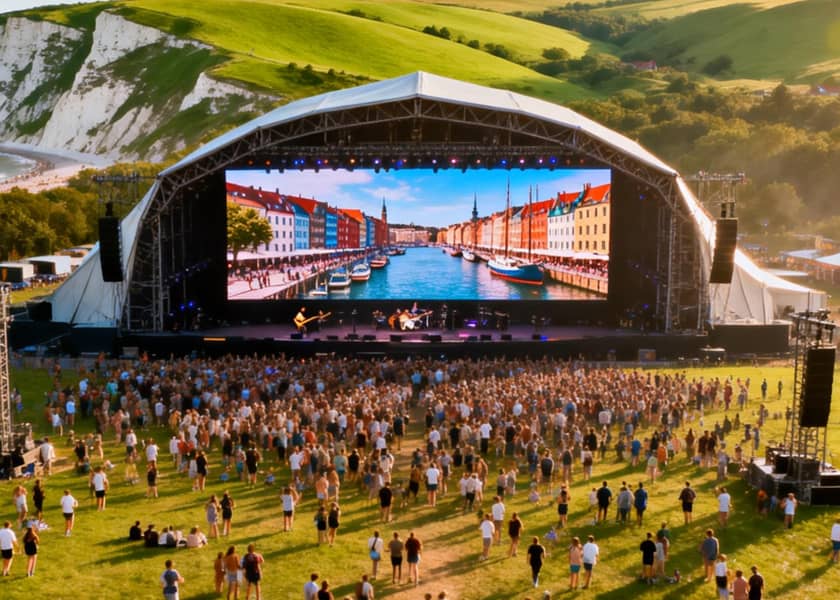

Concert Stage Rental LED Display - Live Event Screen

Concert Stage LED Screen

Wedding Stage LED Display - Event Rental Screen

Wedding Event LED Screen

Corporate Event LED Display - Exhibition Rental Screen

Corporate Event LED Scree

Church Worship LED Display - Indoor Rental Screen

Trade Show LED Screen

Trade Show LED Display - Exhibition Booth Rental

Church Worship LED Screen

RE-B Series Rental LED Display Specifications

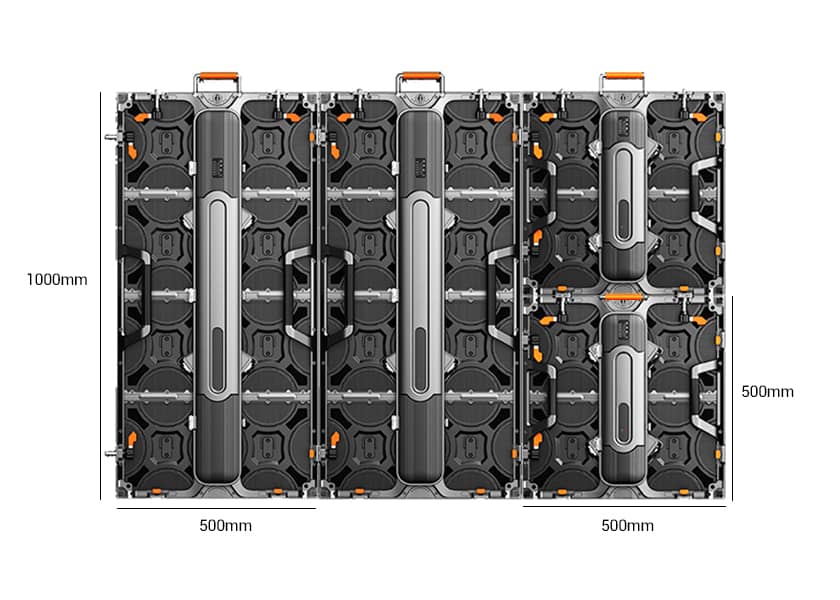

RE-B Series Cabinet Sizes: 500x500mm, 500x1000mm
Pixel Pitch	P1.95	P2.604	P2.976	P3.91
LED type	SMD1515	SMD1515/SMD1921	SMD1515/SMD1921	SMD1515/SMD1921
Physical Density(dots/㎡)	262144	147928	123904	123904
Module size(mm)	250×250	250×250	250×250	250×250
Drive mode	1/64s	1/32s	1/28s	1/16s
Cabinet size(mm)	500X500mm / 500X1000mm
Cabinet resolution(dots)	256x256 / 256x512	192x192 / 192x384	168x168 / 168x336	128x128 / 128x256
Best viewing distance	≥2	≥2.5	≥3	≥4
Materials	Die Casting Aluminum
Application	Indoor & Outdoor
Brightness(CD/㎡)	900 / 4500
Panel Weight(kg)	7.6/14
Refresh rate(Hz)	≥3840
Viewing angle(H/V)	140°/140°
Maintenance mode	Front & Rear
Gray scale	16bit
Max consumption(W/㎡)	800
Avg. consumption(W/㎡)	100-300
Working Voltage	AC100-240V,50/60Hz
Working temp/Humidity	-20~50℃/10%~95%

Frequently Asked Questions - Rental LED Display

What is the advantage of the flex cable connector?

The flex cable connector provides more reliable signal transmission compared to traditional hardwired connections. It reduces the risk of connection failure during transport and setup, making it ideal for rental applications where screens are frequently assembled and disassembled.

What curved configurations does the RE-B Series support?

The RE-B Series supports inner and outer arc splicing with adjustments of +7.5°, 0°, and -7.5°, as well as right-angle and other creative combinations for unique stage designs.

What cabinet sizes are available?

The RE-B Series is available in 500x500mm and 500x1000mm cabinet sizes. The 500x1000mm size allows for faster assembly of large video walls with fewer seams.

Can the RE-B Series be used outdoors?

Yes! The RE-B Series features an IP65 front waterproof rating, making it suitable for outdoor events. With brightness up to 4500 nits, it remains visible even in sunny conditions.

What is the refresh rate of the RE-B Series?

The RE-B Series features a 3840Hz high refresh rate, ensuring flicker-free video capture for broadcast, live streaming, and professional camera work.

What is the warranty on RE-B Series?

We offer a 3-year standard warranty with lifetime technical support. The flex cable connector design and die-cast aluminum construction ensure long-term durability for rental applications.
