OU-T Series LED Grille Screen - High Transparency Outdoor Display

OU-T Series LED grille screen high transparency permeable display front view

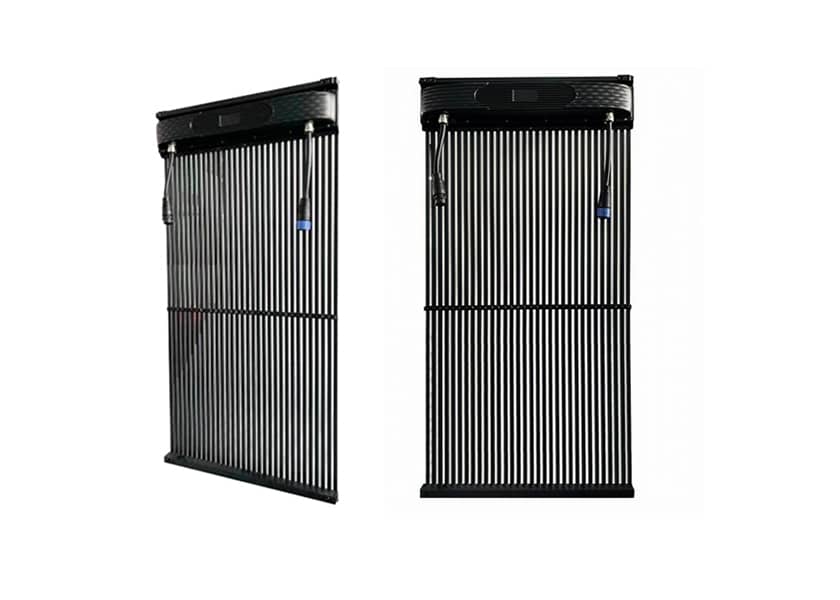

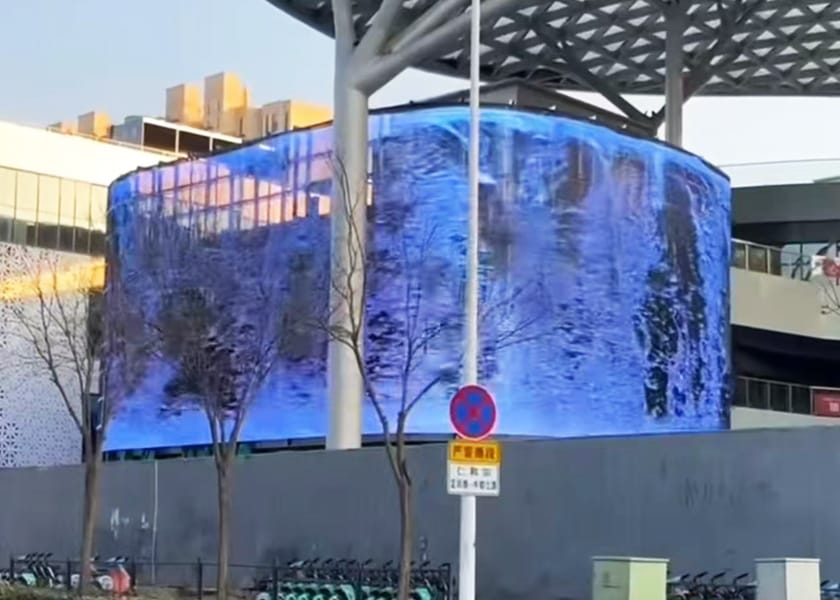

OU-T Series lightweight LED grille screen side view 8kg per square meter

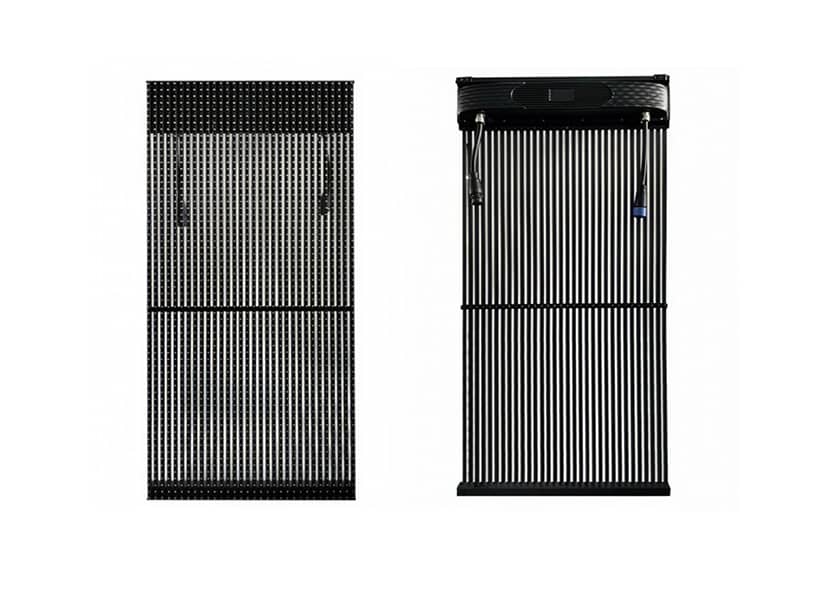

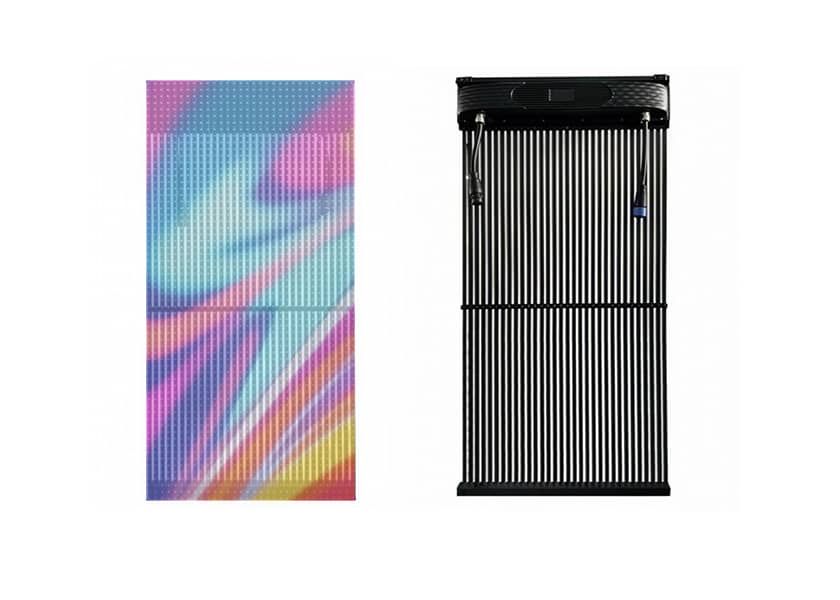

OU-T Series outdoor LED grille screen installation quick-connect system

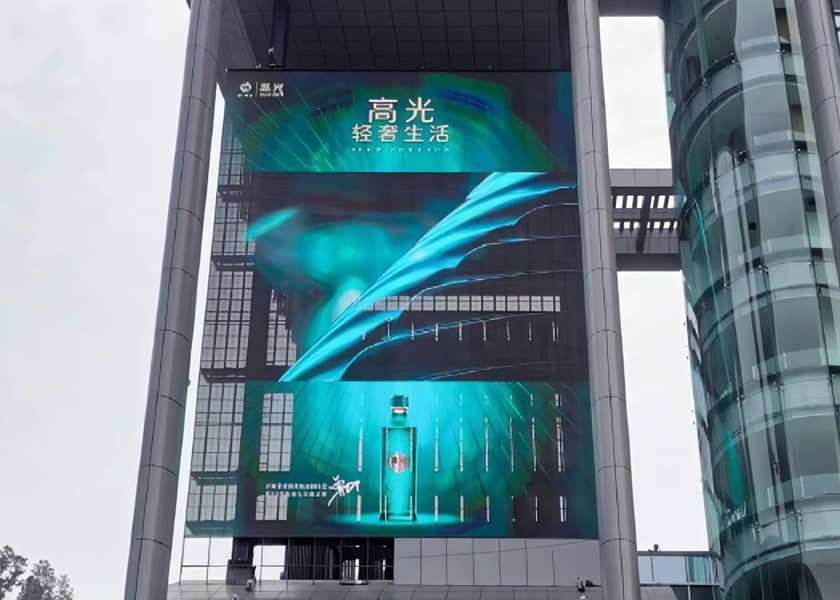

OU-T Series permeable LED display cabinet close-up IP65 waterproof

OU-T Series LED Grille Screen | High Transparency Permeable Display, ≤8kg/m², -40°C to 60°C

High Transparency LED Grille Screen | 40-70% Permeability, ≤8kg/m², IP65 Waterproof

High Transparency LED Grille Screen (40-70% permeability)
Wide Applicability for Building Facades & Large Venues
IP65 Waterproof - All-Weather Outdoor Use
High Transparency - Preserves Natural Light
Easy Installation & Quick Connection System
Lightweight Design - ≤8kg/m²
Wide Temperature Operation: -40°C to 60°C
Low Power Consumption - Eco-Friendly Design
Pixel Pitches: P10.42, P12.5, P15.6, P15.6-31.25, P31.25
SMD/DIP Technology Options

✉ Email Us

Our team will respond within 12 hours

Why Choose the OU-T Series LED Grille Screen?

The OU-T Series LED grille screen is a high-transparency permeable display designed for building facades, large venues, and architectural installations. With 40-70% permeability, it allows natural light and air to pass through while delivering stunning visual content—preserving the building's aesthetic and reducing wind load.

At just ≤8kg per square meter, the OU-T Series is one of the lightest outdoor LED displays available, significantly reducing structural requirements and installation costs. The IP65 waterproof rating ensures reliable operation in all weather conditions, while the wide temperature range (-40°C to 60°C) makes it suitable for extreme climates.

Available in pixel pitches from P10.42 to P31.25 with brightness up to 10,000 nits. The quick-connect mechanism ensures stable connection and reliable waterproofing for fast installation. Choose from SMD or DIP LED technology based on your viewing distance and brightness requirements.

Product Features

High Brightness

Energy Saving

Fast Heat Removal

High Flexibility

IP65 Waterproof

Wide Viewing Angle

Lightweight Slim LED Cabinet - 83mm Thickness, 23kg

Lightweight And Slim

Flexible Control Options

Advantages

This product utilizes a unique, high-precision modular cabinet that enables seamless splicing. Its design achieves high transparency, which not only guarantees an excellent display effect but also effectively preserves the building's natural illumination.

LED Grille Screen - High Transparency Permeable Display

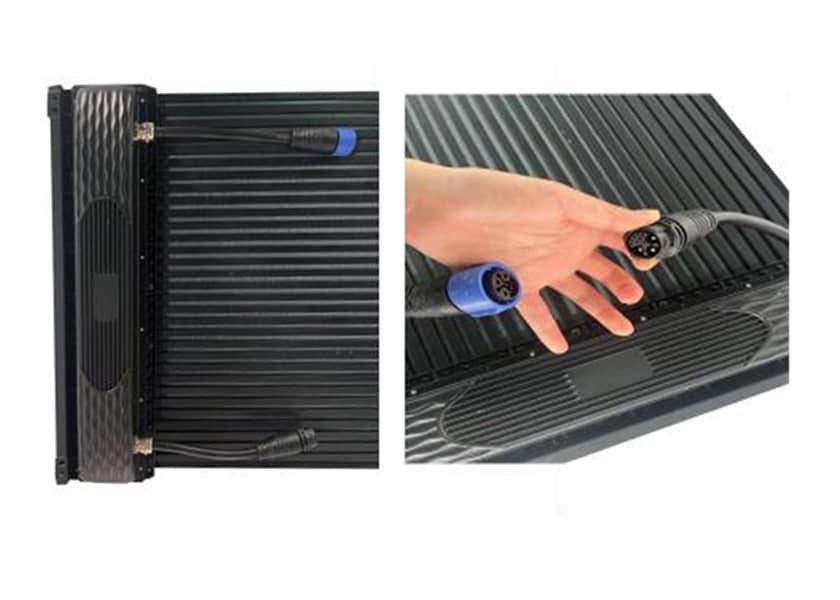

LED Grille Screen Installation - Quick Connection System

Quick Installation

The system features a foolproof, quick-connect mechanism that guarantees a stable connection and reliable waterproofing. This intelligent design simplifies installation, safeguards high-speed data transmission, and provides long-term reliability in harsh outdoor environments.

Wide temperature operation

This eco-conscious, energy-efficient design provides reliable low-power performance 24/7. Built to tackle any weather, its rugged construction easily handles extreme temperatures (-40°C to 60°C) and high humidity without interruption.

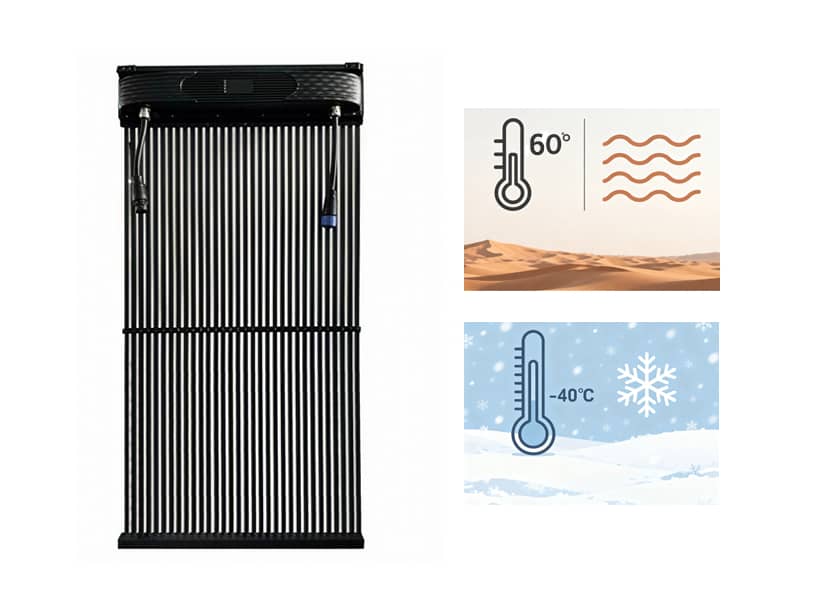

Wide Temperature LED Grille Screen - Extreme Weather Performance

Installation Methods

Wall mounted installation

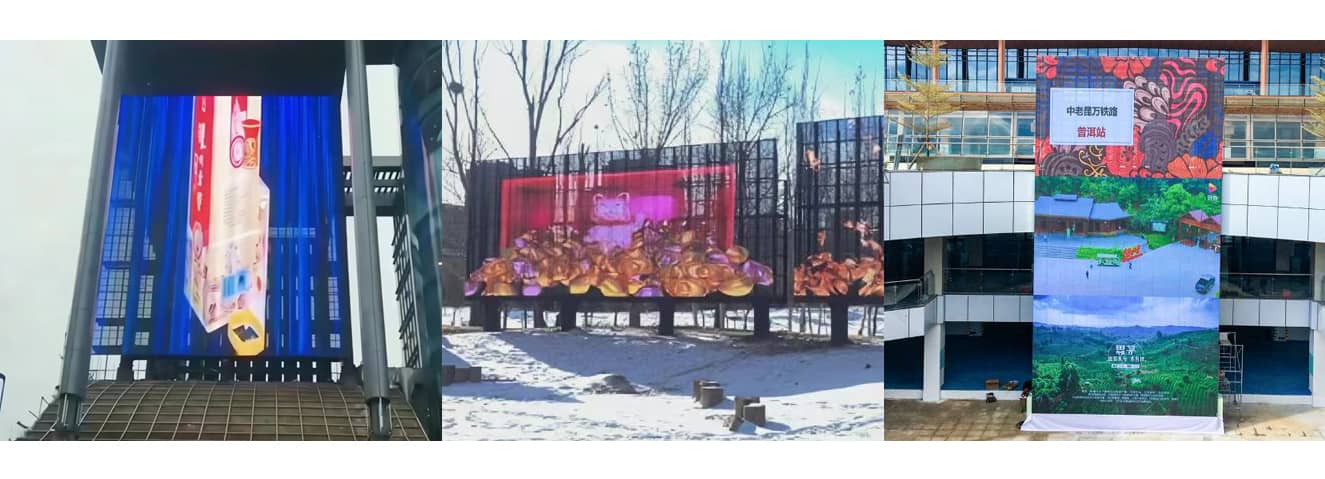

Wall-Mounted LED Grille Screen Installation Method

LED Screen Application Scenarios

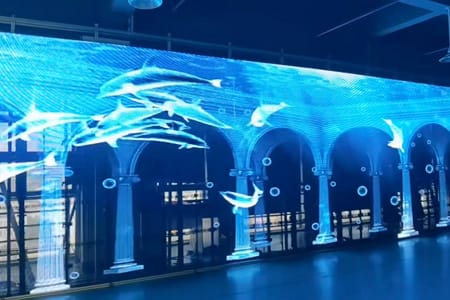

Wall-Mounted Outdoor LED Display - Custom Sheet Metal Cabinet

Wall-Mounted LED Screen

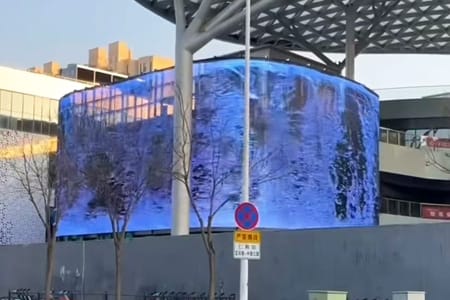

Single-Column Mounted Outdoor LED Screen - Advertising Display

Single-Column Mounted LED Screen

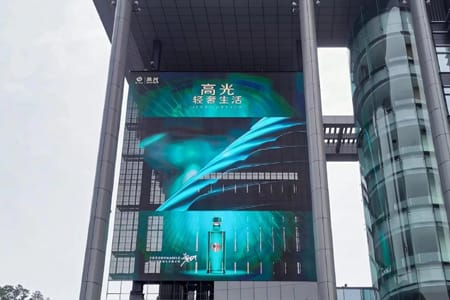

Multi-Column Mounted Outdoor LED Billboard - Large Format Display

Multi-Column Mounted LED Screen

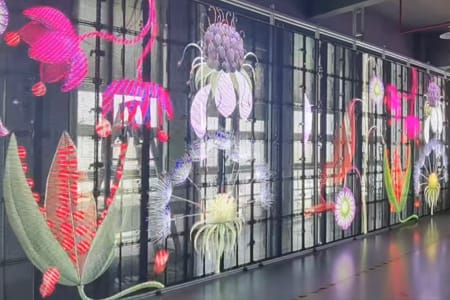

Floor-to-Ceiling Outdoor LED Display - Shopping Mall Installation

Floor-to-Ceiling LED Screen

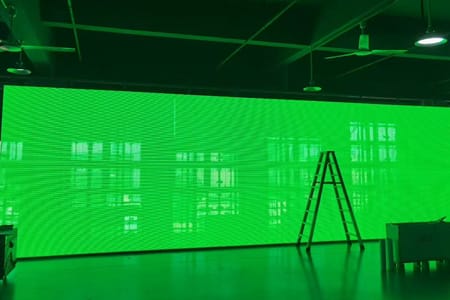

Surface-Mounted Outdoor LED Screen - Building Facade Display

Surface-Mounted LED Screen

OU-T Series LED Grille Screen Specifications


Pixel Pitch	P10.42	P15.6	P12.5	P15.6	P15.6-31.25	P31.25
LED type	SMD	SMD	DIP	DIP	DIP	DIP
Physical Density(dots/㎡)	9216	4096	6400	4096	2048	1024
Drive mode	1/1s	1/1s	1/1s	1/1s	1/1s	1/1s
Module size(mm)	1000×10	1000×10	1000×10	1000×10	1000×10	1000×10
Module resolution(dots)	96×1	64×1	80×1	64×1	64×1	32×1
Cabinet resolution(dots)	96×48	64×32	80×40	64×32	64×16	32×16
Best viewing distance	≥5	≥5	≥5	≥5	≥5	≥5
Brightness(Nits)	7000	6000	10000	10000	6000	4000
Cabinet size(mm)	500×1000×70
Panel Weight(kg)	≤8KG/m2
Waterproof grade	IP65
Environment	Outdoor
Contrast Ratio	10000 : 1
Refresh rate(Hz)	3840
Viewing angle(H/V)	120°/120°
Gray scale	14bit
Max consumption(W/㎡)	≤800
Avg. consumption(W/㎡)	≤400
Working Voltage	AC100-240V,50/60Hz
Working temp/Humidity	-20~50℃/10%~95%

Frequently Asked Questions - LED Grille Screen

What is an LED grille screen?

An LED grille screen (also called transparent LED display or permeable LED display) features a open structure with high transparency (40-70%), allowing light and air to pass through. It's ideal for building facades where preserving natural light and reducing wind load is important.

How lightweight is the OU-T Series?

The OU-T Series weighs only ≤8kg per square meter, making it one of the lightest outdoor LED displays on the market. This ultra-lightweight design significantly reduces structural requirements and installation costs.

What temperature range can the OU-T Series operate in?

The OU-T Series is engineered for extreme environments, operating reliably from -40°C to 60°C. It's perfect for applications in harsh climates, from freezing northern regions to hot desert areas.

What is the difference between SMD and DIP LED for grille screens?

SMD offers better color consistency and wider viewing angles, ideal for closer viewing distances. DIP offers higher brightness (up to 10,000 nits) and better durability, making it better for long-distance viewing and high-impact outdoor environments.

What is the permeability of the OU-T Series?

The OU-T Series offers 40-70% transparency depending on the pixel pitch. This high permeability preserves natural light transmission through building facades and reduces wind load on the structure.

What is the warranty on OU-T Series?

We offer a 3-year standard warranty with lifetime technical support. The IP65 waterproof rating and robust construction ensure long-term durability in outdoor environments.
