The OU-D Series outdoor LED display features an ultra-lightweight die-cast aluminum cabinet weighing just 27kg—significantly lighter than traditional outdoor displays. This makes it perfect for upgrading existing outdoor screens, stadium displays, large-scale advertising, and building facades where weight is a critical factor.

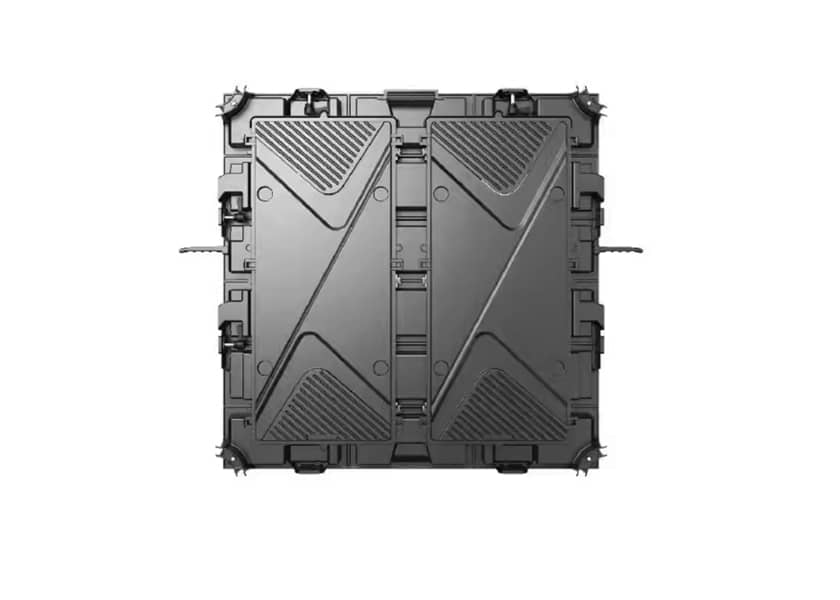

With IP65 waterproof rating and front/rear maintenance support, the OU-D Series is built for harsh outdoor environments while keeping servicing simple. The quick-connect design enables rapid installation and reduces downtime during maintenance or screen upgrades.
Available in pixel pitches from P2.5 to P10, with brightness ranging from 4000 to 6500 nits. The cabinet supports 320x160mm and 320x320mm modules, providing flexibility for various resolution requirements. Stadium screen compatible with tilt-angle adjustment for optimal sightlines in sports venues.

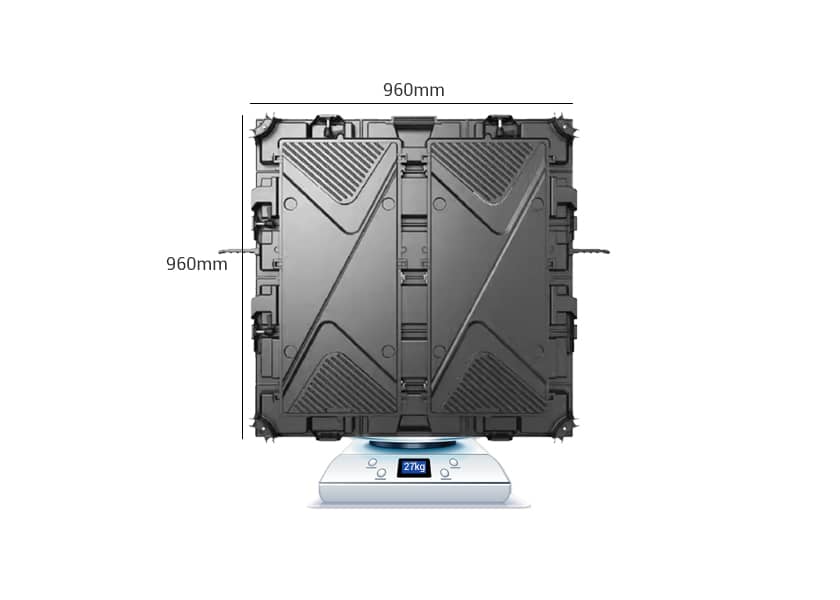

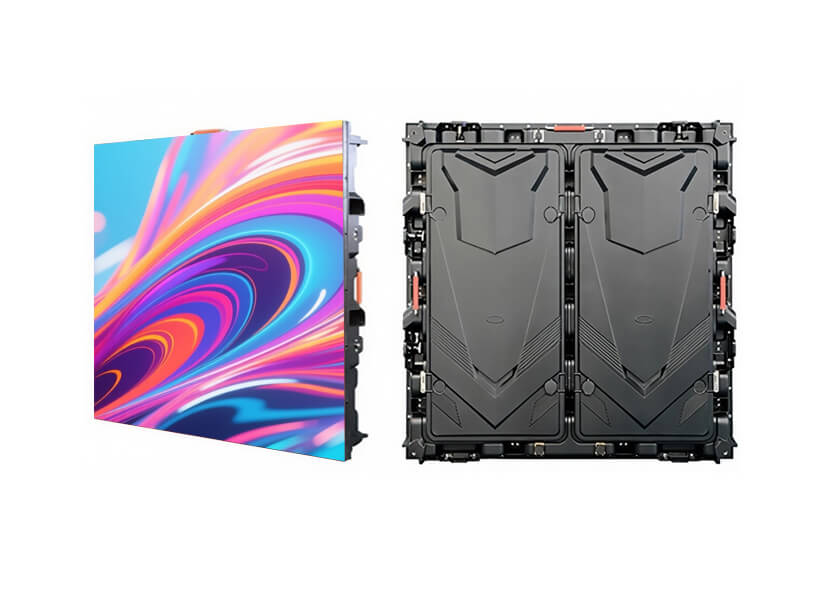

The screen features a high-precision die cast aluminum cabinet for a stylish and durable appearance. Weighing only 27 kilograms per unit, this lightweight design makes it an ideal choice for various installation environments and for upgrading previous LED screens.

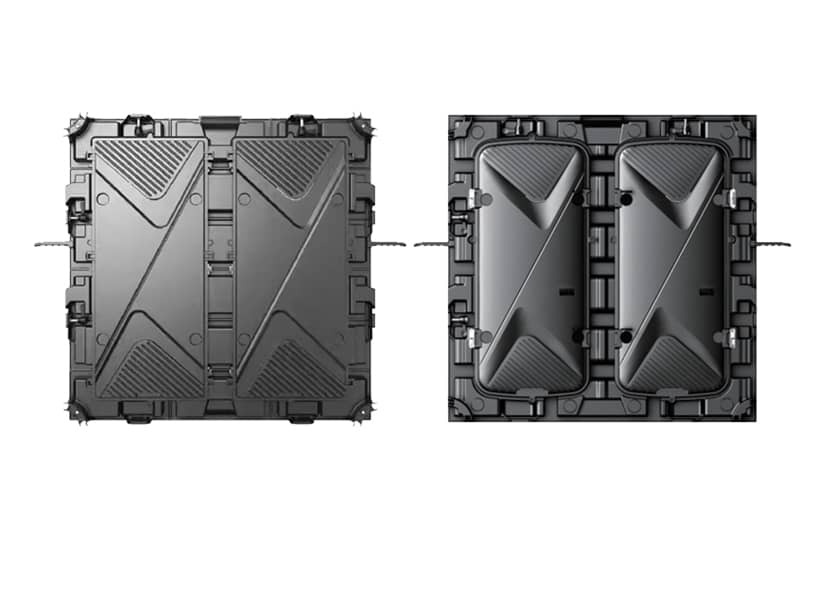

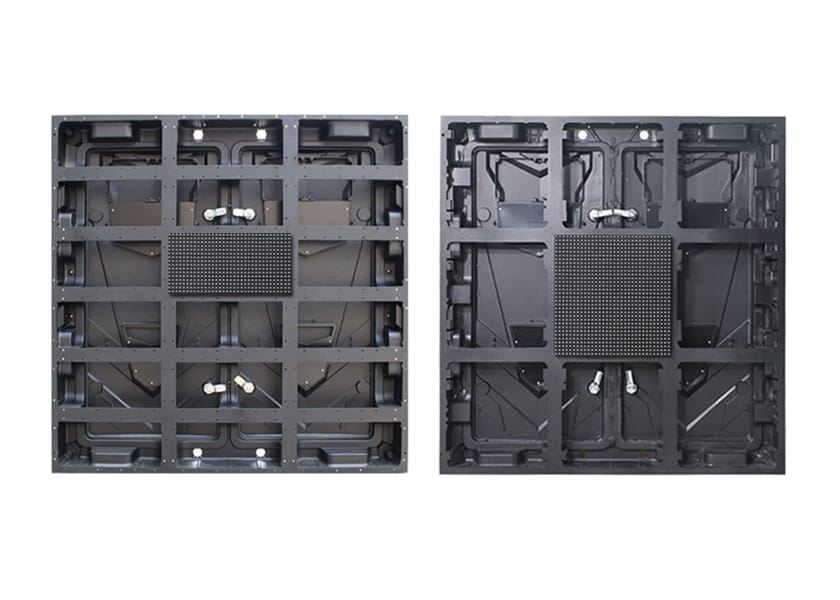

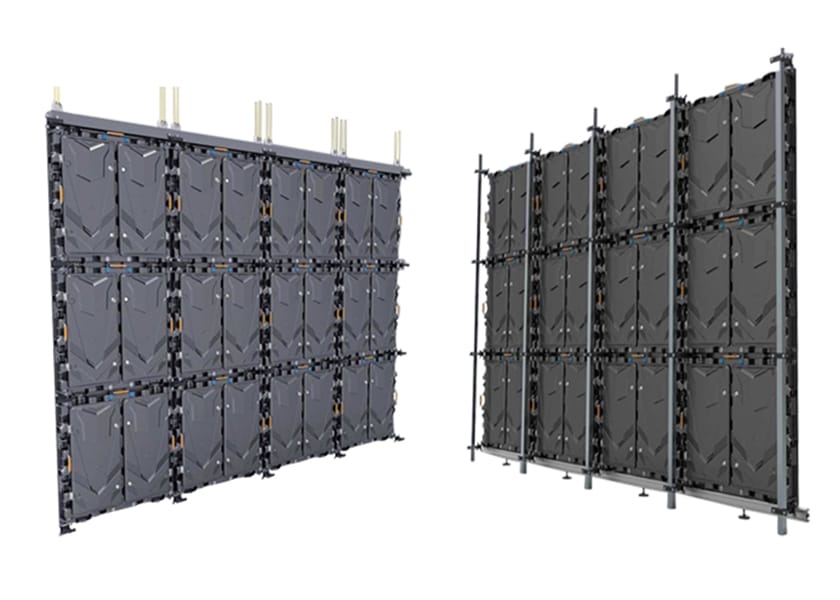

Multiple LED display cabinets support 320x160mm and 320x320mm modules, and their panels can be maintained from the front or back as needed.

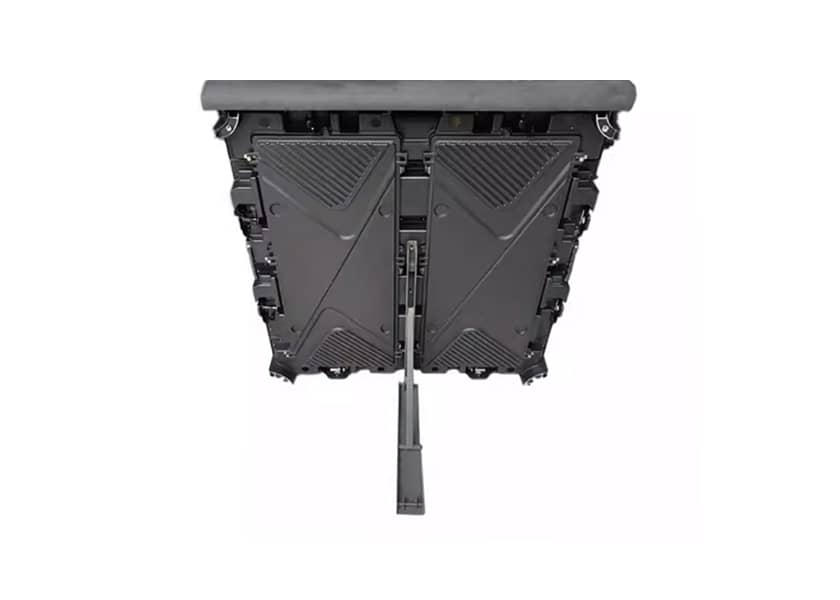

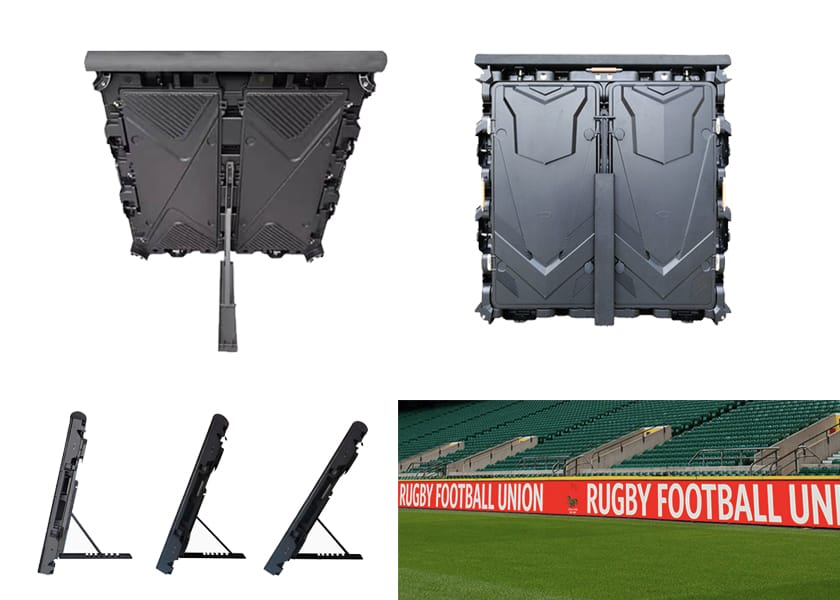

ours screen is fully compatible with sports stadium screen stands, allowing you to fine-tune the screen's tilt angle. This adjustability ensures optimal sightlines, effectively meeting the demanding visual requirements of any sports venue or athletic field.

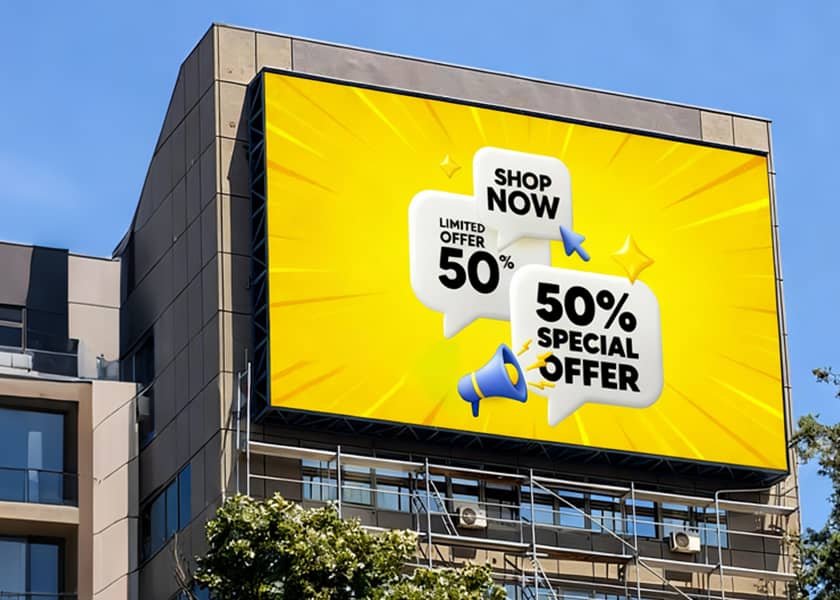

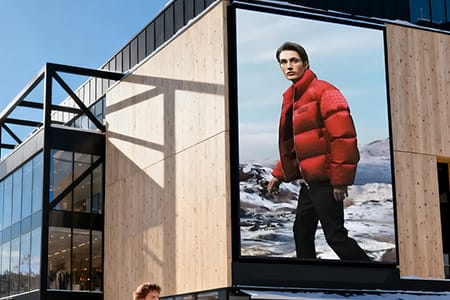

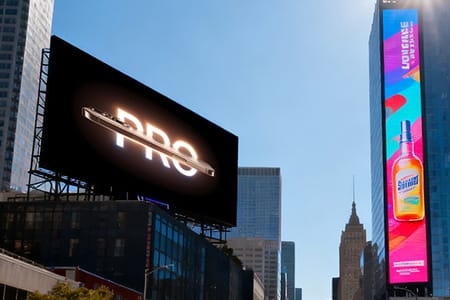

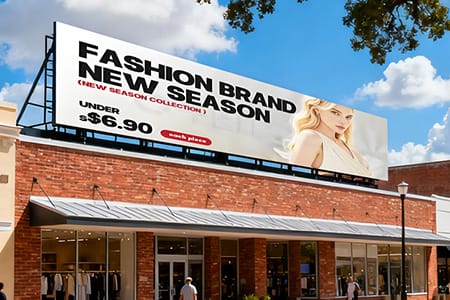

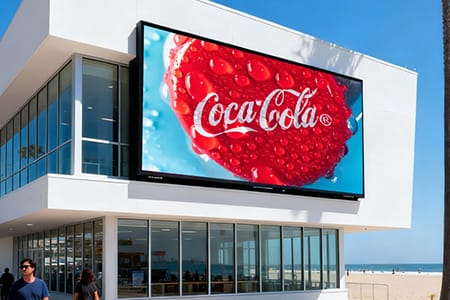

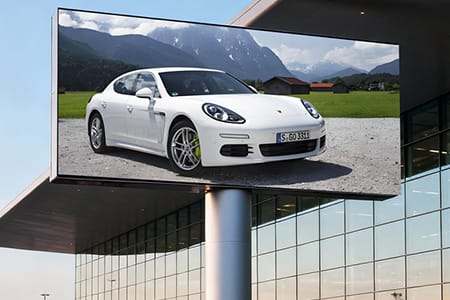

JINGRUNS outdoor LED displays are built for large-scale venues—from shopping malls and plazas to coastal areas—delivering stunning naked-eye 3D visuals.
| OU-D Series Cabinet: 960x960mm - Lightweight Die-Cast Aluminum Outdoor LED Display | |||||||
| Pixel Pitch | P2.5 | P3.076 | P4 | P5 | P6.67 | P8 | P10 |
| LED type(SMD) | 1G1R1B | 1G1R1B | 1G1R1B | 1G1R1B | 1G1R1B | 1G1R1B | 1G1R1B |
| Physical Density(dots/㎡) | 160000 | 105688 | 22500 | 62500 | 22477 | 15625 | 10000 |
| Drive mode | 1/16s | 1/13s | 1/10s | 1/8s | 1/6s | 1/5s | 1/4s |
| Module size(mm) | 320×160 | 320×160 | 320×160 | 320×160 | 320×160 | 320×160 | 320×160 |
| Module resolution(dots) | 128×64 | 104×52 | 80×40 | 64×32 | 48×24 | 40×20 | 32×16 |
| Cabinet resolution(dots) | 384×384 | 312×312 | 240×240 | 192×192 | 144×144 | 120×120 | 96×96 |
| Best viewing distance | ≥2.5 | ≥3 | ≥4 | ≥5 | ≥7 | ≥8 | ≥10 |
| Brightness(Nits) | 4000-4500 | 4000-4500 | 5000-6000 | 5000-6000 | 5000-6000 | 4000-4500 | 5500-6500 |
| Cabinet size(mm) | 960X960 | ||||||
| Module quantity(W xH) | 3X6 | ||||||
| Cabinet Materials | Die-Cast Aluminum | ||||||
| Cabinet Weight | 26Kg/m2 | ||||||
| Waterproof grade | IP65 | ||||||
| Environment | Outdoor | ||||||
| Color temperature(K) | 6500-9000 Optional | ||||||
| Refresh rate(Hz) | 1920-3840 | ||||||
| Viewing angle(H/V) | 140°/140° | ||||||
| Maintenance mode | Front & Rear | ||||||
| Gray scale | 10-14bit | ||||||
| Max consumption(W/㎡) | 800-1000 | ||||||
| Avg. consumption(W/㎡) | 300-350 | ||||||
| Working Voltage | AC100-240V,50/60Hz | ||||||
| Working temp/Humidity | -20~50℃/10%~95% | ||||||
The OU-D Series features an ultra-lightweight die-cast aluminum cabinet weighing only 27kg per unit. This is significantly lighter than traditional outdoor displays, making it ideal for upgrading existing structures without reinforcement.
The OU-D Series is designed specifically for lightweight applications and screen upgrades. At only 27kg per cabinet, it's one of the lightest outdoor die-cast aluminum displays available. It also features a quick-connect design for faster installation and supports both 320x160mm and 320x320mm modules.
The OU-D Series is available in P2.5, P3.076, P4, P5, P6.67, P8, and P10 pixel pitches. This wide range allows you to choose the perfect resolution for any viewing distance and application.
Absolutely. The ultra-lightweight design (27kg) makes the OU-D Series perfect for upgrading existing outdoor screens without needing to reinforce the supporting structure. The quick-connect design also minimizes installation downtime.
Yes, the OU-D Series is fully compatible with sports stadium screen stands, allowing you to fine-tune the screen's tilt angle. This adjustability ensures optimal sightlines for all seating positions in any sports venue.
We offer a 2-year standard warranty with lifetime technical support. The die-cast aluminum construction and IP65 rating ensure long-term durability in outdoor environments.
