The OU-F Series custom outdoor LED display offers the ultimate flexibility with fully customizable sheet metal cabinets. Whether you need specific dimensions, unique shapes, or specialized configurations, we can tailor the display to your exact requirements. Perfect for billboards, sports stadiums, building facades, parking lots, community information centers, and amusement parks.
Available in single-sided or double-sided configurations with front or rear maintenance options. The IP65 waterproof rating ensures reliable outdoor operation in all weather conditions. With 4000-6500 nits brightness, content remains clearly visible even in direct sunlight.
Available in pixel pitches from P2.5 to P10, supporting both 320x160mm and 320x320mm modules. The sheet metal cabinet design offers a cost-effective solution for custom-sized outdoor LED displays while maintaining professional quality and durability.

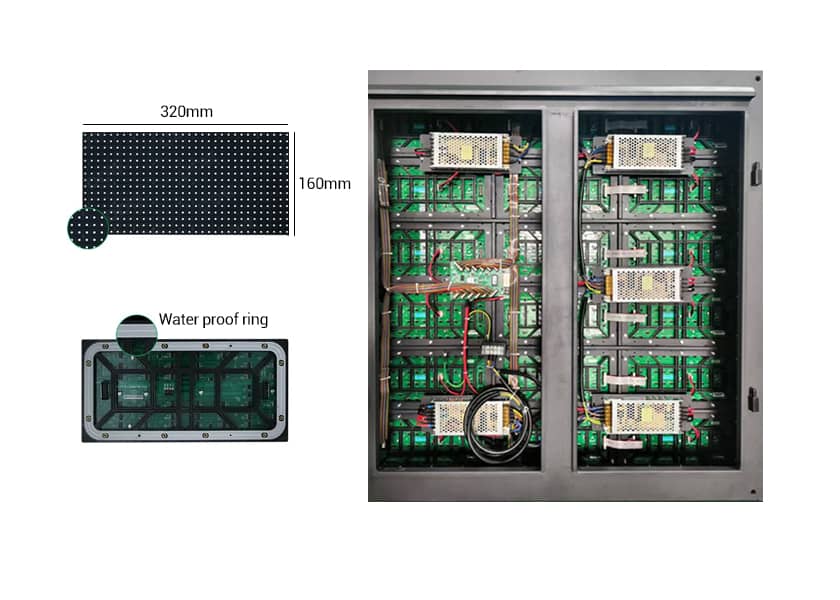

The rear maintenance screen cabinet is compatible with various common module models, offering high universality. It weighs only 40kg with a slim 130mm thickness. The reliable waterproof door design ensures simple maintenance and easy access to a clean, orderly interior.

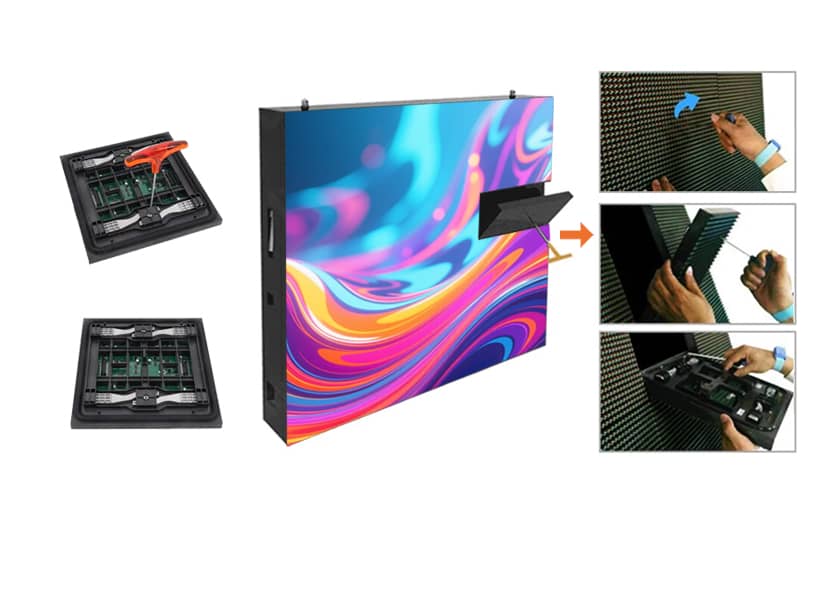

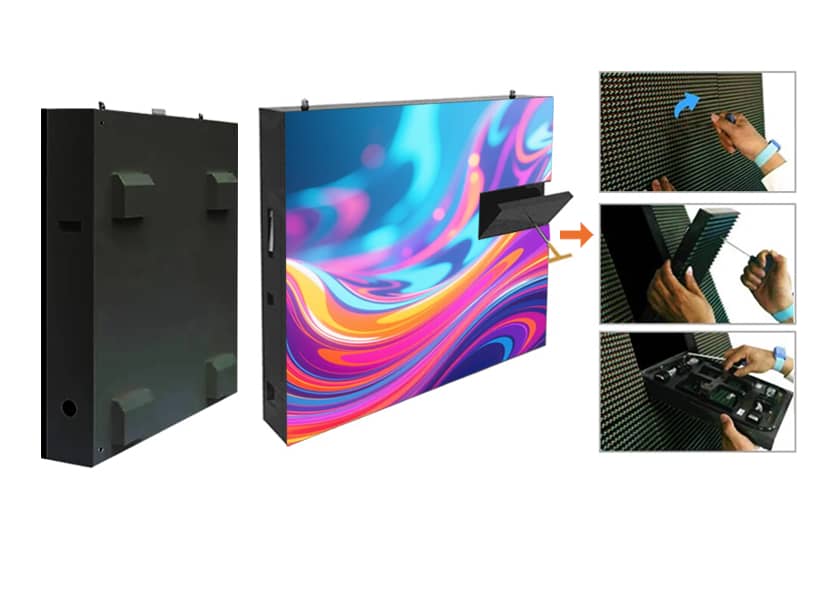

Featuring a pure front maintenance design, all cabinet components—including power supplies, receiver cards, and other accessories—can be accessed and removed from the front. This makes upgrades and replacements quick and easy, making it ideal for space-limited outdoor installations.

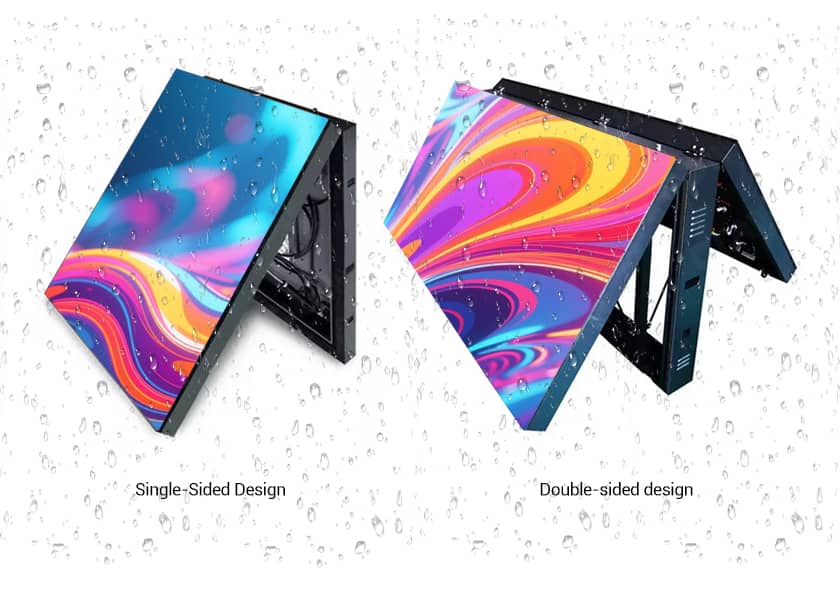

Single/double-sided screens are ideal for outdoor installation in low-height, small-area scenarios such as residential communities, parking lots, and amusement parks. They are also highly effective for road signs, entryway branding, pedestrian information points, and community alert systems, ensuring clear audio and video dissemination in compact spaces.

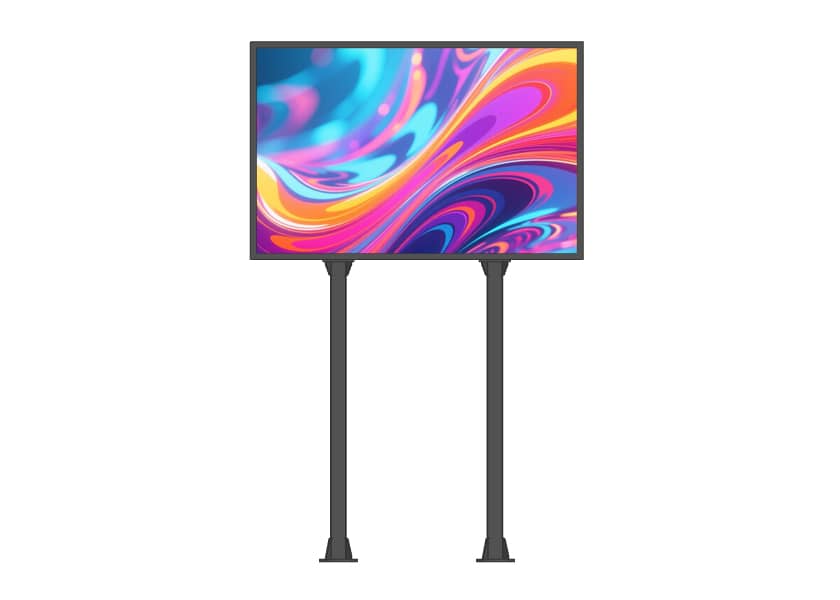

JINGRUNS outdoor LED displays are built for large-scale venues—from shopping malls and plazas to coastal areas—delivering stunning naked-eye 3D visuals.
| OU-F Series Cabinet Size: 960x960mm (Customizable) | |||||||
| Pixel Pitch | P2.5 | P3.076 | P4 | P5 | P6.67 | P8 | P10 |
| LED type(SMD) | 1G1R1B | 1G1R1B | 1G1R1B | 1G1R1B | 1G1R1B | 1G1R1B | 1G1R1B |
| Physical Density(dots/㎡) | 160000 | 105688 | 22500 | 62500 | 22477 | 15625 | 10000 |
| Drive mode | 1/16s | 1/13s | 1/10s | 1/8s | 1/6s | 1/5s | 1/4s |
| Module size(mm) | 320×160 | 320×160 | 320×160 | 320×160 | 320×160 | 320×160 | 320×160 |
| Module resolution(dots) | 128×64 | 104×52 | 80×40 | 64×32 | 48×24 | 40×20 | 32×16 |
| Cabinet resolution(dots) | 384×384 | 312×312 | 240×240 | 192×192 | 144×144 | 120×120 | 96×96 |
| Best viewing distance | ≥2.5 | ≥3 | ≥4 | ≥5 | ≥7 | ≥8 | ≥10 |
| Brightness(Nits) | 4000-4500 | 4000-4500 | 5000-6000 | 5000-6000 | 5000-6000 | 4000-4500 | 5500-6500 |
| Cabinet size(mm) | 960X960 | ||||||
| Module quantity(W xH) | 3X6 | ||||||
| Cabinet Materials | Sheet Metal | ||||||
| Cabinet Weight | 26Kg/m2 | ||||||
| Waterproof grade | IP65 | ||||||
| Environment | Outdoor | ||||||
| Color temperature(K) | 6500-9000 Optional | ||||||
| Refresh rate(Hz) | 1920-3840 | ||||||
| Viewing angle(H/V) | 140°/140° | ||||||
| Maintenance mode | Front & Rear | ||||||
| Gray scale | 10-14bit | ||||||
| Max consumption(W/㎡) | 800-1000 | ||||||
| Avg. consumption(W/㎡) | 300-350 | ||||||
| Working Voltage | AC100-240V,50/60Hz | ||||||
| Working temp/Humidity | -20~50℃/10%~95% | ||||||
The OU-F Series features fully customizable sheet metal cabinets, offering maximum flexibility for unique project requirements. You can choose specific dimensions, single or double-sided configuration, and front or rear maintenance options—all with IP65 waterproof rating.
We offer complete customization including: cabinet dimensions (any size), single or double-sided screens, front or rear maintenance access, specific pixel pitch selection, custom brightness levels, and specialized mounting brackets for unique installation environments.
Sheet metal cabinets are more flexible for custom sizes and shapes, making them ideal for unique project requirements. They are also more cost-effective for large-scale or custom installations. Die-cast aluminum offers higher precision and better heat dissipation but is less flexible for custom sizing.
Yes, the OU-F Series supports both single-sided and double-sided configurations. Double-sided displays are ideal for hanging in the middle of a space or for roadside signage where visibility from both sides is needed.
The OU-F Series offers 4000-6500 nits brightness depending on the pixel pitch. For shaded outdoor applications, 4000-4500 nits is sufficient; for full-sun exposure, we recommend 5000-6500 nits for optimal visibility.
We offer a 3-year standard warranty with lifetime technical support. The IP65 waterproof rating ensures long-term durability in outdoor environments. Extended warranty options are available upon request.
