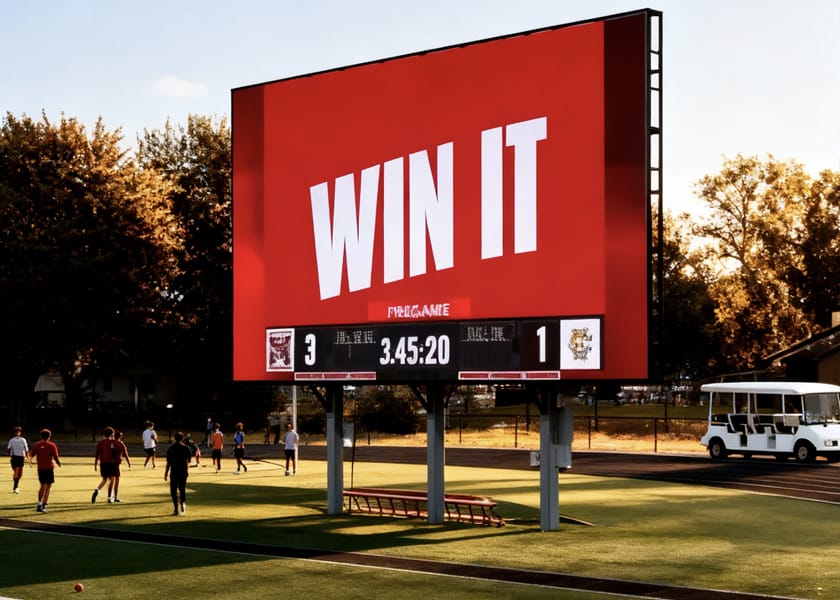

The OU-A Series outdoor LED display is engineered for demanding outdoor environments with IP65 waterproof rating and 6000-10000 nits high brightness, ensuring clear visibility even in direct sunlight. Perfect for billboards, shopping malls, building facades, sports stadiums, and outdoor advertising.
The ultra-slim 83mm aluminum cabinet weighs only 22.5kg per square meter, significantly reducing installation costs and building load requirements. The energy-saving design reduces power consumption by up to 30%, lowering your operating costs while maintaining exceptional brightness and image quality.

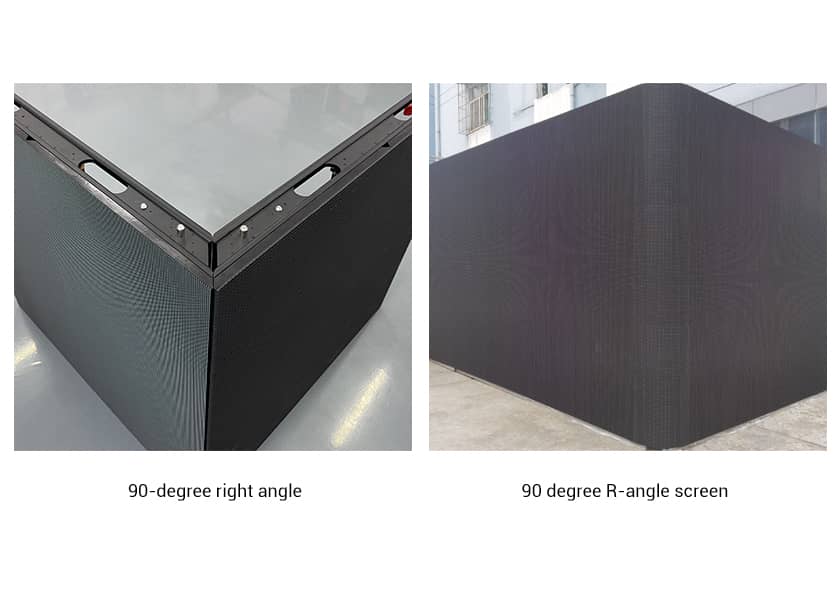

Available in pixel pitches from P2.976 to P10.42 with front and rear maintenance access for easy servicing. The cabinet supports 90-degree curved installations for creative designs like naked-eye 3D billboards. With 3840Hz refresh rate and 16-bit grayscale, every image is flicker-free and true to life.

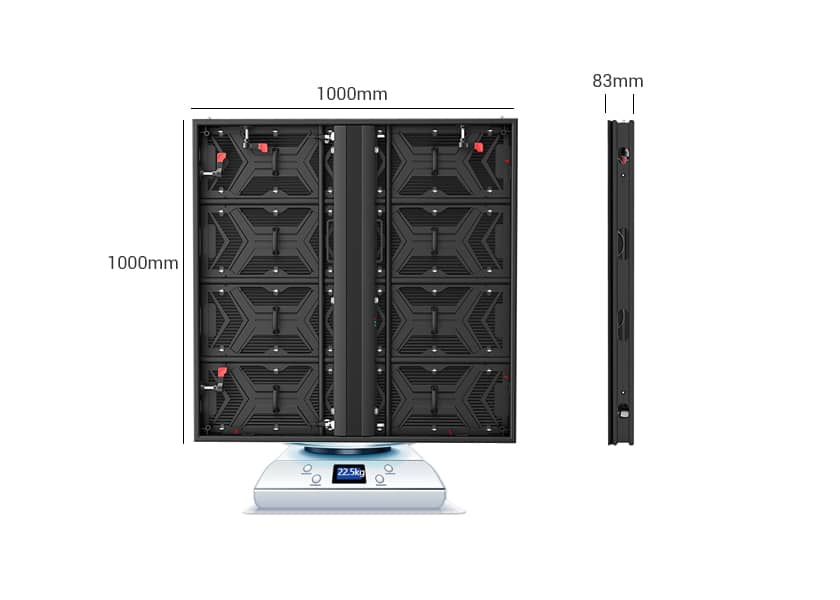

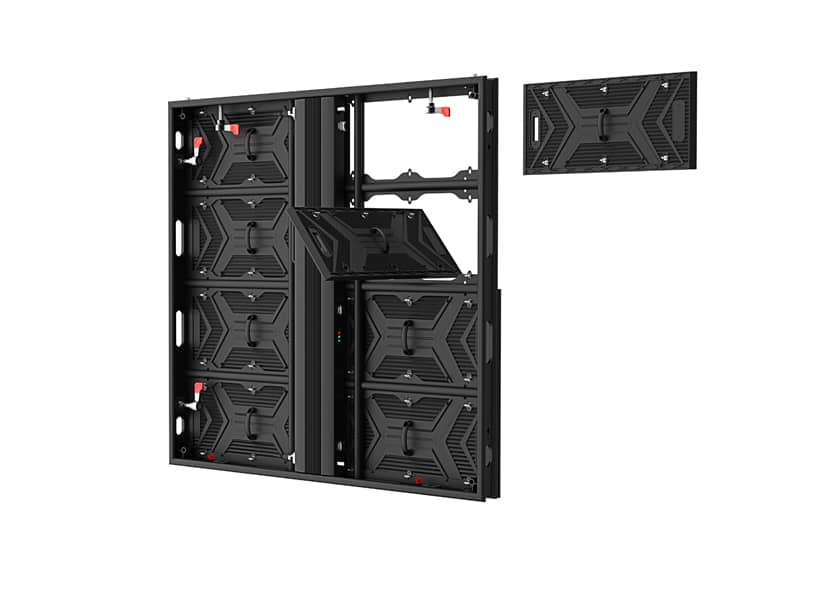

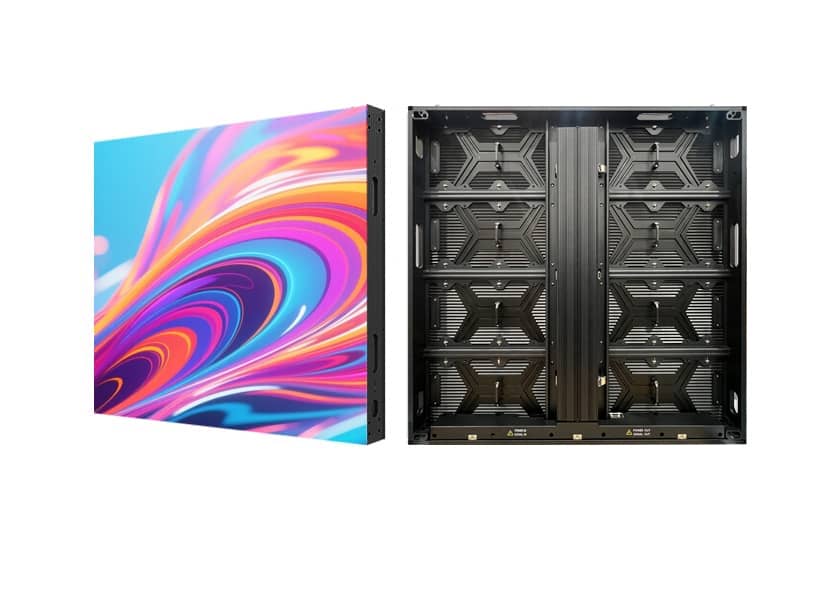

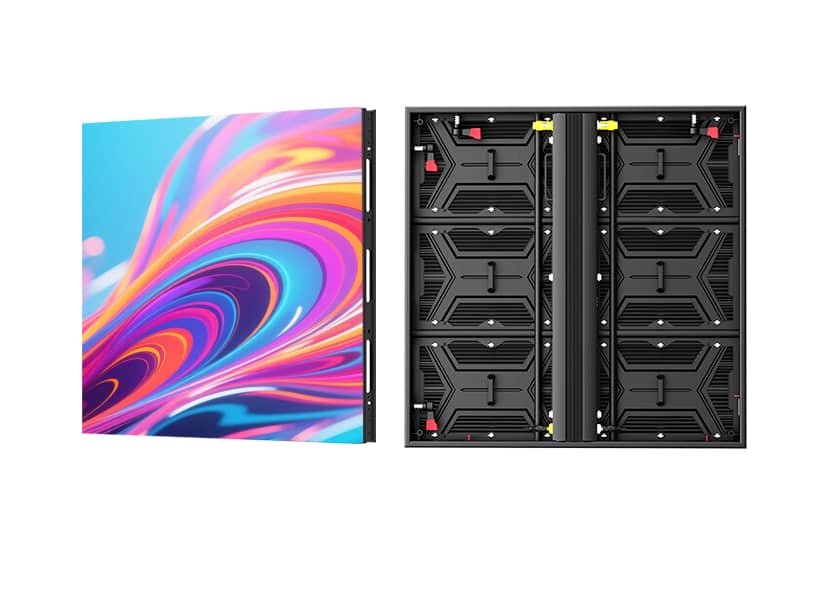

The LED screen cabinet is crafted from high-quality aluminum, giving it a sleek and durable build. Once the LED modules are assembled, the total thickness of the cabinet measures just 83mm, and it weighs only 22.5 kg per unit. This ultra-slim, lightweight design makes it highly adaptable for a wide range of installation environments.

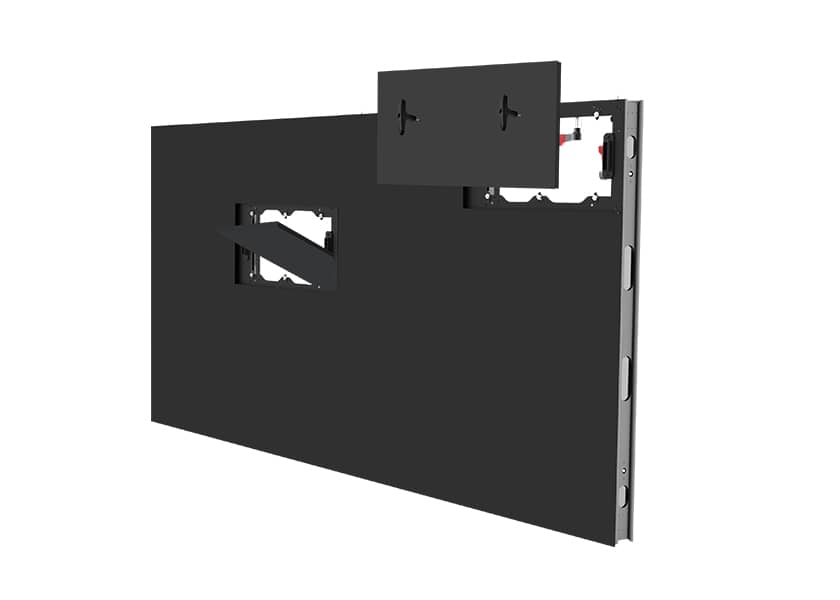

Dual-access design for fast front and rear servicing, helping to minimize maintenance costs. The LED panels are designed for quick and easy installation and removal.

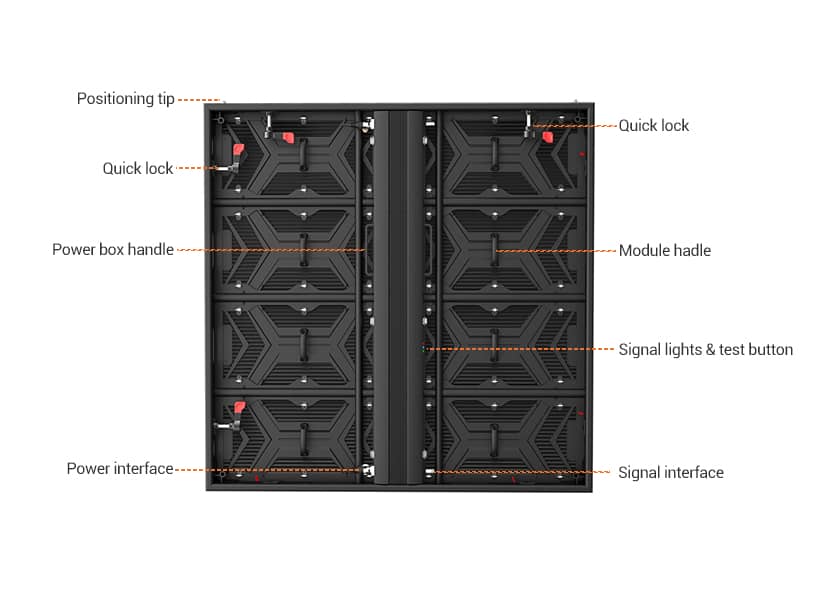

A streamlined internal layout minimizes circuit complexity, facilitating easier installation and more efficient maintenance. Combined with reliable power supply systems, this design ensures extended LED screen lifespan and consistent performance.
The seamless transition of the double-sided display delivers an exceptional 3D video experience that captivates audiences, while its intelligent design adapts flawlessly to diverse on-site environments—whether for indoor events, retail spaces, or outdoor installations—ensuring perfect integration every time.

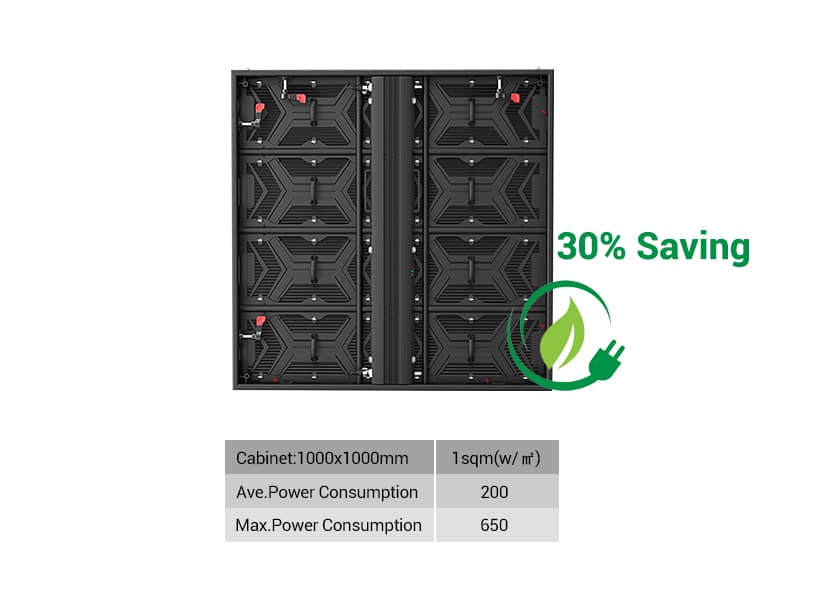

Equipped with a unique low-voltage distribution power system, It reduces energy consumption and daily expenses Reduce operating costs by up to 30%

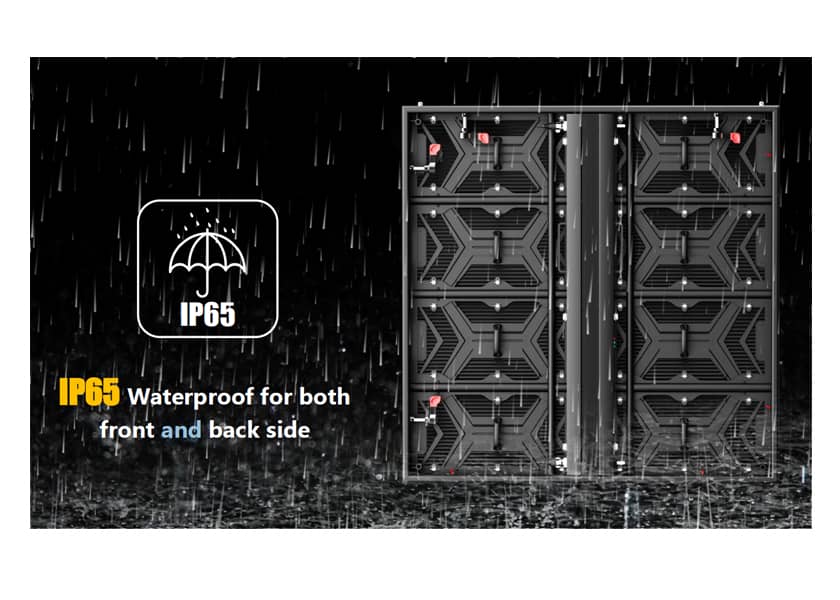

Engineered with an IP65 rating, it offers superior protection against dust and water, guaranteeing flawless operation outdoors—rain or shine.
≥6000 nits is designed for outdoor multi-purpose use, with excellent visual effects. Specially designed for 24/7 operation,This energy-saving display maximizes visibility and return on investment 24/7.

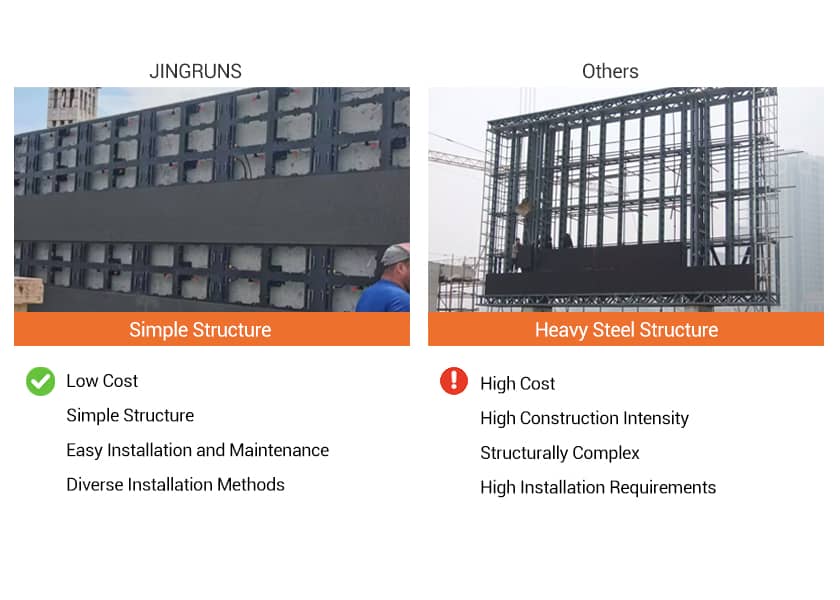

The lightweight LED aluminum cabinet eliminates the need for traditional steel structures, enabling simpler, faster, and more versatile installation while reducing demands on the installation environment and personnel.

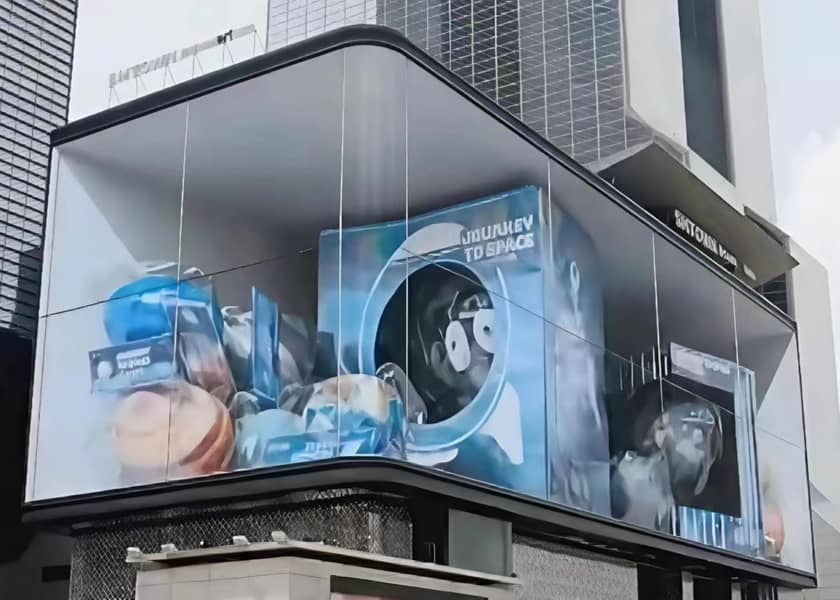

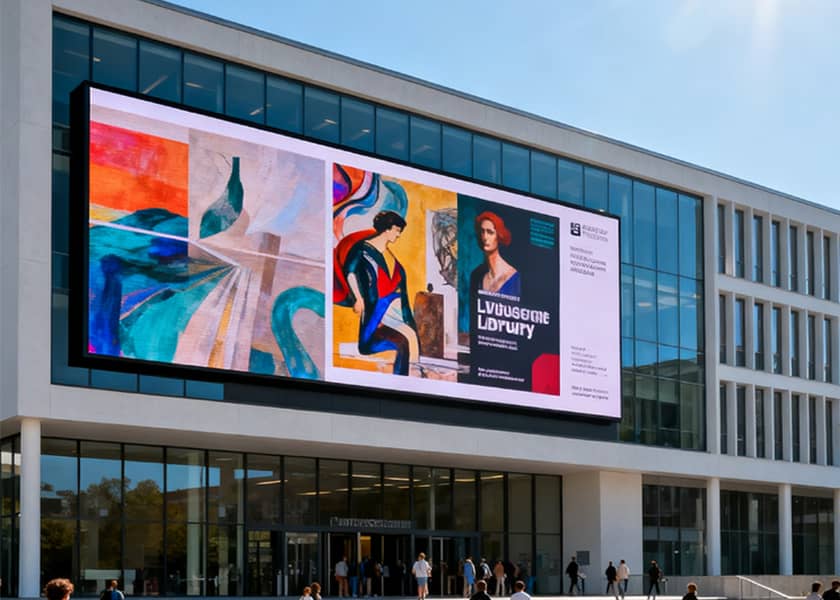

JINGRUNS outdoor LED displays are built for large-scale venues—from shopping malls and plazas to coastal areas—delivering stunning naked-eye 3D visuals.
| OU-A Series Cabinet: 1000x1000mm - IP65 Waterproof Outdoor LED Display | ||||||
| Pixel Pitch | P2.976 | P3.91 | P4.81 | P6.25 | P7.81 | P10.42 |
| LED type | SMD1415 | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD2727 |
| Physical Density(dots/㎡) | 112896 | 65536 | 43264 | 25600 | 16384 | 9216 |
| Drive mode | 1/21s | 1/16s | 1/13s | 1/8s | 1/4s | 1/2s |
| Module size(mm) | 500×250 | 500×250 | 500×250 | 500×250 | 500×250 | 500×250 |
| Module resolution(dots) | 168×84 | 128×64 | 104×52 | 80×40 | 64×32 | 48×24 |
| Cabinet resolution(dots) | 336×336 | 256×256 | 208×208 | 160×160 | 128×128 | 96×96 |
| Best viewing distance | ≥3 | ≥4 | ≥4 | ≥6 | ≥8 | ≥10 |
| Cabinet size(mm) | 1000X1000X83(Customizable for1500 width and 500/750 height） | |||||
| Module quantity(W xH) | 2X4 | |||||
| Cabinet Materials | Aluminum | |||||
| Cabinet Weight | 22.5Kg/m2 | |||||
| Waterproof grade | IP65 | |||||
| Environment | Outdoor | |||||
| Brightness(Nits) | 6000-10000 | |||||
| Color temperature(K) | 5000-12000 Optional | |||||
| Refresh rate(Hz) | ≥3840 | |||||
| Viewing angle(H/V) | 140°/160° | |||||
| Maintenance mode | Front & Rear | |||||
| Gray scale | 16bit | |||||
| Max consumption(W/㎡) | 650 | |||||
| Avg. consumption(W/㎡) | 100-200 | |||||
| Working Voltage | AC100-240V,50/60Hz | |||||
| Working temp/Humidity | -20~50℃/10%~95% | |||||
The OU-A Series offers 6000-10000 nits brightness, ensuring excellent visibility even in direct sunlight. For shaded outdoor applications, 6000 nits is sufficient; for full-sun exposure, we recommend 8000-10000 nits.
Yes, the OU-A Series features IP65 waterproof rating on both the front and rear, protecting against rain, dust, and even high-pressure water jets. It's designed for 24/7 outdoor operation in all weather conditions.
The energy-saving design reduces power consumption by up to 30% compared to standard outdoor LED displays. Average consumption is only 100-200W/m², significantly lowering your electricity bills.

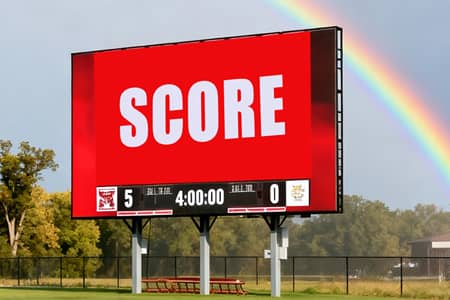

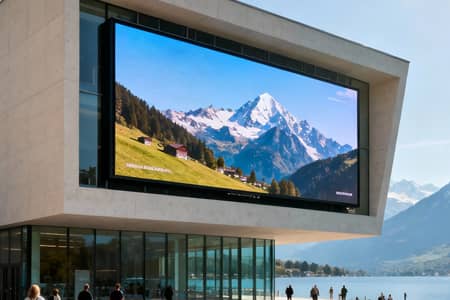

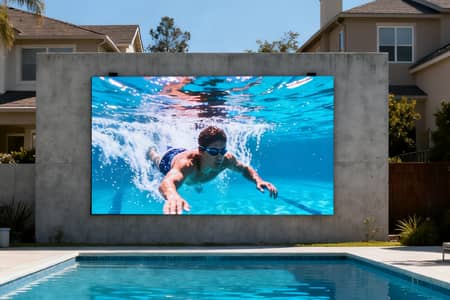

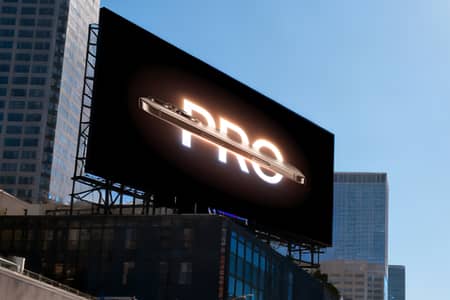

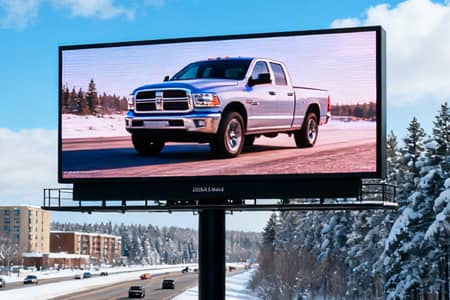

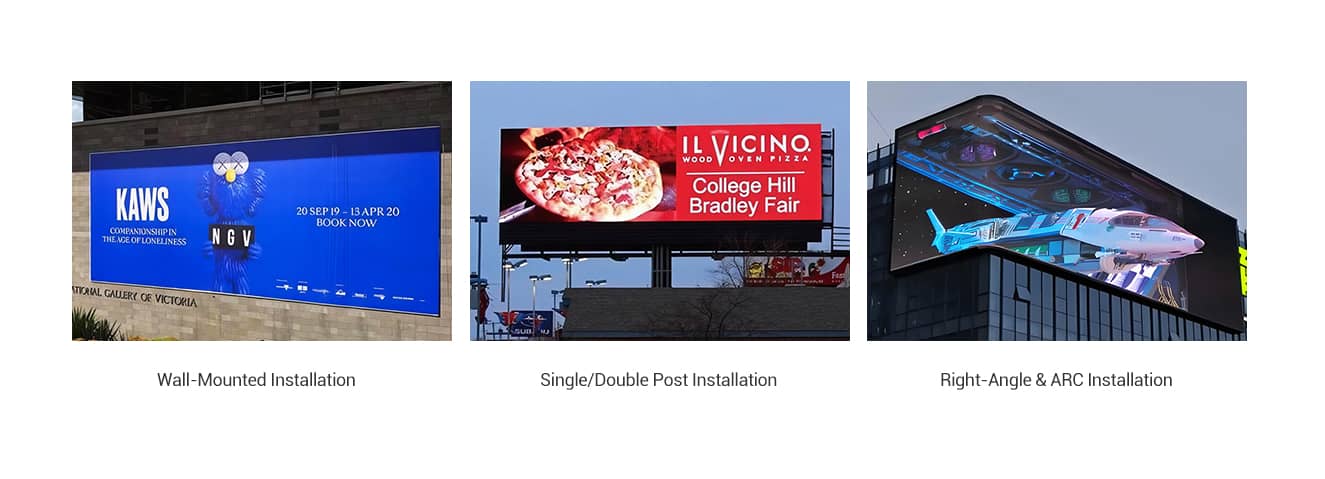

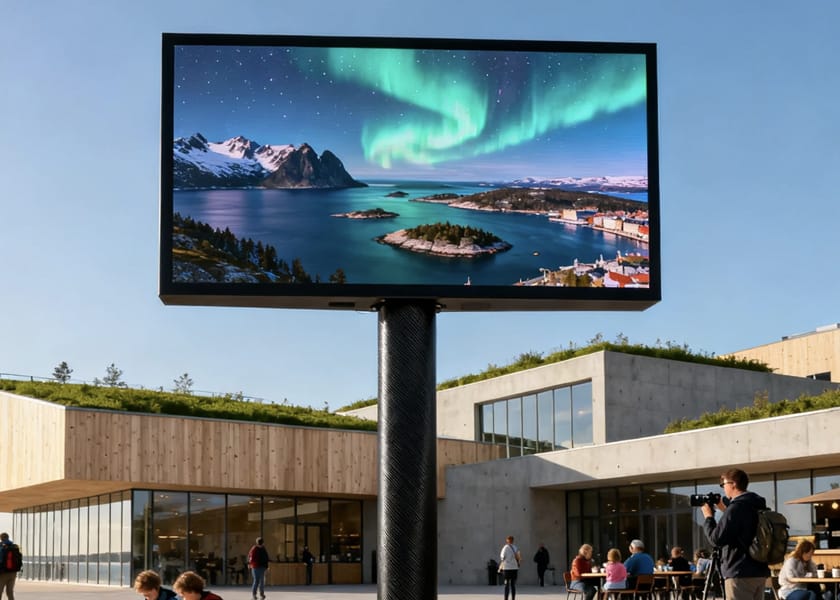

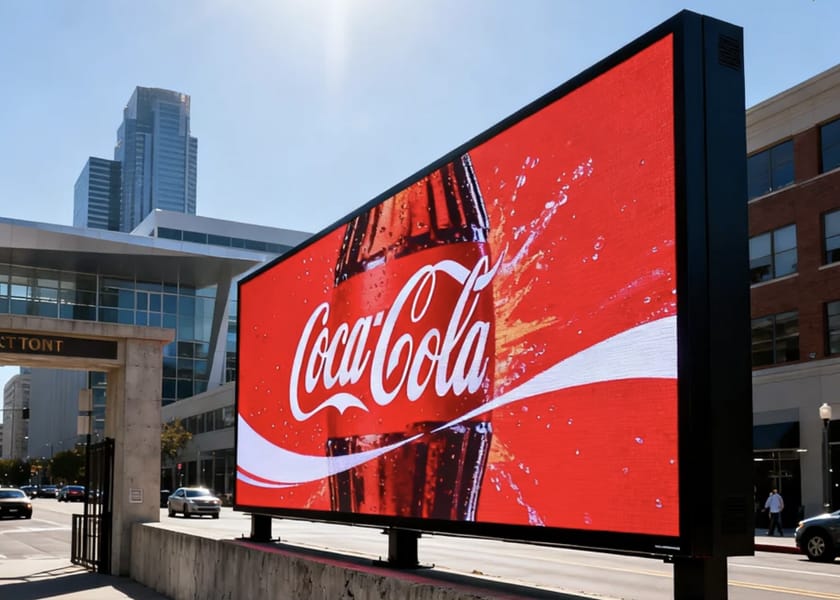

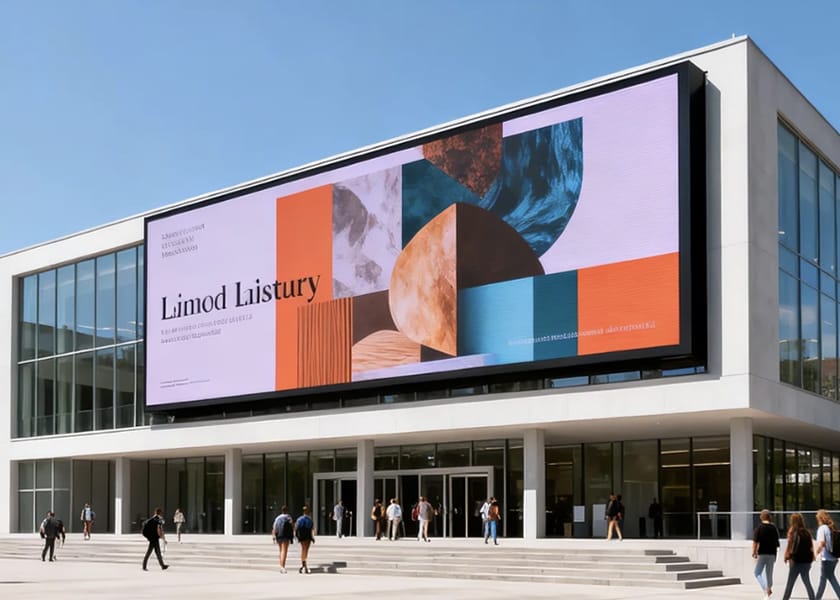

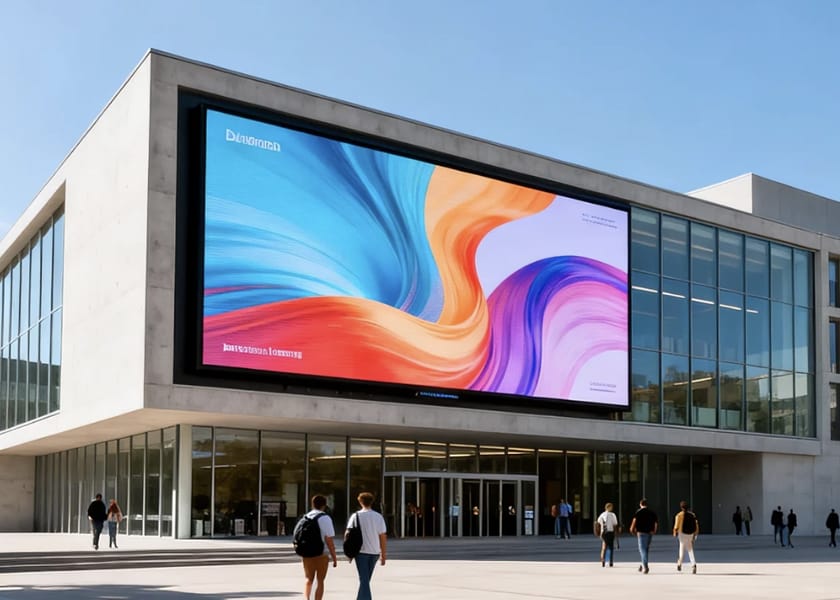

The OU-A Series supports multiple installation methods: wall-mounted, single-column mounted, multi-column mounted, floor-to-ceiling, and surface-mounted. The lightweight aluminum cabinet eliminates the need for heavy steel structures.
For P2.976: 3 meters (close-range viewing). For P4.81: 4-5 meters (shopping mall displays). For P6.25: 6-8 meters (billboards). For P10.42: 10+ meters (large-format billboards).
We offer a 3-year standard warranty with lifetime technical support. The IP65 waterproof design ensures long-term durability even in harsh outdoor environments.
