The OU-C Series outdoor LED display is engineered for high-impact visual experiences with 3D-ready capability and IP65 waterproof rating. With 5500-10000 nits brightness, it delivers stunning visibility even in direct sunlight, making it perfect for 3D billboards, sports stadiums, shopping malls, and outdoor advertising.

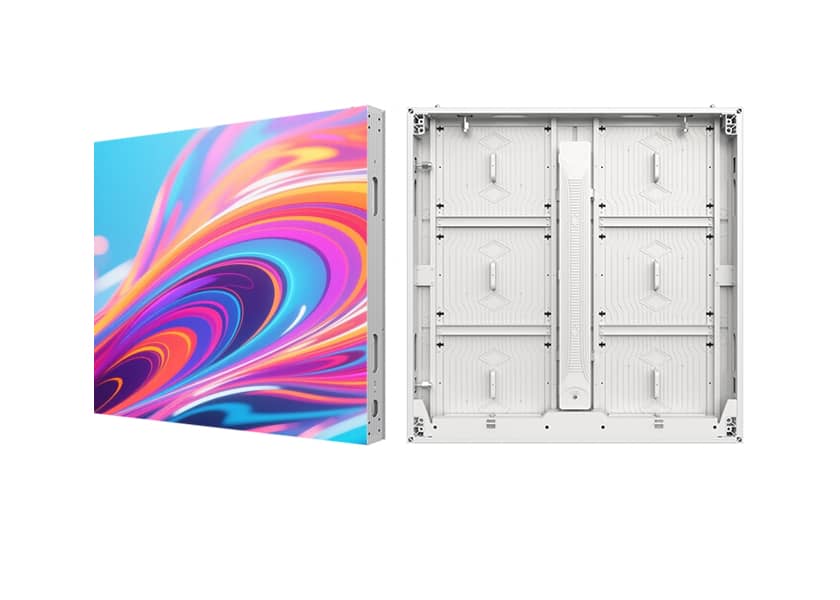

The ultra-thin 93mm die-cast aluminum cabinet weighs only 25kg per square meter, significantly reducing installation costs and building load requirements. The cabinet is available in multiple sizes (960x960mm, 960x640mm) for flexible configuration. The aluminum-back LED modules provide superior heat dissipation and flame-retardant properties.

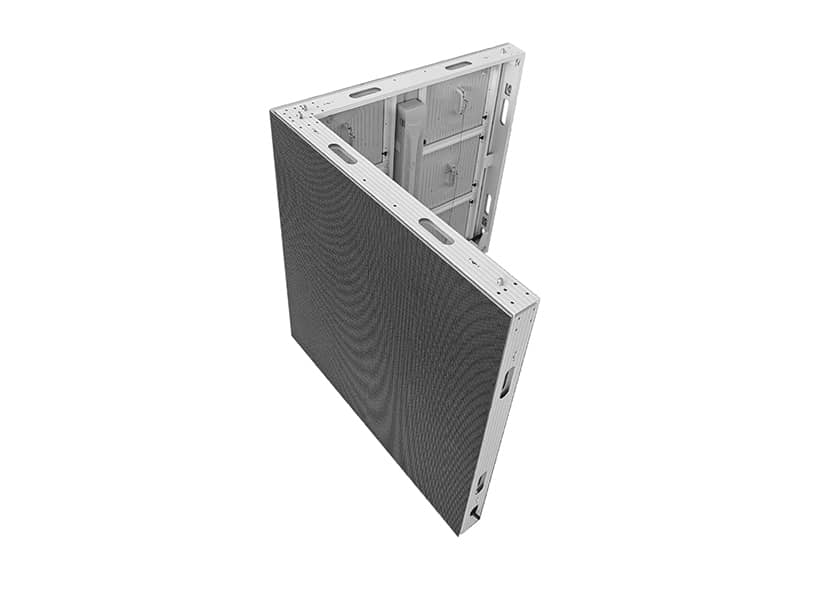

Available in pixel pitches from P4.44 to P10 with front and rear maintenance access for easy servicing. The cabinet supports 90-degree curved installations for stunning naked-eye 3D visual effects. Stadium screen bracket compatible allows tilt-angle adjustment for optimal sightlines in sports venues. Engineered to operate from -40°C to 70°C for harsh outdoor environments.

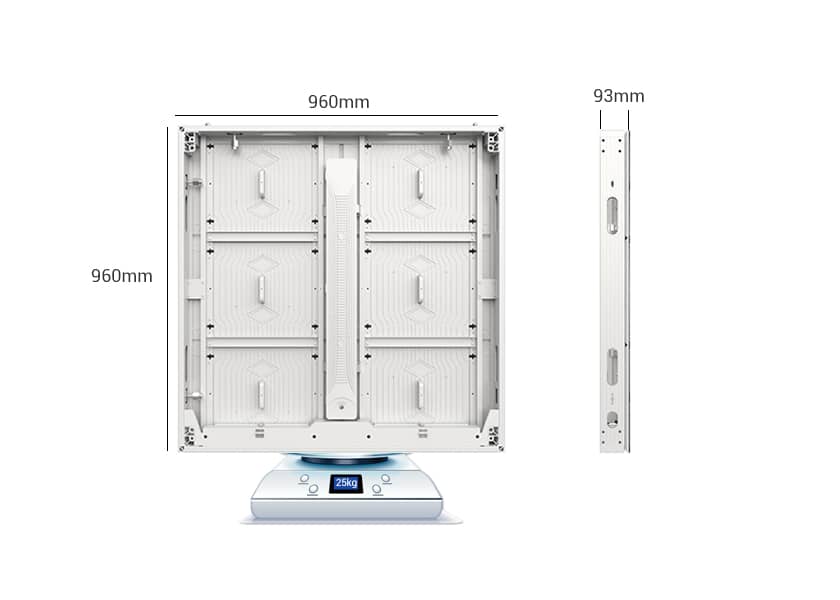

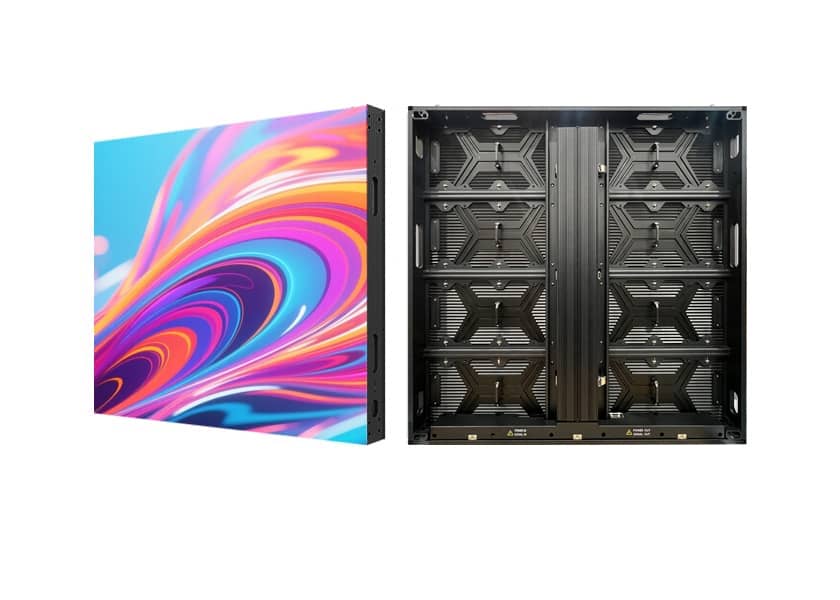

With its high-precision, die-cast aluminum cabinet, the screen has a stylish and durable appearance. After installing the LED modules, the total cabinet thickness is only 93 millimeters, and each unit weighs only 25 kilograms. This ultra-thin and lightweight design makes it an ideal choice for various installation environments.

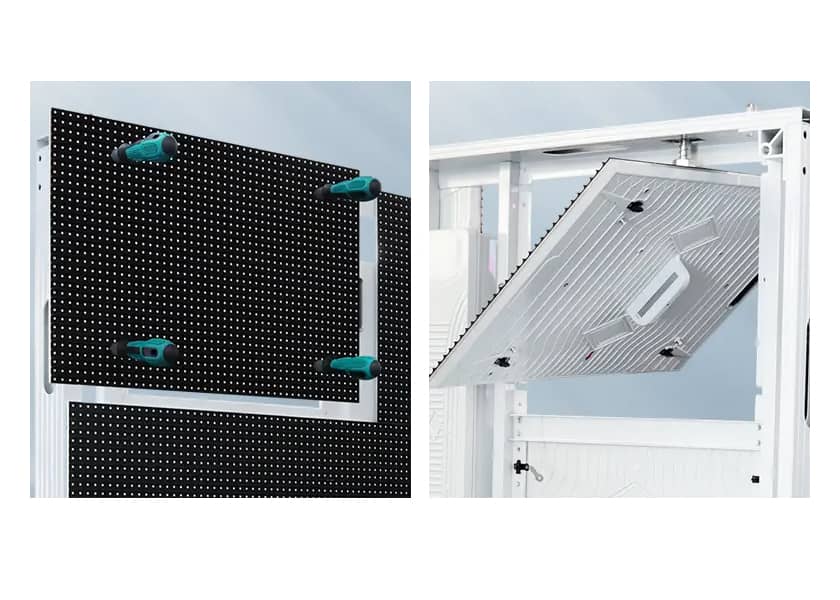

Dual-access design for fast front and rear servicing, helping to minimize maintenance costs. The LED panels are designed for quick and easy installation and removal.

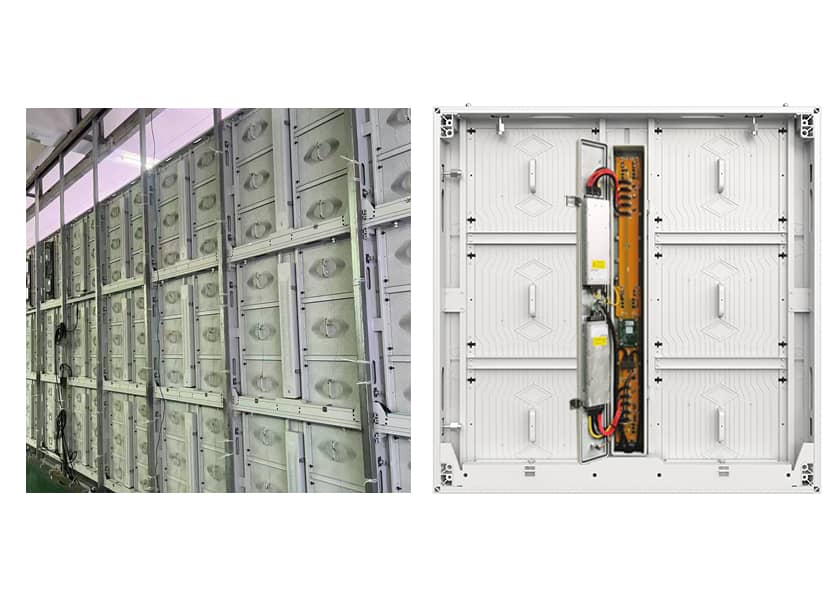

A streamlined internal layout minimizes circuit complexity, facilitating easier installation and more efficient maintenance. Combined with reliable power supply systems, this design ensures extended LED screen lifespan and consistent performance.
The seamless transition of the double-sided display delivers an exceptional 3D video experience that captivates audiences, while its intelligent design adapts flawlessly to diverse on-site environments—whether for indoor events, retail spaces, or outdoor installations—ensuring perfect integration every time.

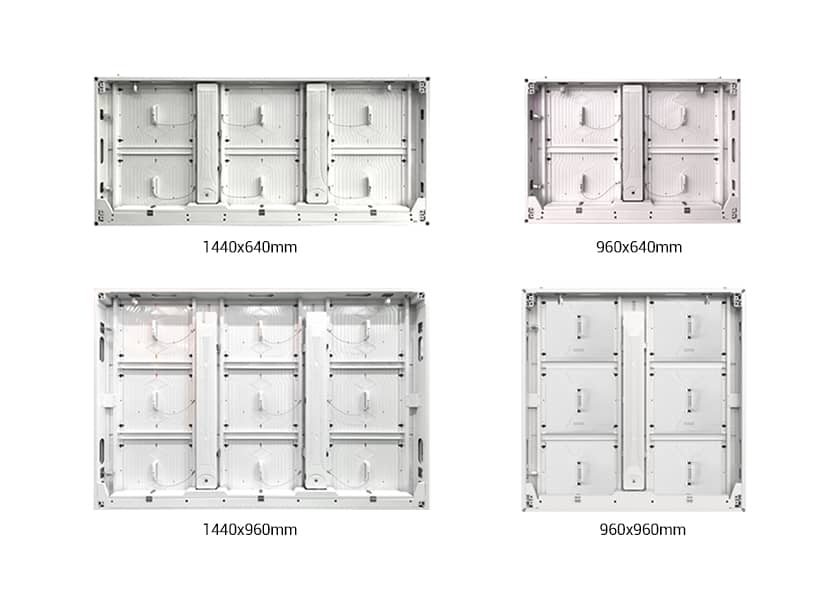

To ensure a perfect fit for any project, our cabinets are available in multiple sizes. This versatile range is specifically designed to integrate seamlessly into different installation environments and to perfectly accommodate virtually any screen size, ensuring your display is always tailored to the space.

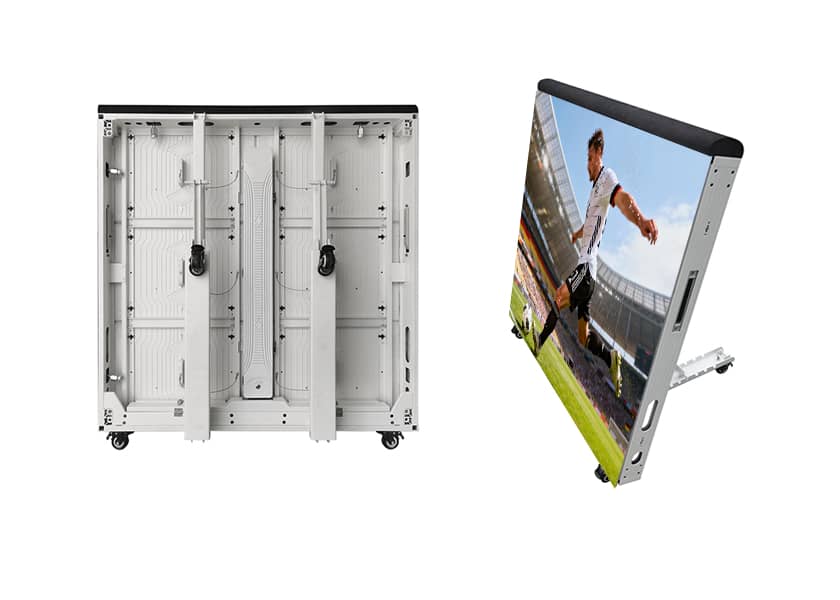

ours screen is fully compatible with sports stadium screen stands, allowing you to fine-tune the screen's tilt angle. This adjustability ensures optimal sightlines, effectively meeting the demanding visual requirements of any sports venue or athletic field.
≥10000 nits is designed for outdoor multi-purpose use, with excellent visual effects. Specially designed for 24/7 operation,This energy-saving display maximizes visibility and return on investment 24/7.
This unit operates steadily in temperatures ranging from -40°C to 70°C. It is fully resistant to cold, heat, humidity, and salt spray, ensuring long-term reliability in harsh outdoor and coastal applications.

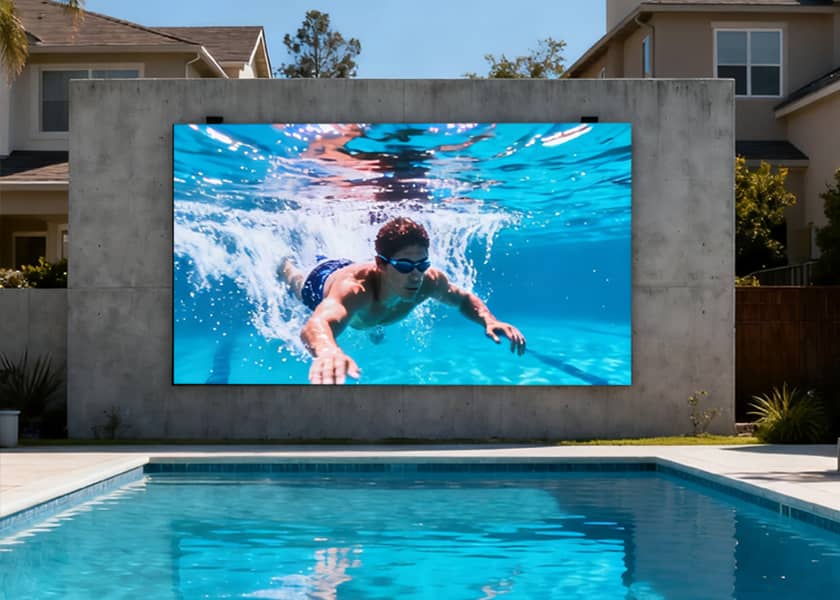

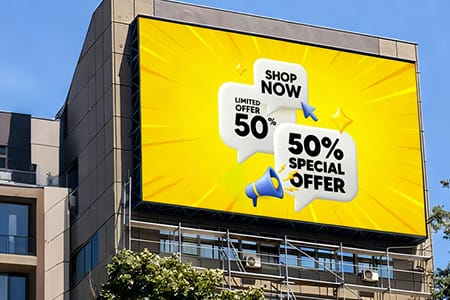

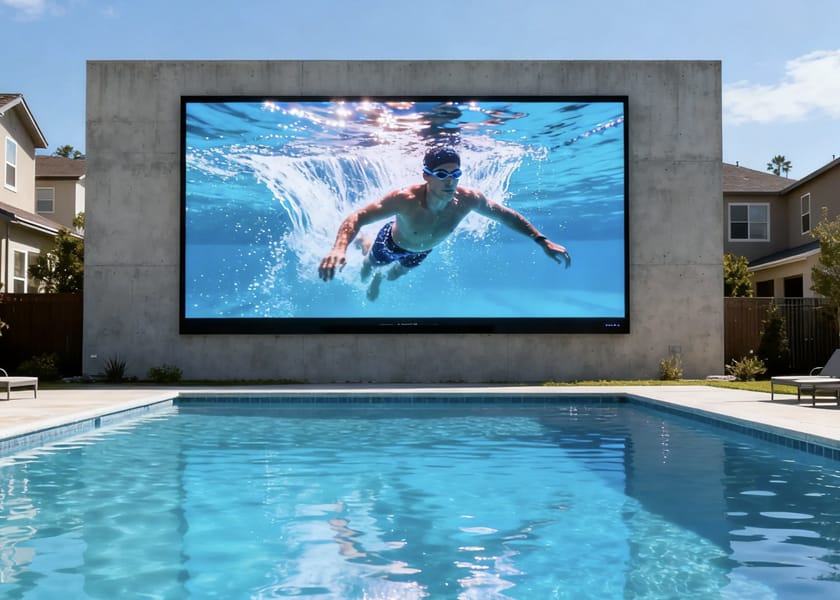

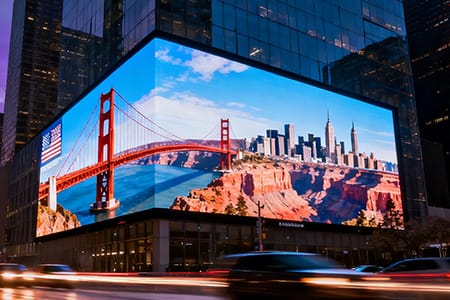

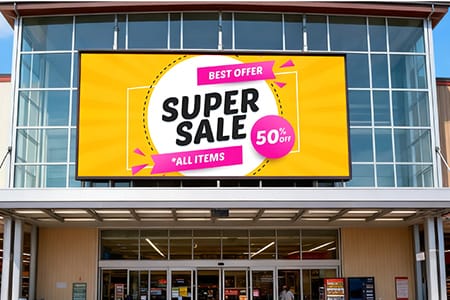

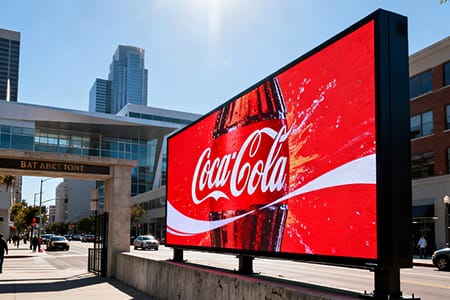

JINGRUNS outdoor LED displays are built for large-scale venues—from shopping malls and plazas to coastal areas—delivering stunning naked-eye 3D visuals.
| OU-C Series Cabinet: 960x960mm - 3D Outdoor LED Display with Aluminum Cabinets | |||||
| Pixel Pitch | P4.44 | P5.7 | P6.7 | P8 | P10 |
| LED type | SMD1921 | SMD2727 | SMD2727 | SMD2727 | SMD2727 |
| Physical Density(dots/㎡) | 50625 | 30625 | 22500 | 15625 | 10000 |
| Drive mode | 1/9s | 1/7s | 1/6s | 1/3s | 1/2s |
| Module size(mm) | 480×320 | 480×320 | 480×320 | 480×320 | 480×320 |
| Module resolution(dots) | 108×72 | 84×56 | 72×48 | 60×40 | 48×32 |
| Cabinet resolution(dots) | 216×216 | 168×168 | 144×144 | 120×120 | 96×96 |
| Best viewing distance | ≥5 | ≥6 | ≥7 | ≥8 | ≥10 |
| Cabinet size(mm) | 960X960X93 | ||||
| Module quantity(W xH) | 2X3 | ||||
| Cabinet Materials | Die-Cast Aluminum | ||||
| Cabinet Weight | 25Kg/m2 | ||||
| Waterproof grade | IP65 | ||||
| Environment | Outdoor | ||||
| Brightness(Nits) | 5500-10000 | ||||
| Color temperature(K) | 6500-9000 Optional | ||||
| Refresh rate(Hz) | ≥3840 | ||||
| Viewing angle(H/V) | 140°/160° | ||||
| Maintenance mode | Front & Rear | ||||
| Gray scale | 14-16bit | ||||
| Max consumption(W/㎡) | 550 | ||||
| Avg. consumption(W/㎡) | 90-200 | ||||
| Working Voltage | AC100-240V,50/60Hz | ||||
| Working temp/Humidity | -20~50℃/10%~95% | ||||
The OU-C Series is specifically designed for 3D visual effects and stadium applications. It features stadium screen bracket compatibility for tilt-angle adjustment, multiple cabinet size options (960x960mm, 960x640mm), and 3D-ready capability while maintaining IP65 waterproof rating.
The OU-C Series is available in 960x960mm and 960x640mm cabinet sizes. The 960x640mm size is designed for creative aspect ratios and flexible configurations. Both sizes feature the same 93mm ultra-thin depth.
Yes! The OU-C Series is fully compatible with sports stadium screen stands, allowing you to fine-tune the screen's tilt angle. This adjustability ensures optimal sightlines for all seating positions in any sports venue or athletic field.
The OU-C Series offers 5500-10000 nits brightness. For shaded outdoor applications, 5500 nits is sufficient; for full-sun exposure and 3D content, we recommend 8000-10000 nits for optimal visual impact.

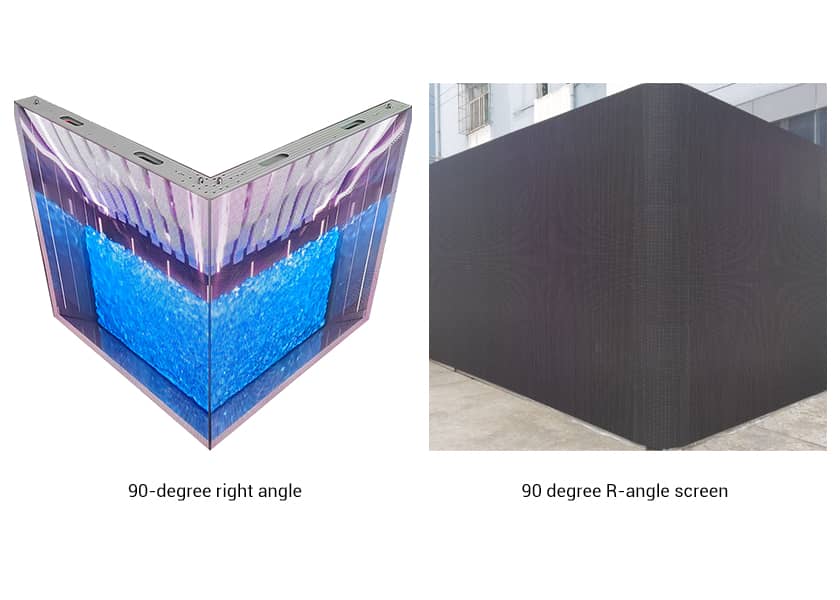

Yes, the OU-C Series supports 90-degree curved installations for naked-eye 3D visual effects. Combined with high brightness (up to 10000 nits) and high refresh rate (3840Hz), it delivers smooth, flicker-free 3D content playback.
We offer a 3-year standard warranty with lifetime technical support. The die-cast aluminum construction and IP65 rating ensure long-term durability in outdoor environments.
