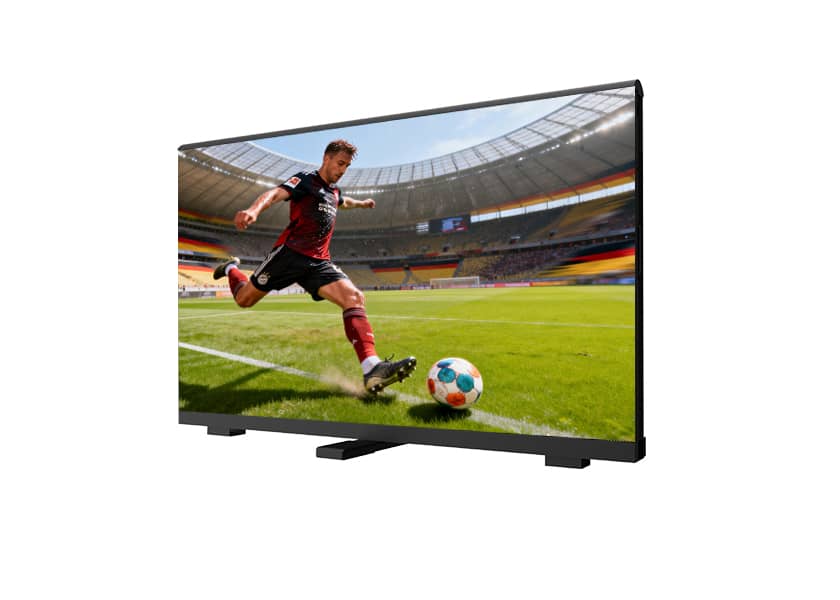

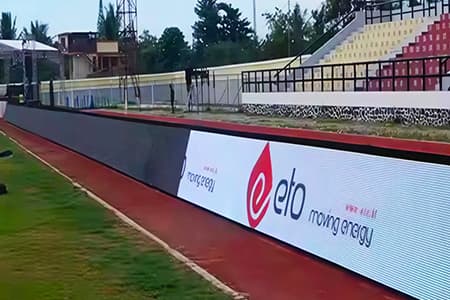

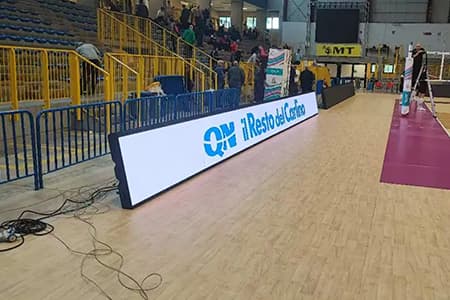

The OU-E Series sports venue outdoor LED display is specifically engineered for high-impact environments like stadiums, sports arenas, and athletic fields. Featuring anti-collision foam padding and a soft face mask design, it protects athletes and players from injury while maintaining stunning visual performance.
The large 1600x1000mm aluminum cabinet enables faster installation and fewer seams for large-format displays. With 6500 nits brightness and 3840Hz refresh rate, content remains crystal clear and flicker-free even in direct sunlight. The 4-layer physical protection system includes EVA foam on top, impact-resistant bottom structure, shock-absorbing front mask, and anti-kick side pads.
Available in pixel pitches from P6.25 to P10, with adjustable viewing angles from 90° to 115° (5° increments). IP65 waterproof rating ensures reliable operation in all weather conditions. The entrance door design with safety pedal allows for emergency exits and serves as a fire barrier.

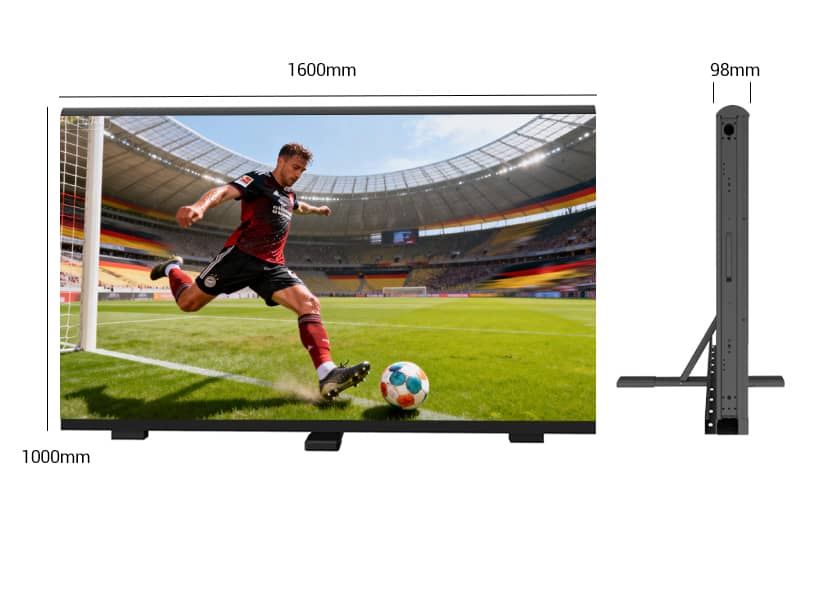

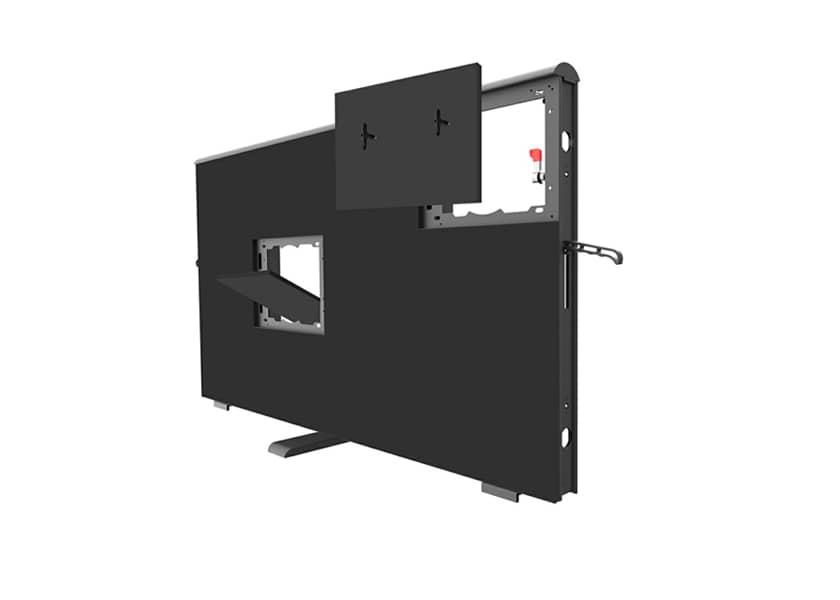

The large-sized aluminum cabinet design is not only lightweight and durable but also offers a clean, contemporary look. It allows for quick on-site assembly, which drastically cuts down installation time and labor expenses.

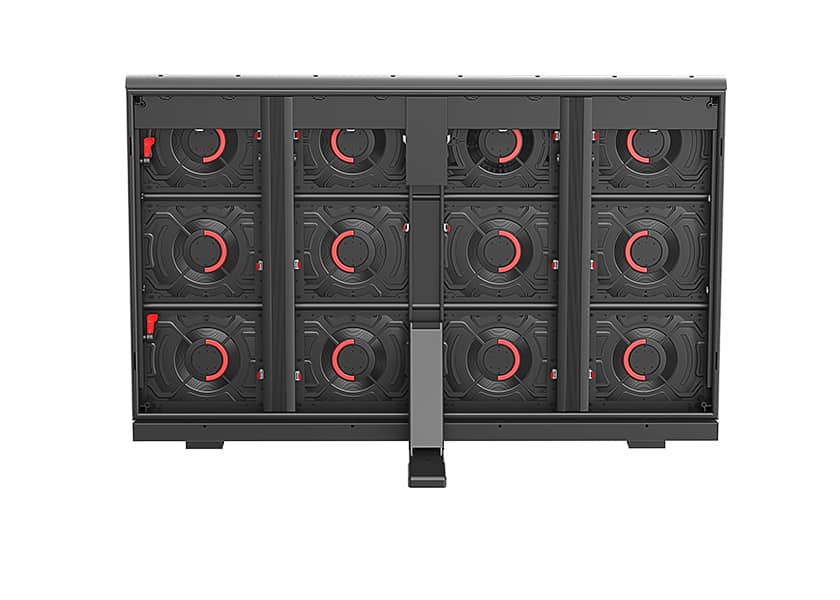

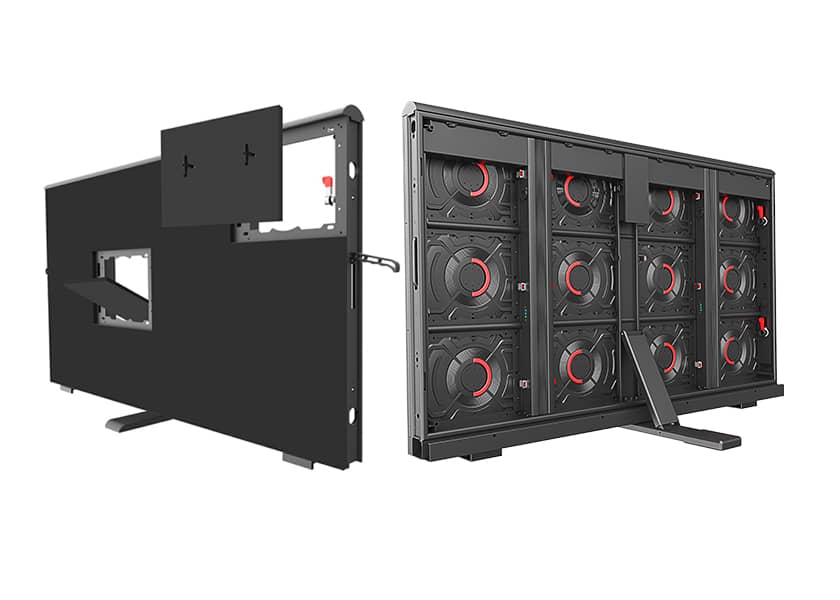

Dual-access design for fast front and rear servicing, helping to minimize maintenance costs. The LED panels are designed for quick and easy installation and removal.

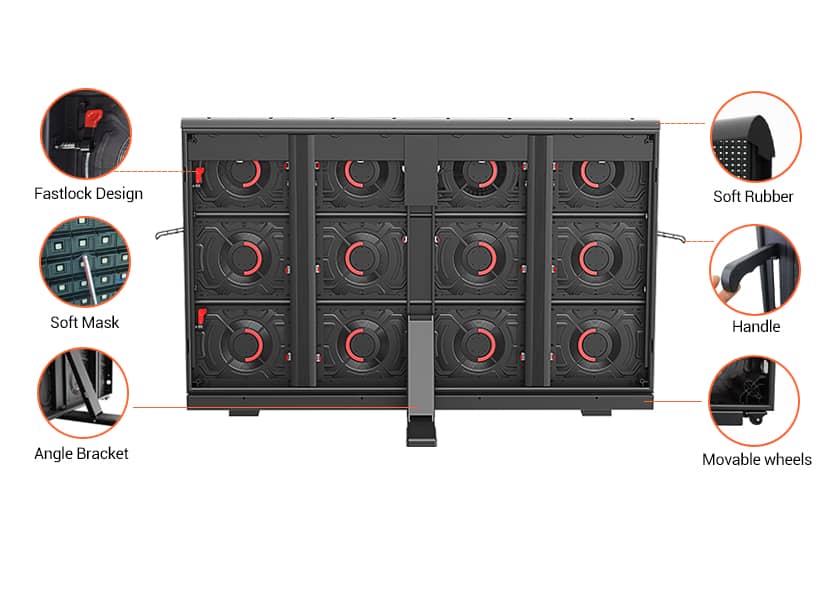

A streamlined internal layout simplifies the circuit, making installation easier and maintenance more efficient. Combined with a reliable power system, this design ensures an extended lifespan and consistent performance. For enhanced durability, the screen features four layers of physical protection: top impact-absorbing EVA foam, a bottom impact-resistant structure, a shock-absorbing front mask, and anti-kick side pads.

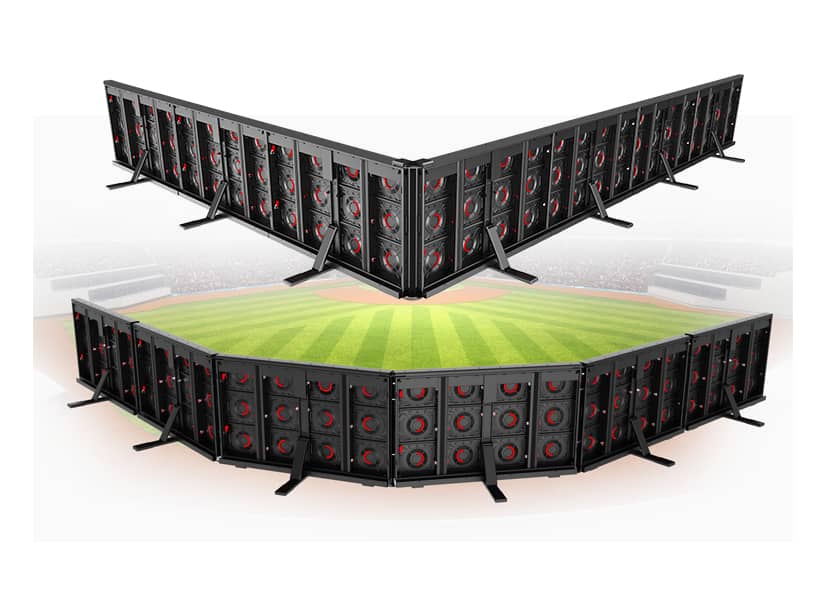

Full-range flexibility. Adjusts seamlessly from 90° to 180° for a perfect, built-in corner fit. Boundless innovation. A rotatable design that transforms content display, from crisp corners to expansive views.

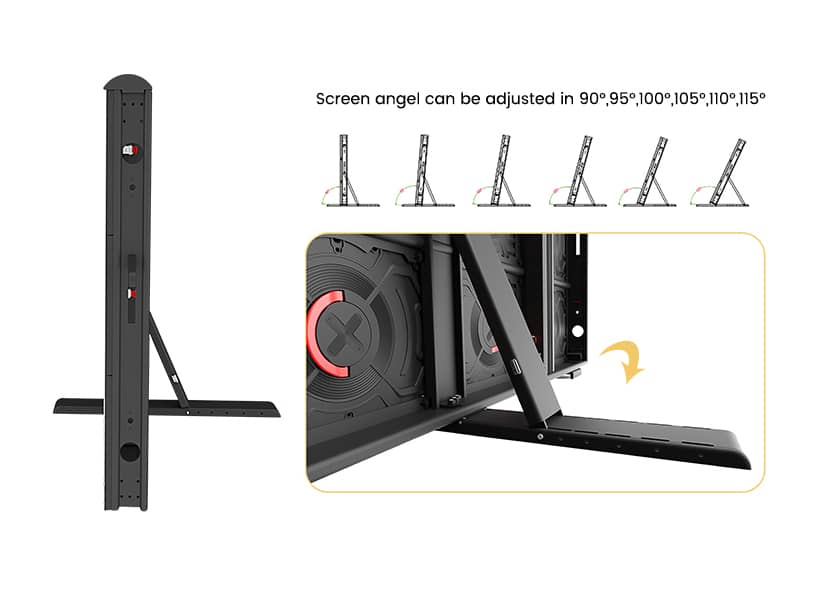

The screen angle bracket adjusts from 90° to 115° in 5° increments, adapting to any venue size or viewing requirement. It also supports customization for diverse viewing perspectives.

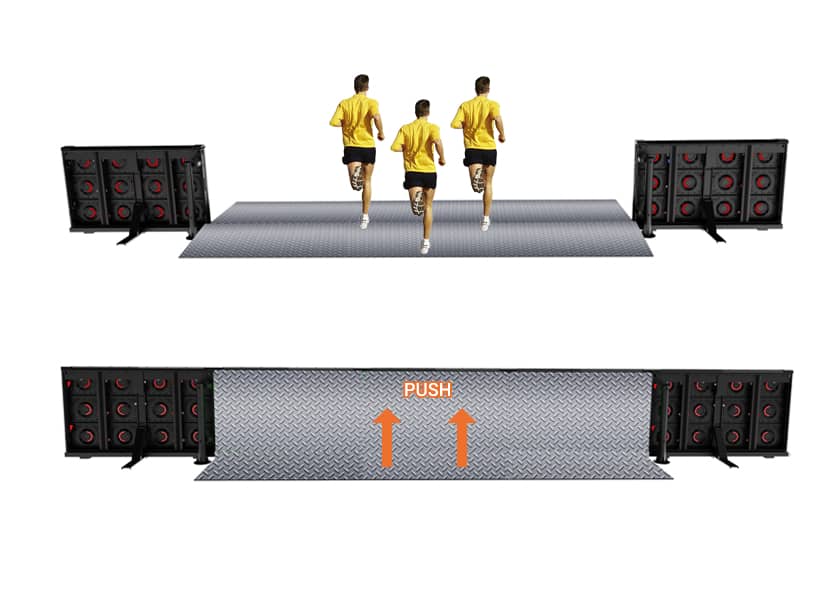

The innovative entrance door design ensures security while featuring a quick-push safety pedal for emergency exits. In the event of a fire, it also serves as a critical fire barrier, helping to prevent flames from spreading along the fence screen.

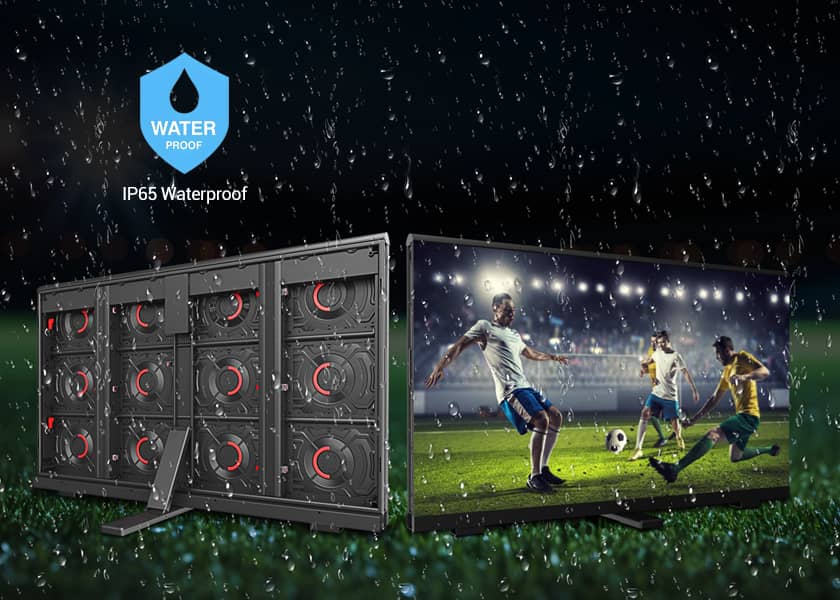

Engineered with an IP65 rating, it offers superior protection against dust and water, guaranteeing flawless operation outdoors—rain or shine.

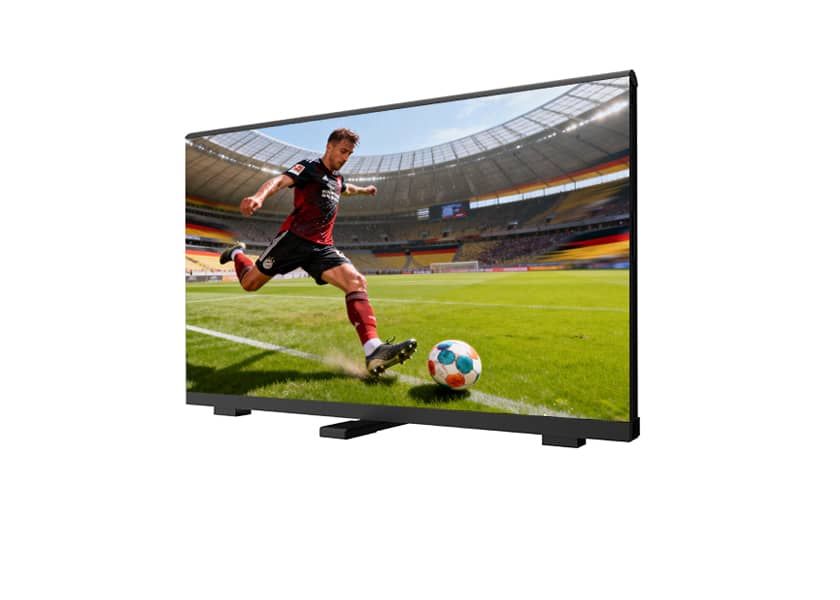

With 6000-6500cd/m² brightness and 3840Hz refresh rate, it delivers stable dynamic visuals and a more comfortable viewing experience.

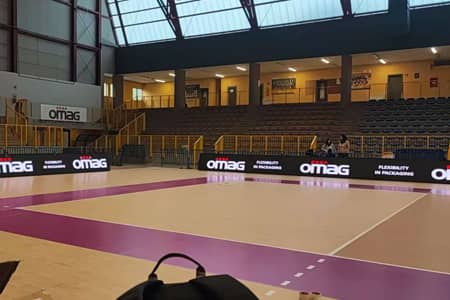

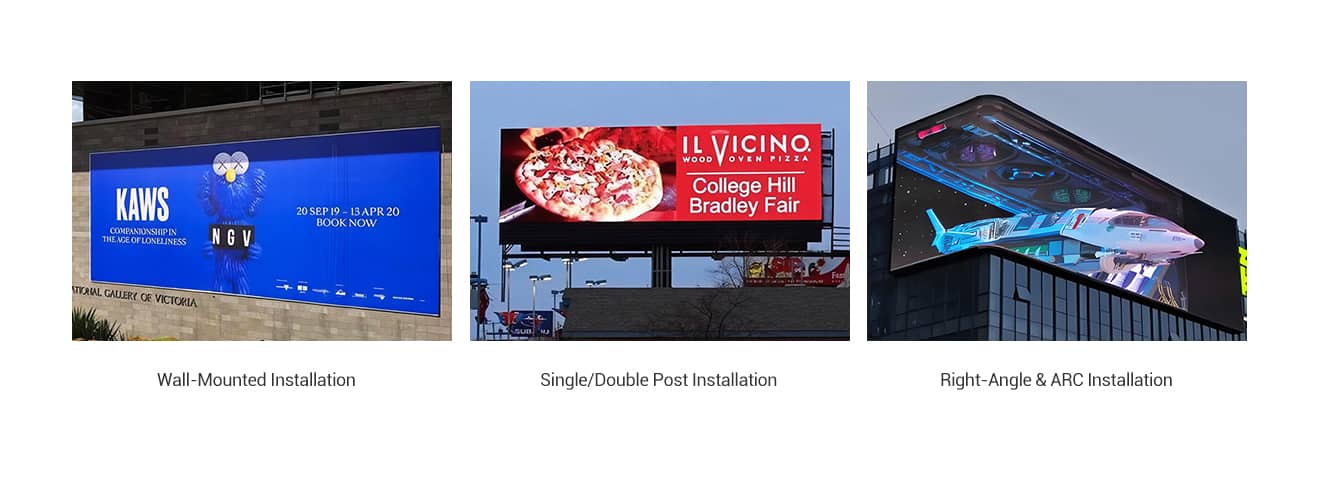

JINGRUNS outdoor LED displays are built for large-scale venues—from shopping malls and plazas to coastal areas—delivering stunning naked-eye 3D visuals.
| OU-E Series Cabinet: 1600x1000mm - Sports Venue Outdoor LED Display with Anti-Collision Design | |||
| Pixel Pitch | P6.25 | P8.33 | P10 |
| LED type(SMD) | SMD2727 | SMD2727 | SMD2727 |
| Physical Density(dots/㎡) | 25600 | 14400 | 10000 |
| Drive mode | 1/6s | 1/3s | 1/2s |
| Module size(mm) | 400×300 | 400×300 | 400×300 |
| Module resolution(dots) | 64×48 | 48×36 | 40×30 |
| Cabinet resolution(dots) | 256×144 | 192×108 | 160×90 |
| Best viewing distance | ≥7 | ≥9 | ≥10 |
| Brightness(Nits) | 6500 | ||
| Cabinet size(mm) | 1600X1000X98 | ||
| Module quantity(W xH) | 4X3 | ||
| Cabinet Materials | Aluminum | ||
| Cabinet Weight | 43.5kg | ||
| Waterproof grade | IP65 | ||
| Environment | Outdoor | ||
| Color temperature(K) | 5000-12000 Optional | ||
| Refresh rate(Hz) | 1920-3840 | ||
| Viewing angle(H/V) | 140°/140° | ||
| Maintenance mode | Front & Rear | ||
| Gray scale | 16bit | ||
| Max consumption(W/㎡) | 680 | ||
| Avg. consumption(W/㎡) | 120-200 | ||
| Working Voltage | AC100-240V,50/60Hz | ||
| Working temp/Humidity | -20~50℃/10%~95% | ||
The OU-E Series features a 4-layer physical protection system: top impact-absorbing EVA foam, bottom impact-resistant structure, shock-absorbing front mask, and anti-kick side pads. The soft face mask design protects athletes from injury during impact.

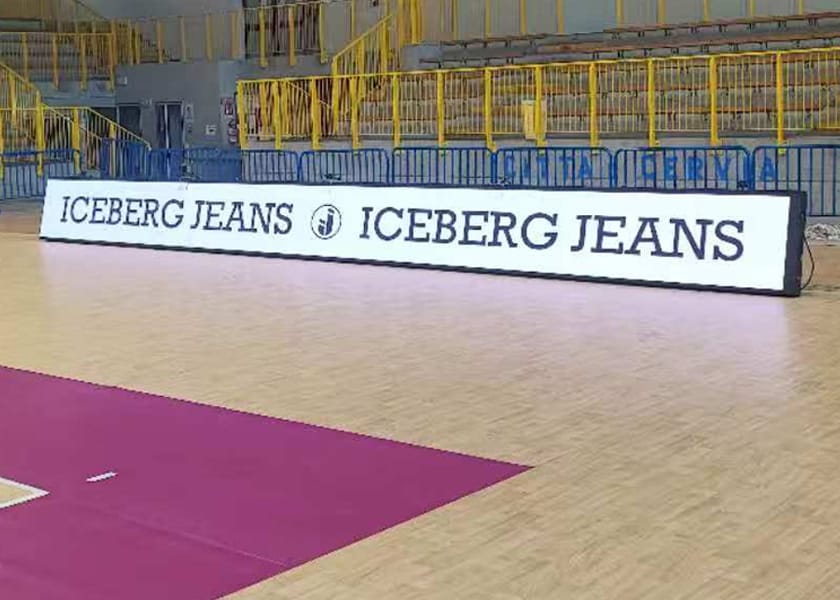

The OU-E Series features a large 1600x1000mm aluminum cabinet, which reduces the number of seams for large-format displays and speeds up installation time for stadium projects.
Yes, the screen angle bracket adjusts from 90° to 115° in 5° increments, allowing you to optimize sightlines for any seating position in the venue. Custom angle adjustments are also available.
The OU-E Series offers 6500 nits brightness, ensuring excellent visibility even in direct sunlight—perfect for day games and outdoor stadium events.
Yes, the innovative entrance door design includes a quick-push safety pedal for emergency exits. In the event of a fire, it also serves as a critical fire barrier, helping to prevent flames from spreading along the fence screen.
We offer a 3-year standard warranty with lifetime technical support. The IP65 waterproof rating and 4-layer protection system ensure long-term durability in sports venue environments.
