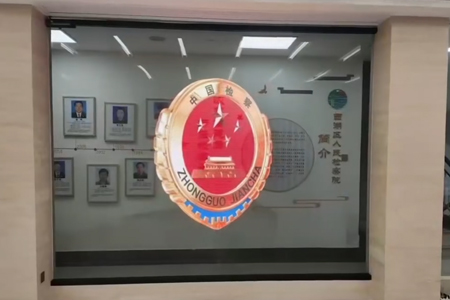

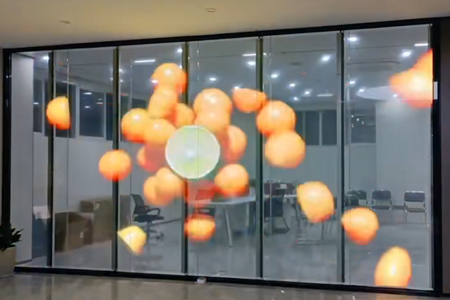

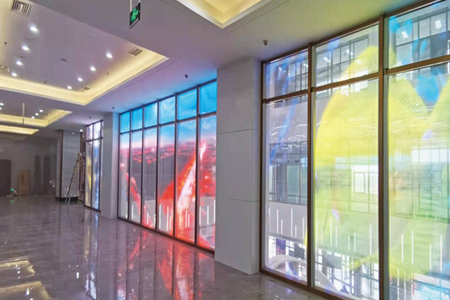

The IN-F Series holographic transparent LED display redefines visual advertising with 80% high light transmittance. It lets natural light permeate freely while delivering vivid, eye-catching visuals, making it an ideal pick for retail shop windows, mall atriums, stage backdrops, building glass facades and exhibition booths.
Boasting an ultra-light weight of only 2kg/m², this screen greatly lowers building load bearing pressure and cuts overall installation expenses. Fully customizable in all shapes, it supports curved, cylindrical and special irregular layouts to realize unlimited creative design concepts.

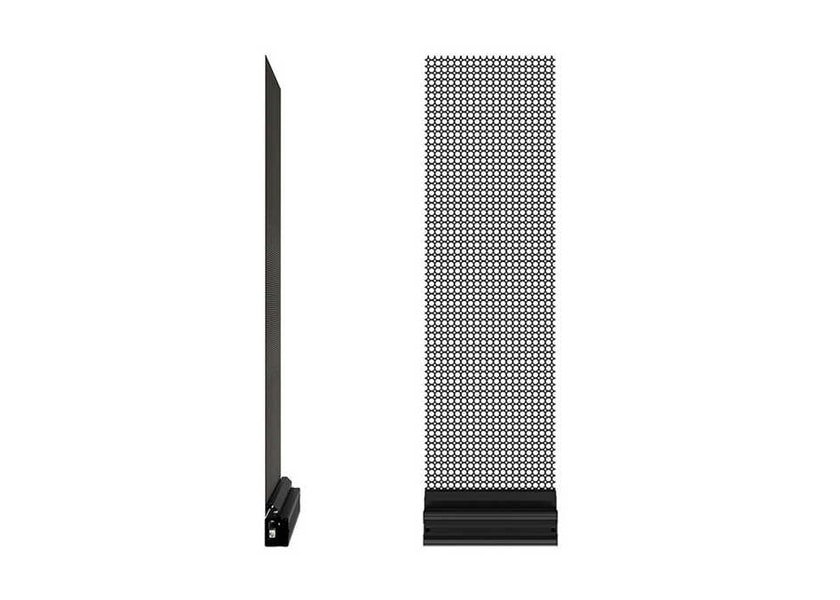

We supply multiple pixel pitch options including P3.9, P6.25, suitable for indoor and semi-outdoor scenarios. Adopting modular structure and front-access maintenance design, the screen enables fast, low-cost installation and convenient after-sales servicing.
Visual Brilliance Experience naturally stunning visuals with our transparent LED screens. Engineered for remarkable contrast and clarity, they bring every image to life with breathtaking detail.

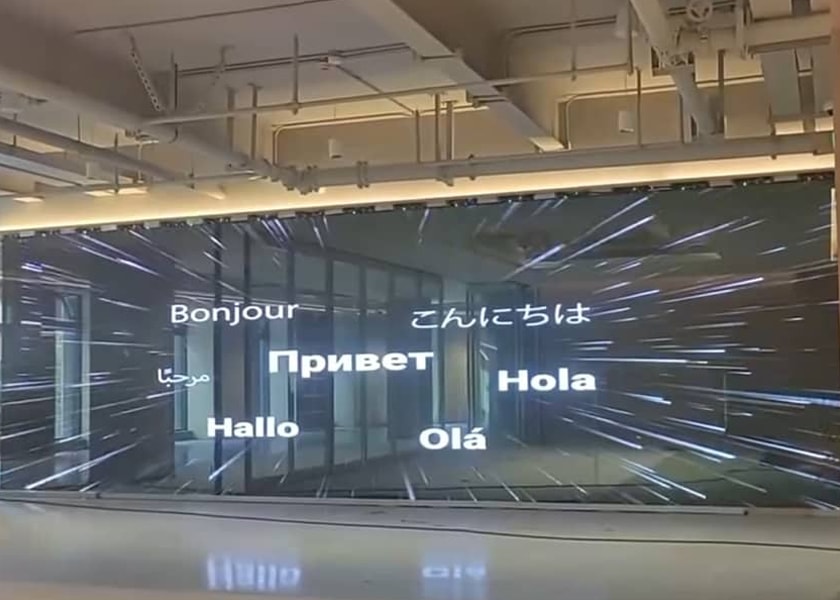

Exceptional Transparency Featuring industry-leading transparency of 80%, our LED banners blend invisibly into any environment. Natural light flows through effortlessly, maintaining a clear view while delivering vivid content.

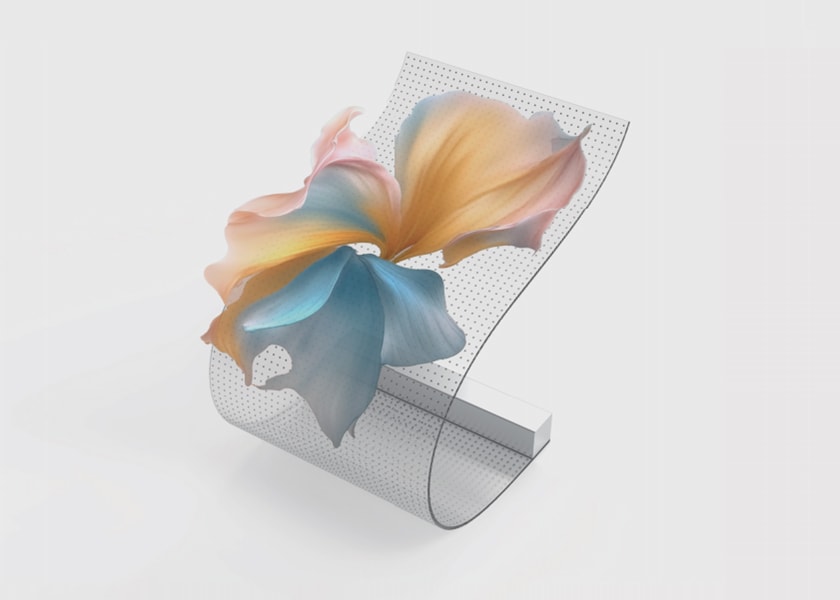

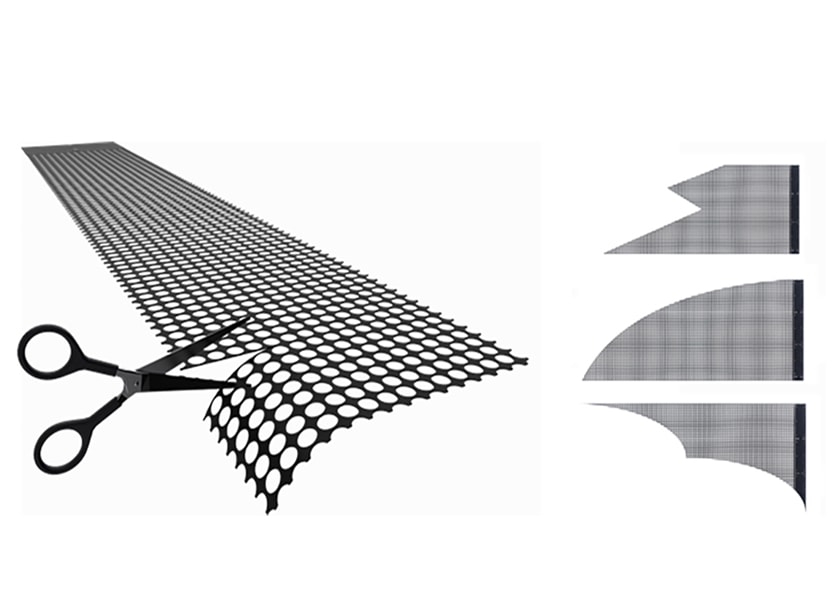

Engineered with precision circuitry, the JINGRUNS transparent screen delivers more than just high-performance transparency—it fundamentally redefines what's possible in display design. Its advanced custom-cut technology supports virtually any shape, from sweeping curves to sharp geometric angles, giving architects and designers the freedom to move beyond rectangular constraints. This shape-shifting capability unlocks a new realm of creative display applications, whether for immersive retail installations or iconic architectural landmarks, turning every project into a distinctive visual statement.

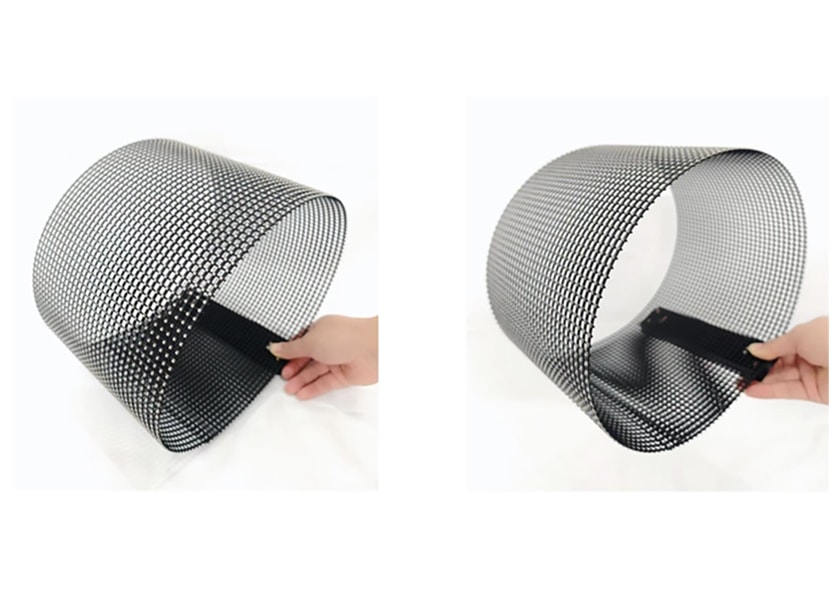

Engineered with an optimized structure, the JINGRUNS transparent LED screen can be curved into a cylindrical configuration, delivering breathtaking surround visuals from every angle. This flexibility unlocks endless creative applications—whether transforming nightclub interiors with immersive lightscapes, elevating museum exhibits with wraparound narratives, or redefining brand experiences in flagship retail environments.

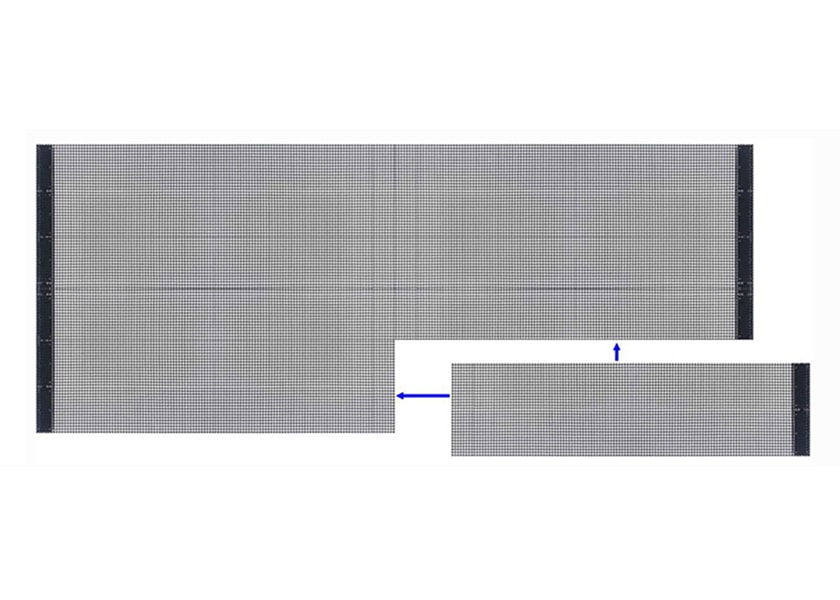

At JINGRUNS, we design transparent LED screens that are both lightweight and powerful. Our standard 2000 × 250 mm panel weighs just 2 kg/m²—light enough to be carried with one hand. This ultra-lightweight construction not only simplifies installation but also reduces transportation costs, delivering a more cost-effective solution for your business.
Flexible Installation: Ceiling, Floor, or Wall-Mounted
| Pixel Pitch | P2.6-5.2 | P3. 91 | P6.25 |
| LED type | 1R1G1B integrated LED-and-driver | 1R1G1B integrated LED-and-driver | 1R1G1B integrated LED-and-driver |
| Physical Density(dots/㎡) | 73728 | 65536 | 25600 |
| Module size(mm) | 1000×250(1200×250,1500x250,2000x250） | ||
| Module resolution(dots) | 192*96 | 256×64 | 160×40 |
| Transparency | 70% | 80% | 90% |
| Weight | ≤2Kg/m2 | ||
| Environment | indoor | ||
| Brightness(CD/㎡) | 1500-4500 | ||
| Drive mode | 1/1 | ||
| Refresh rate(Hz) | ≥3840 | ||
| Viewing angle(H/V) | 140°/140° | ||
| Maintenance mode | Front | ||
| Max consumption(W/㎡) | ≤800 | ||
| Avg. consumption(W/㎡) | ≤240 | ||
| Working Voltage | AC100-240V,50/60Hz | ||
| Working temp/Humidity | -20~50℃/10%~95% | ||
A transparent LED display uses a grille-like design with LED strips mounted on a transparent substrate, allowing 70-90% of light to pass through. When turned off, it looks like a glass window; when turned on, it displays vibrant content while still maintaining visibility through the screen.
The IN-F Series offers 70-90% transparency depending on the pixel pitch. This industry-leading transparency ensures minimal obstruction of natural light and maintains a clear view through the screen when displaying content.
The IN-F Series weighs only 2kg per square meter, making it one of the lightest transparent LED displays on the market. This ultra-lightweight design reduces installation costs and building load requirements.
Yes! With brightness up to 4500 CD/m² and optional weatherproofing, the IN-F Series is suitable for both indoor and outdoor applications including building facades, commercial plazas, and amusement parks.
Absolutely. The IN-F Series supports cylindrical, curved, and custom shapes. The flexible module design allows for creative installations like curved columns, hanging banners, and irregular-shaped displays.
We offer a 1-year standard warranty with lifetime technical support. Extended warranty options are available upon request.
