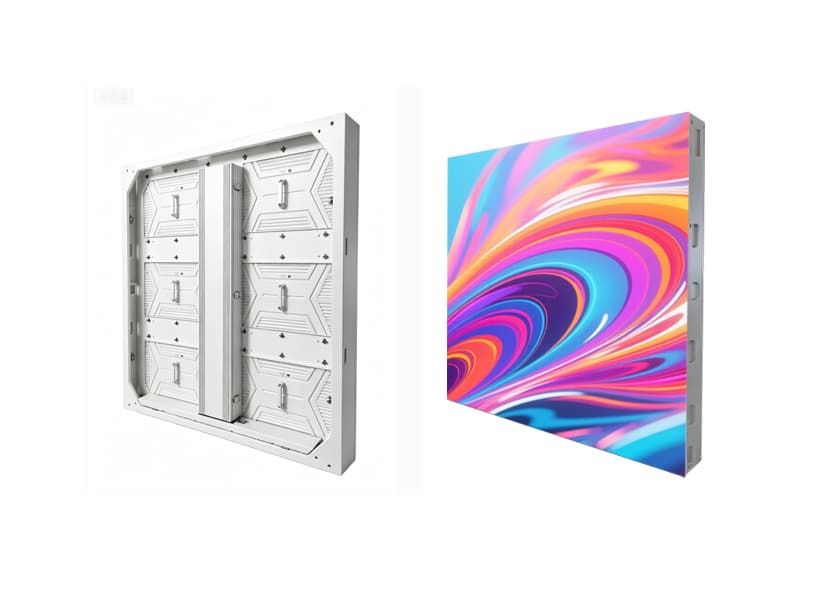

The OU-G Series is engineered for demanding outdoor environments, delivering high cost-effectiveness without compromising performance. Its integrated cabinet design ensures exceptional flatness, while enabling fast assembly—significantly reducing installation time and labor costs.
Available in pixel pitches from P2.976 to P10.42, the OU-G Series supports both front and rear maintenance for easy servicing. It also allows 90° curved installations for creative applications such as naked-eye 3D billboards. Featuring a 3840Hz refresh rate and 16-bit grayscale, every image is flicker-free and true to life.
Perfect for billboards, shopping malls, building facades, sports stadiums, and outdoor advertising.

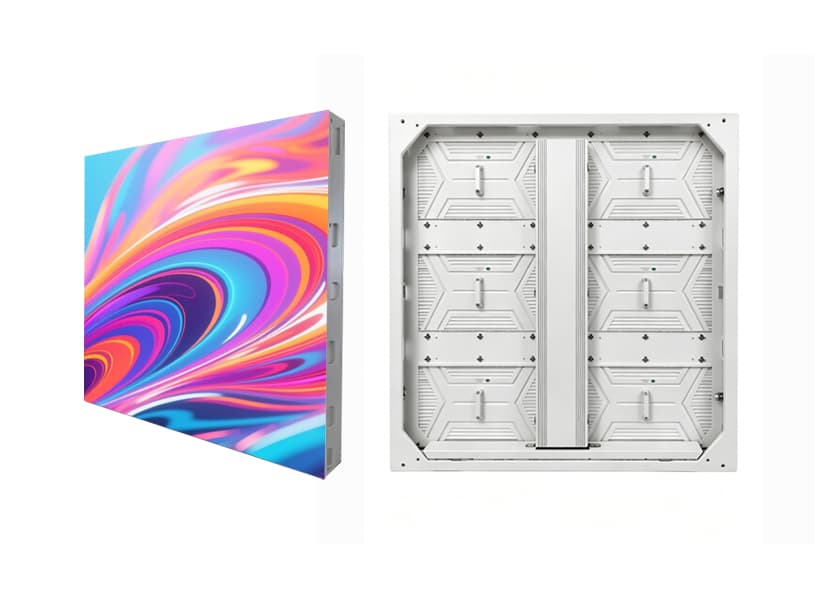

The LED screen cabinet is crafted from high-quality aluminum, giving it a sleek and durable build. Once the LED modules are assembled, the total thickness of the cabinet measures just 83mm, and it weighs only 22.5 kg per unit. This ultra-slim, lightweight design makes it highly adaptable for a wide range of installation environments.

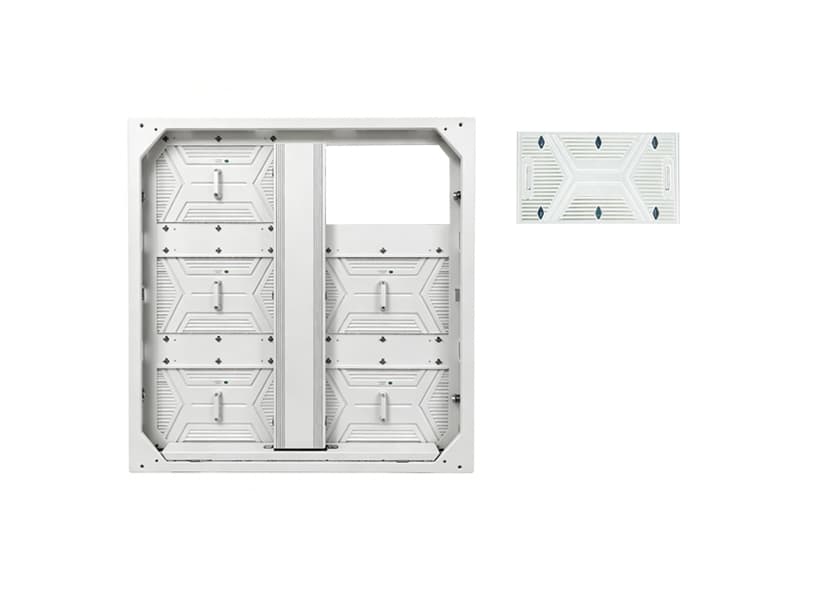

The dual-access design enables fast front and rear servicing, significantly minimizing maintenance costs and downtime. Technicians can service the display from either side—front access is ideal for wall-mounted or poolside installations where rear space is limited, while rear access is convenient for elevated or tower-mounted displays. The LED panels feature a tool-free or quick-lock mechanism for easy installation and removal, reducing service time by up to 50%. This design ensures that your outdoor LED display remains operational with minimal interruption, whether for routine inspections or emergency repairs.
A streamlined internal layout minimizes circuit complexity, facilitating easier installation and more efficient maintenance. Fewer cables and connectors mean reduced failure points and faster troubleshooting. Combined with reliable power supply systems and overvoltage protection, this design ensures extended LED screen lifespan and consistent performance—even in demanding outdoor environments with temperature fluctuations and power instability.

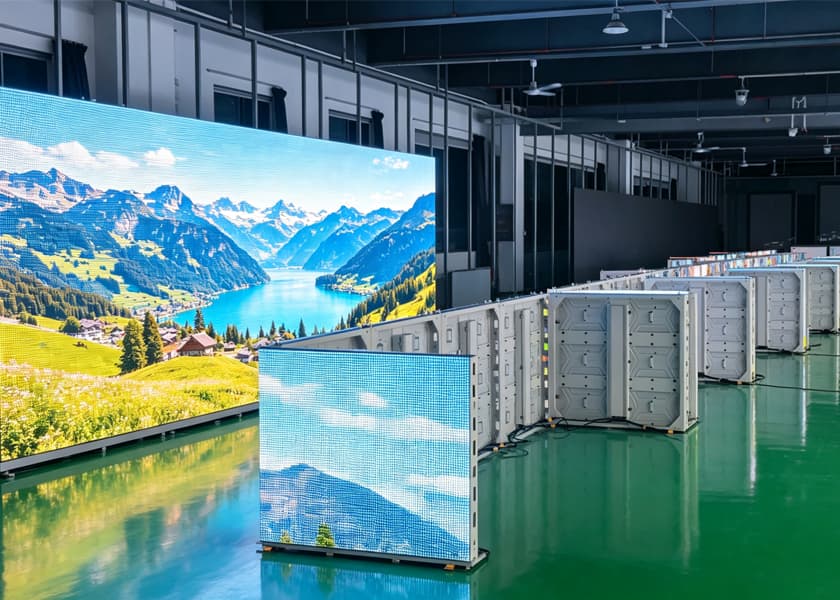

JINGRUNS outdoor LED displays are built for large-scale venues—from shopping malls and plazas to coastal areas—delivering stunning naked-eye 3D visuals.
| OU-G Series Cabinet: 960x960mm - IP65 Waterproof Outdoor LED Display | |||||
| Pixel Pitch | P4.44 | P5.7 | P6.7 | P8 | P10 |
| LED type | SMD1921 | SMD2727 | SMD2727 | SMD2727 | SMD2727 |
| Physical Density(dots/㎡) | 50625 | 30625 | 22500 | 15625 | 10000 |
| Drive mode | 1/9s | 1/7s | 1/6s | 1/3s | 1/2s |
| Module size(mm) | 480×320 | 480×320 | 480×320 | 480×320 | 480×320 |
| Module resolution(dots) | 108×72 | 84×56 | 72×48 | 60×40 | 48×32 |
| Cabinet resolution(dots) | 216×216 | 168×168 | 144×144 | 120×120 | 96×96 |
| Best viewing distance | ≥5 | ≥6 | ≥7 | ≥8 | ≥10 |
| Cabinet size(mm) | 960X960X86 | ||||
| Module quantity(W xH) | 2X3 | ||||
| Cabinet Materials | Die-Cast Aluminum | ||||
| Cabinet Weight | 25Kg/m2 | ||||
| Waterproof grade | IP66 | ||||
| Environment | Outdoor | ||||
| Brightness(Nits) | 5500-10000 | ||||
| Color temperature(K) | 6500-9000 Optional | ||||
| Refresh rate(Hz) | ≥3840 | ||||
| Viewing angle(H/V) | 140°/160° | ||||
| Maintenance mode | Front & Rear | ||||
| Gray scale | 14-16bit | ||||
| Max consumption(W/㎡) | 550 | ||||
| Avg. consumption(W/㎡) | 90-200 | ||||
| Working Voltage | AC100-240V,50/60Hz | ||||
| Working temp/Humidity | -20~50℃/10%~95% | ||||
The OU-G Series is specifically designed for outdoor commercial video walls. It features high flatness and 3D-ready capability while maintaining an IP65 waterproof rating.
The OU-G Series is available in the common cabinet size of 960x960mm.
The OU-G Series offers 5,500–10,000 nits brightness. For shaded outdoor applications, 5,500 nits is sufficient. For full-sun exposure and 3D content, we recommend 8,000–10,000 nits for optimal visual performance.
Yes, the OU-G Series supports 90° curved installation for naked-eye 3D视觉效果. Combined with high brightness (up to 10,000 nits) and a high refresh rate (7,680Hz), it delivers smooth, flicker-free 3D content playback.
Yes, the OU-G Series supports 90-degree curved installations for naked-eye 3D visual effects. Combined with high brightness (up to 10000 nits) and high refresh rate (3840Hz), it delivers smooth, flicker-free 3D content playback.
We offer a 5-year standard warranty with lifetime technical support. The die-cast aluminum structure and IP65 rating ensure long-term durability in outdoor environments.
