OU-H Series Outdoor LED Display | Ultra-Thin 83mm Die-Cast Aluminum Cabinet, 23kg Lightweight

Ultra-Thin Die-Cast Aluminum Outdoor LED Display | 83mm Slim, 23kg Light, IP65 Waterproof

Ultra-Light Die-Cast Aluminum Cabinet (23kg)
Super Slim 83mm Thickness
Front & Rear Access for Easy Installation
Modern, Minimalist Aesthetic
IP65 Waterproof (Front & Rear)
High Brightness: 6000-10000 nits for Sunlight Readability
Pixel Pitches: P2.976, P3.91, P4.81, P6.25, P7.81, P10.42
SMD Technology for Vivid Colors
Available Cabinet Sizes: 1000x1000mm, 960x960mm

✉ Email Us

Our team will respond within 12 hours

Why Choose the OU-H Series Die-Cast Aluminum Outdoor LED Display?

The OU-H Series die-cast aluminum outdoor LED display combines ultra-slim design with rugged durability. At just 83mm thin and 23kg per cabinet, it's one of the most lightweight outdoor displays available—significantly reducing structural requirements and installation costs for billboards, building facades, stadiums, and outdoor advertising.

The precision die-cast aluminum cabinet ensures perfect flatness and superior heat dissipation, extending the lifespan of your investment. With IP65 waterproof rating and 6000-10000 nits brightness, the OU-H Series delivers reliable, high-visibility performance in all weather conditions.

Available in pixel pitches from P2.976 to P10.42 with front and rear maintenance access for easy servicing. The cabinet is available in 1000x1000mm and 960x960mm sizes, providing flexibility for various project requirements. With 3840Hz refresh rate and 16-bit grayscale, every image is flicker-free and true to life.

Product Features

High Brightness

Energy Saving

Fast Heat Removal

High Flexibility

IP65 Waterproof

Wide Viewing Angle

Lightweight Slim LED Cabinet - 83mm Thickness, 23kg

Lightweight And Slim

Front Maintenance LED Display - Easy Service

Supports Front Maintenance

Light and Thin

Engineered with precision die-cast aluminum, our LED cabinet combines robustness with remarkable lightness. With modules attached, the cabinet maintains an incredibly slim depth of only 83mm and a per-unit weight of just 23kg. This ultra-thin, lightweight design significantly enhances installation flexibility, making it ideal for a wide range of environments.

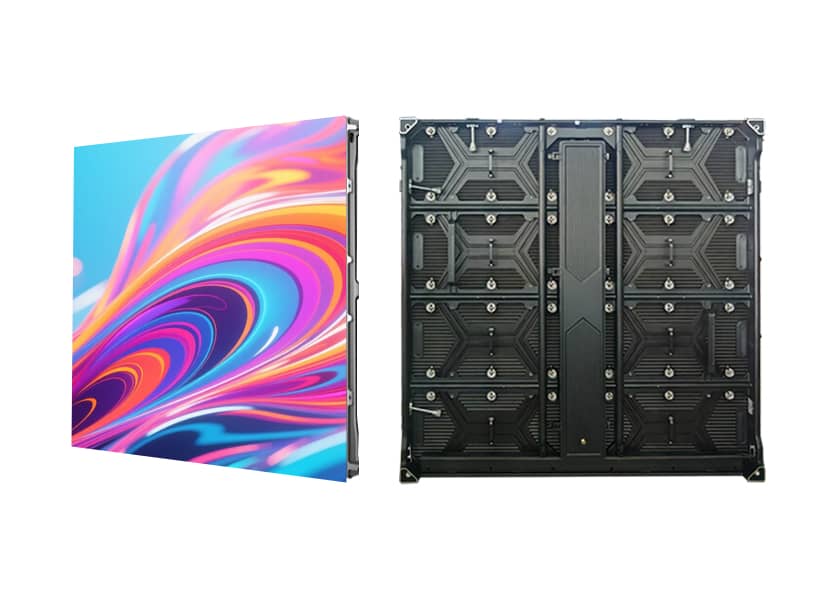

OU-H Series Die-Cast Aluminum Outdoor LED Cabinet - 1000x1000mm Size

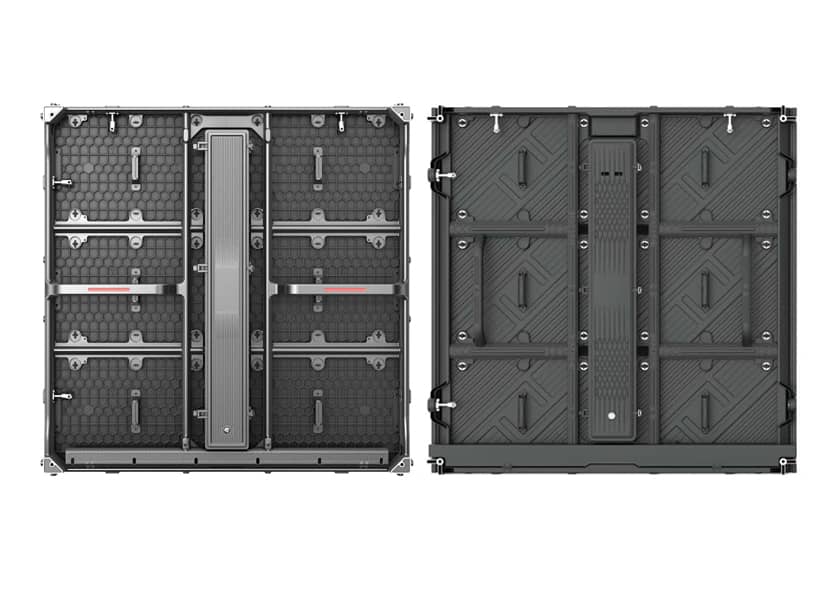

Front & Rear Maintenance

Dual-access design for fast front and rear servicing, helping to minimize maintenance costs. The LED panels are designed for quick and easy installation and removal.

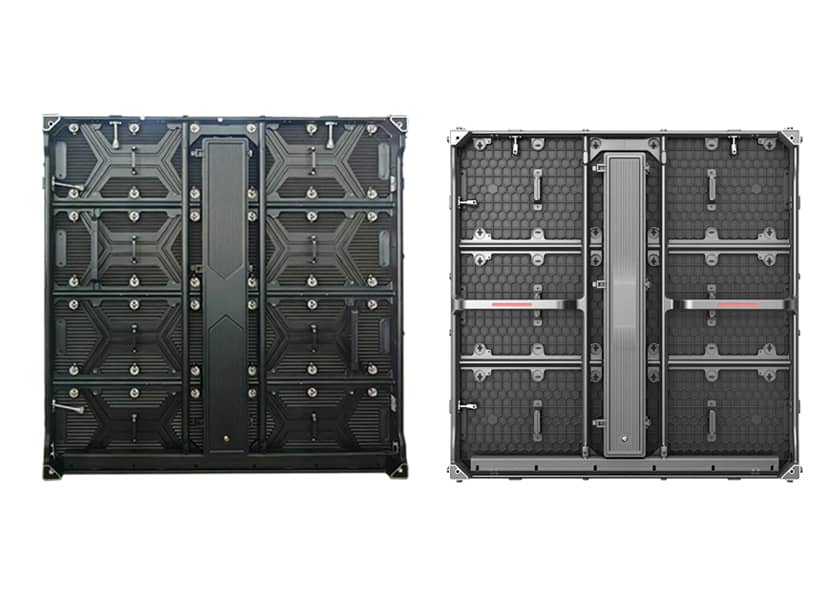

Various Specifications

Combining ultra-slim profiles with exceptional durability, our die-cast aluminum cabinets are engineered for outdoor excellence. Available in standard sizes like 1000x1000mm and 960x960mm, they provide a versatile, lightweight solution that adapts seamlessly to any outdoor environment.

Single/Double-Sided Outdoor LED Display - Versatile Installation

Installation Methods

JINGRUNS outdoor LED displays are built for large-scale venues—from shopping malls and plazas to coastal areas—delivering stunning naked-eye 3D visuals.

Application Scenarios for OU-H Series Outdoor LED Display

Wall-Mounted Outdoor LED Display - Custom Sheet Metal Cabinet

Wall-Mounted LED Screen

Single-Column Mounted Outdoor LED Screen - Advertising Display

Single-Column Mounted LED Screen

Multi-Column Mounted Outdoor LED Billboard - Large Format Display

Multi-Column Mounted LED Screen

Floor-to-Ceiling Outdoor LED Display - Shopping Mall Installation

Floor-to-Ceiling LED Screen

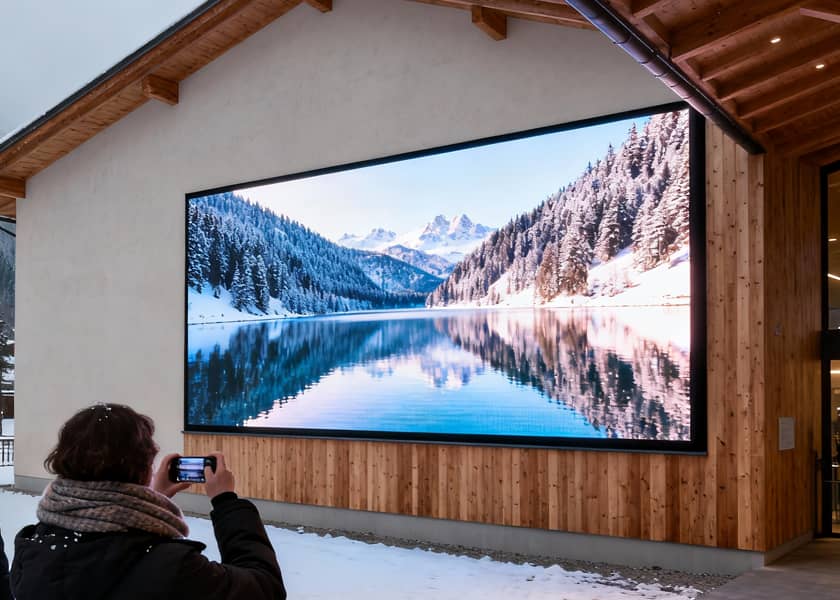

Surface-Mounted Outdoor LED Screen - Building Facade Display

Surface-Mounted LED Screen

OU-H Series Outdoor LED Display Specifications

OU-H Series Cabinet Size: 1000x1000mm / 960x960mm
Pixel Pitch	P2.976	P3.91	P4.81	P6.25	P7.81	P10.42
LED type	SMD1415	SMD1921	SMD1921	SMD2727	SMD2727	SMD2727
Physical Density(dots/㎡)	112896	65536	43264	25600	16384	9216
Drive mode	1/21s	1/16s	1/13s	1/8s	1/4s	1/2s

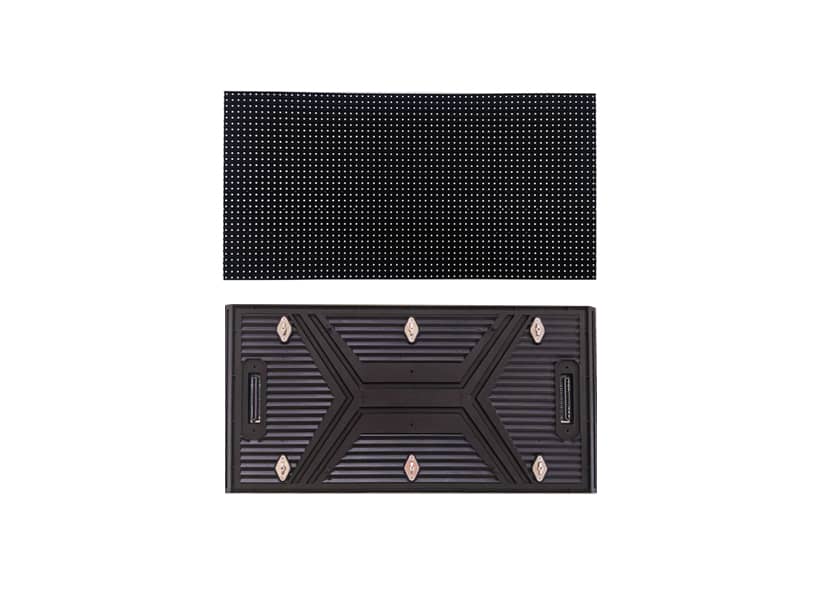

Module size(mm)	500×250	500×250	500×250	500×250	500×250	500×250
Module resolution(dots)	168×84	128×64	104×52	80×40	64×32	48×24
Cabinet resolution(dots)	336×336	256×256	208×208	160×160	128×128	96×96
Best viewing distance	≥3	≥4	≥4	≥6	≥8	≥10
Cabinet size(mm)	1000X1000X83(Customizable for1500 width and 500/750 height）
Module quantity(W xH)	2X4
Cabinet Materials	Aluminum
Cabinet Weight	22.5Kg/m2
Waterproof grade	IP65
Environment	Outdoor
Brightness(Nits)	6000-10000
Color temperature(K)	5000-12000 Optional
Refresh rate(Hz)	≥3840
Viewing angle(H/V)	140°/160°
Maintenance mode	Front & Rear
Gray scale	16bit
Max consumption(W/㎡)	650
Avg. consumption(W/㎡)	100-200
Working Voltage	AC100-240V,50/60Hz
Working temp/Humidity	-20~50℃/10%~95%

Frequently Asked Questions - Outdoor LED Display

How thin and light is the OU-H Series?

The OU-H Series features an ultra-thin 83mm cabinet depth and weighs only 23kg per cabinet. This ultra-lightweight design significantly reduces installation costs and structural requirements, making it ideal for building facades and billboards.

What cabinet sizes are available?

The OU-H Series is available in 1000x1000mm and 960x960mm cabinet sizes. Custom sizes including 1500mm width and 500/750mm height are also available upon request.

What is the brightness of the OU-H Series?

The OU-H Series offers 6000-10000 nits brightness, ensuring excellent visibility even in direct sunlight. For shaded outdoor applications, 6000 nits is sufficient; for full-sun exposure, we recommend 8000-10000 nits.

What is the advantage of die-cast aluminum cabinets?

Die-cast aluminum cabinets offer superior flatness (seamless splicing), better heat dissipation, higher structural strength, and longer lifespan compared to sheet metal cabinets. They're ideal for high-precision outdoor installations.

What pixel pitches are available?

The OU-H Series is available in P2.976, P3.91, P4.81, P6.25, P7.81, and P10.42 pixel pitches, allowing you to choose the perfect resolution for any viewing distance and application.

What is the warranty on OU-H Series?

We offer a 3-year standard warranty with lifetime technical support. The die-cast aluminum construction and IP65 rating ensure long-term durability in outdoor environments.
