RE-G Series Rental LED Display - 90-Degree Curved Corner LED Screen

RE-G Series 90-degree curved corner rental LED display front view

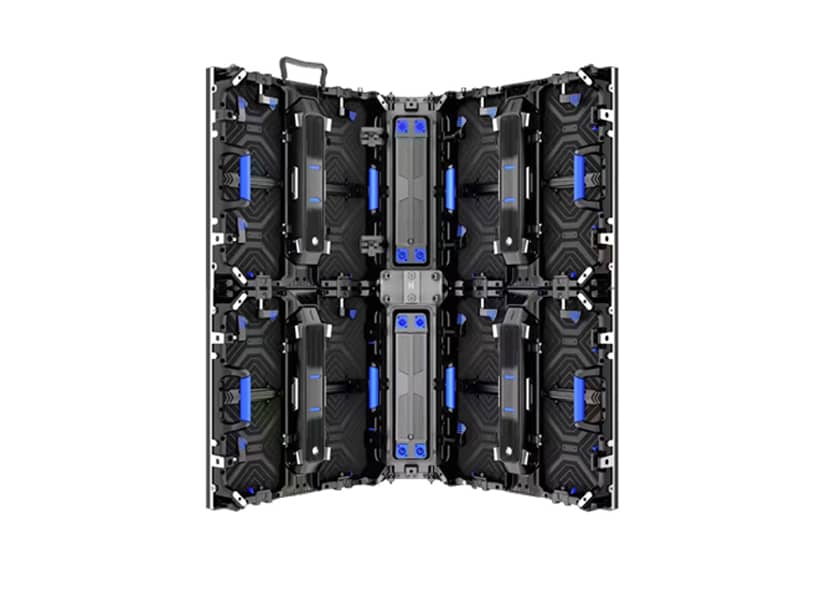

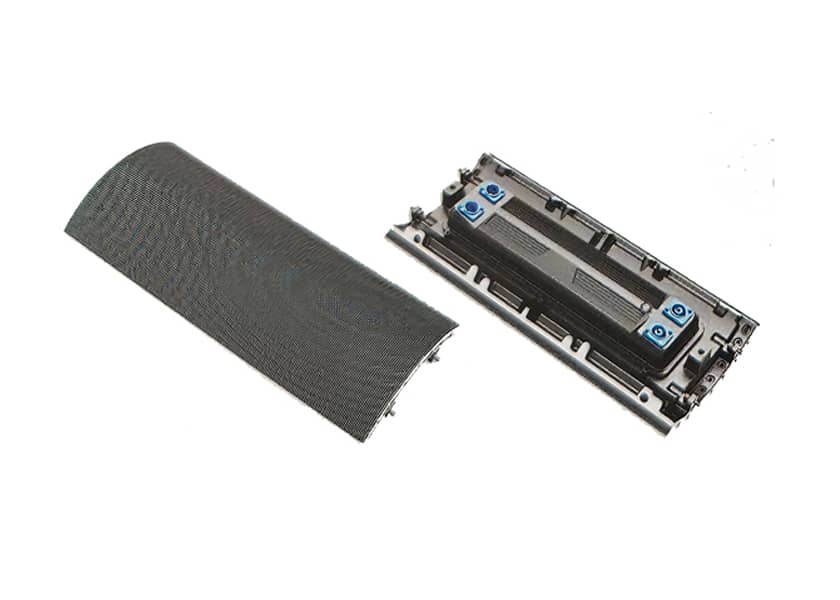

RE-G Series rounded corner LED screen side view modular design

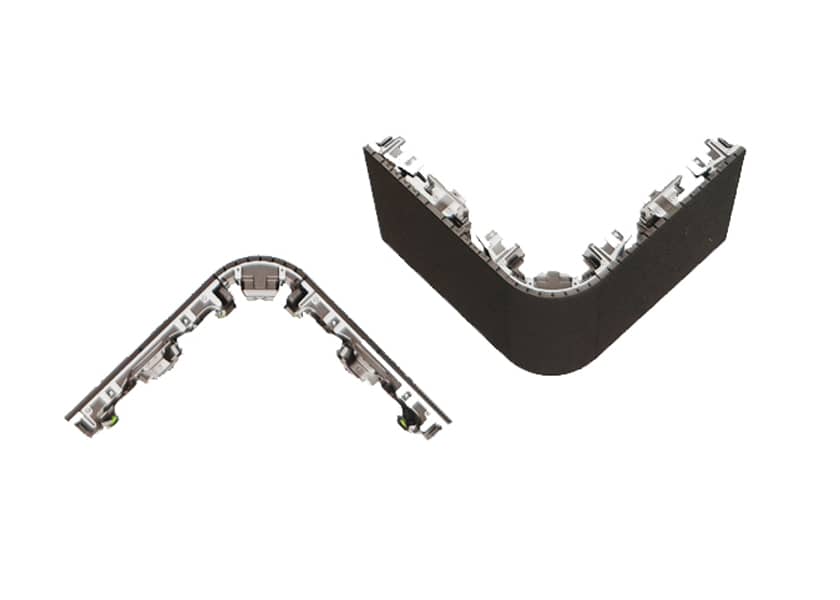

RE-G Series rental LED display front maintenance access easy service

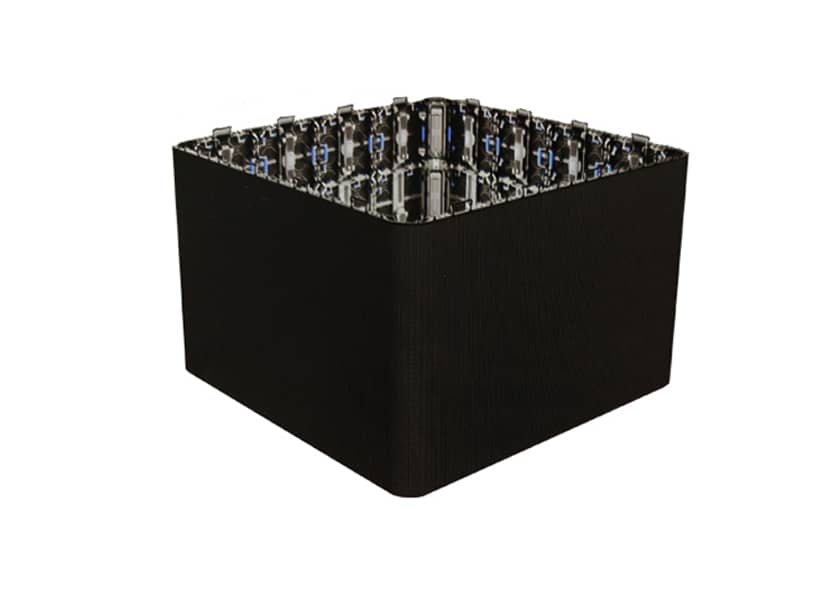

RE-G Series die-cast aluminum curved corner LED cabinet close-up

RE-G Series Rental LED Display | 90° Curved Corner Cabinet for Creative Stage Designs

90-Degree Curved Corner Rental LED Display | High Compatibility with RE-A/RE-B/RE-C/RE-D/RE-E Series

90-Degree Curved Corner Cabinet for Creative Stage Designs
Independent Power Supply for Reliable Performance
High Refresh Rate (3840Hz) - Flicker-Free Camera Capture
Seamless Splicing for Smooth Visual Transitions
Quick Assembly & Disassembly for Rental Events
Indoor & Outdoor Applications (IP65 Front)
Front & Rear Maintenance for Easy Service Access

✉ Email Us

Our team will respond within 12 hours

Why Choose the RE-G Series Curved Corner Rental LED Display?

The RE-G Series curved corner rental LED display features a 90-degree rounded corner cabinet that effectively solves the transition angle at the joint between two display screens, making display image switching more vivid and smooth. Perfect for concerts, exhibitions, corporate events, festivals, and creative stage designs where seamless corner transitions are essential.

The high compatibility design allows seamless integration with RE-A, RE-B, RE-C, RE-D, and RE-E series cabinets, achieving transition corners for right-angle LED screens and fixed-angle transitions for wavy LED screens. The compact and lightweight design enables rapid modular assembly, significantly reducing installation time and labor costs.

Available in pixel pitches from P1.95 to P3.91 with 3840Hz refresh rate for flicker-free video capture. IP65 front waterproof rating allows outdoor event use. Front and rear maintenance access ensures quick servicing without dismantling the screen structure.

Product Features

Protected Corners

Front Maintenance

Seamless Splicing

Quick Installation

Adjustable Angle LED Screen - Curved Rental Display

Adjustable Angles

Wide Viewing Angle

High Refresh Rate

Lightweight And Slim

Modular Assembly Design

The rounded corner display of the LED screen effectively solves the transition angle at the 90 degree joint between two display screens, making the switching of display images more vivid and smooth.

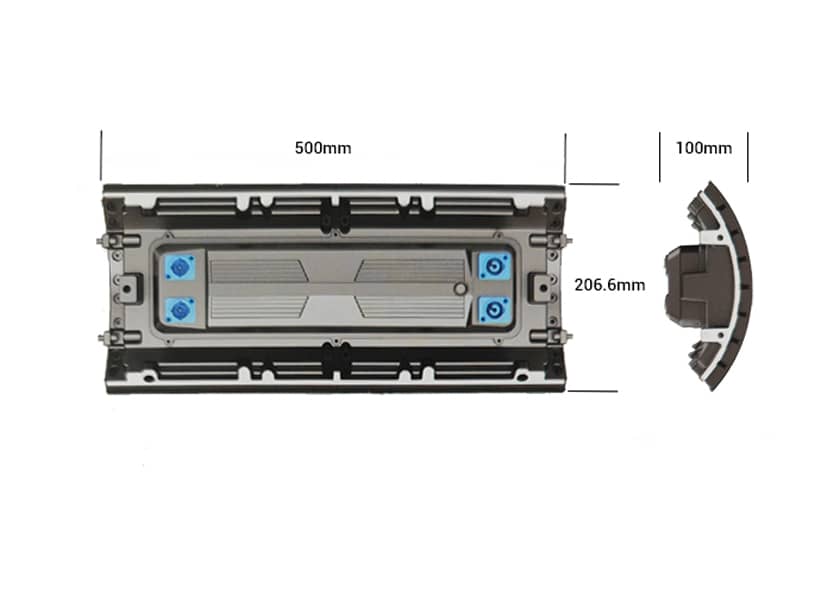

RE-G Series Modular Assembly - Curved Corner LED Display

Quick Assembly

The compact and lightweight design enables rapid modular assembly with other cabinets, significantly reducing installation time and labor costs.

High Compatibility

Compatible with the RE-A/RH-B/RE-C/RE-D/RE-E series cabinets,achieving transition corners for right angle LED screens and fixed angle transitions for wavy LED screens.

Installation Methods

Flexible installation options are supported to meet the diverse requirements of indoor and outdoor applications.

Application Scenarios for LED Display

RE-G Series Rental LED Display - Concert Stage Application

Concert Stage LED

RE-G Series Rental LED Screen - Exhibition Booth Application

Exhibition LED Display

RE-G Series LED Display - Corporate Event Stage

Corporate Event LED

RE-G Series Rental LED Screen - Festival Stage Application

Festival Stage LED

RE-G Series Rental LED Display - Trade Show Application

Trade Show LED

RE-G Series Rental LED Display Specifications


Pixel Pitch	P1.95	P2.604	P2.976	P3.91
LED type	SMD1515	SMD1515/SMD1921	SMD1515/SMD1921	SMD1515/SMD1921
Physical Density(dots/㎡)	262144	147928	123904	123904
Module size(mm)	250×250	250×250	250×250	250×250
Drive mode	1/64s	1/32s	1/28s	1/16s
Cabinet size(mm)	500×500mm / 500×1000mm
Cabinet resolution(dots)	256x256	192x192	168x168	128x128
Best viewing distance	≥2	≥2.5	≥3	≥4
Materials	Die Casting Aluminum
Application	Indoor & Outdoor
Brightness(CD/㎡)	900 / 4500
Panel Weight(kg)	7.6/14
Refresh rate(Hz)	≥3840
Viewing angle(H/V)	140°/140°
Maintenance mode	Front & Rear
Gray scale	16bit
Max consumption(W/㎡)	800
Avg. consumption(W/㎡)	100-300
Working Voltage	AC100-240V,50/60Hz
Working temp/Humidity	-20~50℃/10%~95%

Frequently Asked Questions - Curved Corner Rental LED Display

What makes the RE-G Series different from other rental displays?

The RE-G Series features a 90-degree rounded corner cabinet that solves the transition angle at the joint between two display screens, making display image switching more vivid and smooth. It's specifically designed for creative stage corner installations.

What series is the RE-G Series compatible with?

The RE-G Series is compatible with RE-A, RE-B, RE-C, RE-D, and RE-E series cabinets, achieving transition corners for right-angle LED screens and fixed-angle transitions for wavy LED screens.

What cabinet sizes are available?

The RE-G Series is available in 500x500mm and 500x1000mm die-cast aluminum cabinets with a 90-degree curved corner design.

Can the RE-G Series be used outdoors?

Yes! The RE-G Series features an IP65 front waterproof rating and brightness up to 4500 nits, making it suitable for outdoor festivals and events.

What is the refresh rate of the RE-G Series?

The RE-G Series features a 3840Hz high refresh rate, ensuring flicker-free video capture for broadcast, live streaming, and professional camera work.

What is the warranty on RE-G Series?

We offer a 3-year standard warranty with lifetime technical support. The die-cast aluminum construction ensures long-term durability for rental applications.
